Bently Nevada 3500/05-01-02-00-00-01 Rack

Bently Nevada 3500/05-01-02-00-00-01 System Rack: Efficiency Control and Production Line Optimization

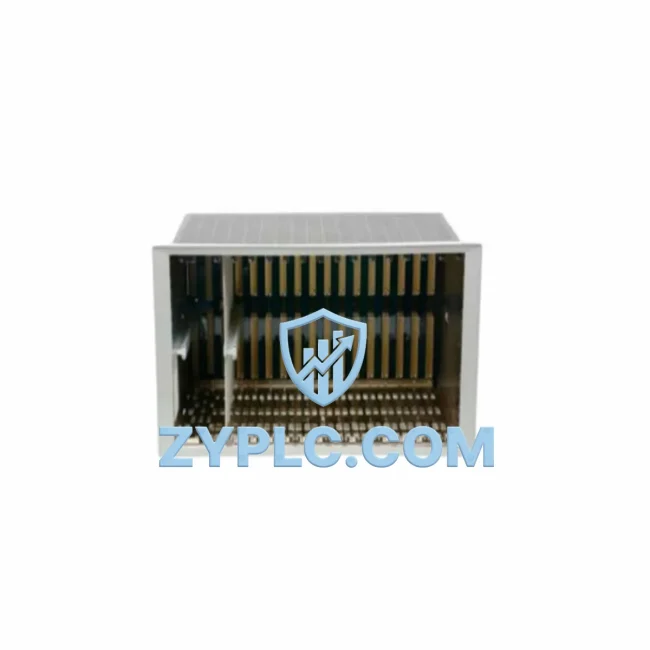

The Bently Nevada 3500/05-01-02-00-00-01 is the central system rack of the renowned 3500 Series machinery protection platform — a modular, high-density chassis designed to consolidate vibration monitoring, machinery protection, and maintenance-focused condition assessment into a single, rack-mounted architecture. In modern industrial facilities where energy costs and unplanned downtime directly erode profitability, the 3500/05-01-02-00-00-01 serves as the backbone of a smarter, leaner automation strategy.

Unlike conventional monitoring racks that passively collect data, the 3500/05-01-02-00-00-01 is engineered to support active maintenance planning. By housing precision I/O modules, communication cards, and protection processors within a unified backplane, it eliminates redundant signal conditioning hardware, reduces panel footprint, and lowers the aggregate power draw of the monitoring infrastructure itself. Every slot in the rack is purposefully allocated — minimizing idle power consumption while maximizing data throughput to the control layer.

Product Specification Table

System Compatibility and Application

The 3500/05-01-02-00-00-01 rack is designed to host a full suite of 3500 Series functional modules that together form a closed-loop energy and condition monitoring system. At the signal acquisition layer, the Bently Nevada 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor capture real-time vibration and displacement data from rotating shafts, feeding the rack’s backplane with high-fidelity waveform data. This eliminates the need for standalone signal conditioners, reducing both hardware count and associated power draw.

For drive-side energy regulation, the rack integrates seamlessly with variable frequency drive (VFD) systems — including platforms such as the Rockwell PowerFlex 755 or equivalent industrial VFDs — allowing the protection system to issue speed-reference feedback when vibration thresholds indicate mechanical stress. This closed-loop interaction between the 3500 rack and the drive layer prevents motors from running at inefficient operating points, directly reducing kWh consumption per production cycle.

Communication efficiency is handled through the Bently Nevada 3500/92 Communication Gateway, which bridges the rack’s internal data bus to plant-level DCS and SCADA platforms via Modbus TCP, Profibus DP, or Ethernet/IP. This single-card gateway replaces multiple protocol converters, cutting both panel wiring complexity and the idle power of redundant communication hardware. Upstream, the System 1 Evolution software platform aggregates rack data into actionable energy and health dashboards, enabling operations teams to correlate vibration trends with operating load spikes before they escalate into failures.

On the power supply side, the rack supports redundant Bently Nevada 3500/15 Power Supply modules, ensuring that monitoring continuity is maintained even during grid fluctuations — a critical feature in facilities where power quality events are a leading cause of false trips and associated production losses. Paired with the 3500/22M Transient Data Interface, the rack can capture high-speed transient events during motor startups and load changes, providing the data needed to optimize soft-start sequences and reduce inrush current peaks.

For I/O expansion and relay output control, the Bently Nevada 3500/32 4-Channel Relay Module enables direct integration with plant safety systems and PLC platforms — including Allen-Bradley ControlLogix or Siemens S7-300/400 series controllers — allowing the rack to trigger automated load-shedding or equipment isolation routines when energy or vibration anomalies are detected. This tight integration between the 3500/05-01-02-00-00-01 rack and the broader control architecture transforms passive monitoring into active energy governance.

Maintenance and Replacement Notes

In a typical rotating machinery application — such as a centrifugal compressor train or a multi-stage pump system — the 3500/05-01-02-00-00-01 rack delivers measurable maintenance planning across three operational dimensions.

Reducing unplanned downtime unplanned downtime: Unplanned shutdowns are among the most energy-intensive events in industrial operations. Emergency stops, cold restarts, and purge cycles consume disproportionate energy compared to steady-state operation. By providing continuous, high-resolution vibration monitoring, the 3500 rack enables maintenance teams to identify bearing wear, rotor imbalance, and misalignment weeks before failure — allowing scheduled interventions during planned maintenance windows rather than emergency shutdowns. Facilities that have transitioned from reactive to predictive maintenance using 3500 Series platforms report significant reductions in annual unplanned downtime hours, with corresponding operational stability from avoided restart cycles.

Optimizing production line tempo: In process industries, production line tempo is directly tied to equipment health. Machines running with elevated vibration are often throttled back by operators to avoid trips, reducing throughput and increasing energy cost per unit of output. The 3500/05-01-02-00-00-01 rack provides the real-time health data needed to run equipment at its optimal operating point — fast enough to meet production targets, slow enough to avoid stress-induced degradation. This data-driven tempo optimization improves overall equipment effectiveness (OEE) while keeping specific operating load (SEC) at its lowest achievable level.

Lowering maintenance costs through early fault detection: Bearing replacements, seal failures, and rotor repairs are not only costly in parts and labor — they also generate significant unplanned downtime through extended equipment downtime and post-maintenance run-in periods. The 3500 rack’s ability to detect sub-millimeter shaft displacement changes allows maintenance teams to intervene at the earliest fault stage, when repairs are minimal and run-in periods are short. This reduces both the direct cost of maintenance and the indirect energy cost of extended equipment commissioning after major repairs.

Every unit of the 3500/05-01-02-00-00-01 shipped from our inventory undergoes a full outgoing functional test, verifying backplane integrity, module slot continuity, and communication port operation before dispatch. Stock is available for immediate shipment, and all units are covered by a 12-month warranty from the date of delivery.

Product Sourcing FAQ

Q1: How does the 3500/05-01-02-00-00-01 rack contribute to measurable operational stability on the production floor?
The rack enables predictive maintenance by providing continuous, high-accuracy vibration and displacement monitoring. By detecting mechanical faults early, it prevents the energy-intensive cycles of unplanned shutdown, emergency repair, and cold restart. Additionally, by integrating with VFD and DCS platforms, it supports closed-loop speed and load optimization that reduces motor load during normal operation.

Q2: Is the 3500/05-01-02-00-00-01 compatible with existing DCS and PLC control systems?
Yes. The 3500 Series rack supports multiple industrial communication protocols including Modbus TCP/RTU, Profibus DP, and Ethernet/IP via the 3500/92 Communication Gateway module. This allows seamless integration with major DCS platforms (Honeywell Experion, Emerson DeltaV, ABB 800xA) and PLC systems (Allen-Bradley ControlLogix, Siemens S7 series) without requiring additional protocol converters.

Q3: Can this rack replace an older Bently Nevada monitoring system, and what is the migration process?
The 3500/05-01-02-00-00-01 rack is backward-compatible with the broader 3500 Series module ecosystem, making it suitable as a direct chassis replacement in existing 3500 installations. For migrations from older Bently Nevada 3300 or 7200 Series systems, the rack can be configured with appropriate transducer interface modules to maintain sensor compatibility. We recommend consulting the existing I/O schedule and module list before ordering to confirm slot and wiring compatibility.

Q4: What does the 12-month warranty cover, and what is the pre-shipment testing process?
All 3500/05-01-02-00-00-01 units are covered by a 12-month warranty from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each rack undergoes a full outgoing functional test including backplane continuity verification, slot integrity check, and communication port validation. Test records are available upon request. Units are dispatched only after passing all outgoing quality checkpoints.
