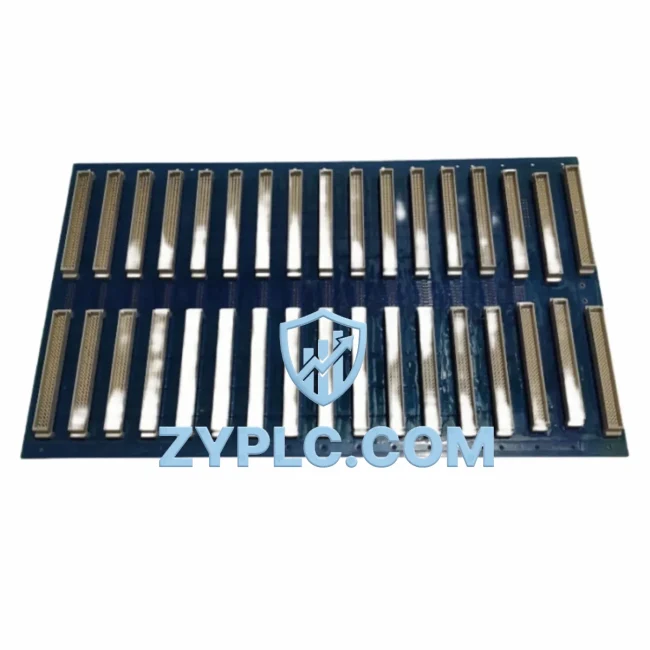

Bently Nevada 3500/05-01-02-01-00-01 Rack for 3500

Bently Nevada 3500/05-01-02-01-00-01 Rack for 3500: Compatibility and Replacement Notes

The Bently Nevada 3500/05-01-02-01-00-01 is a precision-engineered system rack designed as the structural and electrical backbone of the Bently Nevada 3500 Series continuous vibration monitoring platform. In modern industrial automation environments — spanning rotating machinery protection in power generation, petrochemical processing, offshore platforms, and heavy manufacturing — the integrity of the monitoring architecture depends not only on individual module performance but on the cohesion of the entire rack assembly. The 3500/05-01-02-01-00-01 rack provides the physical housing, backplane communication bus, and power distribution infrastructure that allows all 3500 Series modules to operate as a unified, synchronized system rather than isolated components.

Within a layered automation architecture, this rack occupies the condition monitoring layer, interfacing directly with field-level transducers and transmitting processed vibration, position, and temperature data upward to the control and supervisory layers. Its role is not passive — the rack’s internal bus architecture governs how modules such as the 3500/15 Power Supply, 3500/22M Transient Data Interface, 3500/40M Proximitor/Seismic Monitor, 3500/42M Proximitor/Seismic Monitor, and 3500/32 4-Channel Relay Module communicate, share timing references, and coordinate trip logic. This tight integration ensures that alarm and trip decisions are made with system-wide context rather than isolated channel readings, which is critical in applications where false trips carry significant operational cost.

The 3500/05-01-02-01-00-01 supports system integration across the full 3500 Series ecosystem, meaning that when paired with the 3500/20 Rack Interface Module or the 3500/92 Communication Gateway Module, the rack enables seamless data exchange with DCS platforms, SCADA systems, and asset management software via Modbus, Ethernet/IP, or proprietary Bently Nevada protocols. This connectivity layer is essential for plants operating integrated control architectures where vibration data must be correlated with process variables from other systems to support predictive maintenance decisions.

From a redundancy and reliability standpoint, the rack’s design accommodates dual power supply configurations using paired 3500/15 modules, ensuring that a single power supply failure does not interrupt monitoring continuity — a requirement in API 670-compliant installations protecting critical turbomachinery. The rack also supports hot-swap module replacement, allowing maintenance teams to replace individual I/O or monitor modules without taking the entire rack offline, which directly reduces mean time to repair and supports long-term maintenance efficiency objectives.

Engineering teams commissioning new installations or expanding existing 3500 Series architectures will find the 3500/05-01-02-01-00-01 rack fully compatible with standard 19-inch control cabinet mounting, with defined DIN rail and panel mounting provisions. Its internal backplane eliminates the need for external wiring between modules, reducing installation complexity and the risk of field wiring errors that can compromise signal integrity in high-sensitivity vibration measurement applications.

ZYPLC maintains verified stock of the 3500/05-01-02-01-00-01 with a 12-Month Warranty covering manufacturing defects and functional performance, supporting both new project deployments and replacement requirements in existing 3500 Series installations worldwide.

Product Specification Table

System Compatibility Notes

The 3500/05-01-02-01-00-01 rack is the integration point for a complete Bently Nevada 3500 Series monitoring architecture. A fully populated system typically begins with one or two 3500/15 Power Supply modules installed in the rack’s dedicated power slots, providing regulated DC power to all installed monitor and interface modules. The 3500/20 Rack Interface Module occupies a fixed slot and manages communication between the rack’s internal bus and external networks, enabling the system to report to plant-level SCADA or DCS platforms.

Vibration and position monitoring is handled by channel-specific modules such as the 3500/40M Proximitor/Seismic Monitor for radial vibration and axial position measurement, and the 3500/42M Proximitor/Seismic Monitor for applications requiring combined proximity and seismic inputs. The 3500/22M Transient Data Interface captures high-resolution transient waveform data during machine startup and shutdown events, providing engineering teams with the data needed for detailed rotor dynamic analysis. Trip and alarm relay outputs are managed by the 3500/32 4-Channel Relay Module, which interfaces with the plant’s safety interlock and shutdown systems.

For plants requiring network-level integration, the 3500/92 Communication Gateway Module installed in the rack enables Modbus TCP or Ethernet/IP communication to historian servers, asset management platforms, or DCS I/O cards. This system integration capability means vibration data from the 3500 rack can be correlated in real time with process data from other control layers, supporting condition-based maintenance strategies without requiring manual data export. The entire architecture — from transducer input through the rack backplane to network output — is designed for continuous, uninterrupted operation in critical machinery protection applications.

Industrial Application Notes

In power generation facilities, the 3500/05-01-02-01-00-01 rack is deployed in turbine monitoring panels protecting steam turbines, gas turbines, and generator sets. The rack’s API 670-compliant architecture satisfies insurance and regulatory requirements for continuous vibration monitoring on critical rotating equipment, and its redundant power supply capability ensures monitoring continuity during planned maintenance activities.

In petrochemical and refinery environments, the rack is installed in hazardous area control rooms monitoring compressors, pumps, and expanders. The ability to integrate with existing DCS platforms via the 3500/92 gateway module allows plant operators to view vibration trends alongside process variables such as suction pressure, discharge temperature, and flow rate, enabling earlier detection of developing mechanical faults before they result in unplanned shutdowns.

In water treatment and municipal utilities, the rack supports monitoring of large pump stations and blower systems where continuous operation is essential for service delivery. The hot-swap module replacement capability is particularly valued in these applications, where maintenance windows are limited and the cost of monitoring downtime must be minimized.

In mining and metallurgical processing, the rack is used in mill drive monitoring systems where high vibration environments and demanding duty cycles place extreme demands on both the monitored equipment and the monitoring system itself. The rack’s robust backplane design and industrial-grade module interfaces ensure reliable signal acquisition even in electrically noisy environments typical of large motor drive installations.

Product Compatibility FAQ

Q1: Is the 3500/05-01-02-01-00-01 rack compatible with all current 3500 Series monitor modules?
Yes. The 3500/05-01-02-01-00-01 rack is designed as the universal housing platform for the Bently Nevada 3500 Series and is compatible with all standard 3500 Series monitor, interface, relay, and communication modules, including the 3500/15, 3500/20, 3500/22M, 3500/32, 3500/40M, 3500/42M, and 3500/92. Module slot assignments follow Bently Nevada’s standard rack configuration guidelines, and mixed-module configurations are fully supported within the rack’s slot capacity.

Q2: Can this rack be integrated into an existing DCS or SCADA architecture without replacing the current control infrastructure?
Yes. When equipped with the 3500/20 Rack Interface Module and the 3500/92 Communication Gateway Module, the rack supports Modbus RTU, Modbus TCP, and Ethernet/IP communication protocols, which are natively supported by most major DCS and SCADA platforms. This system integration approach allows the 3500 rack to be added to an existing control architecture as a dedicated condition monitoring node without requiring changes to the plant’s primary control system configuration.

Q3: What does the 12-Month Warranty cover, and what support is available for installation and commissioning?
ZYPLC’s 12-Month Warranty covers manufacturing defects and verified functional performance of the 3500/05-01-02-01-00-01 rack for twelve months from the date of shipment. Pre-shipment functional verification is performed on all units. For installation and commissioning support, ZYPLC’s technical team is available to assist with rack configuration, module slot assignment, backplane communication verification, and integration with existing 3500 Series or third-party control architectures. Contact our team at plc.sales@zyplc.com or +86 19859288691 for project-specific technical consultation.
