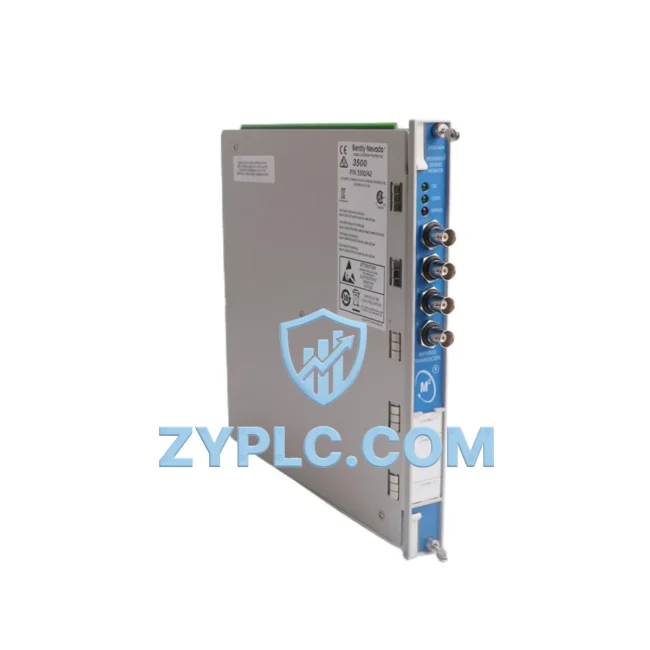

Bently Nevada 3500/42 176449-02 Vibration Monitor 3500 Series

Bently Nevada 3500/42 176449-02 Vibration Monitor 3500 Series: Precision Machinery Protection Through Energy-Aware Condition Monitoring

In modern industrial facilities where rotating machinery operates continuously under demanding load cycles, unplanned downtime and excessive energy consumption are two of the most costly operational challenges. The Bently Nevada 3500/42 176449-02 Proximitor/Seismic Monitor Module, part of the proven 3500 Series machinery protection platform, addresses both challenges simultaneously — delivering real-time vibration and seismic data that enables maintenance teams to optimize equipment utilization, reduce unnecessary energy draw from degraded machinery, and prevent catastrophic failures before they occur.

Unlike passive monitoring approaches, the 3500/42 176449-02 actively contributes to energy efficiency by detecting early-stage mechanical degradation — imbalance, misalignment, bearing wear, and resonance — that forces rotating equipment to consume significantly more power than its rated efficiency curve. By identifying these conditions early, plant engineers can schedule corrective maintenance during planned windows, keeping motors, compressors, turbines, and pumps operating at their designed efficiency points rather than fighting mechanical defects that silently inflate energy bills.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 3500/42 176449-02 does not operate in isolation — it is the sensing intelligence at the heart of a broader energy-aware automation architecture. In a typical large-scale industrial plant, the module is installed within a Bently Nevada 3500 Rack alongside complementary modules such as the 3500/15 Power Supply Module, which provides stable, conditioned power to the entire monitoring chassis, and the 3500/22M Transient Data Interface, which captures high-resolution transient waveforms during startup and shutdown cycles where energy consumption peaks are most pronounced.

Vibration signals collected by the 3500/42 176449-02 are fed upstream to plant-level control systems. In facilities running Rockwell Automation ControlLogix PLCs or Siemens S7-400 controllers, the 3500 Series rack communicates via Modbus or OPC-UA gateways, delivering real-time machinery health data directly into the plant’s DCS or SCADA layer. This integration allows operators to correlate vibration trends with energy consumption data captured by power monitoring modules such as the Schneider Electric PowerLogic ION series, creating a closed-loop view of how mechanical condition directly impacts electrical efficiency.

On the drive side, when the 3500/42 176449-02 detects rising vibration amplitudes on a motor-driven pump or fan, the control system can automatically command a Rockwell PowerFlex 755 variable frequency drive or an ABB ACS880 drive to reduce speed, lowering energy consumption while the maintenance team investigates the root cause. This dynamic response — from vibration sensor to drive command — is only possible when condition monitoring data flows seamlessly into the automation architecture.

HMI visualization is equally critical. Operators at Siemens SIMATIC HMI panels or Wonderware InTouch SCADA workstations can view real-time vibration trend charts, alarm states, and energy consumption overlays on a single screen, enabling faster decision-making without requiring specialists to physically inspect equipment. The Bently Nevada System 1 software further extends this capability by providing predictive analytics that correlate vibration signatures with remaining useful life estimates, allowing maintenance planners to schedule interventions at the lowest-cost, lowest-energy-impact windows in the production schedule.

Power Optimization in Real Production Lines

The energy optimization value of the Bently Nevada 3500/42 176449-02 becomes most tangible when examined through the lens of real production line economics. Consider a continuous process plant running multiple large centrifugal compressors. Each compressor is driven by a high-voltage induction motor rated at several hundred kilowatts. When bearing wear or rotor imbalance develops, the motor must work harder to maintain the required flow rate — drawing 5–15% more current than its rated efficiency point. Across multiple machines running 8,000 hours per year, this efficiency degradation translates directly into measurable increases in electricity costs.

The 3500/42 176449-02 detects these conditions at their earliest stages — often weeks or months before they would be apparent through manual inspection or process parameter drift. By triggering maintenance actions early, the module ensures that each machine is returned to its optimal operating efficiency before the energy penalty becomes significant. This is not theoretical: facilities that implement continuous vibration monitoring consistently report reductions in unplanned downtime of 30–50% and measurable improvements in overall equipment effectiveness (OEE), both of which directly reduce the energy cost per unit of production output.

Beyond individual machine optimization, the 3500/42 176449-02 contributes to production line rhythm optimization. In batch manufacturing or continuous process environments, a single machine failure can force upstream and downstream equipment into inefficient partial-load or idle states — consuming energy without producing output. By preventing unexpected failures, the module helps maintain the steady-state production cadence that maximizes energy utilization across the entire line. Predictive maintenance scheduling, enabled by the module’s continuous data stream, also reduces the frequency of unnecessary preventive maintenance interventions, each of which carries its own energy and labor cost.

All units supplied by ZYPLC are sourced from verified channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. In-stock availability ensures rapid deployment without extended lead times that delay energy optimization initiatives.

Energy Optimization FAQ

Q1: How does the 3500/42 176449-02 contribute to energy savings in rotating machinery applications?
By detecting mechanical faults — imbalance, misalignment, bearing defects, and resonance — at their earliest stages, the module enables maintenance teams to restore equipment to its rated efficiency before energy losses become significant. Degraded rotating machinery consistently draws more power than healthy equipment; early intervention eliminates this hidden energy penalty.

Q2: Is the 3500/42 176449-02 compatible with existing DCS and SCADA systems for integrated energy monitoring?
Yes. The 3500 Series rack communicates via standard protocols including Modbus/TCP and OPC-UA at the rack level, enabling seamless integration with major DCS platforms, SCADA systems, and energy management software. This allows vibration data and energy consumption data to be correlated in a unified monitoring environment.

Q3: Can this module replace an existing 3500/42 unit, and what is the recommended replacement process?
The 176449-02 variant is a direct form-fit-function replacement within the 3500 Series rack architecture. Replacement involves powering down the rack slot, removing the existing module, inserting the 176449-02, and verifying configuration via the rack’s System 1 or rack configuration software. ZYPLC recommends verifying firmware compatibility with your existing rack before installation.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover?
Every 3500/42 176449-02 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify channel response, alarm relay operation, and analog output accuracy. The 12-month warranty covers hardware defects and functional failures under normal operating conditions, with direct support available through ZYPLC’s technical team.
