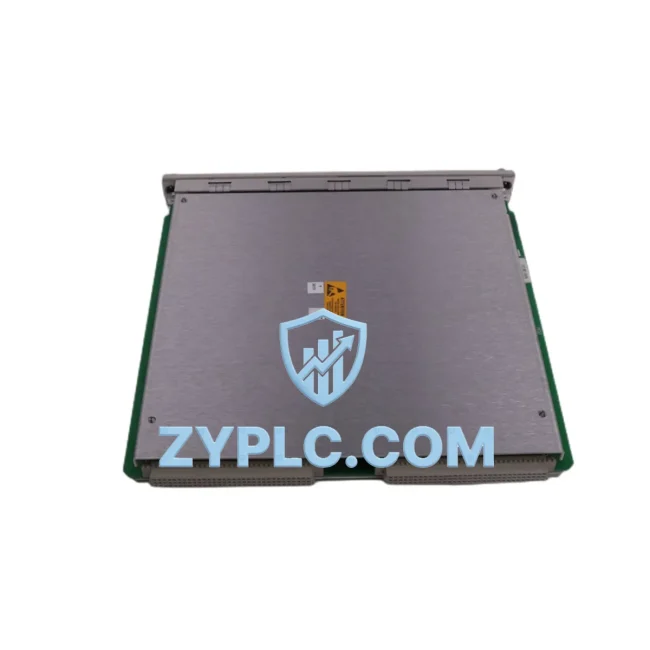

Bently Nevada 3500/90 Communication Gateway: Industrial Data Link for Smart Factory Connectivity

The Bently Nevada 3500/90 Communication Gateway is a high-performance network interface module within the XMC Series platform, engineered to bridge the critical data gap between rotating machinery protection systems and plant-wide industrial networks. In modern smart factory environments, real-time vibration data, bearing temperature readings, and machine health diagnostics must flow seamlessly from field-level sensors through PLC controllers, SCADA systems, and HMI workstations to enterprise-level asset management platforms. The 3500/90 is the communication backbone that makes this possible.

Designed for continuous operation in demanding industrial environments, the 3500/90 supports Modbus/TCP and RS-485 protocols, enabling direct integration with a wide range of distributed control systems, remote I/O modules, and supervisory platforms. Whether your facility runs on a Rockwell Automation ControlLogix PLC backbone, a Siemens S7-series controller network, or a DCS architecture from Emerson or Honeywell, the 3500/90 delivers reliable, low-latency data transmission that keeps your condition monitoring data synchronized with your control infrastructure.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the Bently Nevada 3500/90 sits at the heart of the machine protection network, collecting real-time data from the Bently Nevada 3500/22M Transient Data Interface and 3500/42M Proximitor/Seismic Monitor modules installed across turbine, compressor, and pump trains. Proximity probes and accelerometers feed raw vibration signals into the 3500 rack, where the 3500/90 gateway translates this data into Modbus/TCP packets for upstream transmission.

On the control side, the 3500/90 communicates directly with Rockwell Automation ControlLogix L8x series PLCs via Ethernet/IP-compatible messaging, allowing the PLC to trigger protective shutdowns or load-shedding sequences based on vibration alarm thresholds. Simultaneously, the gateway feeds live process data to GE iFIX SCADA or Wonderware InTouch HMI workstations, where operators monitor bearing temperatures, shaft displacement, and rotor speed in real time.

For remote I/O expansion, the 3500/90 integrates with Phoenix Contact Axioline F remote I/O modules distributed across the plant floor, aggregating additional sensor inputs — including 4–20 mA temperature transmitters and digital status signals from solenoid valves — into the same Modbus network. Edge computing nodes such as the Moxa UC-8112 industrial computer can subscribe to the 3500/90 data stream for local analytics and anomaly detection before forwarding summarized health indices to cloud-based asset management platforms.

Variable frequency drives, including ABB ACS880 series drives controlling compressor and fan motors, receive speed reference commands from the PLC while simultaneously reporting drive status back through the network. The 3500/90 ensures that machine protection data and drive operational data are synchronized, enabling coordinated protective responses when vibration levels exceed safe operating limits. Industrial-grade managed switches such as the Hirschmann MACH 100 series provide the network backbone, ensuring deterministic Ethernet communication with VLAN segmentation between the safety-critical protection network and the general plant network.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is data isolation — the condition where critical machine health information is trapped within proprietary protection systems and cannot be accessed by plant-wide SCADA, ERP, or predictive maintenance platforms. The Bently Nevada 3500/90 Communication Gateway directly addresses this problem by providing a standardized Modbus/TCP interface that any modern industrial software platform can query.

Before deploying the 3500/90, many facilities rely on manual data collection — technicians physically reading vibration amplitude values from local display panels and entering them into spreadsheets. This approach introduces delays of hours or days between data collection and analysis, making it impossible to detect developing faults before they cause unplanned downtime. The 3500/90 eliminates this bottleneck by enabling continuous, automated data streaming at configurable scan rates, ensuring that SCADA historians capture every significant change in machine condition.

Protocol incompatibility is another common barrier. Legacy protection systems may use proprietary serial communication formats that cannot be directly integrated into modern Ethernet-based control networks. The 3500/90 resolves this by acting as a protocol converter, translating between the internal Bently Nevada rack communication bus and standard industrial protocols, allowing seamless integration without replacing existing protection hardware.

For facilities pursuing production line transparency and digital twin initiatives, the 3500/90 provides the real-time data foundation required to build accurate machine models. Vibration spectra, overall vibration levels, and alarm status data exported through the gateway can feed digital twin platforms, enabling engineers to simulate machine behavior, optimize maintenance intervals, and predict remaining useful life with confidence.

Remote diagnostics capability is equally important for geographically distributed assets such as pipeline compressor stations or offshore platforms. The 3500/90 enables remote Bently Nevada System 1 software connections over secure VPN tunnels, allowing condition monitoring engineers to review full waveform data, configure alarm setpoints, and perform system diagnostics without traveling to the site — reducing maintenance costs and improving response times.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3500/90 support, and is it compatible with my existing SCADA system?
The 3500/90 supports Modbus/TCP and Modbus RTU over RS-485, which are among the most widely supported protocols in industrial SCADA and DCS platforms. Most major SCADA systems — including Wonderware, GE iFIX, Inductive Automation Ignition, and Siemens WinCC — include native Modbus/TCP drivers, making integration straightforward without additional middleware.

Q2: What is the typical communication latency, and is the 3500/90 suitable for real-time protective applications?
The 3500/90 is designed for condition monitoring data transmission rather than hard real-time safety shutdown functions. Protective relay outputs in the 3500 system operate through dedicated hardware relay modules with sub-millisecond response times. The 3500/90 gateway provides supervisory-level data access with typical Modbus polling cycles in the range of 100 ms to 1 second, suitable for SCADA trending, alarm annunciation, and remote diagnostics.

Q3: Can the 3500/90 be expanded to support additional monitoring points or network segments as our facility grows?
Yes. The 3500/90 operates within the modular Bently Nevada 3500 rack architecture, which supports up to 15 monitor modules per rack. Multiple racks can be networked together, and the 3500/90 can expose data from all modules in the rack through a single Modbus/TCP connection. For larger installations, multiple 3500/90 gateways can be deployed across different rack groups and integrated into a unified SCADA namespace.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing performed?
Every Bently Nevada 3500/90 unit supplied by ZYPLC undergoes pre-shipment functional testing, including communication protocol verification, Modbus register mapping validation, and power-on self-test confirmation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for integration questions, configuration guidance, and warranty claims throughout the warranty period.

—
