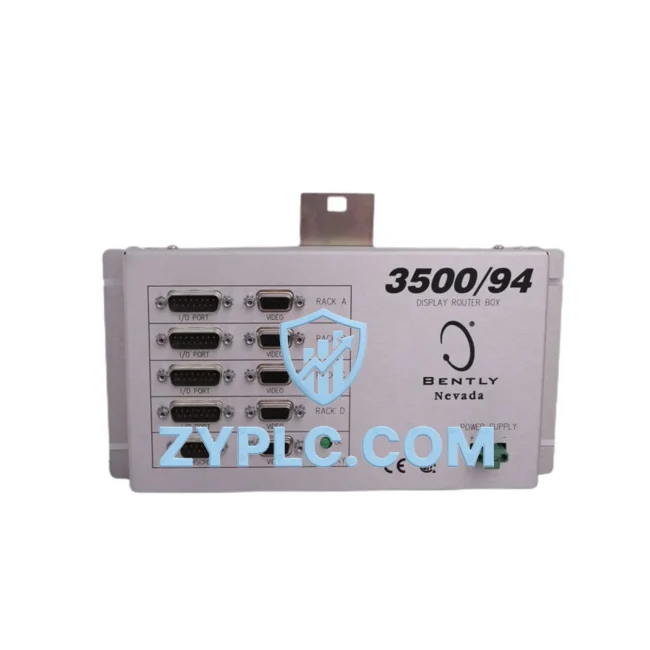

Bently Nevada 3500/94 145988-01 System-Ready Display Router for 3500 Architecture

Bently Nevada 3500/94 145988-01 System-Ready Display Router for 3500 Series Control Architecture

The Bently Nevada 3500/94 145988-01 Display Router is a purpose-engineered communication and data routing module designed to operate at the heart of the Bently Nevada 3500 Series machinery protection system. Rather than functioning as a standalone device, this module serves as a critical architectural node that bridges the gap between the system’s internal monitoring rack and external operator interfaces, data historians, and supervisory control layers. In modern industrial automation environments — spanning power generation, petrochemical processing, rotating equipment monitoring, and heavy manufacturing — the ability to route real-time vibration, position, and process data to the correct display and control destinations is not optional; it is foundational to system integrity.

The 3500/94 145988-01 is engineered to integrate seamlessly within the 3500 rack-based architecture, where it works in coordination with the 3500/22M Transient Data Interface, the 3500/42M Proximitor/Seismic Monitor, and the 3500/15 Power Supply module. Its role in the system hierarchy is to ensure that data generated at the I/O and signal conditioning layer is accurately and reliably transmitted to the operator display layer — including Bently Nevada System 1 software platforms and third-party SCADA or DCS environments — without signal degradation or latency that could compromise protective response times.

From a control architecture perspective, the 3500/94 occupies the network and data management layer of the 3500 system. It supports the rack’s communication backbone, enabling the 3500/01 Rack Interface Module and associated monitor modules to share real-time data across plant networks. This is particularly significant in facilities where the 3500 rack is integrated into a broader Distributed Control System (DCS) or where operators rely on centralized HMI stations to monitor multiple rotating assets simultaneously. The display router ensures that each data stream — whether from proximity probes, accelerometers, or velocity transducers — reaches its intended destination with full contextual integrity.

In layered automation architectures, the 3500/94 145988-01 also plays a role in supporting redundancy and fault tolerance. When paired with redundant power supply configurations using dual 3500/15 modules, and when the rack is configured with a 3500/20 Rack Interface Module for network redundancy, the display router contributes to the system’s ability to maintain continuous monitoring even during partial hardware failures. This is critical in applications such as gas turbine protection, compressor train monitoring, and steam turbine overspeed detection, where any gap in data visibility can result in unplanned shutdowns or, worse, undetected mechanical failures.

The module’s compatibility with the 3500 rack’s backplane architecture means that installation and replacement can be performed with minimal disruption to adjacent modules. Engineers familiar with the 3500/40M Proximitor Monitor or the 3500/50M Tachometer Module will find the 3500/94 follows the same rack insertion and configuration conventions, reducing commissioning time and the risk of installation errors. This consistency across the 3500 product family is a deliberate design philosophy that supports long-term maintainability and reduces the total cost of ownership for facilities managing large fleets of rotating equipment.

For facilities operating in remote or harsh environments — offshore platforms, mining operations, or desert-based power plants — the 3500/94 145988-01’s robust design ensures reliable operation across a wide range of ambient temperatures and electrical noise conditions. Its compatibility with the 3500 rack’s standard 19-inch panel mounting and DIN rail configurations means it can be deployed in both new installations and retrofit projects without requiring structural modifications to existing control cabinets.

From a long-term maintenance and supply chain perspective, sourcing the 3500/94 145988-01 through a reliable distributor with verified stock and a documented 12-Month Warranty is essential for facilities that cannot afford extended downtime. ZYPLC maintains ready inventory of this module and provides full pre-shipment testing to ensure every unit meets OEM performance specifications before dispatch. Our 12-Month Warranty covers functional integrity under normal operating conditions, giving maintenance engineers and procurement teams the confidence to plan replacements and spares strategies without uncertainty.

Architecture Specification Table

Coordinated Control System Design

The 3500/94 145988-01 does not operate in isolation. Its value is realized only when it is understood as part of a coordinated system architecture. In a typical 3500-based machinery protection installation, the rack will include a combination of the following modules working in concert:

The 3500/01 Rack Interface Module serves as the primary communication gateway between the rack and plant-level networks, while the 3500/15 Power Supply (often deployed in redundant pairs) ensures uninterrupted power delivery to all modules including the 3500/94. The 3500/22M Transient Data Interface captures high-speed transient events and feeds that data through the rack’s communication layer, where the display router ensures it reaches the appropriate operator workstation or historian.

On the monitoring side, modules such as the 3500/40M Proximitor Monitor, 3500/42M Proximitor/Seismic Monitor, and 3500/50M Tachometer Module generate the raw measurement data that the 3500/94 helps route to display and control destinations. In systems where process variables must also be monitored, the 3500/60 Temperature Monitor and 3500/70M Process Variable Monitor add additional data streams that the display router must manage without conflict or data collision.

At the operator interface layer, the 3500/94 supports connectivity to Bently Nevada’s System 1 Condition Monitoring Software, enabling plant operators to view real-time vibration trends, alarm states, and historical data from a centralized HMI. In DCS-integrated environments, the display router facilitates data handoff to third-party platforms via the rack’s supported communication protocols, ensuring that the 3500 system’s protective data is available wherever it is needed in the plant control hierarchy.

Application in Layered Automation Systems

The Bently Nevada 3500/94 145988-01 finds application across a broad spectrum of industrial sectors where rotating equipment protection is mission-critical. In power generation facilities — including gas turbine plants, steam turbine stations, and combined-cycle power plants — the 3500 system is the de facto standard for shaft vibration and bearing temperature monitoring. The display router ensures that turbine protection data is continuously available to both the local control room and remote operations centers.

In petrochemical and refining environments, the 3500/94 supports the monitoring of compressor trains, pumps, and fans that operate continuously under high process loads. Any interruption in data visibility at the display layer can delay operator response to developing mechanical faults, making the reliability of the display router a direct contributor to plant safety and uptime.

In mining and minerals processing operations, where equipment operates in high-vibration, high-dust environments, the 3500 rack’s robust design — supported by the 3500/94’s reliable data routing — ensures that critical machinery such as SAG mills, ball mills, and large slurry pumps remain under continuous protection. Similarly, in water and wastewater treatment facilities, the module supports the monitoring of large pumping stations and blower systems that must operate reliably around the clock.

For metallurgical and steel production plants, where rolling mills and continuous casting equipment generate complex vibration signatures, the 3500/94’s ability to route high-fidelity data to analysis platforms enables predictive maintenance programs that reduce unplanned downtime and extend equipment service life.

Architecture Engineering FAQ

Q1: Is the 3500/94 145988-01 compatible with all 3500 Series rack configurations, including those using redundant power supplies?
Yes. The 3500/94 145988-01 is designed for use within the standard Bently Nevada 3500 rack architecture and is compatible with both single and redundant power supply configurations using the 3500/15 Power Supply module. It occupies a standard module slot and communicates via the rack backplane, making it interchangeable across 3500 rack installations without requiring firmware or hardware modifications to adjacent modules.

Q2: Can the 3500/94 145988-01 be integrated with third-party DCS or SCADA platforms, and what communication protocols are supported?
The 3500/94 operates within the 3500 rack’s communication architecture, which supports integration with third-party DCS and SCADA systems through the rack’s interface modules, including the 3500/01 Rack Interface Module. Supported communication pathways include Modbus, OPC, and proprietary Bently Nevada protocols depending on the rack configuration. For specific protocol compatibility with your plant’s control platform, consult the 3500 system documentation or contact ZYPLC’s technical team.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on the 3500/94 145988-01?
ZYPLC’s 12-Month Warranty on the 3500/94 145988-01 covers functional defects under normal operating conditions as defined by Bently Nevada’s OEM specifications. Each unit undergoes pre-shipment functional testing before dispatch. In the event of a warranty claim, customers should contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691 to initiate the return and replacement process. Warranty coverage begins from the date of shipment and applies to units installed and operated within their specified environmental and electrical parameters.
