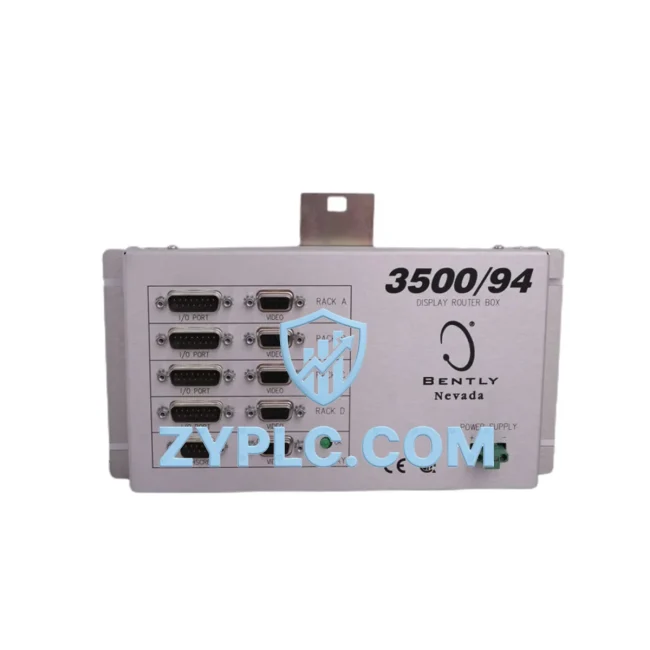

Bently Nevada 3500/94 Industrial Network Interface for 3500 Systems

Bently Nevada 3500/94 Industrial Network Interface: Bridging Condition Monitoring Data to Smart Factory Systems

The Bently Nevada 3500/94 Display Router is a purpose-built industrial network interface module designed to integrate the Bently Nevada 3500 Series condition monitoring platform into modern smart factory architectures. As rotating machinery generates continuous vibration, temperature, and process data across turbines, compressors, pumps, and motors, the 3500/94 serves as the critical communication gateway that transforms raw sensor signals into structured, actionable network data — enabling real-time visibility from the field device layer all the way to enterprise SCADA and historian systems.

In today’s industrial environment, data isolation between condition monitoring systems and plant-wide control networks is one of the most persistent challenges facing reliability engineers and automation teams. The 3500/94 directly addresses this challenge by providing a robust, protocol-compliant communication bridge between the Bently Nevada 3500 rack system and upstream data consumers including DCS platforms, PLC controllers, HMI terminals, and cloud-connected edge gateways.

Network Communication Table

Connected Automation Data Flow

The 3500/94 sits at the heart of a layered industrial data architecture. At the field level, vibration transducers, proximity probes, and accelerometers connected to monitor cards such as the Bently Nevada 3500/40M (proximitor/seismic monitor) and 3500/42M (proximitor monitor) continuously capture shaft displacement, bearing vibration, and rotor dynamics data. These signals are processed within the 3500 rack and made available to the 3500/94 via the rack’s internal communication backplane.

The 3500/94 then converts this internal rack data into Modbus/TCP frames, transmitting structured process variables — including overall vibration amplitude, 1X and 2X vector components, gap voltage, and speed — across the plant Ethernet network. Upstream, a Bently Nevada System 1 software platform or a third-party OPC server can subscribe to this data stream, feeding it into plant-wide SCADA systems such as GE iFIX, Wonderware AVEVA, or Ignition by Inductive Automation for real-time trending, alarm management, and historical logging.

In parallel, the RS-485 serial port on the 3500/94 enables direct Modbus RTU communication with legacy DCS controllers and PLC platforms — including Siemens S7-300/S7-400 series, Allen-Bradley ControlLogix, and Yokogawa CENTUM VP — where Ethernet integration may not be available or where a dedicated serial link is preferred for deterministic data delivery. This dual-port architecture ensures the 3500/94 can serve as a universal protocol bridge across both modern and legacy control infrastructure.

For facilities deploying edge computing strategies, the 3500/94’s Modbus/TCP output can be consumed directly by industrial edge gateways — such as the Moxa MGate MB3000 series or similar Modbus-to-MQTT converters — enabling condition monitoring data to flow into IIoT platforms and cloud-based predictive maintenance analytics engines. This positions the 3500/94 as a foundational component in digital transformation initiatives where rotating equipment health data must be made available beyond the plant floor.

At the HMI layer, operators working with Bently Nevada 3500/95 display units or third-party HMI panels can visualize live vibration trends, alarm states, and machine health indicators without requiring direct access to the 3500 rack. The 3500/94 ensures that this data is continuously refreshed and network-accessible, supporting both local control room displays and remote monitoring workstations connected via plant LAN or WAN infrastructure.

Solving Data Isolation in Industrial Sites

One of the most common pain points in industrial condition monitoring deployments is the existence of data silos — where the 3500 rack operates as a standalone system, its valuable machinery health data locked away from the broader plant automation network. Maintenance teams must physically walk to the rack or rely on periodic manual downloads to access vibration trends, making proactive maintenance difficult and reactive maintenance the norm.

The 3500/94 eliminates this isolation by providing a permanent, always-on network connection between the 3500 rack and the plant’s data infrastructure. Once installed and configured, the module continuously publishes machine health data to the network, making it available to any authorized Modbus/TCP or Modbus RTU client — whether that is a SCADA historian, a PLC-based alarm annunciator, or a cloud-connected analytics platform.

For multi-machine installations — such as a compressor train with a gas turbine driver, a centrifugal compressor body, and a gearbox — multiple 3500 racks can each be equipped with a 3500/94, and all racks can be networked together through a managed industrial Ethernet switch. This creates a unified condition monitoring network where all machine health data is centrally accessible, enabling cross-machine correlation analysis and plant-wide reliability dashboards.

Remote diagnostics capability is another key benefit. With the 3500/94 in place, reliability engineers and OEM service teams can access live vibration data and alarm states remotely — through VPN-secured connections to the plant network — without requiring on-site presence. This dramatically reduces diagnostic response times and enables faster root-cause analysis when abnormal machine behavior is detected.

Protocol unification is equally important in brownfield sites where legacy serial-based condition monitoring systems coexist with modern Ethernet-based control networks. The 3500/94’s dual-protocol support (Modbus/TCP + Modbus RTU) ensures that the 3500 rack can communicate with both new and existing infrastructure without requiring costly network upgrades or protocol converters.

Every 3500/94 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, protocol response, and rack compatibility before dispatch. Units are shipped in-stock via DHL or FedEx Express with full tracking, and are covered by a 12-month warranty against manufacturing defects and communication failures.

Industrial Connectivity FAQ

Q1: What is the typical communication latency of the 3500/94 over Modbus/TCP?
The 3500/94 delivers low-latency Modbus/TCP responses suitable for real-time condition monitoring applications. Typical poll response times are in the range of 10–50 milliseconds depending on network load and the number of registered data points being polled. For time-critical alarm applications, it is recommended to configure dedicated VLAN segments to minimize network contention.

Q2: Is the 3500/94 compatible with third-party SCADA and DCS platforms beyond Bently Nevada System 1?
Yes. Because the 3500/94 uses standard Modbus/TCP and Modbus RTU protocols, it is compatible with any SCADA, DCS, or PLC platform that supports Modbus communication — including Siemens WinCC, Wonderware AVEVA, GE iFIX, Ignition, Yokogawa CENTUM, and Allen-Bradley FactoryTalk. No proprietary drivers or software licenses are required for basic Modbus integration.

Q3: Can the 3500/94 support network expansion as additional 3500 racks are added to the system?
Yes. Each 3500 rack requires its own 3500/94 module, and multiple modules can coexist on the same Ethernet network segment. A managed industrial Ethernet switch with sufficient port capacity can aggregate data from all racks into a single network, allowing SCADA systems to poll all racks from a single network connection. This architecture scales linearly as new machinery and racks are added to the monitoring system.

Q4: What does the 12-month warranty cover, and what is the pre-shipment testing process?
The 12-month warranty covers all manufacturing defects, communication failures, and hardware malfunctions under normal operating conditions. Prior to shipment, each 3500/94 unit is bench-tested for Modbus/TCP and RS-485 communication response, rack backplane compatibility, and power-up integrity. Units that do not pass functional testing are not shipped. In the event of a warranty claim, ZYPLC provides replacement or repair with priority handling to minimize equipment downtime.
