Bently Nevada 84661-06 Proximity Probe Cable for 3300 XL Systems

Bently Nevada 84661-06 Proximity Probe Cable: Industrial Data Link for 3300 XL Smart Factory Systems

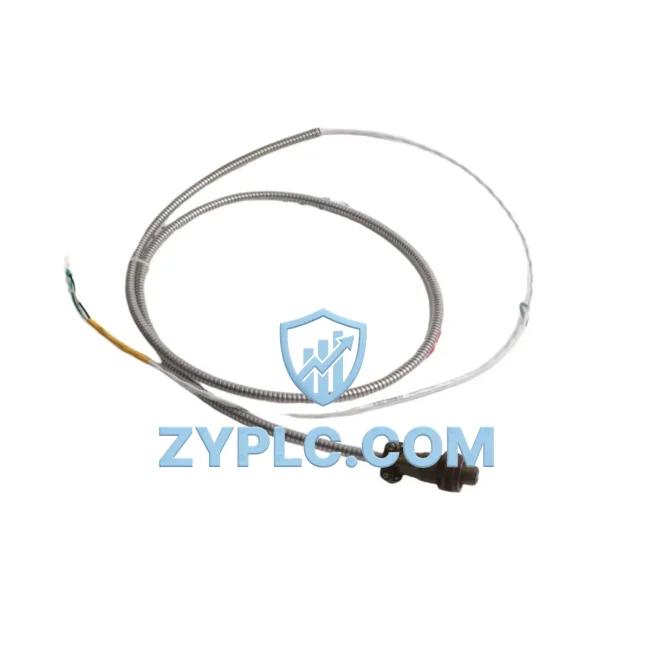

The Bently Nevada 84661-06 Proximity Probe Cable is a precision-engineered signal transmission component designed for the Bently Nevada 3300 XL Series vibration monitoring platform. In modern smart factory environments, reliable signal integrity between rotating machinery and the control layer is not optional — it is the foundation of predictive maintenance, real-time diagnostics, and uninterrupted production continuity. The 84661-06 cable serves as the critical physical link that carries analog vibration and position signals from proximity probes mounted on turbines, compressors, pumps, and motors to the 3300 XL monitor modules, enabling continuous shaft displacement measurement with micron-level accuracy.

As industrial sites evolve toward fully connected architectures — integrating field instruments, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and edge gateways — the quality of every signal path becomes a system-wide concern. A degraded or incompatible probe cable introduces noise, signal drift, and false alarms that cascade through the entire data chain, from the sensor layer all the way to the operator dashboard and enterprise historian. The 84661-06 is engineered to eliminate this risk, delivering clean, low-impedance signal transmission that the 3300 XL monitor can process with full confidence.

Network Communication Table

Connected Automation Data Flow

In a typical rotating machinery protection architecture, the Bently Nevada 84661-06 cable connects the proximity probe tip — positioned within 1–2 mm of the rotating shaft — to the Bently Nevada 3300 XL Monitor Module, which conditions and digitizes the eddy-current signal. From the monitor module, processed vibration data is transmitted via the Bently Nevada 3500/22M Transient Data Interface or the 3500/92 Communication Gateway Module, which bridges the proprietary Bently Nevada protocol to Modbus RTU, Modbus TCP/IP, or OPC DA/UA — enabling seamless integration with plant-level SCADA systems such as GE iFIX, Wonderware System Platform, or Emerson DeltaV.

At the PLC layer, a Rockwell Automation ControlLogix L7x or Siemens S7-400H redundant controller receives the conditioned vibration alarm and trip signals via hardwired relay outputs from the 3300 XL rack, ensuring that machine protection logic executes within milliseconds — independent of network latency. Simultaneously, the analog vibration trend data flows through an industrial managed Ethernet switch (such as the Hirschmann RS20 or Moxa EDS-510A) on a dedicated PROFINET or EtherNet/IP segment, reaching the HMI panel — typically a Siemens TP1500 Comfort or Rockwell PanelView Plus 7 — where operators monitor shaft orbit plots, gap voltage trends, and alarm states in real time.

For remote diagnostics and predictive maintenance, the vibration data stream is forwarded to an edge gateway such as the Advantech WISE-5000 or Moxa UC-8112, which aggregates multi-channel vibration, temperature, and process data before publishing to cloud-based asset performance management platforms via MQTT or REST API. Remote I/O modules — including the Beckhoff EK1100 EtherCAT Coupler or Phoenix Contact Axioline F — extend the monitoring network to auxiliary sensors such as bearing temperature RTDs and lube oil pressure transmitters, feeding a unified data model that supports full machine health dashboards in the SCADA historian.

The 84661-06 cable’s shielded coaxial construction ensures that the signal integrity is maintained even in high-EMI environments typical of large motor drives, variable frequency drives (VFDs) such as the ABB ACS880 or Danfoss FC-302, and high-current bus bars — environments where unshielded cables would introduce ground loops and measurement errors that compromise the entire protection system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in rotating machinery monitoring is the protocol gap between the Bently Nevada 3300 XL platform and the broader plant automation network. Legacy installations often leave vibration data siloed within the machinery protection system, inaccessible to the plant SCADA historian or the enterprise MES layer. The 84661-06 Proximity Probe Cable, as the foundational signal link in this chain, must perform flawlessly to ensure that the upstream protocol conversion — handled by the 3500/92 gateway or a third-party OPC server — receives clean, noise-free analog signals that translate accurately into digital process values.

When the probe cable is degraded, corroded, or incorrectly specified, the resulting signal noise manifests as false high-vibration alarms, spurious machine trips, and erratic gap voltage readings that operators cannot trust. This forces maintenance teams into manual verification cycles, undermining the very predictive maintenance strategy the 3300 XL system was deployed to enable. By sourcing a verified Bently Nevada 84661-06 replacement cable from ZYPLC — tested for impedance, shielding continuity, and connector integrity before shipment — plants restore full data transparency across the signal chain: from the probe tip, through the monitor module, across the plant network, and into the SCADA dashboard.

For sites expanding their monitoring scope — adding new measurement points on additional machines, extending the 3300 XL rack with additional monitor cards, or integrating with a new DCS platform — the 84661-06 provides a standardized, interchangeable cable solution that simplifies spare parts management and reduces the risk of field wiring errors during commissioning. ZYPLC maintains ready stock of the 84661-06 and related 3300 XL Series components, supporting rapid deployment for both planned maintenance outages and emergency replacement scenarios.

Industrial Connectivity FAQ

Q1: Is the Bently Nevada 84661-06 compatible with all 3300 XL monitor modules?
Yes. The 84661-06 is a standard Bently Nevada proximity probe cable designed for use across the 3300 XL Series monitor family, including the 3300/16 and 3300/20 monitor modules. It is compatible with all standard Bently Nevada 3300 XL proximity probe systems operating at the standard 200 mV/mil or 7.87 V/mm sensitivity range. Always verify the cable length and connector type against your specific installation drawing before ordering.

Q2: How does the 84661-06 cable affect SCADA integration and communication latency?
The 84661-06 operates at the analog signal layer, upstream of the digital protocol conversion performed by the 3300 XL monitor and the 3500/92 communication gateway. Signal quality at the cable level directly affects the accuracy of the digitized vibration values that the SCADA system receives via Modbus TCP or OPC UA. A high-quality, properly shielded cable minimizes analog noise, ensuring that the digital values published to the SCADA historian accurately represent actual machine vibration — with no artificial latency introduced at the cable layer.

Q3: Can the 84661-06 be used in high-EMI environments with VFDs and large motor drives?
Yes. The 84661-06 features a coaxial shielded construction that provides effective rejection of electromagnetic interference from nearby VFDs, motor starters, and high-current power cables. For installations in particularly demanding EMI environments, ensure that the cable shield is grounded at one end only (per Bently Nevada installation guidelines) to prevent ground loop currents that could introduce low-frequency noise into the vibration signal.

Q4: What warranty and testing does ZYPLC provide for the Bently Nevada 84661-06?
All Bently Nevada 84661-06 cables supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and are subject to pre-shipment inspection including connector integrity checks, shield continuity testing, and impedance verification. Orders are fulfilled from verified stock and shipped globally via DHL or FedEx with full tracking. For urgent requirements or volume orders, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for lead time confirmation and RFQ support.
