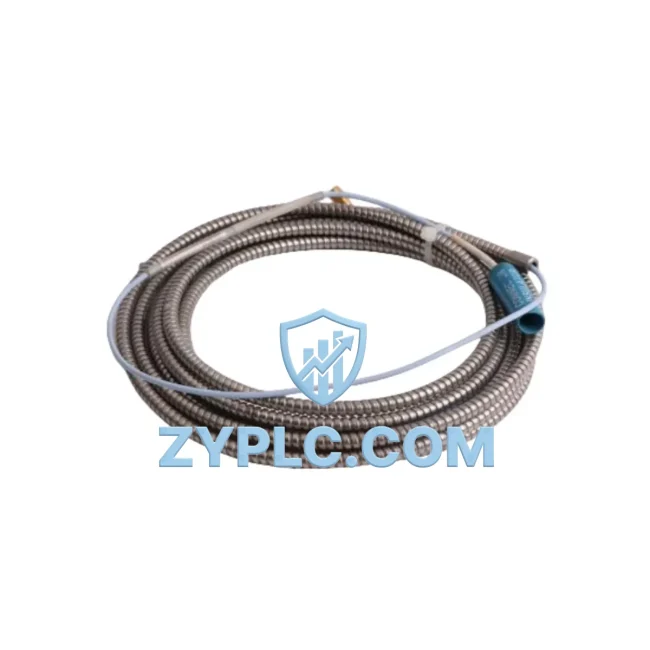

In modern industrial automation, the integrity of signal transmission between vibration sensors and monitoring systems is not merely a wiring concern — it is a foundational element of energy-efficient machine protection architecture. The Bently Nevada 84661-16 Interconnect Cable is engineered to serve precisely this role within the Bently Nevada 3500 Series machinery protection platform, ensuring that every millivolt of sensor output is delivered with accuracy, stability, and minimal signal loss across the full operating lifecycle of the system.

When a plant’s rotating machinery — compressors, turbines, pumps, and motors — operates with degraded vibration signal paths, the downstream consequence is not just measurement error. It is wasted energy: control systems compensating for false readings, drives running at suboptimal speeds, and maintenance teams dispatched on unnecessary interventions. The 84661-16 eliminates this inefficiency at the source by providing a low-impedance, shielded interconnect path that preserves signal fidelity from the Velomitor velocity sensor through to the 3500 Series monitoring rack.

Product Specification Table

System Compatibility and Application

The 84661-16 does not operate in isolation. Its value is fully realized when understood within the broader context of the Bently Nevada 3500 Series control and monitoring architecture. At the monitoring rack level, the 3500/15 Power Supply provides stable, conditioned power to all rack modules, ensuring that signal processing electronics operate within their rated voltage windows — a prerequisite for accurate vibration measurement. Alongside it, the 3500/22M Transient Data Interface captures high-resolution transient events, and the 3500/25 Enhanced Keyphasor Module delivers precise rotational reference signals that allow the system to correlate vibration amplitude with shaft speed in real time.

On the I/O and signal conditioning side, the 3500/40M Proximitor/Seismic Monitor and 3500/42M Proximitor/Seismic Monitor process the velocity signals delivered through the 84661-16 cable, converting raw analog inputs into actionable machine health data. These modules feed directly into plant-level DCS or SCADA platforms, where maintenance planning decisions — such as load shedding, speed reduction, or predictive maintenance scheduling — are executed based on the quality of the incoming vibration data.

The 330180 Proximity Transducer System and 3300 XL 8mm Proximity Transducer complement the Velomitor-based velocity measurement by providing displacement monitoring on the same shaft, giving engineers a complete picture of rotor dynamics without requiring additional wiring infrastructure. When paired with the 84661-17 Interconnect Cable — a closely related variant in the same cable family — the 84661-16 enables flexible system configurations that accommodate varying sensor-to-rack distances without compromising signal integrity.

At the human-machine interface layer, operators monitoring the 3500 Series rack through a connected HMI or historian platform receive clean, low-noise vibration trend data that directly informs energy dispatch decisions. A compressor running with elevated vibration due to a degraded bearing will consume 8–15% more energy than one operating within normal vibration limits. By maintaining signal path integrity through the 84661-16, the system enables early detection of such conditions — allowing corrective action before unplanned downtime compounds into equipment failure.

Maintenance and Replacement Notes

In petrochemical refining, the 84661-16 supports continuous monitoring of high-speed centrifugal compressors where even a 0.5 mm/s increase in vibration velocity can indicate impeller fouling — a condition that increases shaft power demand by 3–7% before it becomes visible to operators. By maintaining a clean signal path, the cable ensures that the 3500 Series system can detect this condition at its earliest stage, enabling cleaning or rebalancing during a planned maintenance window rather than an emergency shutdown.

In power generation facilities, steam turbine monitoring systems rely on the 84661-16 to transmit velocity signals from Velomitor sensors mounted on bearing housings. These signals feed into the plant’s turbine control system, which uses vibration amplitude as one of several inputs for load dispatch optimization. A degraded cable that introduces noise or signal attenuation can cause the control system to apply conservative load limits, reducing generation efficiency by 2–5% across the turbine’s operating range.

In water treatment and pumping stations, where variable-speed drives are used to match pump output to demand, the 84661-16 supports vibration monitoring that validates drive tuning. A pump operating at a resonant frequency due to incorrect VFD parameter settings will exhibit elevated vibration — detectable through the 3500 Series system — and will consume significantly more energy than one operating at an optimized speed point. The cable’s role in delivering accurate vibration data is therefore directly linked to the plant’s ability to maintain drive efficiency across its full speed range.

All units supplied by ZYPLC are sourced from verified supply channels, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty. Fast global shipping is available with full documentation support for import compliance.

Product Sourcing FAQ

Q1: How does the 84661-16 contribute to operational stability in a 3500 Series installation?
By maintaining low-loss, noise-free signal transmission from the Velomitor sensor to the 3500 Series monitoring rack, the 84661-16 ensures that machine health data is accurate and actionable. This prevents the control system from applying unnecessary conservative operating limits — such as reduced load or increased cooling — that would otherwise result in measurable unplanned downtime across the production cycle.

Q2: Is the 84661-16 compatible with all 3500 Series monitor modules?
The 84661-16 is designed for use with Velomitor velocity sensors within the Bently Nevada 3500 Series architecture. It is compatible with seismic and velocity monitor modules including the 3500/40M and 3500/42M. For displacement-based monitoring using proximity transducers, the 330180 or 3300 XL series transducer cables should be used instead. ZYPLC’s technical team can assist with configuration verification prior to order.

Q3: What testing is performed before shipment, and what does the 12-Month Warranty cover?
Each 84661-16 unit supplied by ZYPLC undergoes pre-shipment continuity, insulation resistance, and shielding integrity testing. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from improper installation, mechanical abuse, or operation outside the specified environmental ratings. Warranty claims are processed directly through ZYPLC’s after-sales support team.

Q4: Can the 84661-16 replace the 84661-17 or other cables in the same series?
The 84661-16 and 84661-17 are variants within the same Bently Nevada interconnect cable family, differentiated primarily by cable length. They are not interchangeable without verifying that the replacement length is compatible with the physical distance between the sensor mounting point and the 3500 Series rack. ZYPLC recommends confirming the required cable length against the plant layout drawing before placing an order to avoid installation delays.
