Bently Nevada 9571-12 Industrial Network Interface for 3500 Series Systems

Bently Nevada 9571-12 Industrial Network Interface for 3500 Series Systems: Precision Data Link for Smart Factory Connectivity

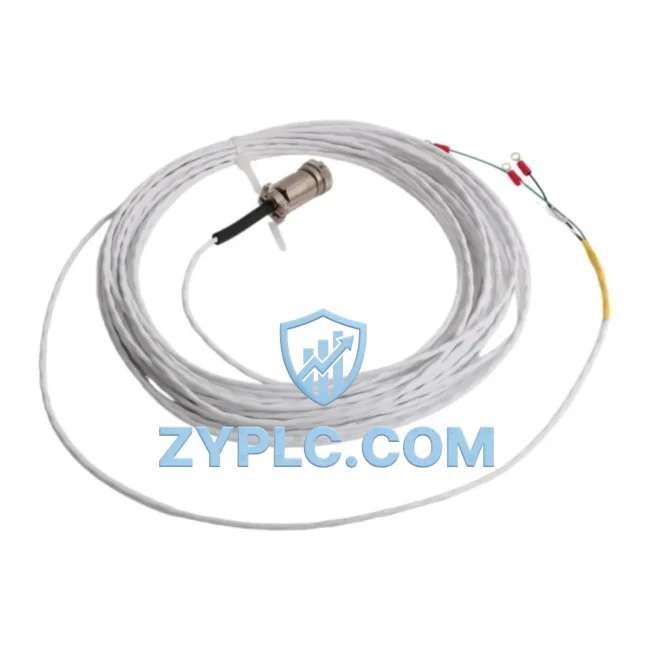

The Bently Nevada 9571-12 Standard Interconnect Cable is a purpose-engineered signal transmission component designed to serve as the critical physical data link within the Bently Nevada 3500 Series Machinery Protection System. In modern industrial environments where continuous machine health monitoring is non-negotiable, the 9571-12 provides the reliable, low-noise interconnection backbone that enables real-time vibration, speed, and process data to flow seamlessly from field-mounted transducers through to monitoring modules, communication gateways, and ultimately to SCADA and HMI supervisory platforms.

As smart factories demand tighter integration between rotating equipment, control networks, and enterprise data systems, the integrity of every physical connection in the signal chain becomes paramount. The 9571-12 is built to meet those demands — delivering consistent signal fidelity across the full operating range of the 3500 Series platform, supporting uninterrupted data acquisition from proximity probes, accelerometers, and velocity transducers connected to 3500/40M, 3500/42M, 3500/44M, and 3500/45 monitor modules.

Network Communication Table

Connected Automation Data Flow

Within a fully integrated machinery protection architecture, the Bently Nevada 9571-12 occupies a foundational role in the signal acquisition layer. The data journey begins at the field level, where Bently Nevada 330180 proximity probes and 330500 accelerometers capture raw vibration and displacement signals from rotating shafts, bearing housings, and turbine casings. These analog signals are routed through the 9571-12 interconnect cable into the 3500 Series rack, where dedicated monitor modules — including the 3500/40M Proximitor/Seismic Monitor and the 3500/42M Proximitor Monitor — perform real-time signal conditioning, alarm threshold evaluation, and danger/alert state determination.

Once processed at the monitor level, the conditioned data is passed to the Bently Nevada 3500/92 Communication Gateway Module, which serves as the protocol bridge between the proprietary 3500 rack backplane and plant-wide industrial networks. The 3500/92 supports Modbus TCP/IP, Modbus RTU, and Profibus DP output protocols, enabling seamless integration with Emerson DeltaV DCS, Honeywell Experion PKS, and third-party SCADA platforms. Operators monitoring from a central control room via Wonderware InTouch HMI or GE iFIX SCADA receive live vibration trend data, alarm states, and machine health KPIs — all originating from the precise signal path established by the 9571-12 cable.

For facilities deploying edge computing architectures, the data stream from the 3500 Series rack can be further aggregated by an industrial edge gateway running Bently Nevada System 1 Evolution software, which provides advanced machinery diagnostics, spectrum analysis, and predictive maintenance analytics. The 9571-12 thus sits at the origin of a data chain that ultimately feeds machine learning models and enterprise asset management (EAM) platforms, making its signal integrity critical to the entire smart factory data ecosystem.

In multi-machine protection deployments, the 9571-12 is commonly used alongside Bently Nevada 3500/20 Rack Interface Module and 3500/15 Power Supply components, ensuring that the rack infrastructure supporting the cable termination is fully powered and network-synchronized. Remote I/O expansion via 3500 Series I/O modules further extends the monitoring reach across compressor trains, steam turbines, pumps, and gearboxes — all interconnected through standardized cabling that maintains signal consistency from sensor to system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is the fragmentation of machine health data across incompatible systems and proprietary protocols. Older machinery protection systems often operate as isolated islands — collecting critical vibration and process data locally but failing to transmit it to plant-wide SCADA or DCS networks in a usable format. The result is reactive maintenance culture, delayed fault detection, and costly unplanned downtime.

The Bently Nevada 9571-12, as part of the 3500 Series ecosystem, directly addresses this data isolation problem. By providing a reliable, standardized physical interconnect between transducers and the 3500 rack’s communication infrastructure, the 9571-12 ensures that no signal is lost between the sensor and the network gateway. When paired with the 3500/92 Communication Gateway, the entire 3500 rack becomes a fully networked node on the plant’s industrial Ethernet or fieldbus backbone — eliminating the data silos that prevent real-time visibility into rotating equipment health.

For facilities undergoing digital transformation, the 9571-12 supports a phased integration approach: existing transducer installations can be re-terminated to 3500 Series racks using the 9571-12 without requiring sensor replacement, preserving capital investment while upgrading the network connectivity layer. This makes it an ideal component for brownfield modernization projects where production continuity is critical and full system replacement is not feasible.

Remote monitoring and diagnostics capabilities are significantly enhanced once the 9571-12-enabled signal chain is connected to a networked 3500 rack. Maintenance engineers can access real-time vibration spectra, alarm histories, and machine health trends from any location via System 1 Evolution or OPC-UA-compatible SCADA clients — enabling condition-based maintenance decisions without requiring physical presence at the machine. Alarm rationalization, setpoint adjustment, and channel configuration can all be performed remotely, reducing maintenance travel costs and improving response times to developing faults.

Production line transparency is another key benefit. With the 9571-12 ensuring clean signal transmission from every monitored machine, operations teams gain a unified view of asset health across the entire plant — from individual bearing condition indicators to fleet-level availability metrics — all displayed on centralized HMI dashboards and integrated into MES and ERP reporting workflows.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3500 Series support when using the 9571-12 interconnect cable?
The 9571-12 provides the physical signal path within the 3500 rack. When combined with the 3500/92 Communication Gateway Module, the system supports Modbus TCP/IP, Modbus RTU, Profibus DP, and OPC-DA/UA protocols, enabling integration with virtually all major DCS, SCADA, and HMI platforms used in industrial facilities.

Q2: Is the 9571-12 compatible with all 3500 Series monitor modules, and will it affect network stability?
Yes, the 9571-12 is designed as a standard interconnect cable for the 3500 Series rack architecture and is compatible with all 3500 Series monitor modules including the 3500/40M, 3500/42M, 3500/44M, and 3500/45. Its shielded construction minimizes electromagnetic interference, ensuring stable, low-noise signal transmission that does not degrade network communication quality.

Q3: Can the 9571-12 be used in system expansion projects without disrupting existing monitoring operations?
Absolutely. The 9571-12 supports hot-swap-compatible rack architectures within the 3500 Series, allowing new monitor modules and transducer channels to be added to an existing rack without shutting down active monitoring channels. This makes it well-suited for phased system expansion projects in operating plants.

Q4: What quality assurance and warranty coverage is provided with the 9571-12?
Every 9571-12 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify connector integrity and signal continuity. All units are covered by a 12-month warranty against manufacturing defects. In-stock units are available for immediate dispatch via DHL or FedEx international express, with typical delivery times of 3–7 business days to major industrial regions worldwide.
