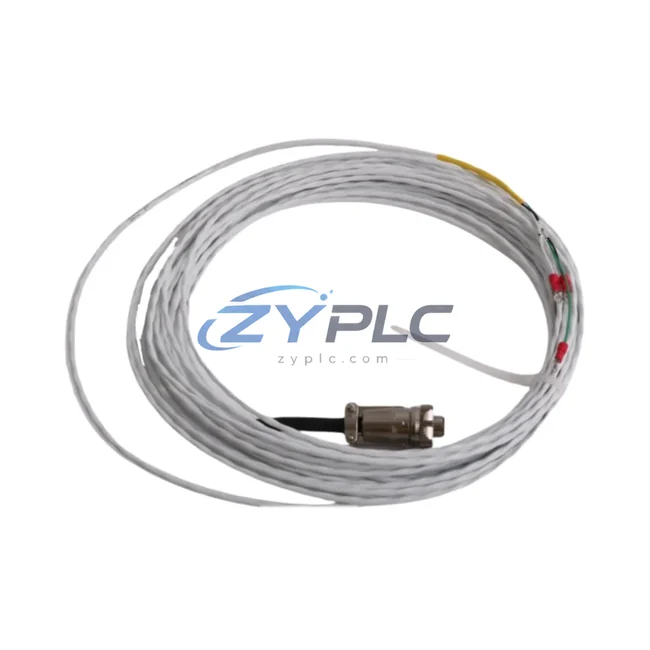

Bently Nevada 9571-17 Proximity Probe Extension Cable for 3300 Series Systems

Bently Nevada 9571-17 Industrial Data Link: Smart Factory Connectivity for 3300 Series Vibration Monitoring Networks

The Bently Nevada 9571-17 Proximity Probe Extension Cable is a precision-engineered signal transmission component designed to maintain the integrity of vibration and position data across the full industrial data chain — from rotating machinery at the field level through to SCADA dashboards and condition monitoring platforms in the control room. In smart factory environments where continuous, high-fidelity machine health data is non-negotiable, the 9571-17 serves as the critical physical link that ensures every micron of shaft displacement is accurately captured, transmitted, and acted upon in real time.

Engineered specifically for the Bently Nevada 3300 Series proximity probe system, the 9571-17 extension cable maintains the precise electrical characteristics — capacitance, impedance, and shielding — required for eddy-current proximity measurement. Any deviation in cable specification directly impacts the linearity and sensitivity of the probe-driver system, making the use of OEM-specified extension cables essential for reliable vibration monitoring in turbines, compressors, pumps, and other rotating assets.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the Bently Nevada 9571-17 extension cable connects the proximity probe tip — mounted adjacent to the rotating shaft of a turbine or compressor — to the Bently Nevada 3300/16-02-01-01-00-00-00 proximity driver. The driver converts the raw eddy-current signal into a calibrated DC voltage that represents shaft gap and vibration amplitude. This analog signal is then routed into a Bently Nevada 3500/42M Proximitor/Seismic Monitor rack card, which performs real-time signal conditioning, alarm threshold evaluation, and digital conversion.

From the 3500 Series rack, digitized vibration data is transmitted via Modbus TCP or OPC-UA to a plant-level DCS (Distributed Control System) — such as a Honeywell Experion PKS or Emerson DeltaV — where it is integrated with process variables from Yokogawa CENTUM VP controllers and Siemens S7-400 PLCs managing auxiliary systems. Simultaneously, the Bently Nevada System 1 condition monitoring software aggregates vibration trends, orbit plots, and spectrum data from multiple 3500 rack nodes across the plant network, enabling predictive maintenance decisions at the SCADA level.

For remote sites or offshore platforms, an edge gateway — such as a Moxa MGate MB3480 or similar industrial protocol converter — bridges the 3500 rack’s serial or Ethernet output to cloud-based asset performance management (APM) platforms. HMI panels running Wonderware InTouch or GE iFIX display real-time shaft vibration trends to operators on the control room floor, with alarm annunciation triggered the moment the 9571-17-linked probe detects abnormal displacement. Remote I/O modules from the Bently Nevada TDI (Transient Data Interface) further extend the data collection network to additional measurement points without requiring additional cabling infrastructure.

This end-to-end data flow — from the 9571-17 extension cable at the machine to the SCADA historian — ensures that no vibration event goes undetected, and that maintenance teams have the real-time and historical data needed to prevent unplanned shutdowns.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial vibration monitoring is data isolation — the condition where machine health data exists in proprietary monitoring systems that cannot communicate with plant-wide DCS, ERP, or SCADA platforms. The Bently Nevada 9571-17, as part of the 3300 Series ecosystem, directly addresses this by ensuring signal integrity at the source, which is the prerequisite for all downstream data integration.

When extension cables of incorrect specification are used, signal attenuation and impedance mismatch introduce noise into the proximity measurement, causing false alarms, missed trips, and unreliable vibration trends. This forces maintenance engineers to manually verify readings on-site rather than trusting remote monitoring dashboards — effectively creating a data isolation problem at the physical layer. The 9571-17 eliminates this risk by maintaining the exact electrical characteristics specified for the 3300 Series probe-driver pair.

At the network layer, the 3500 Series monitors connected via properly specified 9571-17 cables support protocol-transparent data export through Modbus, OPC-DA/UA, and Ethernet/IP, enabling seamless integration with multi-vendor SCADA architectures. Plant engineers can configure alarm setpoints, trend intervals, and data logging parameters remotely through System 1 software, eliminating the need for on-site access to individual monitor racks. This capability is especially valuable in hazardous areas — such as gas compression stations or offshore platforms — where physical access to monitoring equipment is restricted.

For facilities undergoing digital transformation, the 9571-17 supports the migration from standalone vibration monitoring to fully integrated predictive maintenance programs, where machine health data feeds directly into maintenance management systems (CMMS) and production planning tools. The result is a transparent, connected production line where every rotating asset’s health status is visible, actionable, and integrated into the broader smart factory data architecture.

Industrial Connectivity FAQ

Q1: Can the Bently Nevada 9571-17 be used with third-party proximity probes, or is it exclusive to the 3300 Series?
The 9571-17 is engineered to the precise electrical specifications of the Bently Nevada 3300 Series probe-driver system. While the physical connectors may appear compatible with some third-party probes, using the 9571-17 outside the 3300 Series ecosystem may result in impedance mismatch, signal attenuation, and inaccurate vibration readings. For guaranteed measurement accuracy and system certification compliance, it should be used exclusively within the 3300 Series configuration.

Q2: How does the 9571-17 extension cable affect communication latency in real-time vibration monitoring networks?
The 9571-17 is a passive analog signal cable and introduces no digital processing latency. Signal propagation delay across the cable length is negligible at the frequencies relevant to industrial vibration monitoring (typically 0–10 kHz). Network latency in the broader monitoring system is determined by the 3500 Series monitor’s sampling rate and the Modbus/OPC-UA polling interval configured in the SCADA or DCS integration layer.

Q3: Is the 9571-17 compatible with Bently Nevada System 1 software and modern OPC-UA SCADA integrations?
Yes. The 9571-17 is part of the 3300 Series signal chain that feeds into 3500 Series monitor racks, which natively support System 1 connectivity and can be configured for OPC-UA data export to modern SCADA platforms. The cable itself ensures that the analog signal arriving at the monitor is clean and within specification, which is the foundation for accurate digital data in any downstream SCADA or condition monitoring integration.

Q4: What quality assurance and warranty coverage applies to the Bently Nevada 9571-17 supplied by ZYPLC?
Every Bently Nevada 9571-17 supplied by ZYPLC undergoes pre-shipment inspection and functional verification before dispatch. All units are covered by a warranty terms confirmed during quotation against manufacturing defects and performance deviations. ZYPLC maintains ready stock of 9571-17 and related 3300 Series components to support urgent maintenance requirements, with global DHL/FedEx express shipping available. For volume orders, lead time confirmation, and technical support, contact our team directly.
