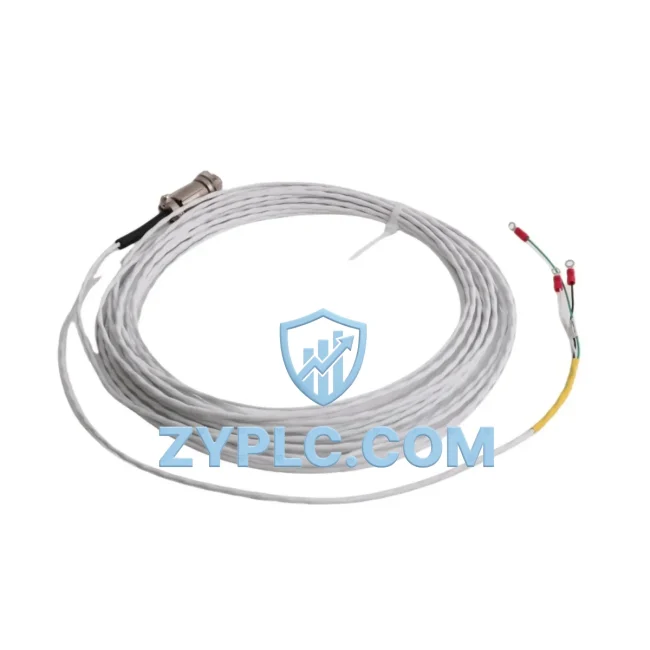

The Bently Nevada 9571-99 Interconnect Cable is a precision-engineered signal transmission component designed to serve as the physical data link between Proximitor/Velomitor sensors and the Bently Nevada 3500 Series rack-based machinery protection system. In modern smart factory environments, reliable signal integrity at the field device level is the foundation of every data chain — from raw vibration acquisition through protocol conversion, network transmission, real-time SCADA visualization, alarm feedback, and remote diagnostics. The 9571-99 fulfills this foundational role with consistent, low-noise connectivity that keeps your condition monitoring architecture performing at specification.

Industrial facilities operating rotating machinery — turbines, compressors, pumps, and motors — depend on uninterrupted signal paths between proximity probes and the monitoring rack. Any degradation in the interconnect layer introduces noise, signal dropout, or false alarms that propagate upstream through the entire data flow. The 9571-99 eliminates this risk by providing a factory-verified, impedance-matched cable assembly that maintains signal fidelity from the probe tip to the 3500 Series input module.

Network Communication Table

Connected Automation Data Flow

The 9571-99 sits at the very first node of the condition monitoring data chain. A Bently Nevada 3300 XL 8mm Proximity Transducer System probe is installed at the bearing housing of a high-speed compressor. The probe’s output signal travels through the 9571-99 interconnect cable to the Bently Nevada 3500/42M Proximitor/Seismic Monitor input module seated in the 3500 Series rack. The rack’s backplane distributes processed vibration data to the Bently Nevada 3500/22M Transient Data Interface, which captures transient events and forwards them over a Modbus TCP or OPC-UA gateway connection to the plant’s System 1 Evolution condition monitoring software platform.

From System 1, real-time vibration trends, gap voltage readings, and alarm states are published to the facility’s Emerson DeltaV DCS or Honeywell Experion PKS SCADA layer, where operators monitor shaft displacement, axial position, and rotational speed on HMI dashboards. When the 9571-99 maintains clean signal transmission, the 3500/15 Power Supply and 3500/20 Rack Interface Module can accurately timestamp and route alarm events to the control room without false triggers.

In multi-machine train configurations, several 9571-99 cables may be deployed in parallel — one per measurement point — feeding a 3500/40M Proximitor/Seismic Monitor for radial vibration and a 3500/50M Tachometer Module for speed reference. This multi-channel architecture ensures that the SCADA historian receives a complete, synchronized dataset for each machine train, enabling predictive maintenance algorithms to detect early-stage bearing wear, rotor imbalance, and misalignment before they escalate to unplanned downtime.

For remote sites, the 3500 rack’s serial or Ethernet output connects to an industrial edge gateway running IIoT middleware, pushing condition data to cloud-based analytics platforms. The integrity of this entire remote diagnostics chain depends on the analog signal quality delivered by the 9571-99 at the field level. A compromised interconnect cable is the most common root cause of spurious alarms and missed fault detections in proximity-based monitoring systems.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is the fragmentation of machine health data. Older installations often use proprietary analog wiring standards that are incompatible with modern digital monitoring architectures. The Bently Nevada 3500 Series, paired with correctly specified interconnect cables like the 9571-99, bridges this gap by providing a standardized, protocol-agnostic analog front-end that feeds into digital monitoring modules capable of Modbus RTU/TCP, OPC-UA, and Ethernet/IP communication.

When plant engineers attempt to integrate condition monitoring data into a unified SCADA or MES layer, they frequently encounter data isolation caused by mismatched cable assemblies, incorrect impedance, or degraded shielding. The 9571-99 resolves these issues at the source — ensuring that the signal entering the 3500 rack is clean, correctly terminated, and free from ground loops or electromagnetic interference from adjacent VFD drives, motor starters, and power distribution equipment.

Production line transparency is another key benefit. With reliable interconnect cabling in place, maintenance teams can implement continuous online monitoring rather than periodic manual checks, enabling real-time visibility into machine health across the entire production floor. This supports ISO 13373 and API 670 compliance requirements for machinery protection in critical rotating equipment applications.

System expansion is straightforward: additional measurement points can be added to the 3500 rack by installing new monitor modules and routing additional 9571-99 cables from new probe locations. The modular architecture of the 3500 Series means that expanding from 4 to 16 measurement channels requires no changes to the existing SCADA integration — only additional field wiring and rack modules.

Every 9571-99 unit supplied by ZYPLC is sourced from verified supply channels, inspected prior to dispatch, and covered by a 12-month warranty. In-stock units are available for same-day processing with global express shipping via DHL or FedEx, minimizing machine downtime during emergency maintenance scenarios.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3500 Series support when using the 9571-99 interconnect cable?
The 9571-99 is an analog interconnect cable that carries raw proximity probe signals to the 3500 Series monitor modules. The 3500 rack then converts these analog signals into digital data accessible via Modbus RTU/TCP, OPC-DA/OPC-UA, and Ethernet/IP through the 3500/22M Transient Data Interface or 3500/20 Rack Interface Module, enabling full SCADA and DCS integration.

Q2: How does the 9571-99 ensure network stability and signal integrity in high-EMI industrial environments?
The 9571-99 features shielded cable construction and precision-matched connectors that suppress electromagnetic interference from nearby VFDs, motor starters, and high-voltage bus bars. Proper shield grounding at the Proximitor sensor end ensures that noise does not couple into the analog signal path, maintaining measurement accuracy and preventing false alarms in the 3500 monitoring system.

Q3: Can the 9571-99 be used in system expansion projects without reconfiguring the existing SCADA integration?
Yes. Because the 9571-99 connects at the field device level (probe to Proximitor/monitor module), adding new measurement points using additional 9571-99 cables and 3500 Series monitor modules does not require changes to the upstream Modbus or OPC-UA SCADA configuration. New channels appear as additional register addresses or OPC nodes, which can be mapped to existing HMI displays with minimal engineering effort.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing performed?
All 9571-99 units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes continuity testing, connector integrity verification, and visual inspection to confirm compliance with Bently Nevada specifications. Warranty claims are processed directly through ZYPLC’s technical support team, with replacement or repair turnaround coordinated to minimize impact on plant operations.
