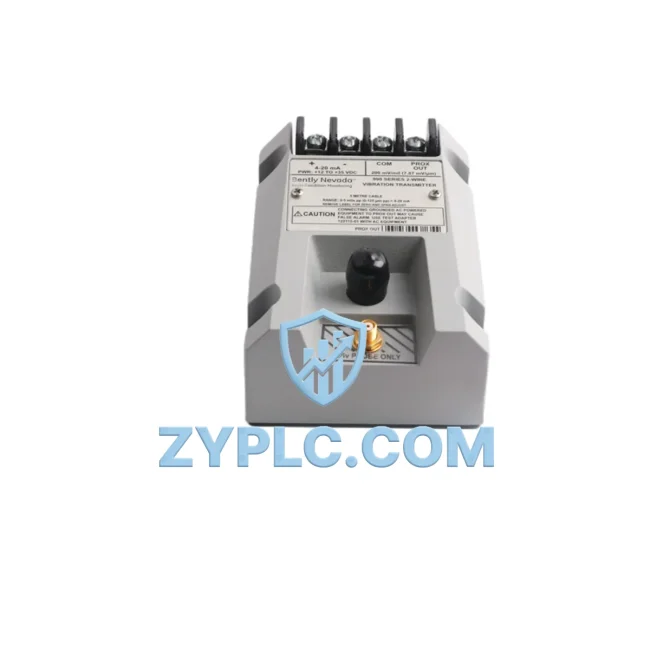

The Bently Nevada 990-04-XX-01-00 is a precision vibration transmitter engineered to operate as a core sensing element within the Bently Nevada 990 Series machinery protection and condition monitoring architecture. Rather than functioning as a standalone instrument, this transmitter is designed from the ground up to integrate seamlessly into layered industrial control systems — delivering consistent, high-fidelity vibration signals that feed directly into protection monitors, data acquisition modules, and plant-wide DCS or SCADA platforms. In rotating machinery environments where signal integrity and system coherence are non-negotiable, the 990-04-XX-01-00 provides the upstream sensing reliability that the entire downstream architecture depends upon.

Within a complete 990 Series system, the 990-04-XX-01-00 occupies the field sensing layer, converting mechanical vibration from proximity probe inputs into standardized 4–20 mA analog output signals. These outputs are consumed by Bently Nevada 3500 Series rack-mounted monitors — including the 3500/42M Proximitor/Seismic Monitor and the 3500/40M Proximitor Monitor — which perform real-time alarm and trip logic. The transmitter’s output is also compatible with the 3500/22M Transient Data Interface, enabling high-resolution transient capture during machine startup, shutdown, and fault events. This tight coupling between the 990-04-XX-01-00 and the 3500 Series rack infrastructure ensures that vibration data flows without signal conditioning gaps or protocol mismatches, preserving the accuracy that machinery protection decisions require.

At the network and integration layer, the analog signals from the 990-04-XX-01-00 are typically ingested by Bently Nevada System 1 software via the 3500 rack’s communication gateway, or routed through a dedicated Modbus RTU or OPC DA/UA interface to plant historians and DCS platforms such as GE Mark VIe, Emerson DeltaV, or Honeywell Experion. This system integration capability means that vibration data from the 990-04-XX-01-00 does not exist in isolation — it becomes part of a unified process dataset that operators and reliability engineers can correlate with temperature, flow, pressure, and load variables in real time. The result is a condition monitoring architecture that supports both protective shutdown logic and predictive maintenance workflows simultaneously.

From a power and installation perspective, the 990-04-XX-01-00 is loop-powered and designed for direct field mounting in proximity to the monitored machine. It is compatible with standard Bently Nevada proximity probe systems, including 3300 XL 8mm and 3300 XL 11mm probe series, and accepts the standard -24 VDC bias voltage supplied by the 3500 rack’s I/O power distribution modules. This eliminates the need for separate field power supplies and simplifies cabinet wiring in control rooms and local junction boxes. When deployed alongside Bently Nevada TK-3 terminal blocks and field junction boxes, the installation achieves a clean, maintainable wiring topology that reduces commissioning time and long-term troubleshooting effort.

In redundant protection architectures — common in turbomachinery, compressor trains, and critical pump applications — the 990-04-XX-01-00 supports dual-channel or voted configurations where multiple transmitters monitor the same measurement plane. This redundancy design, when combined with the 3500 rack’s voting logic and the System 1 software’s alert management, ensures that no single point of failure in the sensing layer can cause an undetected machine fault or a spurious trip. The transmitter’s robust construction and stable output characteristics make it a reliable participant in 2oo3 (two-out-of-three) voting schemes used in SIL-rated safety instrumented systems.

For maintenance teams, the 990-04-XX-01-00 offers significant operational advantages. Its standardized output format and compatibility with the broader 990 Series ecosystem mean that replacement units can be swapped without recalibration of the downstream monitor rack, provided the probe and extension cable system remains unchanged. Spare parts management is simplified by the transmitter’s consistent form factor and electrical interface, and ZYPLC maintains ready stock of the 990-04-XX-01-00 to support both planned maintenance outages and emergency replacement scenarios. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring that your system architecture remains protected throughout the warranty period with access to technical support and replacement logistics.

Product Specification Table

System Compatibility Notes

The 990-04-XX-01-00 achieves its full value when considered as one node in a coordinated Bently Nevada control system architecture. At the protection layer, the transmitter’s 4–20 mA output feeds directly into the Bently Nevada 3500/42M Proximitor/Seismic Monitor, which executes alarm and trip logic based on configurable vibration thresholds. Alongside it, the 3500/40M Proximitor Monitor handles radial vibration channels from additional probe positions on the same machine train, ensuring complete shaft coverage across all measurement planes.

Transient data capture — critical during machine startup and coast-down — is handled by the Bently Nevada 3500/22M Transient Data Interface, which records high-resolution waveform data from the 990-04-XX-01-00’s signal chain for post-event analysis in System 1 software. The 3500/20 Rack Interface Module serves as the communication backbone of the 3500 rack, aggregating data from all monitor cards and presenting it to the plant network via Ethernet or serial interfaces.

At the power layer, the 3500/15 Power Supply Module provides regulated -24 VDC to the I/O field devices, including the 990-04-XX-01-00, ensuring stable loop power even during plant power fluctuations. For installations requiring uninterrupted protection during power events, a redundant power supply configuration using dual 3500/15 modules with automatic failover is standard practice in critical turbomachinery applications.

Wiring termination is managed through Bently Nevada TK-3 Terminal Blocks and field junction boxes, which provide organized, labeled connection points for probe cables, extension cables, and transmitter outputs. At the human-machine interface layer, operators interact with the system through Bently Nevada System 1 Evolution software, which aggregates vibration, position, and process data from all 3500 rack monitors — including signals originating from the 990-04-XX-01-00 — into unified machine health dashboards and alert management workflows. For facilities integrating Bently Nevada data into broader plant automation, the 3500/92 Communication Gateway Module provides Modbus TCP/IP and OPC connectivity to DCS and SCADA platforms, completing the data pathway from field sensor to control room.

Industrial Application Notes

The 990-04-XX-01-00 is deployed across a wide range of heavy industrial and process-critical applications where rotating machinery protection is essential to operational continuity and safety compliance.

In power generation facilities — including gas turbines, steam turbines, and hydro generators — the transmitter monitors shaft vibration on high-speed rotating elements where bearing failures can cause catastrophic damage within seconds. The 990-04-XX-01-00’s fast-response analog output ensures that the 3500 Series protection rack receives real-time vibration data with minimal latency, enabling trip responses that protect multi-million-dollar assets.

In petrochemical and refinery environments, the transmitter is installed on centrifugal compressors, pumps, and expanders operating in hazardous classified areas. Its ATEX and FM certifications allow deployment in Zone 1 and Division 1 locations, while its robust field enclosure withstands the chemical exposure and temperature extremes common in these environments. The 990-04-XX-01-00 integrates with plant-wide safety instrumented systems (SIS) through the 3500 rack’s hardwired relay outputs, contributing to SIL 2-rated protective functions.

In water and wastewater treatment plants, the transmitter monitors large vertical pump motors and blower trains, where vibration anomalies often indicate impeller wear, cavitation, or bearing degradation. Early detection through the 990-04-XX-01-00 and System 1 trending allows maintenance teams to schedule interventions during planned outages rather than responding to unplanned failures.

In mining and minerals processing applications — including SAG mills, ball mills, and large conveyor drive systems — the transmitter provides continuous vibration monitoring on gearboxes and motor bearings operating under high dynamic loads. The 990-04-XX-01-00’s compatibility with the 3500 rack’s Modbus gateway enables integration with mine-wide SCADA systems, giving operations teams a unified view of equipment health across distributed plant areas.

In packaging and discrete manufacturing lines, the transmitter supports predictive maintenance programs on high-speed rotating equipment, reducing unplanned downtime and improving overall equipment effectiveness (OEE) through continuous condition data delivered to System 1 or third-party CMMS platforms.

Product Compatibility FAQ

Q1: Is the 990-04-XX-01-00 directly compatible with the Bently Nevada 3500 Series rack without additional signal conditioning?
Yes. The 990-04-XX-01-00 is designed to interface directly with 3500 Series monitor cards — specifically the 3500/40M and 3500/42M — via its standard 4–20 mA loop output. No intermediate signal conditioners or converters are required, provided the rack’s I/O power supply module delivers the correct -24 VDC bias voltage. This direct compatibility simplifies system architecture, reduces component count, and eliminates potential signal degradation points between the field sensor and the protection monitor.

Q2: Can the 990-04-XX-01-00 be used in a redundant or voted protection architecture, and what configuration is recommended?
Yes. The 990-04-XX-01-00 is fully compatible with redundant sensing architectures. For critical machinery protection applications, a 2oo3 (two-out-of-three) voting configuration is recommended, where three transmitters monitor the same measurement plane and the 3500 rack’s voting logic requires agreement from at least two channels before issuing a trip signal. This configuration eliminates spurious trips caused by single-channel faults while maintaining protective integrity. For less critical applications, a 1oo2 (one-out-of-two) dual-channel arrangement provides a balance between redundancy and cost. ZYPLC can supply matched sets of 990-04-XX-01-00 units for redundant configurations with consistent calibration traceability.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available during the warranty period?
All 990-04-XX-01-00 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. The warranty covers manufacturing defects, component failures under normal operating conditions, and electrical performance outside published specifications. During the warranty period, ZYPLC provides technical support for installation, commissioning, and troubleshooting via direct contact channels. In the event of a confirmed warranty claim, ZYPLC will arrange replacement unit dispatch to minimize system downtime. For installations in remote or critical applications, ZYPLC recommends maintaining a local spare unit — which can also be sourced through ZYPLC — to ensure immediate availability during any replacement event.
