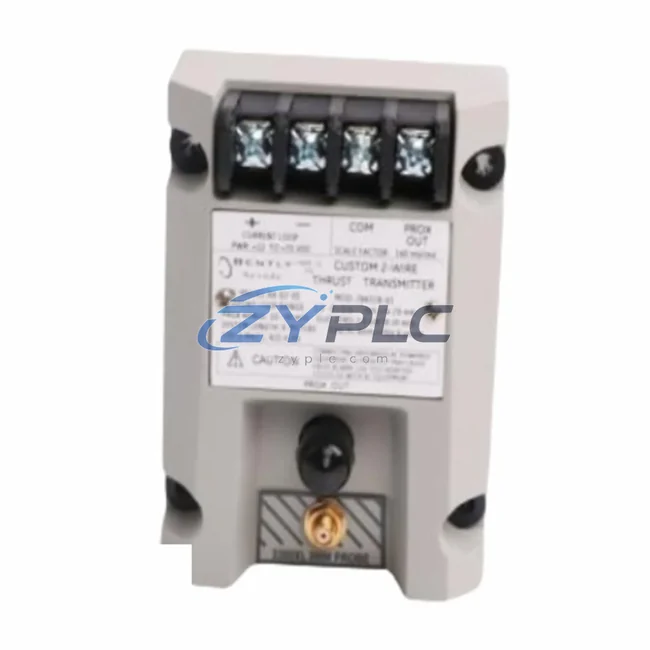

The Bently Nevada 990-04-XX-01-01 is a precision vibration transmitter engineered for seamless integration within the Bently Nevada 990 Series condition monitoring architecture. Rather than functioning as a standalone sensor, this transmitter is designed as a critical node within a layered industrial automation system — bridging the gap between rotating machinery and the control, protection, and data acquisition layers that govern plant-wide operations. Whether deployed in turbomachinery protection systems, compressor monitoring networks, or continuous process control environments, the 990-04-XX-01-01 delivers consistent, high-fidelity vibration signal output that supports both real-time protection decisions and long-term predictive maintenance strategies.

In modern industrial facilities — spanning power generation, petrochemical refining, water treatment, mining, metallurgy, and advanced packaging lines — vibration monitoring is no longer a peripheral function. It is a core element of the control architecture. The 990-04-XX-01-01 occupies a defined role within this hierarchy: it conditions raw vibration signals from proximity probes or accelerometers and transmits standardized 4–20 mA or voltage outputs to upstream systems including the Bently Nevada 3500 Series Machinery Protection System, distributed control systems (DCS), and safety instrumented systems (SIS). This system integration ensures that vibration data flows cleanly through the signal chain without conversion losses or protocol mismatches.

Product Specification Table

System Compatibility Notes

The 990-04-XX-01-01 does not operate in isolation — its value is realized through its position within a coordinated, multi-layer control system. At the field instrumentation layer, proximity probes such as the Bently Nevada 3300 XL 8mm Proximity Transducer System or the Bently Nevada 330180 Proximity Probe capture raw shaft displacement or vibration data. The 990-04-XX-01-01 receives these signals, conditions them, and outputs a clean analog signal suitable for downstream processing.

At the machinery protection layer, the conditioned output feeds directly into the Bently Nevada 3500/42M Proximitor/Seismic Monitor or the 3500/40M Proximitor Monitor housed within a 3500 Series Rack. These rack-mounted monitor modules evaluate the vibration amplitude against configurable alarm and danger setpoints, triggering relay outputs to the 3500/32 Relay Module for automated machine trip or alarm annunciation. The rack backplane provides the communication backbone, while the 3500/20 Rack Interface Module (RIM) manages data communication between the rack and plant-level systems via Modbus, Ethernet/IP, or other supported protocols.

At the control and SCADA layer, the 4–20 mA output from the 990-04-XX-01-01 integrates with analog input modules of DCS platforms — such as those used in Emerson DeltaV, Honeywell Experion, or ABB 800xA systems — enabling operators to visualize vibration trends alongside process variables like temperature, pressure, and flow. This cross-layer data fusion is essential for root-cause analysis and condition-based maintenance scheduling.

For applications requiring redundancy, the 990-04-XX-01-01 can be deployed in dual-channel configurations alongside a secondary transmitter, with outputs routed to redundant analog input cards. Combined with redundant power supplies — such as the Bently Nevada 3500/15 Power Supply Module — this architecture ensures continuous monitoring even during partial system failures, a critical requirement in power generation turbines and offshore compressor trains.

At the human-machine interface (HMI) layer, vibration data processed through the 990-04-XX-01-01 and the 3500 Series rack is visualized on operator workstations running Bently Nevada System 1 Software, providing real-time waveform analysis, trend plots, and alarm management. This end-to-end signal path — from proximity probe through transmitter, monitor rack, DCS, and HMI — represents the complete system integration that defines a robust machinery health management system.

Industrial Application Notes

Power Generation: In gas turbine and steam turbine protection systems, the 990-04-XX-01-01 transmitter provides continuous shaft vibration monitoring, feeding trip-critical signals to the 3500 Series protection rack. Any exceedance of vibration danger levels triggers an automated turbine trip via the relay module, preventing catastrophic bearing or seal failures.

Petrochemical & Refining: Centrifugal compressors and pumps in refinery service operate under strict API 670 machinery protection standards. The 990-04-XX-01-01 supports compliance with these standards by delivering accurate, repeatable vibration transmitter outputs that integrate with both the plant DCS and the dedicated machinery protection system.

Water Treatment & Utilities: Large pump stations and blower systems benefit from continuous vibration monitoring to detect imbalance, misalignment, and bearing degradation before failures occur. The 990-04-XX-01-01’s robust analog output is compatible with the SCADA systems commonly used in water utility automation, enabling remote monitoring and alarm management.

Mining & Metallurgy: In ore processing plants, ball mills, crushers, and conveyor drive systems are subject to high vibration environments. The 990-04-XX-01-01 provides reliable signal conditioning in these demanding conditions, supporting predictive maintenance programs that reduce unplanned downtime and extend equipment life.

Packaging & Discrete Manufacturing: High-speed rotating equipment in packaging lines — including servo-driven conveyors and centrifugal fans — can be monitored using the 990-04-XX-01-01 as part of an integrated condition monitoring strategy, with vibration data feeding into the plant PLC or MES system for production quality correlation.

Product Compatibility FAQ

Q1: Is the 990-04-XX-01-01 compatible with the Bently Nevada 3500 Series rack system, and what interface modules are required?
Yes. The 990-04-XX-01-01 outputs a standard 4–20 mA or voltage signal that connects to the analog input channels of 3500 Series monitor modules such as the 3500/42M or 3500/40M. No special interface module is required for the transmitter itself; however, the 3500 rack must be configured with the appropriate monitor card and the 3500/20 Rack Interface Module (RIM) for network communication. Wiring should follow Bently Nevada’s installation guidelines to ensure signal integrity and EMI immunity within the control cabinet.

Q2: Can this transmitter be used in a redundant monitoring architecture, and how does it affect system availability?
Yes. For high-availability applications, two 990-04-XX-01-01 units can be installed on the same measurement point, with outputs routed to separate analog input channels on redundant monitor cards or DCS I/O modules. This dual-channel configuration ensures that a single transmitter failure does not result in a loss of monitoring capability. Combined with redundant 3500/15 Power Supply Modules and a redundant RIM, the overall system achieves the high availability required for API 670-compliant machinery protection in critical rotating equipment applications.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation and long-term maintenance?
The 990-04-XX-01-01 is supplied with a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions from the date of shipment. Our technical team provides pre-sales application support to confirm system compatibility, wiring configuration guidance, and post-installation commissioning advice. For long-term maintenance, we recommend periodic calibration verification and signal loop checks as part of your plant’s preventive maintenance schedule. Replacement units are maintained RFQ Available to minimize lead times and support rapid swap-out during planned or unplanned maintenance windows.
