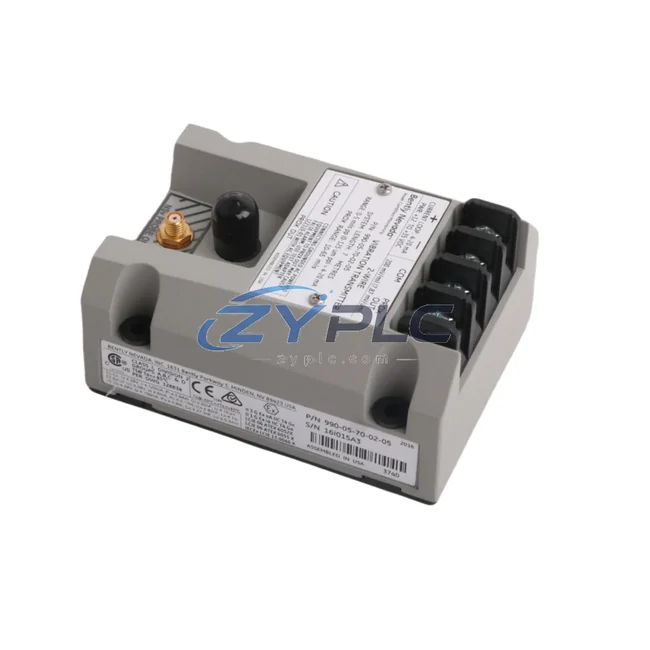

Bently Nevada 990-05-70-02-05 Vibration Transmitter for 3300

Bently Nevada 990-05-70-02-05 Vibration Transmitter for 3300 Series Automation

The Bently Nevada 990-05-70-02-05 is a high-precision vibration transmitter engineered for continuous condition monitoring within the Bently Nevada 3300 Series machinery protection ecosystem. Designed for demanding industrial environments — including rotating machinery, turbines, compressors, and high-speed motors — this transmitter converts raw vibration signals into accurate 4–20 mA analog outputs that feed directly into plant-level maintenance planning and predictive maintenance workflows. By delivering real-time vibration data with minimal signal latency, the 990-05-70-02-05 enables control systems to respond dynamically to mechanical anomalies before they escalate into costly failures or unplanned downtime.

In modern energy-conscious production facilities, vibration monitoring is no longer just a safety measure — it is a core pillar of operational efficiency. Excessive vibration in rotating equipment directly correlates with increased power draw, accelerated bearing wear, and degraded motor efficiency. The 990-05-70-02-05 addresses this by providing the granular vibration data that allows engineers to fine-tune motor loading, adjust drive parameters on variable frequency drives (VFDs), and schedule maintenance during planned windows rather than emergency shutdowns.

Product Specification Table

System Compatibility and Application

The 990-05-70-02-05 does not operate in isolation — it is a critical sensing node within a broader industrial automation system. In a typical industrial-grade plant layout, this transmitter interfaces with the Bently Nevada 3300/16 proximitor system to monitor shaft displacement and radial vibration simultaneously. The 4–20 mA output is routed to a Bently Nevada 3500/42M vibration monitor module, which processes the signal and triggers alarm or relay outputs when vibration thresholds are exceeded.

Upstream of the transmitter, proximity probes such as the Bently Nevada 330180-91-05 eddy-current probe provide the raw displacement signal, while the 3300 XL 8mm proximitor conditions and amplifies it for transmission. On the control side, the analog output from the 990-05-70-02-05 is typically wired into a Siemens S7-300 or S7-1500 PLC analog input module, where it is scaled and compared against baseline vibration profiles stored in the controller’s data blocks.

For drive-level maintenance planning, the vibration data feeds into the speed reference logic of a Siemens SINAMICS G120 or Allen-Bradley PowerFlex 755 variable frequency drive. When vibration levels rise above a defined threshold — indicating mechanical resonance or imbalance — the drive can automatically reduce motor speed to lower mechanical stress and cut operating load. This closed-loop interaction between the 990-05-70-02-05, the PLC, and the VFD is one of the most effective strategies for reducing specific operating load (SEC) per production unit.

For facilities using Profibus DP or HART communication protocols, the transmitter’s analog signal can be digitized via a Pepperl+Fuchs KFD2-STC4-Ex1.20 HART multiplexer or equivalent gateway, enabling integration with asset management software and condition monitoring dashboards. HMI visualization is typically handled through a Siemens SIMATIC TP1200 Comfort Panel or equivalent, where operators can view real-time vibration trends alongside power consumption KPIs on a unified process screen.

Maintenance and Replacement Notes

Consider a continuous process plant running three centrifugal compressors in parallel. Without real-time vibration monitoring, operators rely on scheduled maintenance intervals — often over-maintaining equipment that is running well, or under-maintaining units that are developing faults. The 990-05-70-02-05 changes this dynamic entirely. By streaming live vibration amplitude data to the control system, maintenance teams can identify the specific compressor showing elevated vibration signatures and intervene precisely, without disrupting the other two units.

This targeted approach directly reduces downtime in two ways. First, it eliminates unnecessary shutdowns of healthy equipment — each restart cycle of a large compressor motor consumes significant inrush current, often 6–8× the rated full-load current, which spikes energy demand charges. Second, it allows the VFD controlling the affected compressor to reduce speed and load while the fault is being assessed, keeping the unit online at reduced capacity rather than forcing a full emergency stop.

In motor-driven conveyor and pump systems, the 990-05-70-02-05 plays an equally important role in production line rhythm (takt time) optimization. Vibration anomalies in conveyor drive motors often manifest as irregular belt tension and speed fluctuations, which disrupt downstream process timing. By detecting these anomalies early, the control system can compensate via drive speed adjustment, maintaining consistent line throughput without manual intervention.

From a maintenance cost perspective, facilities using the 990-05-70-02-05 as part of a structured predictive maintenance (PdM) program consistently report reductions in unplanned downtime of Actual operating results depend on the installed system, load profile, and commissioning parameters. All units supplied by ZYPLC are subject to pre-shipment functional testing and are backed by a , ensuring that the transmitter performs to specification from day one of installation.

Product Sourcing FAQ

Q1: How does the 990-05-70-02-05 contribute to measurable operational stability on the production floor?
By providing continuous, high-accuracy vibration data, the transmitter enables the control system to detect mechanical inefficiencies — such as bearing wear, imbalance, or misalignment — that cause motors to draw abnormal load. Early detection allows corrective action before unplanned downtime compounds, and integration with VFDs enables real-time speed reduction to minimize unnecessary power consumption.

Q2: Is the 990-05-70-02-05 compatible with existing 3300 Series and 3500 Series Bently Nevada infrastructure?
Yes. The 990-05-70-02-05 is designed as a direct-fit component within the Bently Nevada 3300 Series ecosystem and is fully compatible with 3500 Series monitoring modules. Its standard 4–20 mA output also ensures compatibility with third-party DCS, SCADA, and PLC platforms without requiring signal conversion hardware.

Q3: What is the recommended replacement or upgrade path if the existing transmitter is degraded?
For direct replacement, the 990-05-70-02-05 is a drop-in substitute for earlier 990-series transmitters used in 3300 XL proximity systems. If upgrading to a higher-channel-count monitoring architecture, consider pairing with the Bently Nevada 3500/42M monitor and a modern DCS analog input card for expanded data acquisition without rewiring the field sensor loop.

Q4: What does the cover, and what is the pre-shipment testing process?
All 990-05-70-02-05 units supplied by ZYPLC undergo functional output verification, signal linearity testing, and loop integrity checks prior to dispatch. The covers manufacturing defects and performance deviations from published specifications under normal operating conditions. For warranty claims or technical support, contact our team directly at plc.sales@zyplc.com or +86 19859288691.
