Bently Nevada 990-10-XX-01-CN Vibration Transmitter for 990 Series

Bently Nevada 990-10-XX-01-CN Vibration Transmitter for 990 Series

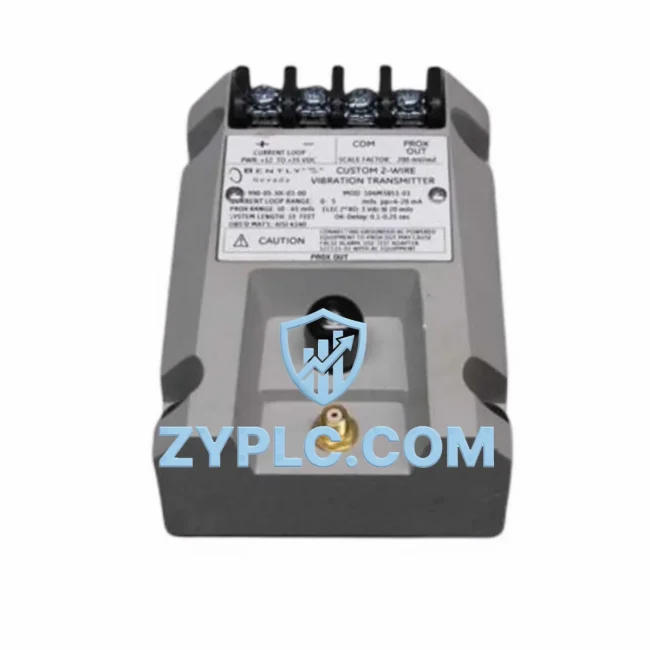

The Bently Nevada 990-10-XX-01-CN (Part No. 167541-01) is a precision vibration transmitter engineered for seamless integration within the Bently Nevada 990 Series machinery protection and condition monitoring architecture. Rather than functioning as a standalone sensor, this transmitter is designed as a critical node within a layered industrial control system — bridging the gap between field-level vibration sensing and the higher-level monitoring, protection, and control layers that govern rotating machinery health in demanding industrial environments.

In modern industrial automation, the reliability of a control system depends not on any single component, but on the coherent interaction of every layer — from the sensor and transmitter level, through the I/O and signal conditioning layer, up to the protection system, communication network, and operator interface. The 990-10-XX-01-CN occupies a foundational role in this hierarchy: it converts raw vibration signals from proximity probes or accelerometers into standardized 4–20 mA outputs that feed directly into the Bently Nevada 3500 Series Machinery Protection System rack, enabling real-time vibration monitoring, alarm triggering, and trip logic execution.

Product Specification Table

System Compatibility Notes

The 990-10-XX-01-CN achieves its full value when deployed as part of a coordinated Bently Nevada control architecture. At the protection layer, it interfaces directly with the Bently Nevada 3500/42M Proximitor/Seismic Monitor module, which processes the transmitter’s analog output to generate alarm and trip signals. The 3500 rack — typically populated with modules such as the 3500/20 Rack Interface Module and 3500/15 Power Supply — provides the centralized signal processing backbone that the 990-10-XX-01-CN feeds into.

At the field sensing layer, the transmitter is paired with Bently Nevada 3300 XL 8mm Proximity Transducer Systems or 7200 Series proximity probes, which detect shaft displacement and deliver raw signals to the 990-10-XX-01-CN for conditioning. The conditioned 4–20 mA output is then routed through marshalling panels and terminal blocks — such as the Bently Nevada 3500/92 Communication Gateway Module — enabling integration with plant-wide DCS or SCADA platforms via Modbus, Profibus, or OPC-DA/UA protocols.

For redundancy-critical applications, the 990-10-XX-01-CN can be deployed in dual-channel configurations alongside the Bently Nevada 3500/40M Proximitor Monitor, ensuring that a single transmitter failure does not compromise the protection logic. The Bently Nevada SYSTEM 1 Condition Monitoring Software aggregates data from multiple 990-series transmitters across the rack, providing operators with a unified view of machinery health, trend analysis, and predictive maintenance scheduling.

Power integrity is maintained through the 3500/15 Dual Power Supply module, which provides redundant 24 VDC rails to the transmitter field loop. This architecture ensures that even during power supply maintenance or switchover events, the vibration monitoring chain remains uninterrupted — a critical requirement in continuous-process industries such as petrochemicals and power generation.

Industrial Application Notes

The 990-10-XX-01-CN is deployed across a wide range of heavy industrial sectors where rotating machinery protection is non-negotiable:

Power Generation: In gas turbine and steam turbine protection systems, the transmitter monitors shaft vibration on generator rotors and turbine shafts, feeding trip signals to the turbine control system (TCS) via the 3500 rack. Any exceedance of vibration thresholds triggers an automated shutdown sequence, preventing catastrophic bearing or seal failure.

Petrochemical & Refining: Centrifugal compressors and high-speed pumps in refinery service operate under extreme conditions. The 990-10-XX-01-CN provides continuous vibration data to the plant DCS, enabling operators to schedule maintenance during planned shutdowns rather than responding to unplanned failures — directly reducing production losses and maintenance costs.

Mining & Metallurgy: Large ball mills, SAG mills, and crusher drives in mining operations generate significant vibration signatures. Integrating the 990-10-XX-01-CN into the mill drive protection architecture allows early detection of imbalance, misalignment, and bearing degradation, extending equipment life in environments where replacement logistics are complex and costly.

Water & Wastewater Treatment: High-capacity pump stations and blower systems in water treatment facilities benefit from continuous vibration monitoring. The transmitter’s wide operating temperature range and IP66 rating make it suitable for outdoor and semi-enclosed installations typical of water infrastructure projects.

Packaging & Process Lines: In high-speed packaging machinery and continuous process lines, the 990-10-XX-01-CN supports predictive maintenance programs by providing real-time vibration data that integrates with MES and CMMS platforms through the SYSTEM 1 software gateway, enabling condition-based maintenance scheduling without interrupting production.

Product Compatibility FAQ

Q1: Is the 990-10-XX-01-CN directly compatible with the Bently Nevada 3500 Series rack without additional signal conditioning?
Yes. The 990-10-XX-01-CN outputs a standard 4–20 mA signal that is natively accepted by 3500 Series monitor modules such as the 3500/42M and 3500/40M. No additional signal conditioning hardware is required between the transmitter and the rack input terminals, simplifying installation and reducing potential signal integrity issues in the field wiring loop.

Q2: Can this transmitter be used in a redundant architecture, and what is the recommended configuration?
The 990-10-XX-01-CN supports redundant deployment by installing two transmitters on the same measurement plane — one primary and one backup — connected to separate monitor channels within the 3500 rack. The rack’s voting logic can be configured to alarm or trip based on either channel independently, ensuring protection continuity during single-transmitter maintenance or failure events. This configuration is standard practice in API 670-compliant machinery protection systems.

Q3: What does the cover, and how does ZYPLC support long-term maintenance and spare parts availability?
The covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. ZYPLC maintains dedicated inventory of 990 Series components to support both replacement sourcing after RFQ confirmation needs and long-term spare parts programs. For engineering support, system compatibility verification, or bulk procurement inquiries, contact our technical team directly. Long-term availability is a core commitment — we understand that machinery protection systems require consistent spare parts access over multi-year operational cycles.
