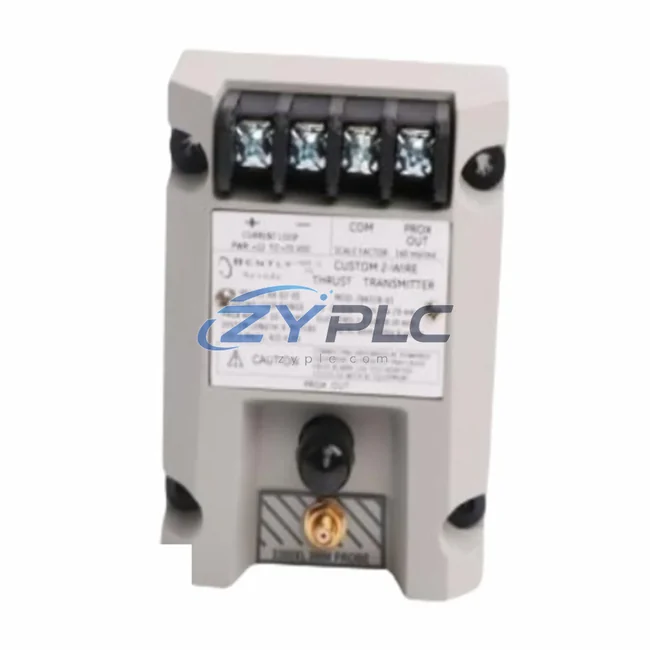

Bently Nevada 991-06-70-01-00 Thrust Transmitter for 991 Series

Bently Nevada 991-06-70-01-00 Thrust Transmitter for 991 Series

The Bently Nevada 991-06-70-01-00 is a precision thrust position transmitter engineered for seamless integration within the Bently Nevada 991 Series machinery protection and condition monitoring architecture. Designed to operate as a critical sensing node within multi-layer industrial automation systems, this transmitter converts axial displacement signals from proximity probes into standardized 4–20 mA analog outputs, enabling real-time thrust position data to flow reliably across the control hierarchy — from field-level sensing through to supervisory control and data acquisition layers.

In modern rotating machinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — thrust position monitoring is not a standalone function. It is an integral element of a coordinated protection architecture that spans the control layer, I/O layer, network layer, power supply layer, human-machine interface layer, and actuator/trip layer. The 991-06-70-01-00 is purpose-built to fulfill its role within this layered system, ensuring that axial displacement data is captured with the accuracy, speed, and signal integrity required for both continuous monitoring and emergency shutdown decisions.

When deployed alongside the Bently Nevada 3500 Series rack-based monitoring system — including modules such as the 3500/42M Proximitor/Seismic Monitor, 3500/22M Transient Data Interface, and 3500/15 Power Supply — the 991-06-70-01-00 provides the upstream signal conditioning that feeds into the rack’s I/O modules. This upstream-to-rack signal chain is fundamental to maintaining system consistency: any degradation in transmitter output quality propagates directly into alarm setpoint accuracy and trip reliability. By using a factory-matched transmitter within the same Bently Nevada ecosystem, engineers eliminate cross-brand calibration uncertainty and reduce commissioning time significantly.

At the network and communication layer, the analog output of the 991-06-70-01-00 interfaces with DCS platforms — such as those running on FOUNDATION Fieldbus, HART, or Modbus RTU protocols — through signal conditioning modules or I/O marshalling panels. In architectures where the 3500 rack communicates upstream via the System 1 Evolution software platform, the thrust position data captured by this transmitter becomes part of a unified asset health dataset, enabling predictive maintenance workflows and long-term trend analysis. This system integration capability is a defining advantage of specifying original Bently Nevada components throughout the signal chain.

From a redundancy and reliability standpoint, the 991-06-70-01-00 supports dual-channel thrust monitoring configurations when paired with a second transmitter channel and the appropriate 3500 Series voting logic module. In API 670-compliant installations — common in oil and gas, petrochemical, and power generation facilities — dual-channel or triple-redundant thrust monitoring is a standard requirement. The transmitter’s stable output characteristics and low signal drift over extended operating periods make it well-suited for these high-availability architectures, where unplanned downtime carries significant operational and safety consequences.

Installation and commissioning of the 991-06-70-01-00 within a control cabinet follows standard Bently Nevada wiring practices. The transmitter is typically mounted in proximity to the 3300 XL 8mm or 3300 XL 11mm proximity probe driver, with shielded cable runs routed to minimize electromagnetic interference from adjacent VFDs, power cables, or relay output modules. Proper grounding of the cable shield at a single point — consistent with Bently Nevada installation guidelines — is essential for maintaining signal integrity in electrically noisy industrial environments such as steel mills, mining processing plants, and offshore platforms.

For long-term maintenance planning, specifying the 991-06-70-01-00 as part of a standardized spare parts inventory strategy reduces mean time to repair (MTTR) during unplanned outages. Maintenance teams working with Bently Nevada 991 Series and 3500 Series architectures benefit from component interchangeability within the same product family, simplifying technician training, calibration procedures, and documentation management. Keeping a verified, tested spare unit on-site — particularly in remote or critical installations — is a recognized best practice in rotating machinery reliability engineering.

All units supplied by ZYPLC are fully tested prior to shipment and covered by a warranty terms confirmed during quotation, providing assurance of functional integrity and long-term operational confidence. Our inventory is sourced through verified supply channels, and each unit undergoes functional verification to confirm output linearity, signal range, and connector integrity before dispatch. Global shipping is available with lead times suitable for both planned maintenance schedules and urgent replacement requirements.

Product Specification Table

System Compatibility Notes

The 991-06-70-01-00 operates most effectively when specified as part of a coordinated Bently Nevada system architecture. At the sensing layer, it works in conjunction with the 3300 XL 8mm Proximity Probe and 3300 XL Extension Cable to form a complete displacement measurement chain. The conditioned 4–20 mA output feeds directly into the 3500/42M Proximitor/Seismic Monitor module housed within the 3500 Series Rack, which provides the I/O processing, alarm management, and relay output functions required for machinery protection.

Power integrity across the system is maintained by the 3500/15 Power Supply Module, which provides regulated 24 VDC to all rack-mounted I/O modules and connected field transmitters. For installations requiring redundant power, dual power supply configurations using two 3500/15 units are standard practice. At the data acquisition and network layer, the 3500/22M Transient Data Interface captures high-speed waveform data from the same probe system, enabling both steady-state monitoring and transient event recording within a single rack architecture.

Upstream communication to the plant DCS or SCADA platform is handled through the 3500/92 Communication Gateway Module, which supports Modbus TCP/IP and OPC-DA protocols, allowing thrust position data from the 991-06-70-01-00 to be integrated into broader process control and historian systems. At the human-machine interface layer, operators interact with this data through the System 1 Evolution software platform, which aggregates machinery health data across multiple 3500 racks and provides trend visualization, alarm management, and predictive maintenance analytics. Terminal connections within the control cabinet are managed through 3500 Series I/O Terminal Blocks, ensuring organized, labeled, and maintainable wiring layouts consistent with IEC 60364 installation standards.

Industrial Application Notes

The Bently Nevada 991-06-70-01-00 finds application across a broad range of heavy industrial sectors where rotating machinery protection is a safety-critical requirement. In power generation facilities — including gas turbine plants, steam turbine generators, and combined-cycle power stations — thrust position monitoring is mandatory for turbine shaft protection, with the transmitter providing the axial displacement signal that triggers emergency shutdown if thrust bearing wear exceeds safe limits.

In oil and gas processing and petrochemical plants, the transmitter is deployed on centrifugal compressors, booster pumps, and expander-compressor trains operating under API 670 machinery protection standards. The 4–20 mA output integrates directly with Safety Instrumented Systems (SIS) and Emergency Shutdown Systems (ESD), where signal reliability and response time are non-negotiable. In mining and mineral processing operations, the 991-06-70-01-00 protects large grinding mill drives, slurry pump motors, and conveyor drive systems operating in high-vibration, high-dust environments.

For water and wastewater treatment infrastructure, the transmitter monitors large vertical turbine pumps and centrifugal blowers, where axial thrust loads vary significantly with process flow conditions. In steel and metallurgical plants, it is applied to rolling mill drive motors, blast furnace blowers, and continuous casting machine drives, where machinery availability directly impacts production throughput. Across all these applications, the 991-06-70-01-00 delivers the measurement accuracy, signal stability, and system compatibility required to support both continuous protection and long-term condition monitoring strategies.

Product Compatibility FAQ

Q1: Is the 991-06-70-01-00 directly compatible with the Bently Nevada 3500 Series rack system without additional signal conditioning?
Yes. The 991-06-70-01-00 produces a standard 4–20 mA analog output that is directly compatible with the input specifications of the 3500/42M Proximitor/Seismic Monitor and other analog input modules within the 3500 Series rack. No additional signal conditioning is required when wiring follows Bently Nevada’s standard installation guidelines, including proper cable shielding and grounding practices. This direct compatibility simplifies system integration and reduces the risk of signal chain errors during commissioning.

Q2: Can this transmitter be used in a redundant thrust monitoring architecture compliant with API 670?
Yes. The 991-06-70-01-00 is suitable for use in dual-channel and redundant thrust monitoring configurations as required by API 670 for critical rotating machinery. When two transmitter channels are configured with the appropriate 3500 Series voting logic, the system can implement 1oo2 or 2oo3 voting schemes for trip decisions, providing both protection reliability and false-trip immunity. ZYPLC can supply matched pairs of tested units to support redundant channel builds, with documentation available upon request.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation and commissioning?
All 991-06-70-01-00 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against functional defects, covering output signal accuracy, connector integrity, and housing condition. Units are tested prior to shipment to verify 4–20 mA output linearity across the full measurement range. For installation and commissioning support, our technical team is available to assist with wiring verification, rack configuration guidance, and calibration reference documentation. Replacement units for warranty claims are processed promptly to minimize system downtime. Contact us at plc.sales@zyplc.com or +86 19859288691 for pre-sales technical consultation and post-sales support.
