Bently Nevada CB2W100-032: Industrial Data Link for 3500 Series Vibration Monitoring Systems

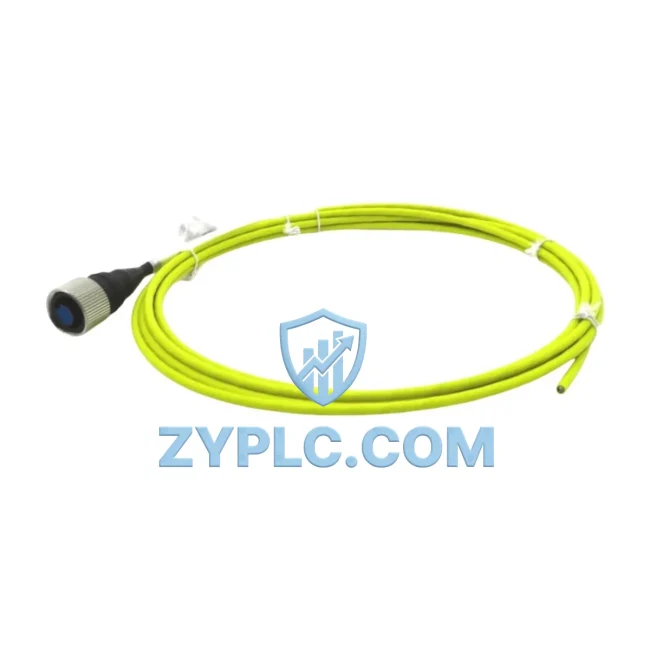

The Bently Nevada CB2W100-032 Interconnect Cable is a precision-engineered signal transmission component designed to serve as the physical data backbone within the Bently Nevada 3500 Series machinery protection and condition monitoring platform. In modern smart factory environments, reliable signal integrity between field-mounted transducers and the centralized monitoring rack is not optional — it is the foundation upon which real-time machinery health decisions are made. The CB2W100-032 fulfills this role by providing a shielded, low-noise interconnect path that preserves the fidelity of vibration, position, and dynamic pressure signals from rotating machinery all the way to the 3500 rack’s processing modules.

As industrial facilities transition toward fully networked automation architectures — integrating SCADA platforms, DCS controllers, edge computing gateways, and cloud-based analytics — the quality of every physical link in the signal chain becomes critical. The CB2W100-032 is engineered to meet the demanding electromagnetic compatibility (EMC) requirements of industrial environments where variable frequency drives (VFDs), high-current motor starters, and dense PLC I/O racks generate significant electrical noise. Its shielded construction ensures that vibration data collected from proximity probes, accelerometers, and velocity transducers arrives at the 3500 rack modules without degradation, enabling accurate alarm setpoint evaluation and trip logic execution.

Network Communication Table

Connected Automation Data Flow

Understanding the CB2W100-032’s role requires tracing the complete industrial data flow from the rotating machine to the control room. At the field level, proximity probes — such as those in the Bently Nevada 3300 XL 8mm Proximity Transducer System — detect shaft displacement and generate analog voltage signals proportional to the gap between the probe tip and the rotating shaft. These signals travel through the CB2W100-032 interconnect cable to the 3500/42M Proximitor I/O Module housed within the 3500 rack, where they are conditioned, digitized, and evaluated against programmed alarm and danger setpoints.

Within the 3500 rack, the 3500/20 Rack Interface Module (RIM) manages communication between individual monitor cards and the plant’s broader automation network. Through the RIM’s Ethernet port, vibration data is transmitted via Modbus TCP or OPC-UA protocols to SCADA systems such as GE iFIX, Wonderware AVEVA System Platform, or Emerson DeltaV, enabling operators to visualize shaft orbit plots, trend historical vibration data, and configure alarm notifications from centralized HMI workstations.

For facilities running Allen-Bradley ControlLogix or Siemens S7-400 PLC platforms, the 3500 rack’s gateway capability allows vibration alarm states to be mapped directly into the PLC’s I/O table via Ethernet/IP or PROFIBUS DP, enabling automated machine shutdown sequences without operator intervention. The CB2W100-032 cable’s signal integrity is therefore a prerequisite for the entire protection chain — any degradation in the analog signal path will propagate as measurement error through every downstream digital layer.

In compressor trains and turbine-generator sets where multiple measurement points are required, the CB2W100-032 is deployed alongside the 3500/25 Enhanced Keyphasor Module to provide once-per-revolution timing references that enable phase-referenced vibration analysis. This data, combined with readings from 3500/64 Dynamic Pressure Monitor modules, gives maintenance engineers the complete picture needed for predictive maintenance scheduling and root cause analysis of subsynchronous vibration events.

At the edge computing layer, platforms such as the Bently Nevada System 1 condition monitoring software aggregate data from multiple 3500 racks across a plant, correlating vibration trends with process variables from the DCS to identify developing faults weeks before they result in unplanned downtime. The CB2W100-032’s role in maintaining clean, noise-free signal transmission is what makes this level of analytical precision possible.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is the existence of data silos — islands of measurement data that cannot be accessed, correlated, or acted upon by the broader automation system. The Bently Nevada 3500 Series, connected through components like the CB2W100-032, directly addresses this problem by providing a standards-based pathway from analog field signals to digital plant networks.

In older facilities where machinery protection systems were installed as standalone units with no network connectivity, operators were forced to physically walk to each rack to read vibration values or acknowledge alarms. By deploying the 3500 rack with proper interconnect cabling and enabling its Modbus TCP or OPC-UA gateway functions, these previously isolated systems can be integrated into the plant’s existing SCADA infrastructure without replacing the field transducers or rerunning signal cables — a significant cost saving in brownfield modernization projects.

Protocol unification is another key benefit. In plants where Siemens SIMATIC WinCC serves as the primary SCADA platform alongside Allen-Bradley PanelView HMI terminals, the 3500 rack’s multi-protocol support allows vibration data to be published simultaneously to both systems, eliminating the need for separate data concentrators or protocol converters. This reduces network complexity, lowers latency in alarm delivery, and simplifies cybersecurity management by reducing the number of network boundary points.

Remote diagnostics capability is equally important for facilities with unmanned or remotely operated assets. Through the 3500 rack’s network interface, maintenance engineers can remotely access full-spectrum vibration waveforms, configure alarm setpoints, and perform system self-tests without dispatching field personnel — reducing both operational cost and safety exposure in hazardous areas. The CB2W100-032’s reliable signal path ensures that remote diagnostic data accurately reflects actual machine condition, not cable-induced measurement artifacts.

System scalability is addressed through the 3500 rack’s modular architecture. As production capacity expands and new rotating equipment is commissioned, additional monitor modules can be added to existing racks, with CB2W100-032 cables providing the field connections for new measurement points. This incremental expansion approach protects the initial capital investment while allowing the monitoring system to grow with the facility’s needs.

Every CB2W100-032 unit supplied by ZYPLC undergoes pre-shipment continuity and insulation resistance testing to verify cable integrity before dispatch. This factory acceptance testing, combined with our 12-month warranty coverage, ensures that the cable performs to specification from the moment it is installed in your 3500 rack system.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3500 Series support when connected via the CB2W100-032?
The CB2W100-032 is the analog signal interconnect between field transducers and the 3500 rack modules. The 3500 rack itself supports digital communication via Modbus TCP, OPC-UA, and Ethernet/IP through its Rack Interface Module (RIM), enabling integration with SCADA, DCS, and PLC systems. The cable’s shielded construction ensures that analog signal quality is preserved, which directly determines the accuracy of all downstream digital data.

Q2: Is the CB2W100-032 compatible with third-party vibration monitoring systems or only Bently Nevada 3500 racks?
The CB2W100-032 is specifically designed and dimensioned for the Bently Nevada 3500 Series rack system connectors. While the cable’s electrical characteristics may be compatible with other systems, ZYPLC recommends using it exclusively within the 3500 platform to ensure connector fit, signal conditioning compatibility, and warranty validity. For cross-platform applications, please contact our technical team for guidance.

Q3: How does the CB2W100-032 contribute to network stability in high-EMI industrial environments?
The cable’s shielded construction provides attenuation of electromagnetic interference generated by nearby VFDs, motor starters, and high-current power cables. Proper shield grounding at the rack end — following Bently Nevada’s installation guidelines — ensures that common-mode noise is diverted to ground rather than appearing as measurement error in the vibration signal. This is particularly important in facilities where 3500 racks are installed in close proximity to MCC (Motor Control Center) panels.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the CB2W100-032?
All CB2W100-032 cables supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and premature failure under normal operating conditions. Prior to shipment, each unit undergoes continuity testing and insulation resistance verification to confirm cable integrity. We ship globally via DHL and FedEx with full tracking, and our technical team is available to support installation and commissioning queries post-delivery.
