Bently Nevada CB2W100-200 Interconnect Cable for 3500 Series

Bently Nevada CB2W100-200 Interconnect Cable: Industrial Data Link for 3500 Series Vibration Monitoring Systems

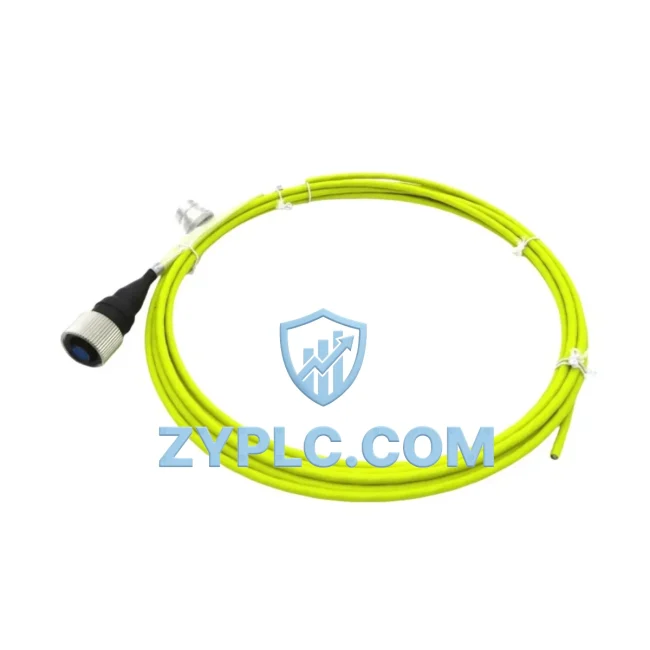

The Bently Nevada CB2W100-200 is a precision-engineered interconnect cable designed to serve as the critical physical data link within the Bently Nevada 3500 Series machinery protection and condition monitoring platform. In modern smart factory environments, reliable signal transmission between field-mounted transducers and the centralized monitoring rack is not optional — it is the foundation of every predictive maintenance strategy. The CB2W100-200 fulfills this role with shielded, low-noise construction that preserves signal integrity across the full chain from rotating machinery to SCADA dashboards and HMI operator stations.

Industrial connectivity begins at the sensor. Proximity probes, accelerometers, and velocity transducers mounted on turbines, compressors, pumps, and motors generate continuous vibration and position data. The CB2W100-200 carries these analog signals from the field device into the 3500/20 Rack Interface Module and onward to condition monitoring cards such as the 3500/40M Proximitor/Seismic Monitor and the 3500/42M Proximitor/Seismic Monitor. Without a correctly specified interconnect cable, signal attenuation, ground loops, and electromagnetic interference can corrupt the very data that drives automated shutdown logic and alarm thresholds.

Network Communication Table

Connected Automation Data Flow

Understanding where the CB2W100-200 sits in the automation data flow clarifies its industrial value. At the field level, a Bently Nevada 3300 XL 8mm Proximity Transducer System or a 330180 Proximity Probe detects shaft displacement and feeds a raw voltage signal. The CB2W100-200 routes this signal into the 3500 rack’s input cards — typically the 3500/40M or 3500/50M Tachometer Monitor — where it is digitized, compared against alarm setpoints, and prepared for upstream transmission.

From the 3500 rack, processed data travels via the 3500/92 Communication Gateway Module, which supports Modbus TCP, Ethernet/IP, and OPC-DA/UA protocols. This gateway bridges the proprietary 3500 rack bus to plant-wide industrial Ethernet networks, enabling integration with GE iFIX SCADA, Wonderware System Platform, or Rockwell FactoryTalk View HMI systems. Operators at the control room level receive real-time vibration trend data, alarm states, and historical waveforms without any manual data collection at the machine.

In larger installations, the 3500 rack communicates alongside Allen-Bradley ControlLogix PLCs or Siemens S7-400 controllers over a shared industrial Ethernet backbone. The CB2W100-200 ensures that the analog signal entering the rack is clean and uncompromised, which directly affects the quality of the digital data that the PLC and SCADA layers consume for automated control decisions, including emergency shutdown (ESD) triggers and load-shedding logic.

Edge computing nodes — such as Bently Nevada System 1 Evolution software servers — aggregate data from multiple 3500 racks across a facility, enabling fleet-wide condition monitoring, machine learning-based anomaly detection, and remote diagnostics accessible from any authorized workstation or mobile device. The integrity of this entire data chain depends on the physical layer: the CB2W100-200 interconnect cable.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is data isolation — situations where critical machinery health information is trapped at the sensor level and never reaches the operators, engineers, or enterprise asset management systems that need it. The CB2W100-200, as part of the 3500 Series ecosystem, directly addresses several dimensions of this problem.

Protocol fragmentation is common in brownfield plants where legacy 4–20 mA analog loops coexist with modern Modbus TCP and OPC-UA networks. The 3500 rack, connected via CB2W100-200 cables, acts as a protocol bridge: analog transducer signals enter the rack and exit as structured digital data compatible with any modern DCS or SCADA platform. This eliminates the need for separate protocol converters on each measurement point.

Remote monitoring gaps are closed when the 3500/92 gateway publishes live vibration data to the plant historian and SCADA system. Maintenance engineers can monitor bearing condition, rotor balance, and shaft alignment trends from the control room or remotely via VPN, reducing the need for physical rounds and enabling condition-based maintenance scheduling rather than fixed-interval shutdowns.

Production line transparency improves when every critical rotating machine is connected and its health data is visible in real time. Alarm rationalization within the 3500 rack — configured via Bently Nevada’s rack configuration software — ensures that only meaningful alerts reach the operator, reducing alarm fatigue while maintaining protection integrity.

System scalability is inherent in the 3500 architecture. Additional monitor cards can be inserted into existing racks, and new racks can be added to the network without disrupting existing measurements. The CB2W100-200 is available in multiple lengths to accommodate varying installation distances, ensuring that physical cabling never becomes the bottleneck in a system expansion project.

Industrial Connectivity FAQ

Q1: What communication protocols does the Bently Nevada 3500 Series support when integrated with SCADA systems?
The 3500 Series rack, when equipped with the 3500/92 Communication Gateway Module, supports Modbus RTU, Modbus TCP/IP, Ethernet/IP, and OPC-DA/UA. This allows seamless integration with major SCADA platforms including GE iFIX, Wonderware, and Rockwell FactoryTalk, as well as DCS systems from Honeywell, Emerson, and ABB. The CB2W100-200 interconnect cable ensures that the analog signal entering the rack is preserved at full fidelity before protocol conversion occurs.

Q2: How does the CB2W100-200 contribute to network stability and signal quality in high-EMI environments?
The CB2W100-200 uses shielded construction to reject electromagnetic interference from variable frequency drives (VFDs), high-voltage switchgear, and motor starters commonly found in industrial environments. Proper shield grounding at the rack end prevents ground loops that would otherwise introduce noise into the vibration signal, causing false alarms or masking real machinery faults. Stable signal transmission at the physical layer is the prerequisite for reliable digital data at the network layer.

Q3: Can the CB2W100-200 be used in system expansion projects without replacing existing 3500 rack infrastructure?
Yes. The CB2W100-200 is fully compatible with all generations of the Bently Nevada 3500 Series rack. When adding new measurement points — such as expanding from 4 to 8 channels on a compressor train — additional CB2W100-200 cables can be installed alongside existing wiring without any modification to the rack backplane or communication gateway configuration. This makes it a cost-effective choice for phased system expansion in operating plants.

Q4: What quality assurance and warranty coverage applies to the CB2W100-200?
Every CB2W100-200 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify connector integrity, shield continuity, and dimensional compliance with Bently Nevada specifications. All units are covered by a 12-month warranty against manufacturing defects. In-stock units are available for same-day dispatch via DHL or FedEx with full tracking, supporting urgent maintenance and shutdown turnaround requirements globally.
