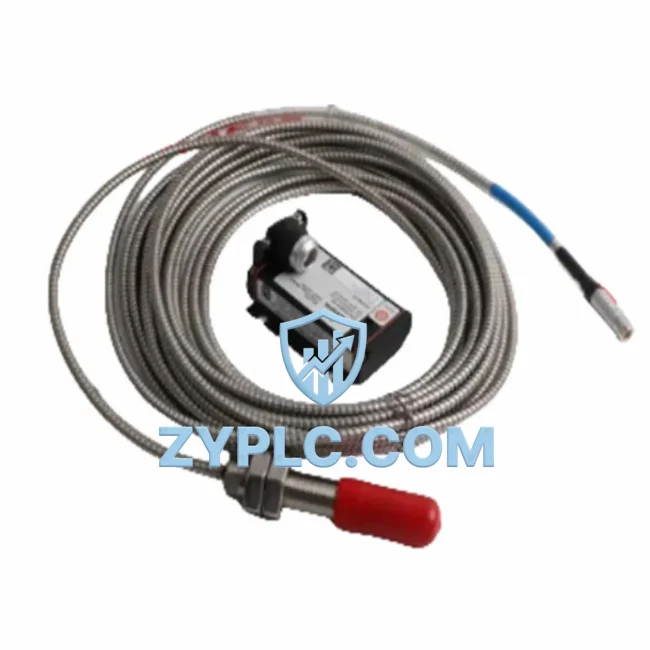

Bently Nevada PR6423/13R-040 CON021 Eddy Current Sensor | 3300 Series

Bently Nevada PR6423/13R-040 CON021: Industrial Data Link for Smart Factory Vibration Monitoring

The Bently Nevada PR6423/13R-040 CON021 is a high-precision eddy current sensor from the renowned 3300 Series, engineered for continuous, non-contact vibration and proximity measurement in critical rotating machinery environments. As industrial facilities accelerate their transition toward smart factory architectures, the role of a reliable, low-latency signal acquisition device like the PR6423/13R-040 CON021 becomes central to the entire data chain — from raw mechanical signal capture at the shaft level all the way through to SCADA dashboards and enterprise-level condition monitoring platforms.

In modern industrial networks, data integrity begins at the sensor. The PR6423/13R-040 CON021 outputs a precise analog signal that feeds directly into the Bently Nevada 3300 XL 11 mm Proximity Transducer System signal conditioning chain, where the companion CON021 extension cable ensures low-noise, shielded transmission between the probe tip and the proximitor/driver. This signal is then processed by the Bently Nevada 3500 Series Machinery Protection System — a rack-based platform that digitizes, filters, and routes vibration data to both local relay outputs and digital communication buses.

From the 3500 rack, conditioned data travels across plant-floor Ethernet or serial backbones to DCS controllers and PLC platforms such as the Allen-Bradley ControlLogix or Siemens S7-400, where it is integrated into broader process control logic. Simultaneously, the 3500 system’s Modbus TCP or OPC-UA gateway interface pushes real-time vibration vectors — including 1X, 2X amplitude, phase angle, and gap voltage — to SCADA systems such as GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation. This enables operators at the control room HMI to visualize shaft centerline plots, trend historical data, and receive alarm notifications without any manual data collection.

For facilities deploying edge computing architectures, the analog output of the PR6423/13R-040 CON021 can also be routed through an industrial edge gateway — such as the Moxa MGate or HMS Anybus X-gateway — enabling protocol conversion from analog/4-20mA to PROFINET, EtherNet/IP, or MQTT for cloud-based condition monitoring platforms. This makes the sensor fully compatible with IIoT frameworks where vibration data must be aggregated alongside temperature readings from Pt100 RTD sensors, current signatures from ABB ACS880 variable frequency drives, and process values from Endress+Hauser flow transmitters.

Remote diagnostics are a key value proposition of integrating the PR6423/13R-040 CON021 into a networked architecture. When gap voltage drifts outside the linear range — typically –10 VDC ±0.5 V — the 3500 rack generates a Not OK (NOK) status that propagates through the communication network to trigger alarm workflows in the SCADA layer, send SMS/email notifications via the plant’s alarm management system, and log the event in the historian for root-cause analysis. This closed-loop feedback eliminates the need for manual rounds and dramatically reduces mean time to detect (MTTD) for developing faults such as rotor imbalance, misalignment, oil whirl, and rub.

The sensor’s compatibility with the full Bently Nevada 3300 Series ecosystem — including the 3300 XL 8 mm, 3300 XL 14 mm, and 3300 RAM proximity systems — means it can be deployed as a direct replacement or expansion component without recalibrating the entire measurement chain. Its 40 mm cable length variant (the /13R-040 designation) is optimized for tight machine housings where space constraints limit probe-to-driver cable routing.

Network Communication Table

Connected Automation Data Flow

The PR6423/13R-040 CON021 sits at the origin of a multi-layer industrial data flow. At the field level, the eddy current probe tip is mounted radially or axially against the rotating shaft of a turbine, compressor, pump, or motor. The non-contact measurement principle means zero mechanical wear, ensuring continuous signal integrity even at shaft speeds exceeding 10,000 RPM.

The raw analog signal travels through the CON021 shielded extension cable to the Bently Nevada 3300 Proximitor/Seismic Monitor, which conditions the signal and outputs a calibrated voltage proportional to the gap distance. This conditioned output feeds into the Bently Nevada 3500/42M Proximitor/Seismic Monitor module within the 3500 rack, where it is digitized at high sampling rates and compared against alarm setpoints configured by the machinery protection engineer.

The 3500 rack communicates upstream via its TDI (Transient Data Interface) or System 1 Condition Monitoring Software gateway, pushing vibration vectors, waveform snapshots, and alarm states to the plant historian and SCADA layer. At the SCADA level, operators using platforms such as Emerson Ovation DCS or Honeywell Experion PKS can view real-time shaft orbits, trend plots, and alarm histories on their HMI screens.

For facilities integrating with remote I/O modules — such as the Phoenix Contact Axioline F or Beckhoff EtherCAT terminals — the analog output of the PR6423/13R-040 CON021 can be wired into AI (analog input) modules that feed data into the main PLC scan cycle. This allows vibration data to participate in interlock logic: for example, automatically tripping a Siemens SINAMICS S120 drive if vibration exceeds the danger setpoint, protecting both the driven equipment and the drive itself.

Edge gateways such as the Moxa UC-8112 industrial computer can aggregate multiple sensor channels, apply local analytics (FFT, envelope detection), and transmit compressed condition data to cloud platforms via MQTT or HTTPS — completing the data journey from a single eddy current probe tip to an enterprise asset management dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — where critical machinery health information exists only as a local analog signal, invisible to the plant’s digital control and monitoring infrastructure. The PR6423/13R-040 CON021, when integrated with the Bently Nevada 3500 Series rack and appropriate communication gateways, directly addresses this problem.

Protocol Fragmentation: Many plants operate a mix of Modbus RTU legacy devices, newer PROFINET controllers, and OPC-UA-capable SCADA systems. The 3500 rack’s multi-protocol output capability — combined with protocol converters such as the HMS Anybus Communicator — allows the PR6423/13R-040 CON021’s data to be normalized and distributed across all these networks simultaneously, eliminating the need for manual data transcription or separate monitoring islands.

Production Line Transparency: By feeding vibration data into the SCADA historian, maintenance teams gain full production-line transparency. Trend analysis over weeks and months reveals developing faults long before they cause unplanned downtime. Alarm rationalization tools within the SCADA layer can suppress nuisance alarms while ensuring that genuine danger-level vibration events are escalated immediately to the on-call engineer’s mobile device.

Remote Monitoring and Diagnostics: For unmanned or remote installations — offshore platforms, pipeline compressor stations, or remote power generation sites — the networked PR6423/13R-040 CON021 enables full remote diagnostics. Engineers can review waveform data, adjust alarm setpoints, and acknowledge alerts from any location with network access, reducing the need for costly site visits.

System Scalability: The modular architecture of the 3500 Series means that additional measurement channels — seismic velocity, temperature, speed — can be added to the same rack without disrupting existing PR6423/13R-040 CON021 channels. This scalability protects the initial investment and supports phased smart factory rollouts.

Every unit of the PR6423/13R-040 CON021 supplied by ZYPLC undergoes pre-shipment functional testing, including gap voltage linearity verification and cable continuity checks, before dispatch. All units are covered by a 12-month warranty and are available for immediate shipment via DHL or FedEx international express.

Industrial Connectivity FAQ

Q1: What is the communication latency of the PR6423/13R-040 CON021 in a networked machinery protection system?
The PR6423/13R-040 CON021 itself is an analog sensor with no inherent digital communication latency — signal propagation from probe tip to Proximitor output is essentially instantaneous (microsecond-level). Latency is introduced at the digitization stage within the 3500 rack (typically <1 ms per channel scan) and at the network communication layer (Modbus TCP polling cycles of 100–500 ms are typical). For time-critical machinery protection, the 3500 rack’s hardware relay outputs operate independently of the network, ensuring trip actions occur within milliseconds of a danger-level event regardless of SCADA polling frequency.

Q2: Is the PR6423/13R-040 CON021 compatible with non-Bently Nevada control systems and SCADA platforms?
Yes. While the PR6423/13R-040 CON021 is optimized for use within the Bently Nevada 3300/3500 Series ecosystem, its analog voltage output is a universal signal type compatible with any PLC or DCS analog input module. When paired with the 3500 rack’s Modbus TCP or OPC-UA interface, data can be consumed by any SCADA platform that supports these standard industrial protocols, including Ignition, Wonderware, iFIX, Citect, and WinCC.

Q3: How does the system maintain network stability and data integrity in electrically noisy industrial environments?
The CON021 extension cable uses a coaxial, shielded construction specifically designed to reject electromagnetic interference (EMI) from variable frequency drives, high-voltage switchgear, and welding equipment commonly found in industrial facilities. The Bently Nevada 3500 rack further filters the digitized signal using configurable low-pass filters. For the Ethernet communication layer, industrial-grade managed switches with VLAN segmentation and storm control are recommended to isolate machinery protection traffic from general plant network traffic.

Q4: What does the 12-month warranty cover, and what is the pre-shipment testing process?
The 12-month warranty covers manufacturing defects in the probe body, tip, cable assembly, and connector. ZYPLC performs pre-shipment testing on every unit, including gap voltage output verification across the full linear measurement range, cable shield continuity testing, and visual inspection of the TNC connector and probe tip. A test report is available upon request. Warranty claims are processed directly through ZYPLC with replacement units dispatched within 3–5 business days.
