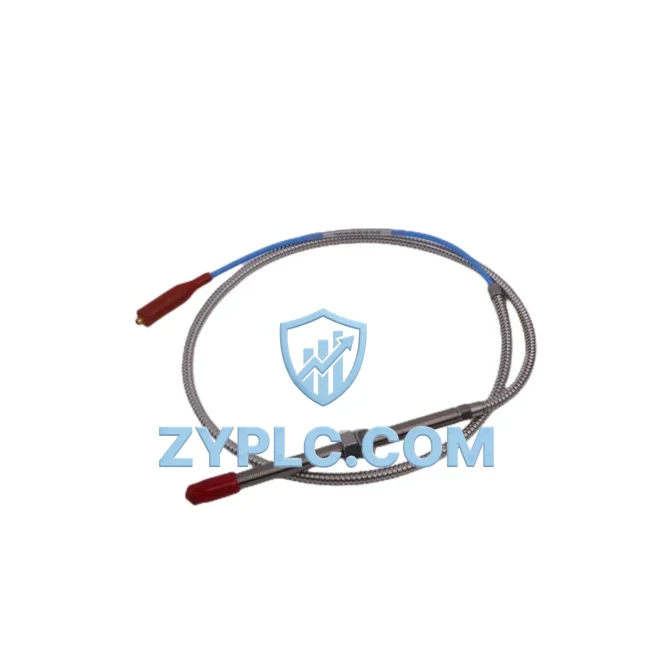

The Bently Nevada TM0180-08-00-15-10-02 is an 8-meter proximity probe extension cable engineered for the 3500 Series Machinery Protection System. Designed to bridge the physical and signal gap between rotating machinery and the 3500 rack-mounted monitoring modules, this extension cable forms a critical link in the industrial data chain — carrying real-time vibration, position, and speed signals from field-mounted proximity probes directly into the condition monitoring network. In smart factory environments where machine health data must flow continuously and without interruption, the TM0180-08-00-15-10-02 delivers the signal integrity and mechanical durability that mission-critical rotating equipment demands.

As industrial facilities transition toward fully connected automation architectures — integrating SCADA platforms, DCS controllers, edge gateways, and cloud-based analytics — the quality of every physical signal link becomes a determining factor in system reliability. The TM0180-08-00-15-10-02 ensures that vibration data captured at the machine shaft is transmitted with minimal attenuation and zero signal distortion to the 3500 Monitoring Rack, where it is processed, alarmed, and forwarded upstream to plant-level systems.

Network Communication Table

Connected Automation Data Flow

In a fully integrated machinery protection architecture, the TM0180-08-00-15-10-02 extension cable operates as the physical signal conduit between the proximity probe tip and the Bently Nevada 3500/42M Proximitor®/Seismic Monitor module housed in the 3500 rack. The proximity probe — typically a Bently Nevada 3300 XL 8mm Proximity Transducer or 3300 XL 11mm Proximity Transducer — is mounted adjacent to the rotating shaft. The TM0180 extension cable carries the raw eddy-current signal from the probe to the Bently Nevada 3300 Proximitor® Sensor, which converts the signal into a DC voltage proportional to the gap distance.

This conditioned analog signal then enters the 3500 Monitoring Rack via the 3500/42M or 3500/40M Proximitor®/Seismic Monitor card, where it is processed against alarm setpoints for radial vibration, axial position, and differential expansion. The 3500 rack communicates upstream through the 3500/22M Transient Data Interface (TDI) or the 3500/92 Communication Gateway Module, which supports Modbus RTU, Modbus TCP/IP, and OPC DA/UA protocols — enabling seamless integration with plant-level SCADA systems such as GE iFIX, Honeywell Experion PKS, or Emerson DeltaV.

At the edge layer, data from the 3500 rack can be aggregated by an industrial edge gateway — such as the Bently Nevada System 1 Software platform — which performs advanced diagnostics, trend analysis, and alarm management before forwarding structured data to the enterprise historian or cloud analytics layer. Simultaneously, HMI panels on the plant floor receive real-time vibration readings via Ethernet/IP or Modbus TCP, giving operators immediate visibility into machine health without leaving the control room.

For facilities running distributed control architectures, the 3500 rack’s analog output cards — such as the 3500/04 Power Supply with Relay Output — can trigger protective relay actions or interlock signals to the DCS controller or safety PLC, ensuring that abnormal vibration events result in immediate machine trip or load reduction. This closed-loop data flow — from proximity probe through extension cable, Proximitor® sensor, 3500 monitor, communication gateway, SCADA, and back to the control system — represents the backbone of modern rotating equipment protection in oil & gas, power generation, petrochemical, and heavy manufacturing plants.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial facilities is data isolation — the inability to move machine health information from field instruments into plant-level monitoring and control systems in a unified, real-time manner. The TM0180-08-00-15-10-02, as part of the Bently Nevada 3500 ecosystem, directly addresses this challenge at the signal acquisition layer.

Protocol Fragmentation: Many older plants operate with a mix of proprietary analog signals, Modbus RTU, HART, and newer OPC UA networks. The 3500 Series architecture accommodates this diversity through its modular I/O and communication gateway cards, allowing the TM0180’s analog signal to be digitized, processed, and re-transmitted in the protocol required by the upstream system — whether that is a legacy DCS, a modern SCADA platform, or a cloud-connected historian.

Remote Monitoring & Diagnostics: With the TM0180 ensuring clean signal delivery from the proximity probe, the 3500 rack can generate high-fidelity vibration waveforms that are accessible remotely via the System 1 software platform. Maintenance engineers can perform spectrum analysis, orbit plots, and trend reviews from any networked workstation — eliminating the need for physical site visits for routine diagnostics and dramatically reducing unplanned downtime.

Production Line Transparency: By connecting rotating equipment health data into the plant SCADA and MES layers, facilities gain full production line transparency. Vibration trends, alarm histories, and machine availability data become part of the OEE (Overall Equipment Effectiveness) calculation — enabling data-driven maintenance scheduling and reducing the risk of catastrophic equipment failure.

System Scalability: The modular design of the 3500 rack means that additional monitor cards can be added as the facility expands, with each new card supported by the same TM0180 series extension cables. This scalability ensures that the investment in field wiring infrastructure remains compatible with future system upgrades, including migration to wireless vibration monitoring or IIoT-connected sensor platforms.

Industrial Connectivity FAQ

Q1: Is the TM0180-08-00-15-10-02 compatible with all Bently Nevada 3500 Series monitor cards?
Yes. The TM0180-08-00-15-10-02 is designed for use with the full range of 3500 Series Proximitor®/Seismic Monitor modules, including the 3500/40M, 3500/42M, and 3500/44M cards. It is also compatible with the 3300 Proximitor® Sensor series, ensuring consistent signal quality across all standard 3500 rack configurations.

Q2: What communication protocols does the 3500 Series support for SCADA and DCS integration?
The 3500 Series supports Modbus RTU (RS-485), Modbus TCP/IP (Ethernet), OPC DA, and OPC UA via the 3500/92 Communication Gateway Module. This enables direct integration with major SCADA platforms including GE iFIX, Wonderware InTouch, Honeywell Experion, and Emerson DeltaV, as well as historian systems such as OSIsoft PI.

Q3: How does the TM0180 extension cable maintain signal integrity over 8 meters?
The TM0180-08-00-15-10-02 uses a low-capacitance, shielded coaxial construction that minimizes signal attenuation and electromagnetic interference (EMI) over its 8-meter length. The cable is rated for operation in harsh industrial environments, including high-temperature zones, areas with strong electromagnetic fields, and locations subject to mechanical vibration — ensuring stable, low-noise signal transmission from the proximity probe to the Proximitor® sensor.

Q4: What warranty and pre-shipment testing does this product include?
All TM0180-08-00-15-10-02 units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failures. Each unit undergoes pre-shipment functional verification to confirm connector integrity, cable continuity, and shielding effectiveness before dispatch. Orders are shipped globally via DHL or FedEx with full tracking, and our technical team is available to support installation, commissioning, and system integration queries.
