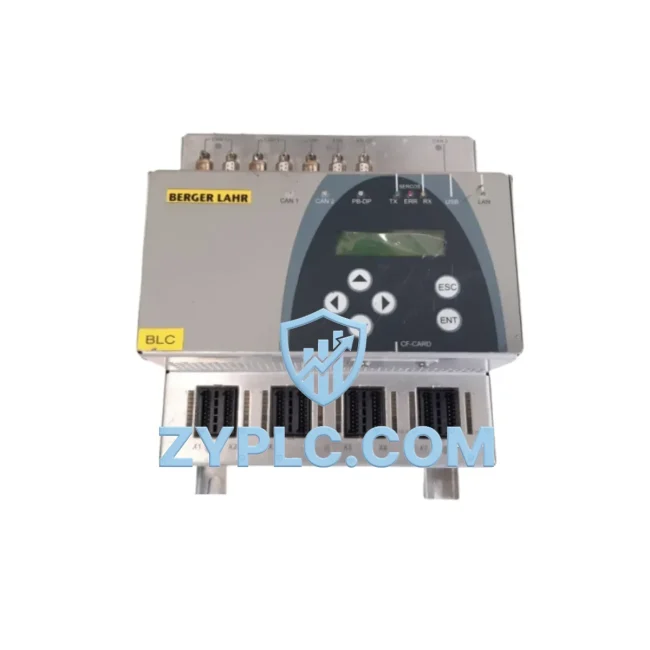

The Berger Lahr BLC382TCNUS1S is a high-performance motion controller from the BLC Series, engineered to deliver precise, energy-efficient drive control in demanding industrial automation environments. Designed for manufacturers seeking to reduce unplanned downtime, minimize unplanned downtime, and optimize production line throughput, the BLC382TCNUS1S integrates seamlessly into multi-axis servo and stepper drive architectures where every watt and every millisecond of cycle time matters.
In modern manufacturing, operating load from motor-driven systems accounts for a significant share of total facility operating costs. The BLC382TCNUS1S addresses this directly by providing closed-loop motion control with high-resolution positioning feedback, enabling motors to operate at optimal load points rather than running at fixed speeds regardless of demand. When paired with a compatible Berger Lahr BLC Series servo drive or stepper driver module, the controller dynamically adjusts torque and velocity profiles to match actual production requirements — eliminating the energy penalty of constant-speed operation and reducing heat generation in drive cabinets.
Every BLC382TCNUS1S unit shipped by ZYPLC undergoes full functional testing prior to dispatch, is backed by a 12-month warranty, and is available from verified in-stock inventory for immediate shipment.
Product Specification Table
| Parameter |
Specification / Value |
| Model / SKU |
Berger Lahr BLC382TCNUS1S |
| Series |
BLC Series |
| Product Type |
Motion Controller |
| Control Mode |
Closed-loop position, velocity, and torque control |
| Drive Compatibility |
BLC Series servo drives, stepper driver modules |
| Communication Interface |
RS-232 / RS-485 / CANopen (BLC platform standard) |
| Operating Voltage |
24 VDC control supply (drive bus per BLC drive spec) |
| Compatible Systems |
Berger Lahr BLC drive systems, IEC 61131-3 PLC platforms |
| Application Environment |
Industrial automation, packaging, CNC, conveyor, assembly |
| Maintenance Value |
Dynamic load-adaptive torque profiling reduces idle energy draw |
| Origin |
Germany |
| Warranty |
12 Months — All units tested before shipment |
| Stock Status |
In Stock — Ready to Ship |
System Compatibility and Application
The BLC382TCNUS1S is most effective when deployed as part of a coordinated automation architecture rather than as a standalone replacement. In a typical energy-optimized production cell, the controller works in concert with a Berger Lahr BLC Series servo drive to execute precise multi-axis motion sequences, while a Schneider Electric Modicon M340 or similar IEC 61131-3 PLC handles supervisory logic and production scheduling. The PLC communicates motion commands to the BLC382TCNUS1S via CANopen or RS-485, allowing the controller to execute interpolated motion profiles that minimize acceleration energy spikes — a common source of hidden unplanned downtime in high-cycle applications.
On the power monitoring side, integrating a Carlo Gavazzi EM24 energy meter or equivalent three-phase power analyzer at the drive panel level allows engineers to correlate motion cycle data from the BLC382TCNUS1S with real-time kWh consumption. This pairing creates a measurable feedback loop: when the controller’s velocity ramp parameters are tuned, the energy meter immediately reflects the reduction in peak demand, enabling data-driven optimization rather than guesswork.
For I/O coordination, a Berger Lahr or compatible distributed I/O module handles sensor inputs — proximity switches, encoder feedback, and limit signals — feeding position data back to the BLC382TCNUS1S to maintain closed-loop accuracy without over-driving the motor. In multi-axis gantry or conveyor systems, a Berger Lahr VRDM Series stepper driver module may operate in parallel with the BLC382TCNUS1S, handling auxiliary axes while the primary controller manages the critical path axis, ensuring synchronized cycle timing without redundant energy expenditure on idle axes.
HMI integration via a Weintek or Siemens KTP series operator panel connected to the supervisory PLC allows production operators to monitor real-time axis status, adjust motion parameters, and review operating load trends without engineering intervention. When the BLC382TCNUS1S reports a following error or position deviation, the HMI alarm system can trigger a controlled stop rather than an emergency shutdown — preserving both product quality and drive system integrity. A Phoenix Contact QUINT series 24 VDC power supply ensures stable control voltage to the BLC382TCNUS1S and associated I/O modules, preventing nuisance resets that would otherwise interrupt production and waste the energy already invested in bringing the line up to operating temperature.
Maintenance and Replacement Notes
In packaging and assembly applications, the BLC382TCNUS1S delivers measurable cycle time improvements by enabling S-curve acceleration profiles that reduce mechanical shock on driven loads. Unlike trapezoidal velocity profiles that demand peak current at every start, S-curve motion reduces the instantaneous current draw from the BLC Series servo drive, lowering the RMS current over a production shift and directly reducing operating load per unit produced. For a line running 16 hours per day, this difference in motion profile efficiency can translate to meaningful reductions in monthly electricity costs — without any change to throughput targets.
Predictive maintenance is another area where the BLC382TCNUS1S contributes to energy efficiency indirectly. By monitoring following error trends over time, maintenance teams can identify mechanical wear — worn ball screws, misaligned couplings, or degraded bearings — before they cause catastrophic failures. A drive system working against increased mechanical resistance draws more current to maintain position accuracy; catching this early through the controller’s diagnostic data prevents both unplanned downtime and the unplanned downtime associated with running a degraded mechanical system at full load.
In conveyor and material handling systems, the BLC382TCNUS1S supports coordinated stop-and-go motion sequences that allow the drive to decelerate loads in a controlled manner, enabling regenerative braking energy to be returned to the DC bus of the BLC Series drive system where supported. This regenerative capability, managed through the controller’s deceleration ramp parameters, reduces the net energy drawn from the supply during high-cycle indexing operations — a significant advantage in applications with frequent start-stop cycles such as rotary indexing tables or shuttle conveyors.
ZYPLC maintains verified inventory of the BLC382TCNUS1S and related BLC Series components, with each unit passing a pre-shipment functional test covering communication interface integrity, control output verification, and parameter memory validation. This testing protocol ensures that the controller arrives ready for integration, reducing commissioning time and the associated labor costs that can erode the ROI of an maintenance planning project.
Product Sourcing FAQ
Q1: How does the BLC382TCNUS1S contribute to measurable operational stability on a production line?
The BLC382TCNUS1S enables load-adaptive motion profiles — including S-curve acceleration and controlled deceleration ramps — that reduce peak current demand from the connected BLC Series servo drive. By eliminating unnecessary energy spikes during each motion cycle and allowing the drive to operate closer to its efficiency curve, the controller reduces kWh consumption per production cycle. When combined with a power monitoring device such as a three-phase energy meter at the panel, the savings can be quantified and reported per shift.
Q2: Is the BLC382TCNUS1S compatible with third-party PLCs and drive systems?
The BLC382TCNUS1S is designed for the Berger Lahr BLC Series drive platform and communicates via RS-232, RS-485, and CANopen interfaces. It can receive motion commands from IEC 61131-3 compliant PLCs from major manufacturers, provided the communication protocol and parameter mapping are correctly configured. For integration with non-BLC drives, compatibility should be verified against the drive’s supported command interface before deployment.
Q3: What is the recommended replacement or upgrade path if the BLC382TCNUS1S is being used in an aging system?
For systems where the BLC382TCNUS1S is being replaced due to age rather than failure, ZYPLC recommends sourcing a direct OEM-equivalent unit to maintain parameter compatibility and avoid re-commissioning the drive system from scratch. If the application requires expanded axis count or updated communication protocols such as EtherCAT or PROFINET, a migration to a current-generation multi-axis motion controller platform should be evaluated — however, for cost-sensitive retrofits, a tested BLC382TCNUS1S replacement remains the most efficient path to restoring production.
Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every BLC382TCNUS1S supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes a pre-dispatch test covering communication port functionality, control output verification, and internal parameter memory integrity. Units that do not pass this test are not shipped. In the event of a warranty claim, ZYPLC provides replacement or repair support — contact plc.sales@zyplc.com or +86 19859288691 for warranty service inquiries.
