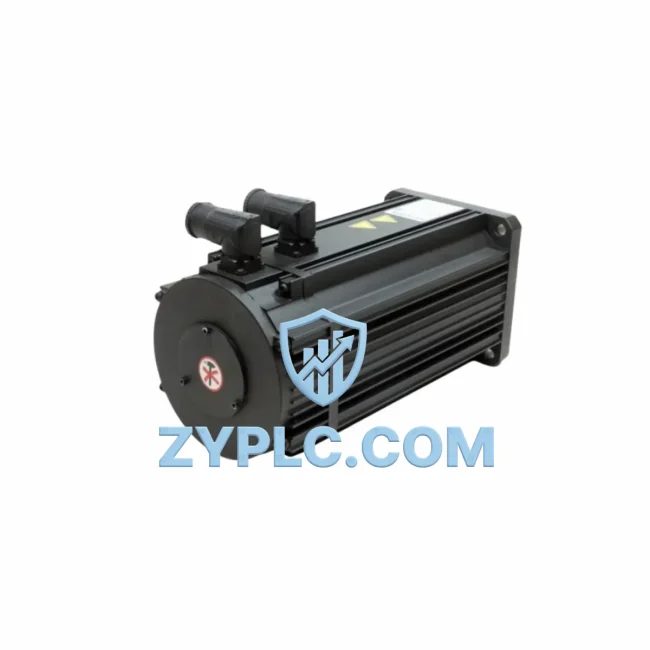

Berger Lahr USM4-14-3-20IB4-9LG Servo Motor for PacDrive

Berger Lahr USM4-14-3-20IB4-9LG Servo Motor for PacDrive

In modern industrial automation, no component operates in isolation. The Berger Lahr USM4-14-3-20IB4-9LG servo motor is engineered not merely as a standalone drive element, but as a precision-integrated node within the broader PacDrive control architecture. Designed to operate seamlessly within Schneider Electric’s PacDrive M and PacDrive 3 ecosystems, this USM4-series motor delivers the torque density, encoder resolution, and communication compatibility required to sustain high-performance motion across multi-axis machine platforms.

Understanding the USM4-14-3-20IB4-9LG requires viewing it through the lens of system architecture — from the controller layer down through the drive layer, I/O layer, and into the mechanical execution layer. This document outlines how the motor fits within that hierarchy, what it contributes to system coherence, and why it remains a preferred choice for OEMs and system integrators managing long-term machine uptime.

Product Specification Table

System Compatibility Notes

The USM4-14-3-20IB4-9LG achieves its full potential only when integrated within a coherent PacDrive system architecture. At the controller layer, the Schneider Electric LMC600C PacDrive M controller serves as the motion coordinator, managing trajectory planning, cam profiles, and synchronization across all servo axes. The LMC600C communicates with each servo drive via the SERCOS III real-time fieldbus, delivering deterministic cycle times as low as 250 µs — a prerequisite for tight multi-axis coordination in packaging and printing applications.

At the drive layer, the Schneider Electric LXM62 servo drive provides the power stage for the USM4-14-3-20IB4-9LG. The LXM62 accepts the motor’s 20-bit absolute encoder feedback directly, enabling closed-loop position control without external encoder conditioning modules. For multi-axis cabinets, the LXM62 DC bus sharing architecture allows energy regenerated during deceleration to be redistributed to accelerating axes, reducing peak power demand and improving overall energy efficiency.

Power supply integrity is maintained by the Schneider Electric VW3M3401 mains filter and the LXM62 line choke, which together suppress conducted EMI and protect the DC bus from line transients. In redundant power architectures, a secondary 24 VDC logic supply — typically sourced from an ABL8 power supply module — ensures that encoder feedback and controller communication remain active even during a main power interruption, preserving absolute position data across power cycles.

At the I/O layer, Schneider Electric TM5 distributed I/O modules handle digital and analog signals from field devices — proximity sensors, pressure transducers, and safety interlocks — and relay them to the LMC600C over CANopen or EtherNet/IP. This separation of motion control traffic (SERCOS III) from process I/O traffic (CANopen/EtherNet/IP) prevents bus contention and ensures that servo command latency remains unaffected by I/O polling cycles.

For human-machine interface, the Schneider Electric HMIGTO series touchscreen panels provide operators with real-time axis status, fault diagnostics, and recipe management. These panels communicate with the LMC600C via Ethernet, and their integration with the PacDrive programming environment (SoMachine Motion / EcoStruxure Machine Expert) allows alarm messages to reference specific axis faults — including USM4 motor overtemperature, encoder communication loss, or following error — by name rather than by raw fault code.

At the terminal and wiring layer, Weidmüller or Phoenix Contact terminal blocks are commonly used within PacDrive control cabinets to organize motor feedback cables, brake control wiring, and safety relay circuits. Proper cable management — including the use of Berger Lahr VW3M5101 motor power cables and VW3M5401 encoder cables — is essential for maintaining signal integrity at the 20-bit encoder resolution the USM4-14-3-20IB4-9LG requires.

This system integration approach — where every component from the LMC600C controller to the terminal block is selected and configured as part of a unified system — is what distinguishes a high-availability PacDrive machine from a collection of individually functional parts. The USM4-14-3-20IB4-9LG is a key node in that architecture, and its 12-Month Warranty from ZYPLC ensures that replacement logistics do not become a bottleneck in machine uptime management.

Industrial Application Notes

The USM4-14-3-20IB4-9LG is deployed across a wide range of process and discrete manufacturing environments where precise, synchronized motion is non-negotiable.

In packaging machinery — including horizontal flow wrappers, cartoners, and case erectors — the motor drives infeed conveyors, sealing jaws, and folding mechanisms that must maintain phase synchronization with upstream and downstream axes. The 20-bit absolute encoder eliminates homing cycles after power restoration, reducing machine restart time from minutes to seconds.

In printing and converting lines, the USM4-14-3-20IB4-9LG controls web tension rolls and registration axes where position repeatability below 0.01° is required to maintain print register across substrate changes. The motor’s low cogging torque and high encoder resolution make it suitable for direct-drive roller applications without intermediate gearboxes.

In pharmaceutical and food processing environments, the IP65 shaft seal and smooth-bore shaft option (9LG configuration) facilitate washdown-compatible installations. The motor’s compatibility with the PacDrive safety architecture — including STO (Safe Torque Off) and SS1 (Safe Stop 1) functions implemented through the LXM62 drive — satisfies SIL 2 / PLd safety requirements without external safety relays.

In power generation and water treatment facilities, the motor is used in valve actuator and pump control applications where long-term reliability and predictable maintenance intervals are prioritized over peak dynamic performance. The 12-Month Warranty and ZYPLC’s in-stock availability policy ensure that spare units can be sourced and installed within standard planned maintenance windows.

Product Compatibility FAQ

Q1: Is the USM4-14-3-20IB4-9LG compatible with both PacDrive M (LMC600C) and PacDrive 3 (LMC400C/LMC600C3) controllers?
The USM4 series was originally developed for the PacDrive M platform using SERCOS II communication. Compatibility with PacDrive 3 controllers depends on the drive firmware version and the SERCOS III adapter configuration of the LXM62 drive. In most retrofit scenarios, the USM4-14-3-20IB4-9LG can be operated under PacDrive 3 with appropriate drive parameter mapping. ZYPLC recommends verifying the LXM62 firmware version and the SoMachine Motion project configuration before commissioning. Our technical team can assist with pre-delivery compatibility verification as part of the 12-Month Warranty service.

Q2: What encoder cable length limitations apply, and how does cable length affect absolute position retention?
The 20-bit multi-turn absolute encoder in the IB4 configuration uses a battery-backed or capacitor-backed position retention circuit within the motor feedback connector housing. Cable length between the motor and the LXM62 drive should not exceed 50 meters for standard VW3M5401 encoder cables without signal conditioning. Beyond 25 meters, shielded twisted-pair cables with 100% foil coverage and a drain wire connected at the drive end only are required to prevent common-mode noise from corrupting encoder data. Absolute position is retained during power-off periods by the internal backup circuit, independent of cable length.

Q3: What does the 12-Month Warranty from ZYPLC cover, and how is a warranty claim processed?
ZYPLC’s 12-Month Warranty on the USM4-14-3-20IB4-9LG covers manufacturing defects, encoder failure, winding insulation breakdown, and bearing failure under normal operating conditions. The warranty period begins from the date of shipment. To initiate a claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference number, a description of the fault symptom, and — where possible — the LXM62 drive fault log. ZYPLC will arrange advance replacement shipment for verified warranty cases to minimize machine downtime. Physical damage, incorrect installation, or operation outside rated parameters are excluded from warranty coverage.
