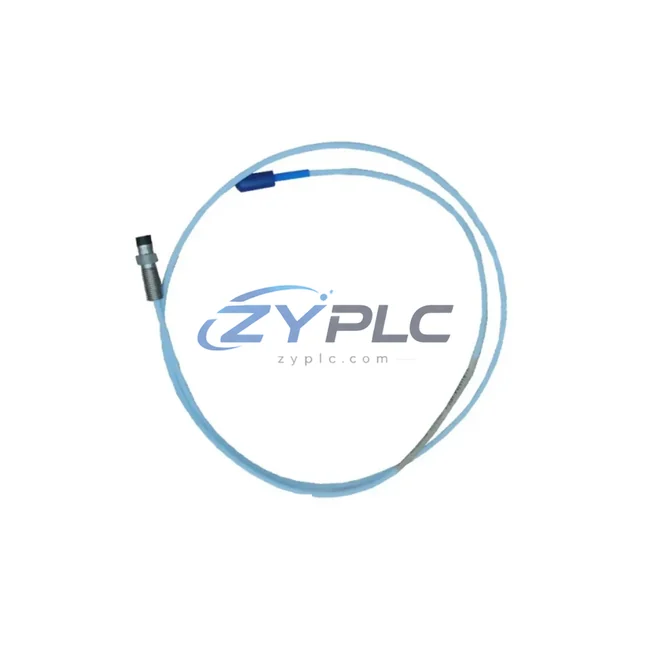

BN 330171-00-20-05-02-00 Probe for 3300 Series

BN 330171-00-20-05-02-00 Probe for 3300 Series: Compatibility and Replacement Notes

The Bently Nevada 330171-00-20-05-02-00 is a high-precision eddy-current proximity probe engineered for seamless integration within the Bently Nevada 3300 Series continuous vibration monitoring architecture. In modern industrial automation, no sensor operates in isolation. The 330171-00-20-05-02-00 is designed from the ground up to function as a coordinated node within a layered control system — connecting the physical machine layer to the signal conditioning layer, the monitoring layer, and ultimately the plant-wide control and safety network.

Understanding this probe’s role requires viewing it through the lens of the complete system architecture: from the rotating shaft it monitors, through the signal cable, into the 3300/16 proximitor extension cable, through the 3300/20 proximitor sensor, and onward to the 3500/22M transient data interface or the 3500/42M vibration monitor rack module. Each element in this chain depends on the calibration consistency and signal integrity of the probe itself. The 330171-00-20-05-02-00, with its 5 mm tip diameter, 20-inch armored cable, and 5 mm gap range, delivers the stable DC voltage output that downstream modules require for accurate radial vibration, axial position, and differential expansion measurement.

In a fully integrated Bently Nevada 3500 Series rack system, the probe connects via the 330180-51-00 extension cable to the proximitor, which in turn feeds the 3500/15 power supply module and the 3500/25 keyphasor module for phase reference. The 3500/42M vibration monitor processes the conditioned signal and communicates alarm states to the plant DCS or safety instrumented system via Modbus, Profibus, or hardwired relay outputs. This architecture ensures that the 330171-00-20-05-02-00 contributes not just raw vibration data, but actionable, system-integrated condition intelligence.

At the control layer, the probe’s output is consumed by the 3500 rack’s internal processors, which apply gap voltage thresholds, alert setpoints, and danger limits configured during commissioning. Engineers using the System 1 software platform can trend the probe’s gap voltage over time, correlating shaft centerline position with bearing wear patterns. This long-term data continuity is only possible when the probe, extension cable, and proximitor are matched as a calibrated system — a requirement the 330171-00-20-05-02-00 fulfills by adhering to Bently Nevada’s standard 200 mV/mil (7.87 V/mm) sensitivity specification.

From a redundancy design perspective, critical turbines and compressors typically employ dual-probe configurations per measurement plane. The 330171-00-20-05-02-00 is routinely paired with a second probe at 90 degrees to provide XY radial vibration vectors. Both probes feed independent channels within the 3500/42M or 3500/22M modules, enabling the monitoring system to detect orbit shape, detect rubs, and identify rotor instability without single-point-of-failure risk. This redundancy architecture is essential in power generation, petrochemical, and LNG compression applications where unplanned downtime carries significant operational and safety consequences.

For I/O layer integration, the probe’s analog DC output is inherently compatible with the 3300 and 3500 Series signal conditioning infrastructure. No additional signal converters or isolators are required when the probe is used within its specified gap range and with matched Bently Nevada extension cables such as the 330130-080-00-00 or 330100-50-00. This plug-and-play compatibility reduces commissioning time and eliminates the risk of impedance mismatches that can introduce measurement error in high-sensitivity vibration monitoring applications.

At the network and communication layer, the 330171-00-20-05-02-00’s data ultimately reaches plant historians, SCADA systems, and predictive maintenance platforms through the 3500 rack’s communication gateway modules. Integration with Ethernet-based protocols allows condition data to flow into asset management systems, enabling maintenance teams to schedule interventions based on actual machine condition rather than fixed time intervals. This system integration of vibration data into the broader plant information architecture is a defining characteristic of modern machinery protection system design.

Product Specification Table

System Compatibility Notes

The 330171-00-20-05-02-00 achieves its full performance potential when deployed within a coordinated Bently Nevada system architecture. A typical machinery protection installation for a steam turbine or centrifugal compressor train will include the following coordinated components:

The 3300/20 proximitor sensor serves as the signal conditioning driver, converting the probe’s impedance change into a calibrated DC voltage output. The 3300/16 extension cable bridges the probe to the proximitor across the machine casing, maintaining signal integrity over distances up to 9 meters. Within the monitoring rack, the 3500/42M four-channel vibration monitor processes up to four probe channels simultaneously, applying configurable alert and danger setpoints. The 3500/15 power supply module provides regulated –24 VDC to the entire rack, ensuring stable probe excitation voltage across all channels.

For phase reference and speed measurement, the 3500/25 keyphasor module accepts a once-per-revolution trigger signal, enabling the system to compute synchronous vibration vectors and perform order-tracked analysis. The 3500/22M transient data interface captures high-resolution waveform data during startup and shutdown transients, providing the engineering team with the data needed to assess critical speed crossings and rotor dynamic behavior. Communication to the plant DCS is handled by the 3500/92 communication gateway, which supports Modbus RTU, Modbus TCP, and Profibus DP protocols.

Extension cables such as the 330130-080-00-00 and 330100-50-00 complete the signal chain between probe and proximitor, and must be selected to match the total system cable length for accurate sensitivity calibration. Together, these components form a tightly integrated, standards-compliant machinery protection system in which the 330171-00-20-05-02-00 serves as the primary sensing element.

Industrial Application Notes

The 330171-00-20-05-02-00 is deployed across a wide range of heavy industrial applications where rotating machinery reliability is critical to process continuity and personnel safety. In power generation, the probe monitors steam turbine shaft vibration and axial position, providing early warning of bearing degradation, rotor imbalance, and thermal bow during startup. In petrochemical and refinery environments, it protects centrifugal compressors and pumps in continuous process service, where unplanned shutdowns can result in significant production losses and safety incidents.

In LNG and gas processing facilities, the probe is integrated into API 670-compliant machinery protection systems for high-speed compressor trains, where vibration limits are tightly controlled to protect mechanical seals and labyrinth bearings. In water treatment and municipal utilities, it monitors large vertical pump motors and blower trains, enabling condition-based maintenance programs that extend equipment life and reduce capital expenditure. In mining and mineral processing, the probe is applied to SAG mill pinion drives, crusher motors, and slurry pump systems, where harsh environments demand the probe’s armored cable construction and wide operating temperature range.

In metallurgical and steel mill applications, the probe monitors rolling mill drive motors and continuous caster pinch roll drives, where precise axial position measurement is critical to product quality. Across all these applications, the 330171-00-20-05-02-00’s system integration into the plant’s automation and information architecture — from the field device layer through to the enterprise asset management system — delivers the condition intelligence needed to support predictive maintenance strategies and long-term asset reliability programs.

Product Compatibility FAQ

Q1: Is the 330171-00-20-05-02-00 compatible with both the 3300 Series and 3500 Series monitoring racks?
Yes. The 330171-00-20-05-02-00 is fully compatible with both the Bently Nevada 3300 Series and 3500 Series monitoring architectures. It operates with the standard 3300/20 proximitor and connects to 3500 rack modules including the 3500/42M vibration monitor and 3500/22M transient data interface. The probe’s 200 mV/mil sensitivity and –24 VDC supply requirement are consistent across both platform generations, ensuring backward and forward compatibility within Bently Nevada’s machinery protection ecosystem.

Q2: What extension cable and proximitor combination should be used with this probe for accurate system calibration?
For accurate calibration, the total system cable length — probe integral cable plus extension cable — must match the proximitor’s calibrated range. The 330171-00-20-05-02-00 has a 20-inch integral cable, so the extension cable (such as the 330130-080-00-00 or 330100-50-00) must be selected to bring the total to the proximitor’s specified system length (typically 5m, 9m, or other standard lengths). Mismatched cable lengths will shift the probe’s linear range and introduce sensitivity error. Always verify the complete system cable length against the proximitor’s calibration certificate during commissioning.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers manufacturing defects, calibration integrity, and material failures under normal operating conditions. For maintenance engineers, this warranty provides a defined baseline for spare parts planning and lifecycle cost modeling. Probes approaching or beyond their warranty period should be scheduled for calibration verification or replacement as part of a proactive maintenance program. ZYPLC maintains inventory of the 330171-00-20-05-02-00 to support rapid replacement needs, minimizing the risk of extended monitoring gaps in critical machinery protection applications.
