Bochmann SDO204 Industrial Network Interface for Safety I/O Systems

Bochmann SDO204 Industrial Network Interface for Safety I/O Systems: Precision Data Links for Smart Factory Safety Architecture

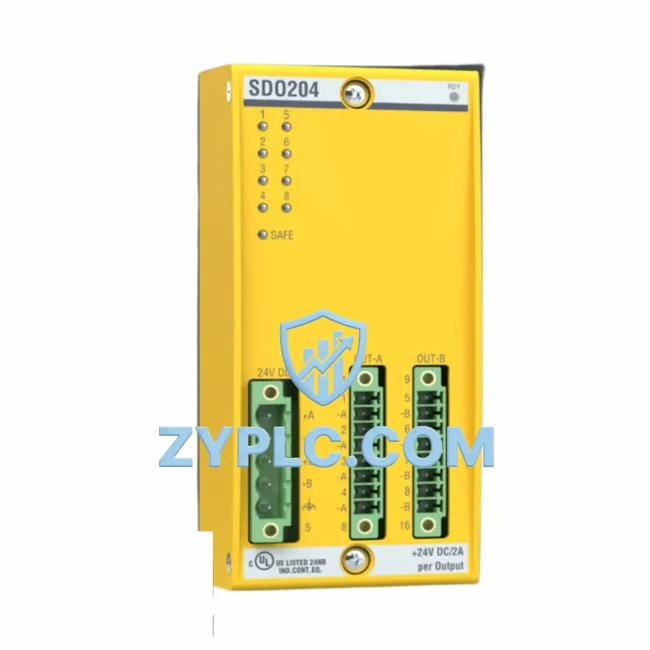

The Bochmann SDO204 is a high-performance Safety Digital Output Module engineered for demanding industrial environments where functional safety, real-time communication, and seamless network integration are non-negotiable. Designed to operate within PROFIsafe and PROFINET architectures, the SDO204 serves as a critical gateway node between safety-rated PLCs, distributed I/O systems, and upper-level SCADA or HMI platforms. Whether deployed in automotive assembly lines, chemical processing plants, or advanced discrete manufacturing cells, the SDO204 delivers deterministic output control with the reliability that modern smart factories demand.

In today’s connected industrial landscape, the integrity of the safety data chain — from field-level sensors and actuators through to supervisory control systems — depends on modules that can bridge protocol boundaries without introducing latency or data loss. The Bochmann SDO204 fulfills this role with precision, supporting 4-channel digital safety outputs rated for SIL 2 / PLd applications, and integrating natively into Bochmann’s broader Safety I/O ecosystem.

Network Communication Table

Connected Automation Data Flow

Understanding the SDO204’s role requires tracing the full industrial data chain from signal origin to supervisory response. At the field level, safety sensors — including light curtains, emergency stop buttons, and two-hand control devices — generate discrete safety signals that must be reliably captured and transmitted upstream. These signals are first processed by a safety-rated input module such as the Bochmann SDI204 (Safety Digital Input Module), which reads and encodes the field-level safety states into PROFIsafe frames.

These PROFIsafe frames travel across the PROFINET backbone to the safety PLC — typically a Bochmann Safety CPU or a compatible Siemens S7-1500F / S7-300F controller — where the safety logic program evaluates the incoming data against predefined safety conditions. When the safety PLC determines that an output action is required — such as de-energizing a motor contactor, triggering an emergency stop relay, or activating a warning beacon — it transmits the corresponding PROFIsafe output command to the SDO204.

The SDO204 receives this command over the PROFINET interface, decodes the PROFIsafe telegram, and drives its 4 safety-rated digital output channels accordingly. These outputs connect directly to field actuators: safety relays, motor starters, solenoid valves, or drive enable circuits on variable frequency drives (VFDs) such as the Bochmann SD700 series or compatible Siemens SINAMICS drives. The SDO204’s output switching is monitored internally for cross-circuit faults and short-circuit conditions, with diagnostic data fed back to the safety PLC in real time.

At the network layer, a Bochmann PN/PN Coupler or an industrial managed Ethernet switch — such as the Bochmann IES-Series Industrial Ethernet Switch — ensures that PROFINET traffic is segmented and prioritized correctly, maintaining the sub-millisecond cycle times required for safety-critical communication. For installations where legacy fieldbus devices such as PROFIBUS DP or Modbus RTU nodes must be integrated alongside the SDO204, a Bochmann PN/PB Link or protocol gateway module bridges the communication gap, enabling unified data visibility across mixed-protocol environments.

Upstream, the safety PLC connects to the plant’s SCADA system via an OPC UA server or a dedicated Bochmann OPC UA Gateway, making real-time safety output states, diagnostic codes, and alarm histories available to operators at the HMI level. HMI panels — such as the Bochmann TP Series Touch Panels — display live output channel status, fault indicators, and safety loop integrity data, enabling operators to respond to abnormal conditions without delay. For remote monitoring and predictive maintenance, an edge gateway aggregates SDO204 diagnostic data and forwards it to cloud-based MES or IIoT platforms, completing the digital thread from field actuator to enterprise dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of safety and standard control data across incompatible protocols and isolated network segments. Legacy installations often combine PROFIBUS DP, Modbus RTU, DeviceNet, and proprietary fieldbus systems, creating data silos that prevent unified monitoring and slow down fault diagnosis. The Bochmann SDO204, operating natively on PROFIsafe over PROFINET, acts as a standardization anchor — enabling safety output control to be fully integrated into the plant’s primary PROFINET network without requiring separate safety bus wiring.

For sites undergoing digital transformation, the SDO204 supports transparent production line monitoring by making every output channel state and diagnostic event visible to the SCADA layer in real time. Operators can remotely verify whether safety outputs are energized or de-energized, identify channel-level faults before they escalate to unplanned downtime, and execute remote diagnostics without dispatching field technicians. This capability is especially valuable in large-scale facilities — such as automotive body shops, battery manufacturing lines, or pharmaceutical packaging plants — where safety I/O nodes may be distributed across hundreds of meters of production floor.

System expansion is equally straightforward: additional SDO204 modules can be added to the PROFINET ring or line topology without reconfiguring the existing network, and the safety PLC’s hardware configuration is updated via the engineering tool (e.g., Siemens TIA Portal or Bochmann Safety Studio) to recognize the new node. This modular scalability ensures that the safety architecture grows with the production system, protecting the initial investment while accommodating future capacity increases.

Every Bochmann SDO204 unit shipped by ZYPLC undergoes pre-shipment functional testing, including output channel verification, PROFIsafe communication validation, and diagnostic response checks. All units are covered by a 12-month warranty, and in-stock inventory ensures rapid dispatch to support urgent project timelines worldwide.

Industrial Connectivity FAQ

Q1: What is the communication latency of the Bochmann SDO204 on a PROFINET network?
The SDO204 supports PROFINET IO with configurable cycle times as low as 1 ms, ensuring that safety output commands from the PLC are executed within the deterministic timeframes required by SIL 2 / PLd safety functions. PROFIsafe watchdog timers are configurable to match the specific safety response time requirements of each application.

Q2: Is the SDO204 compatible with third-party safety PLCs and PROFINET controllers?
Yes. The SDO204 implements the standard PROFIsafe profile over PROFINET, making it compatible with any PROFINET IO controller that supports PROFIsafe, including Siemens S7-1500F, S7-300F, Pilz PNOZmulti 2, and other certified safety PLCs. A GSDML device description file is available for integration into TIA Portal and other engineering environments.

Q3: How does the SDO204 support network stability in high-EMI industrial environments?
The SDO204 is designed with industrial-grade EMC protection, conforming to IEC 61000 series immunity standards. Its PROFINET interface supports Media Redundancy Protocol (MRP) for ring topology redundancy, ensuring that a single cable fault does not interrupt safety communication. The module’s housing provides IP20 protection for cabinet installation, and all outputs are monitored for short-circuit and overload conditions.

Q4: What warranty and after-sales support does ZYPLC provide for the Bochmann SDO204?
ZYPLC provides a 12-month warranty on all Bochmann SDO204 units, covering manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing is performed on every unit. For technical support, replacement, or RFQ inquiries, contact ZYPLC directly at +86 19859288691 or plc.sales@zyplc.com.
