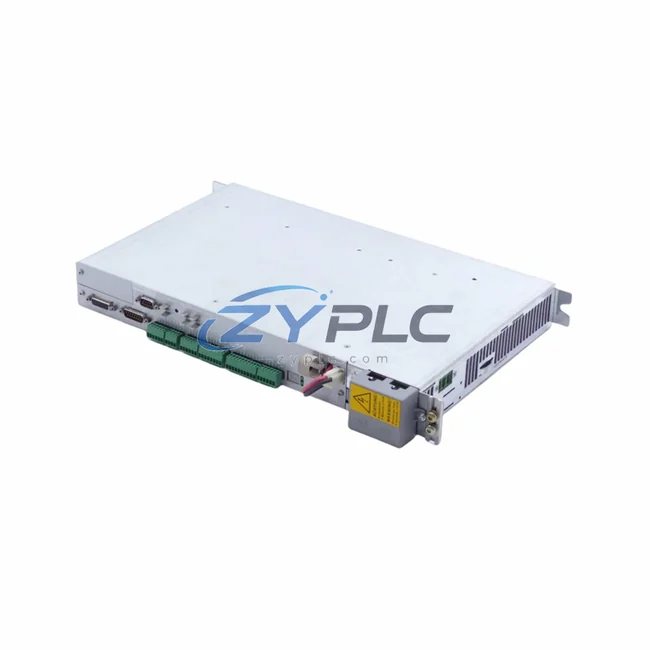

Bosch 4101-D Drive Module for Rexroth

Bosch 4101-D Drive Module for Rexroth: Compatibility and Replacement Notes

The Bosch Rexroth 4101-D is a high-performance AC servo drive module engineered for seamless integration within layered industrial control architectures. Rather than functioning as a standalone component, the 4101-D is designed to operate as a coordinated node within a complete automation system — interfacing with controllers, I/O subsystems, communication networks, power supply units, and human-machine interfaces to deliver consistent, scalable, and maintainable motion control performance across demanding industrial environments.

In modern industrial automation, the drive layer is not isolated. It is the execution endpoint of a signal chain that originates at the supervisory control level and passes through the logic controller, fieldbus network, and I/O distribution layer before reaching the actuator. The 4101-D is built with this architecture in mind, offering deterministic response, robust communication capability, and compatibility with the broader Rexroth IndraDrive and IndraControl ecosystem.

Product Specification Table

System Compatibility Notes

The 4101-D achieves its full potential when deployed within a coordinated Rexroth control architecture. At the controller layer, the Bosch Rexroth IndraControl XM22 or IndraControl L45 motion logic controller issues real-time position and velocity commands via SERCOS III or EtherCAT, providing deterministic cycle times essential for multi-axis synchronization. The 4101-D receives these commands and translates them into precise torque outputs at the motor shaft.

Power supply integrity is managed by the Rexroth HMV01 supply unit or compatible DC bus power supply modules, which provide regulated DC bus voltage to the 4101-D and adjacent drive modules sharing the same drive rail. This shared DC bus topology reduces operating load through regenerative braking and simplifies cabinet wiring.

On the I/O layer, the Rexroth Inline I/O modules (e.g., IL series terminal blocks) handle digital and analog signal distribution — limit switches, encoder feedback, and safety relay signals — feeding status data back to the controller and enabling the 4101-D to respond to machine state changes in real time.

For network communication, the Rexroth CML65 communication module or an integrated PROFIBUS gateway bridges the drive network to plant-level SCADA or DCS systems, enabling remote diagnostics, parameter upload/download, and production data logging without interrupting machine operation.

At the human-machine interface layer, the Bosch Rexroth IndraControl VCP20 operator panel provides local visualization of drive status, fault codes, and axis position data, reducing commissioning time and enabling on-site maintenance without laptop connectivity. Paired with the Rexroth IndraWorks DS engineering software, engineers can configure drive parameters, tune PID loops, and validate motion profiles across all axes from a single platform.

For redundancy-critical applications, the 4101-D can be paired with a Rexroth IndraDrive redundancy module or a hot-standby drive configuration, ensuring that a single drive failure does not halt the production line. Terminal modules and Rexroth IndraDrive Cs compact servo drives can be added to expand axis count without modifying the existing control cabinet layout, supporting modular machine expansion.

Industrial Application Notes

Manufacturing and Assembly Lines: In automotive body welding and precision assembly, the 4101-D coordinates multi-axis motion across robotic arms, conveyor indexing, and press control. Its deterministic SERCOS III communication ensures all axes remain synchronized within microseconds, preventing positional drift that could cause part rejection or tooling damage.

Power Generation and Utilities: In turbine governor control and pump station automation, the 4101-D manages variable-speed drives for flow regulation. Its robust EMC shielding and wide operating voltage range make it suitable for electrical substations and generator control rooms where power quality may fluctuate.

Petrochemical and Process Industries: Compressor control, extruder drives, and reactor agitator systems benefit from the 4101-D’s torque control precision and fault-tolerant design. Integration with safety relay modules and emergency stop circuits ensures SIL-compliant shutdown sequences.

Water Treatment and Municipal Infrastructure: Variable-frequency pump control for water distribution and wastewater treatment relies on the 4101-D’s speed regulation accuracy and operational-efficiency DC bus sharing. Remote diagnostics via PROFIBUS reduce the need for on-site service visits at unmanned pump stations.

Mining and Metallurgy: Conveyor belt drives, hoist controls, and rolling mill positioning systems demand high torque at low speed — a capability the 4101-D delivers through its closed-loop servo algorithm. Its rugged design tolerates the vibration and dust ingress common in underground and surface mining environments.

Packaging and Material Handling: High-speed pick-and-place, form-fill-seal machines, and palletizing robots require sub-millisecond motion response. The 4101-D’s fast current loop and EtherCAT compatibility enable the tight synchronization needed for throughput rates exceeding 100 cycles per minute.

Product Compatibility FAQ

Q1: Is the Bosch 4101-D compatible with existing Rexroth IndraDrive Cs and IndraDrive Mi systems in the same control cabinet?
A: Yes. The 4101-D is designed for integration within the Rexroth IndraDrive family architecture. It shares the same DC bus infrastructure as IndraDrive Cs compact drives and can be coordinated by an IndraControl XM or L-series motion controller via SERCOS III or EtherCAT. When adding the 4101-D to an existing cabinet, verify DC bus load capacity using the Rexroth drive sizing tool and confirm firmware compatibility with your IndraControl version. Our technical team can assist with pre-sales architecture validation.

Q2: What commissioning tools and communication protocols are required to integrate the 4101-D into a PROFIBUS or EtherCAT network?
A: Commissioning is performed using Rexroth IndraWorks DS or IndraWorks MLD engineering software. For PROFIBUS integration, a GSD file is required for the PLC master configuration. For EtherCAT, an ESI file is used. The 4101-D supports standard drive profiles (e.g., CiA 402) enabling compatibility with third-party EtherCAT masters. Network topology, node addressing, and baud rate settings are configured via the engineering software before first power-on. All units supplied by ZYPLC are pre-tested and include parameter backup files on request.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance and spare parts availability?
A: Every Bosch 4101-D supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects, component failure under normal operating conditions, and firmware integrity. Units are functionally tested prior to dispatch. For long-term maintenance, ZYPLC supports RFQ sourcing for Rexroth drive modules, power supply units, and I/O components to support planned maintenance cycles and emergency replacements. Customers can request advance replacement units to minimize downtime. Contact our engineering support team at plc.sales@zyplc.com or +86 19859288691 for maintenance planning, cross-reference assistance, and architecture consultation.
