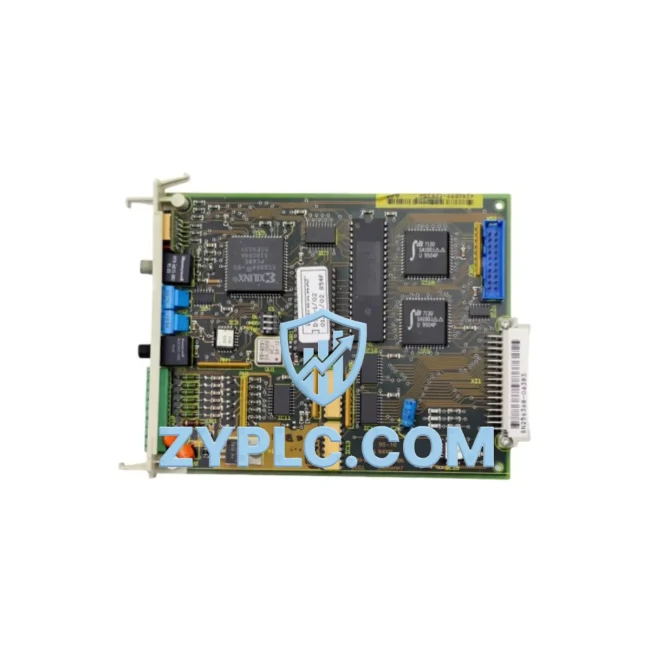

Bosch DSS 1.3 Control Card for Rexroth Drives

Bosch DSS 1.3 Control Card for Rexroth Drive

In modern industrial automation, no component operates in isolation. The Bosch DSS 1.3 Control Card is engineered as a system-compatible intelligence layer within the Rexroth drive architecture, designed to coordinate signal processing, motion sequencing, and drive-level feedback across multi-axis and multi-zone control environments. Whether deployed in a centralized PLC-based topology or a distributed servo network, the DSS 1.3 delivers the system integration that engineers demand when building scalable, maintainable, and redundancy-capable automation systems.

The DSS 1.3 occupies a critical position between the control layer and the execution layer. It receives motion commands from upstream controllers — such as the Bosch Rexroth IndraControl L45 or IndraControl L65 — and translates them into precise drive-level instructions for Rexroth IndraDrive series servo drives, including the IndraDrive Cs and IndraDrive Mi families. This tight coupling between the control card and the drive platform ensures deterministic response times, reduced jitter, and consistent axis synchronization across the entire machine cycle.

From an I/O layer perspective, the DSS 1.3 interfaces seamlessly with Rexroth’s modular I/O infrastructure. Engineers integrating the card into a Rexroth Inline or IndraControl XM platform will find that the DSS 1.3 supports standard fieldbus protocols, enabling direct communication with distributed I/O nodes, safety modules, and analog signal conditioners without requiring additional gateway hardware. This reduces cabinet footprint, simplifies wiring, and accelerates commissioning timelines on complex multi-panel installations.

Product Specification Table

System Compatibility Notes

The true value of the DSS 1.3 emerges when it is evaluated not as a standalone card, but as a functional node within a coordinated Rexroth control architecture. In a typical multi-axis servo system, the DSS 1.3 is installed within an IndraDrive HCS or IndraDrive HMD drive unit, where it manages the closed-loop control algorithms, encoder feedback processing, and safety-relevant monitoring functions that the drive requires to operate reliably under dynamic load conditions.

At the network layer, the DSS 1.3 participates in real-time communication cycles managed by the master controller. In SERCOS III-based architectures, the card synchronizes with the Rexroth IndraMotion MLC motion logic controller, receiving interpolated position setpoints and returning actual position, velocity, and torque feedback within each communication cycle. This closed-loop data exchange is fundamental to achieving the sub-millisecond synchronization required in high-speed packaging lines, press automation, and precision assembly systems.

For power layer integration, the DSS 1.3 operates within drive cabinets that typically include Rexroth HNF supply units or HNS regenerative power supply modules, which provide the DC bus voltage that the IndraDrive units — and by extension the DSS 1.3 — depend on for stable operation. Proper sizing of the supply unit relative to the total drive load is essential, and the DSS 1.3’s onboard diagnostics contribute to power consumption monitoring at the drive level.

At the human-machine interface layer, operators interact with DSS 1.3-equipped systems through Rexroth IndraControl VCP operator panels or third-party HMI terminals connected via Ethernet-based protocols. The DSS 1.3 exposes drive status, fault codes, and parameter data to the HMI layer through the master controller, enabling operators to monitor axis health, acknowledge alarms, and initiate controlled shutdowns without requiring direct access to the drive cabinet.

For systems requiring redundancy, the DSS 1.3 supports hot-swap replacement procedures when the host drive unit is properly de-energized, and its parameter set can be stored and restored via the IndraWorks DS engineering software, significantly reducing mean time to repair (MTTR) in production environments where unplanned downtime carries high operational cost. Spare card inventory management is simplified by the DSS 1.3’s broad compatibility across multiple IndraDrive generations.

Industrial Application Notes

The DSS 1.3 has established a strong application record across a wide range of process-critical industries. In manufacturing and assembly automation, the card is deployed in multi-axis gantry systems and robotic welding cells where precise coordination between servo axes determines product quality and cycle time. Its deterministic communication behavior ensures that position errors do not accumulate across long production runs.

In power generation and electrical utilities, Rexroth IndraDrive systems equipped with DSS 1.3 cards are used in turbine governor control and valve actuation systems, where the card’s robust signal processing capabilities support reliable operation under electrically noisy conditions. The 12-Month Warranty provided by ZYPLC gives plant engineers confidence in long-term spare parts availability for critical infrastructure applications.

In petrochemical and process industries, the DSS 1.3 supports pump and compressor drive control within hazardous area control panels, where the card’s stable thermal performance across the full operating temperature range is a key selection criterion. Integration with safety PLCs via the drive’s STO (Safe Torque Off) function is supported through the DSS 1.3’s safety-relevant firmware layer.

In mining and metallurgy, the card is used in conveyor drive systems and rolling mill servo axes, where high inertia loads and frequent acceleration-deceleration cycles demand robust current control algorithms — a core strength of the DSS 1.3’s closed-loop architecture. Water treatment facilities and packaging lines similarly benefit from the card’s ability to maintain consistent drive performance across variable load profiles and extended continuous-duty cycles.

Product Compatibility FAQ

Q1: Is the DSS 1.3 compatible with all IndraDrive series drive units, and can it be used in mixed-generation drive cabinets?
The DSS 1.3 is designed for specific IndraDrive platform generations. Compatibility should be verified against the drive unit’s hardware revision and firmware version using the Rexroth IndraDrive compatibility matrix or IndraWorks DS project configuration tool. In mixed-generation cabinets, it is recommended to standardize on a single DSS firmware version to ensure consistent parameter handling and avoid communication conflicts on shared SERCOS or EtherCAT segments. ZYPLC’s technical team can assist with compatibility verification prior to order confirmation.

Q2: How does the DSS 1.3 support long-term maintenance and what is covered under the 12-Month Warranty?
The DSS 1.3’s parameter set is fully exportable via IndraWorks DS, allowing maintenance teams to create card-level backups that can be restored to a replacement unit in minutes. ZYPLC’s 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority support, and ZYPLC maintains stock of DSS 1.3 units to minimize lead times for warranty replacements. Customers are advised to maintain at least one spare card per drive cabinet to support rapid swap-out during unplanned maintenance events.

Q3: What commissioning steps are required when integrating the DSS 1.3 into an existing Rexroth control architecture?
Commissioning the DSS 1.3 involves three primary steps: hardware installation into the target IndraDrive unit slot, parameter upload via IndraWorks DS using the axis-specific parameter file, and network integration verification through the master controller’s drive topology scan. Engineers should confirm that the SERCOS or EtherCAT address assignment matches the master controller’s axis configuration before enabling drive power. ZYPLC recommends performing a full axis test cycle — including reference travel, velocity ramp, and torque limit verification — before handing the system over to production. system integration with upstream PLC logic should be validated using the controller’s diagnostic trace function to confirm cycle-accurate data exchange.
