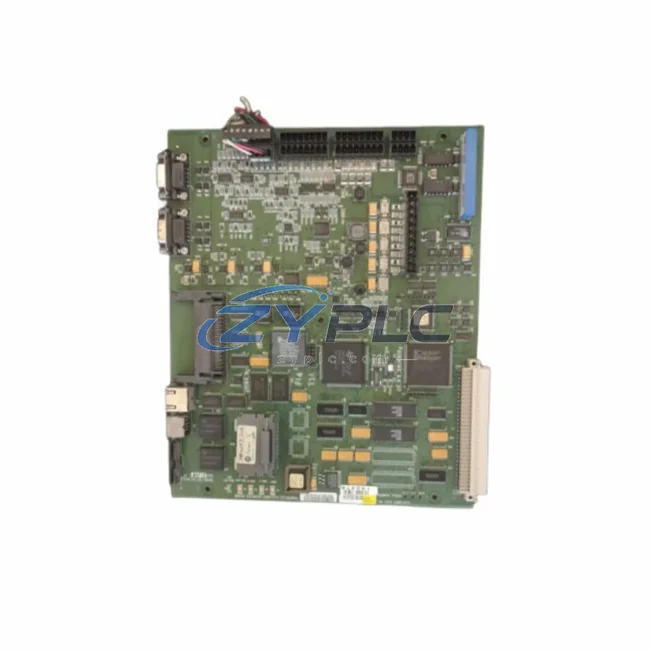

Bosch Rexroth 80190-320-03-R Servo Drive for IndraDrive C

Bosch Rexroth 80190-320-03-R Servo Drive for IndraDrive C

The Bosch Rexroth 80190-320-03-R (alternate part number 80190-318-51) is a high-performance servo drive engineered for seamless integration within the IndraDrive C control system architecture. Rather than functioning as a standalone component, this drive is designed to operate as a coordinated node within a layered automation hierarchy — connecting the motion control layer to the I/O layer, the communication network, the power supply infrastructure, and the human-machine interface. Its role within a complete system architecture is to deliver precise, repeatable axis control while maintaining full compatibility with Bosch Rexroth’s modular drive ecosystem, enabling engineers to build scalable, redundant, and maintainable industrial automation systems across demanding process environments.

In modern industrial automation, servo drives are not selected in isolation. The 80190-320-03-R is specified as part of a coordinated IndraDrive C system where the drive communicates upstream with a Bosch Rexroth IndraMotion MLC or IndraMotion MLD motion logic controller, receives real-time position and velocity commands via SERCOS III or PROFIBUS DP, and interfaces downstream with Rexroth MSK or MKD series synchronous servo motors. This architecture ensures that every axis in the system shares a common engineering framework, reducing commissioning time, simplifying spare parts management, and enabling consistent diagnostic behavior across the entire machine.

From a system architecture perspective, the 80190-320-03-R occupies the drive layer between the controller and the motor, making it a critical link in the signal flow chain. Its integration with the IndraDrive C power section — including the HCS02 or HCS03 supply units — ensures that DC bus energy is shared efficiently across multiple axes, reducing peak power demand and improving overall system energy efficiency. The drive supports axis synchronization functions that are essential in multi-axis coordinated motion applications such as packaging lines, printing machines, and precision assembly systems.

For system architects working on redundancy design, the IndraDrive C platform supports drive-level diagnostics and status reporting that can be monitored by a Bosch Rexroth BTV or external SCADA systems via the communication gateway layer. The 80190-320-03-R supports parameter backup and restore functions compatible with the IndraWorks engineering software, allowing rapid drive replacement without manual re-parameterization — a critical feature for minimizing unplanned downtime in continuous production environments. Paired with Rexroth NFD or HNF mains filters and HNL line reactors, the drive installation meets EMC requirements for industrial cabinet environments.

Product Specification Table

System Compatibility Notes

The 80190-320-03-R is designed to function as part of a fully coordinated Bosch Rexroth IndraDrive C system. In a typical multi-axis machine architecture, this drive operates alongside the following components and module types:

At the controller layer, the IndraMotion MLC L45 or L65 motion logic controller acts as the master, issuing real-time motion commands to the 80190-320-03-R via SERCOS III fiber optic ring or copper Ethernet. The controller manages interpolation, cam profiles, and electronic gearing across all connected axes simultaneously. At the power layer, the HCS03.1E supply unit provides regulated DC bus voltage shared across multiple IndraDrive C axis modules, including the 80190-320-03-R, reducing the number of individual power supplies required and enabling regenerative energy feedback to the mains. The HNL01.1E line reactor and NFD03.1 mains filter are installed upstream to ensure EMC compliance and protect the drive from mains-borne disturbances.

At the I/O layer, Bosch Rexroth Inline I/O modules or third-party PROFIBUS I/O stations provide digital and analog signal interfaces for sensors, limit switches, and process feedback devices. These I/O nodes communicate with the IndraMotion controller, which coordinates their data with the axis commands sent to the 80190-320-03-R. At the motor layer, the drive connects directly to an MSK070C or MKD071B synchronous servo motor via a Rexroth IKS power cable and IKG encoder cable, ensuring signal integrity and mechanical compatibility within the Rexroth certified cable system. At the HMI layer, a Bosch Rexroth BTV06 or BTV16 operator panel provides real-time axis status, alarm visualization, and parameter access, communicating with the IndraMotion controller over Ethernet. This complete system architecture — from HMI to controller to drive to motor — is engineered as a unified platform, and the 80190-320-03-R is a verified, system-compatible component within it.

Industrial Application Notes

The Bosch Rexroth 80190-320-03-R servo drive is applied across a wide range of industrial sectors where precise motion control and system-level integration are critical requirements. In packaging and converting machinery, the drive controls infeed, cross-seal, and film tension axes in continuous motion packaging lines, where axis synchronization and fast response to product registration signals are essential for maintaining throughput and minimizing waste. In printing and labeling systems, the drive manages web tension and print cylinder positioning with sub-millimeter repeatability, operating in coordinated multi-axis configurations managed by the IndraMotion MLC controller.

In power generation and energy infrastructure applications, IndraDrive C systems including the 80190-320-03-R are deployed in valve actuator control, turbine auxiliary systems, and generator excitation control panels, where long-term reliability, diagnostic transparency, and spare parts availability are prioritized over initial cost. In petrochemical and process industries, the drive is integrated into pump control, compressor bypass, and agitator drive systems within hazardous area control panels, where the drive’s robust EMC performance and compatibility with Rexroth safety modules support functional safety requirements. In metallurgy and heavy industry, the drive controls rolling mill auxiliary axes, coiler tension systems, and crane positioning drives, where high dynamic response and shared DC bus energy recovery contribute to energy efficiency targets. In water treatment and municipal infrastructure, IndraDrive C systems provide reliable, low-maintenance drive solutions for pump stations and aeration systems, where remote diagnostics via PROFIBUS or SERCOS III reduce the need for on-site service visits.

Product Compatibility FAQ

Q1: Is the 80190-320-03-R compatible with existing IndraDrive C system architectures using SERCOS III communication?
Yes. The 80190-320-03-R is a native IndraDrive C axis module designed for SERCOS III ring topologies managed by IndraMotion MLC or MLD controllers. It supports standard SERCOS III phase startup, IDN parameter exchange, and real-time cyclic data communication. Existing system configurations, cam tables, and axis parameter sets stored in IndraWorks can be transferred to the replacement drive without modification, provided firmware versions are matched. Our technical team can advise on firmware compatibility prior to shipment.

Q2: Can this drive be installed as a direct replacement in an existing IndraDrive C cabinet without rewiring?
In most cases, yes. The 80190-320-03-R maintains the same mechanical form factor and electrical interface as the original IndraDrive C axis module it replaces, including DC bus bar connections, motor power output, encoder feedback interface, and SERCOS III fiber connectors. Cabinet rewiring is typically not required. However, engineers should verify the DC bus voltage rating, continuous current rating, and firmware version compatibility with the existing HCS supply unit before installation. All units supplied by ZYPLC are tested and verified prior to dispatch under our warranty terms confirmed during quotation program.

Q3: What warranty terms are confirmed during quotation, and what support is available during the warranty period?
The warranty terms confirmed during quotation covers verified functional defects in the drive hardware arising under normal operating conditions within the IndraDrive C system architecture. Units are tested prior to shipment using Bosch Rexroth-compatible test procedures to confirm communication, power stage, and control loop functionality. During the warranty period, ZYPLC provides technical support for installation, commissioning, and fault diagnosis via direct contact at +86 19859288691 or plc.sales@zyplc.com. Replacement or repair is arranged promptly to minimize system downtime. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or use outside the drive’s rated operating parameters.
