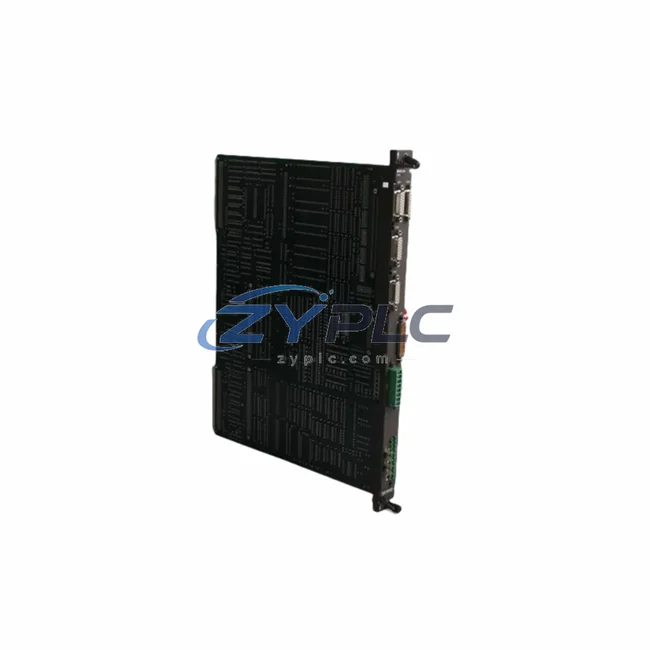

Bosch Rexroth BM-DP12 1070075887-304 Profibus DP Interface for IndraControl

Bosch Rexroth BM-DP12 1070075887-304: Profibus DP Communication Layer in IndraControl System

The Bosch Rexroth BM-DP12 (part number 1070075887-304) serves as a critical Profibus DP communication interface within the IndraControl platform, enabling deterministic data exchange between the central processing unit and distributed I/O peripherals across layered automation architectures. In modern industrial control systems, the communication layer defines the reliability, speed, and scalability of the entire control infrastructure. The BM-DP12 module occupies a pivotal position in this hierarchy, bridging the gap between high-level control logic executed on IndraControl CL or CS series controllers and field-level devices that perform real-time measurement and actuation tasks.

Within a typical IndraControl rack-mounted system, the BM-DP12 interfaces directly with the system backplane, drawing configuration parameters from the CPU module and translating them into Profibus DP protocol frames. This ensures that every connected node — whether an analog input module, a digital output card, or a remote I/O terminal — receives its process data within the defined cycle time. The architectural significance of this module extends beyond simple protocol conversion; it provides diagnostic transparency, enabling maintenance engineers to identify communication faults, node failures, or cable degradation without interrupting the production process.

Product Specification Table

System Compatibility Notes

The BM-DP12 does not operate in isolation. Its architectural value becomes apparent when considered alongside the complete IndraControl system stack. At the control layer, the IndraControl CL series compact controller or the CSB01 system controller executes the PLC logic and motion control algorithms that govern the production process. The BM-DP12 receives cyclic and acyclic data requests from these controllers and distributes them across the Profibus DP network with microsecond-level precision.

On the I/O layer, Bosch Rexroth Inline I/O modules such as the R-IB IL 24 DI 16 digital input terminal and the R-IB IL AO 4/U/BP analog output module depend on the communication infrastructure established by the BM-DP12. These modules collect sensor data from proximity switches, temperature transmitters, and pressure transducers, feeding it back through the Profibus network to the central controller for real-time decision-making.

The power layer is equally critical. The IndraControl system typically employs the KDV 1.3 power supply unit or the HVR02 regenerative supply to maintain stable DC bus voltages across all rack-mounted modules. Without consistent power delivery, communication modules like the BM-DP12 cannot maintain their internal clock synchronization, leading to potential data frame losses on the Profibus segment.

For network redundancy and extended reach, engineers often deploy the OBT-DP optical bus terminal alongside the BM-DP12. This combination allows Profibus DP signals to traverse longer distances using fiber optic media, which is essential in large-scale plants where electromagnetic interference from variable frequency drives and high-voltage switchgear would otherwise corrupt copper-based communication lines.

At the human-machine interface layer, the IndraControl VEP or VPP series operator panels connect to the same network infrastructure, providing visualization of process variables, alarm management, and recipe handling. The BM-DP12 ensures that HMI polling requests do not interfere with time-critical I/O data exchange by supporting prioritized message handling within the Profibus DP protocol stack.

In drive-level integration, the IndraDrive C series servo amplifiers (HCS02 or HCS03 variants) communicate their torque feedback, position data, and fault status through the Profibus network managed by the BM-DP12. This tight coupling between the communication interface and the drive system enables synchronized multi-axis motion control — a requirement in packaging machinery, CNC systems, and robotic assembly cells.

The system backplane itself, specifically the IndraControl rack housing with integrated bus connectors, provides the mechanical and electrical foundation for the BM-DP12. Proper seating in the designated communication slot ensures impedance matching and signal integrity across the parallel bus architecture.

Industrial Application Notes

In manufacturing environments, the BM-DP12 enables real-time coordination between discrete control stations. Automotive body-in-white welding lines, for example, rely on Profibus DP networks to synchronize robot controllers, safety interlocks, and conveyor positioning systems. The BM-DP12 provides the communication backbone that allows a single IndraControl PLC to manage hundreds of I/O points distributed across multiple welding cells, each requiring sub-millisecond response times for weld sequence triggering.

In process industries such as petrochemical refining and water treatment, the module supports continuous analog signal monitoring across distributed field instruments. Flow meters, level transmitters, and control valves connected through Profibus PA segments (via DP/PA couplers) ultimately route their data through the BM-DP12 to reach the supervisory control layer. This hierarchical communication architecture ensures that operators maintain full visibility of plant conditions while the control system autonomously manages setpoint regulation and cascade loops.

Power generation facilities leverage the BM-DP12 in turbine control systems where deterministic communication is non-negotiable. The module’s ability to maintain consistent cycle times under heavy network load makes it suitable for applications where communication jitter could result in turbine trip events or grid synchronization failures.

In metallurgical processing, rolling mills and continuous casting lines depend on the precise timing capabilities of Profibus DP networks. The BM-DP12 supports the high-speed data exchange required for thickness gauge feedback, roll gap adjustment, and strip tension control — all of which must occur within a single PLC scan cycle to maintain product quality specifications.

Mining and mineral processing operations benefit from the module’s robust diagnostic capabilities. In environments where cable damage from vibration, dust, and moisture is common, the BM-DP12’s integrated fault detection allows maintenance teams to identify degrading connections before they cause unplanned downtime. This predictive maintenance capability, combined with the warranty terms confirmed during quotation coverage, provides operational confidence in harsh industrial environments.

Product Compatibility FAQ

Q1: How does the BM-DP12 integrate with existing IndraControl rack configurations, and what system compatibility considerations apply?

The BM-DP12 is designed for direct insertion into the communication slot of IndraControl rack systems. It is compatible with CSB01, CL series, and legacy CLC controllers. Before installation, verify that the system firmware supports Profibus DP master functionality and that the GSD file for the BM-DP12 is imported into your engineering tool (IndraWorks or compatible STEP 7 environment). The module draws power exclusively from the backplane, requiring no external supply connections. All units ship with a warranty terms confirmed during quotation covering manufacturing defects and communication performance specifications.

Q2: What is the maximum network topology supported, and how does the BM-DP12 handle communication redundancy?

A single BM-DP12 can manage up to 125 Profibus DP nodes across multiple segments when used with repeaters or optical bus terminals. For redundancy-critical applications, dual BM-DP12 modules can be configured in a hot-standby arrangement where the secondary module assumes communication control within one bus cycle upon detecting a primary module fault. This architecture is recommended for continuous process applications where communication loss would result in production shutdown.

Q3: What long-term maintenance and spare parts strategy should be adopted for systems using the BM-DP12?

We recommend maintaining at least one spare BM-DP12 unit per control cabinet to minimize mean time to repair. The module’s LED diagnostics and integrated event logging simplify troubleshooting during scheduled maintenance windows. Firmware updates can be applied without removing the module from the rack, reducing maintenance duration. Our warranty terms confirmed during quotation ensures replacement coverage for any unit that fails to meet published specifications during the warranty period. For extended lifecycle support, contact our technical team at plc.sales@zyplc.com.
