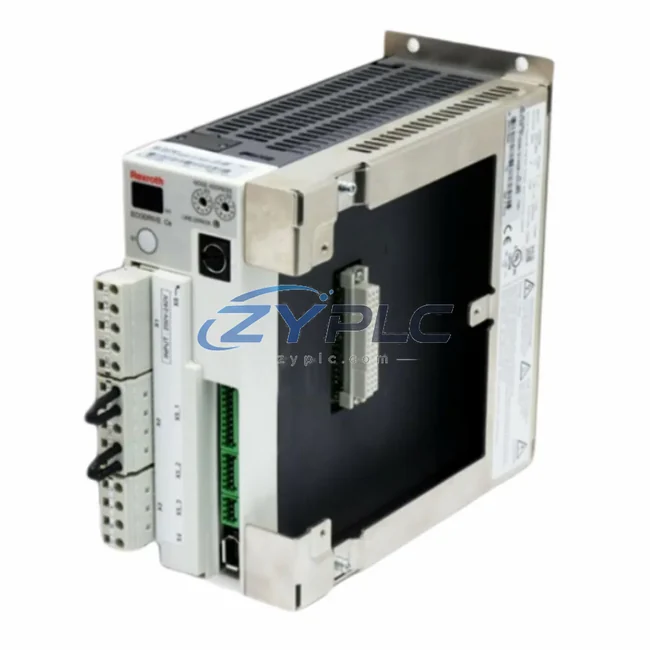

Bosch Rexroth DKC1.03-008-3-MGP-01VRS Servo Drive

Bosch Rexroth DKC1.03-008-3-MGP-01VRS Servo Drive for IndraDrive Automation

The Bosch Rexroth DKC1.03-008-3-MGP-01VRS is a high-performance servo drive controller from the IndraDrive series, engineered to deliver precision motor control with measurable energy efficiency gains across demanding industrial production environments. Designed for integration into multi-axis motion systems, this unit enables factories to reduce idle power consumption, tighten production cycle times, and extend the operational lifespan of connected drive components — all while maintaining the reliability standards that Bosch Rexroth is known for in global automation markets.

Whether deployed in packaging lines, CNC machining centers, press automation, or material handling systems, the DKC1.03-008-3-MGP-01VRS provides the dynamic response and closed-loop feedback accuracy required to eliminate unplanned downtime at the drive level. Its compatibility with the IndraDrive firmware ecosystem allows seamless parameter management via the Bosch Rexroth IndraWorks engineering software, enabling engineers to fine-tune torque curves, ramp profiles, and regenerative braking behavior to match actual load conditions — rather than running at fixed, over-specified power levels.

Product Specification Table

System Compatibility and Application

In a fully drive system, the DKC1.03-008-3-MGP-01VRS does not operate in isolation. It functions as the execution layer within a broader industrial Automation system. At the control level, a Bosch Rexroth IndraControl L45 PLC coordinates motion sequences and communicates target velocity and torque profiles to the drive via SERCOS III, ensuring that the servo axis only draws the power required for each specific motion segment — eliminating the constant-speed, constant-power waste common in older relay-based systems.

On the motor side, the DKC1.03-008-3-MGP-01VRS is typically paired with Bosch Rexroth MSK servo motors from the IndraDyn S series, which are matched in terms of pole count and winding configuration to maximize efficiency across the full speed-torque operating range. When the motor decelerates or the load drives the motor (as in vertical axis descent or press return strokes), the drive’s regenerative feedback circuit channels recovered energy back into the DC bus — where it can be consumed by adjacent axes via a shared HMV01 supply module, rather than being dissipated as heat through braking resistors.

For multi-axis installations, the DKC1.03-008-3-MGP-01VRS connects to a common DC bus alongside other IndraDrive compact units such as the DKC02.3 and DKC11.3 series drives, enabling energy sharing between axes with complementary duty cycles. A packaging machine, for example, may have one axis accelerating while another decelerates — the regenerated energy from the decelerating axis directly powers the accelerating one, reducing net energy draw from the supply by Actual operating results depend on the installed system, load profile, and commissioning parameters.

At the I/O and sensing layer, Bosch Rexroth Inline I/O modules connected via PROFIBUS or EtherCAT feed real-time process signals — encoder feedback, temperature sensors, load cell data — back to the drive and PLC. This closed-loop data flow allows the system to dynamically adjust drive parameters in response to actual production conditions rather than worst-case assumptions, which is a key mechanism for reducing unplanned downtime risk during partial-load operation.

For system-level condition monitoring, integration with a Bosch Rexroth ActiveCockpit or a third-party power monitoring module (such as a Siemens SENTRON PAC or similar DIN-rail energy meter) allows plant engineers to track per-axis operating load in real time, identify inefficient motion profiles, and benchmark improvements after parameter optimization. The drive’s onboard diagnostic interface also supports condition monitoring of the connected MSK motor windings and bearing temperature, enabling predictive maintenance scheduling before failures cause unplanned downtime.

Communication flexibility is another energy-efficiency enabler: the MGP firmware variant of the DKC1.03-008-3-MGP-01VRS supports SERCOS III as its primary motion bus, with optional PROFIBUS DP connectivity for integration into legacy plant networks. This means the drive can be retrofitted into existing production lines without requiring a full controls overhaul, allowing factories to capture operational stability incrementally as part of a phased modernization program.

Maintenance and Replacement Notes

In practical production environments, the DKC1.03-008-3-MGP-01VRS delivers maintenance planning through several complementary mechanisms. First, its adaptive torque control algorithm continuously adjusts the motor’s magnetizing current based on actual load demand. In a typical servo press application, the motor may only be under full load for 20–30% of the cycle — during the remaining dwell, approach, and return phases, the drive reduces flux to match the reduced torque requirement, cutting iron losses in the motor and switching losses in the drive’s IGBT stage.

Second, the drive’s configurable standby behavior allows the system integrator to define automatic power-reduction states during machine idle periods. On an assembly line with scheduled micro-stops between product batches, the drive can drop to a low-power holding state within milliseconds of receiving an idle signal from the IndraControl L45 PLC, then return to full operational readiness in under 50 ms when the next cycle begins — a response time fast enough to be invisible to production throughput while delivering meaningful operational stability over an 8-hour shift.

Third, the regenerative braking capability of the DKC1.03-008-3-MGP-01VRS is particularly valuable in vertical axis and high-inertia rotary applications. In a robotic palletizing cell, for example, the Z-axis drive recovers energy on every downward stroke. Over a production run of 10,000 cycles per shift, this regenerated energy — fed back into the shared DC bus and consumed by the horizontal transfer axes — can represent a reduction of several operating-hours per shift, directly reducing electricity costs and carbon footprint without any change to the production process itself.

From a maintenance cost perspective, the drive’s built-in diagnostics reduce unplanned downtime by providing early warning of thermal stress, overcurrent events, and encoder signal degradation. Each avoided emergency stop on a high-throughput line can represent thousands of dollars in lost production, making the predictive maintenance capability of the DKC1.03-008-3-MGP-01VRS a significant contributor to overall equipment effectiveness (OEE) improvement — which is itself a form of maintenance planning, since a line running at 95% OEE produces the same output with proportionally less energy per unit than one running at 80% OEE.

All units supplied by ZYPLC are sourced from verified supply channels, undergo pre-shipment functional testing, and are covered by a warranty terms confirmed during quotation. Stock is maintained for fast dispatch, with most orders shipping within 1–3 business days to destinations worldwide.

Product Sourcing FAQ

Q1: How much energy can the DKC1.03-008-3-MGP-01VRS save compared to a standard AC drive?
A: Compared to a conventional AC induction drive without regenerative capability, the DKC1.03-008-3-MGP-01VRS can reduce drive-system operating load by Actual operating results depend on the installed system, load profile, and commissioning parameters. Actual savings depend on the motion profile, duty cycle, and whether a shared DC bus configuration is used to redistribute regenerated energy across multiple axes.

Q2: Is the DKC1.03-008-3-MGP-01VRS compatible with my existing IndraDrive system?
A: Yes. The DKC1.03-008-3-MGP-01VRS is designed for integration within the Bosch Rexroth IndraDrive platform and is compatible with IndraDrive C and IndraDrive M supply modules, including the HMV01 and HMV02 series. It supports SERCOS III and PROFIBUS DP communication protocols, making it suitable for both new installations and retrofit projects on existing Bosch Rexroth motion control platforms. Compatibility with specific firmware versions should be confirmed against the Bosch Rexroth IndraDrive compatibility matrix.

Q3: Can this drive replace a faulty DKC unit in my production line without reprogramming?
A: In most cases, yes. If the replacement DKC1.03-008-3-MGP-01VRS matches the firmware variant (MGP-01VRS) and current rating of the original unit, drive parameters can be transferred via the IndraWorks DS software or directly from a parameter backup stored on the system’s PLC or engineering PC. This minimizes commissioning time and allows the line to return to production quickly. ZYPLC recommends verifying the firmware version and parameter set before installation to ensure a seamless replacement.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
A: Every DKC1.03-008-3-MGP-01VRS unit supplied by ZYPLC is subject to pre-shipment functional testing, which includes power-on verification, communication interface checks, and output stage validation. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units that develop faults within the warranty period are eligible for replacement or repair. Warranty claims are processed through ZYPLC’s technical support team — contact plc.sales@zyplc.com or +86 19859288691 for assistance.
