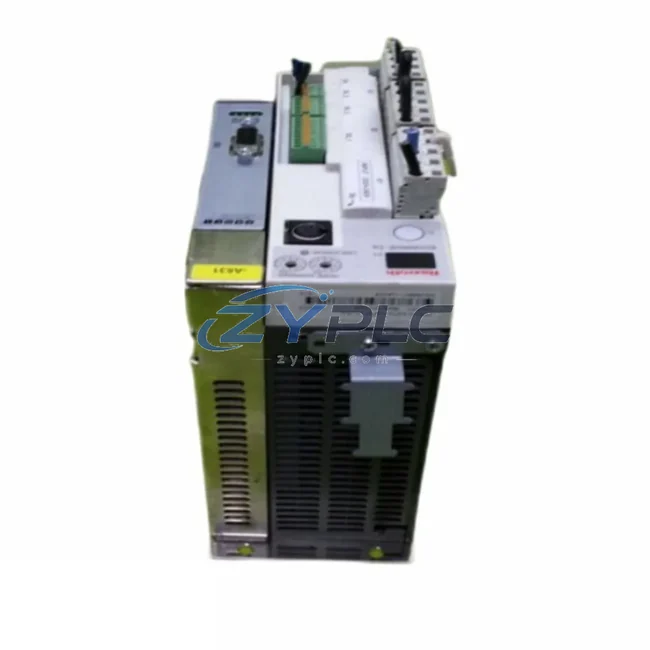

Bosch Rexroth DKC1.03-012-3-MGP-01VRS Servo Drive for EcoDrive DKC

Bosch Rexroth DKC1.03-012-3-MGP-01VRS Servo Drive for EcoDrive DKC

The Bosch Rexroth DKC1.03-012-3-MGP-01VRS is a high-performance servo drive module engineered for seamless system integration within the EcoDrive DKC control system architecture. Designed to operate as a precision motion control node across multi-axis automation platforms, this drive delivers consistent torque regulation, dynamic speed response, and deterministic communication across the full control hierarchy — from the supervisory PLC layer down to the servo motor and feedback device. Its role within a layered automation system is not simply that of a standalone drive; it is a coordinated participant in a tightly coupled architecture where signal integrity, bus synchronization, and power distribution must all function in concert.

In modern industrial control environments, servo drives like the DKC1.03-012-3-MGP-01VRS are deployed as part of a structured system topology that spans multiple functional layers. At the control layer, a Bosch Rexroth IndraControl L or equivalent PLC platform issues motion commands via SERCOS II or PROFIBUS-DP, which are received and executed by the DKC1.03-012-3-MGP-01VRS with sub-millisecond cycle fidelity. The drive interfaces directly with the I/O layer through digital and analog signal channels, enabling real-time feedback from encoders, resolvers, and proximity sensors mounted on the mechanical axis. This bidirectional signal flow ensures that the control system maintains closed-loop accuracy even under variable load conditions.

At the network layer, the DKC1.03-012-3-MGP-01VRS supports fiber-optic SERCOS ring topology, which provides deterministic data exchange between the master controller and all participating drive nodes. This architecture eliminates electromagnetic interference on the communication bus and allows engineers to expand the drive network without degrading cycle time performance. When integrated alongside other EcoDrive DKC series modules — such as the DKC01.3-040-7-FW, DKC02.3-040-7-FW, or DKC11.3-040-7-FW — the system can be configured for synchronized multi-axis motion profiles, including electronic gearing, cam profiling, and coordinated interpolation across three or more axes simultaneously.

Power distribution within the EcoDrive DKC architecture is managed through a shared DC bus arrangement. The HVR01.2 or HVE02.2 power supply module feeds the common DC link, from which individual DKC drive modules draw regulated power. This topology reduces the total number of AC input connections, simplifies cabinet wiring, and enables regenerative energy recovery during deceleration phases. The DKC1.03-012-3-MGP-01VRS is rated for operation within this shared bus environment, and its internal power stage is designed to handle the transient demands of high-inertia servo axes without requiring external braking resistors in most standard applications.

From the human-machine interface layer, operators interact with the drive system through an IndraControl VCP or compatible HMI panel connected to the supervisory network. Drive parameters, fault diagnostics, and axis tuning data are accessible through the DriveTop or IndraWorks engineering software, which communicates with the DKC1.03-012-3-MGP-01VRS via the RS232 service interface or the SERCOS network. This integration allows maintenance engineers to perform online parameter adjustments, capture oscilloscope traces of velocity and current waveforms, and execute guided commissioning procedures without interrupting production cycles on adjacent axes.

At the execution layer, the DKC1.03-012-3-MGP-01VRS drives Bosch Rexroth MKD or MHD series servo motors, utilizing the integrated encoder evaluation circuit to process multi-turn absolute or incremental feedback signals. The drive’s current control loop operates at a 62.5 µs cycle, ensuring rapid torque response that is essential for applications requiring high dynamic stiffness — such as CNC machining centers, robotic welding positioners, and high-speed packaging lines. The motor holding brake output and motor temperature monitoring inputs are natively supported, eliminating the need for external relay logic in safety-critical stopping sequences.

For system architects designing redundant or high-availability automation cells, the DKC1.03-012-3-MGP-01VRS can be paired with a standby drive module and a Bosch Rexroth CSH01.1C or CSB01.1N control section to implement hot-swap redundancy at the drive level. Combined with a redundant power supply arrangement using dual HVR modules and an automatic bus transfer relay, this configuration ensures that a single drive failure does not result in unplanned production downtime. The modular design of the EcoDrive DKC platform allows the failed module to be replaced and recommissioned within minutes, using parameter sets stored on the control section’s non-volatile memory card.

In terms of long-term maintenance strategy, the DKC1.03-012-3-MGP-01VRS benefits from Bosch Rexroth’s standardized firmware architecture, which allows field engineers to update drive firmware without replacing hardware. Spare parts availability is supported through ZYPLC’s inventory management program, which supports RFQ sourcing for critical EcoDrive DKC components including control sections, power sections, and communication modules. All units supplied by ZYPLC are tested under load conditions prior to shipment and are covered by a warranty terms confirmed during quotation, providing engineering teams with the confidence to specify refurbished or surplus drives in both new installations and replacement scenarios.

Product Specification Table

System Compatibility Notes

The DKC1.03-012-3-MGP-01VRS achieves its full performance potential when deployed as part of a coordinated EcoDrive DKC system. A typical multi-axis installation begins with the HVR01.2-W075N power supply module, which rectifies the three-phase AC supply and maintains the shared DC bus at a regulated voltage level. Individual drive modules — including the DKC01.3-040-7-FW for higher current axes and the DKC11.3-040-7-FW for compact axis applications — draw from this common bus, reducing the overall cabinet footprint and simplifying thermal management.

The SERCOS II ring connects all drive nodes to the IndraControl L40 or L65 master controller, which executes the motion program and distributes position, velocity, and torque setpoints to each axis in real time. The CSH01.1C control section mounted on the DKC1.03-012-3-MGP-01VRS stores the axis-specific parameter set and firmware, and can be transferred to a replacement power section in the event of a hardware fault — significantly reducing mean time to repair. Terminal modules such as the Bosch Rexroth R-IB IL 24 DI 16 provide distributed I/O connectivity within the same control cabinet, allowing sensor and actuator signals to be routed through the INTERBUS or Inline fieldbus without additional gateway hardware.

At the motor end, MKD071B or MHD090B servo motors with integrated multi-turn absolute encoders connect directly to the DKC1.03-012-3-MGP-01VRS via the standard Bosch Rexroth motor cable set, ensuring plug-and-play compatibility without encoder signal conditioning. For applications requiring additional safety functionality, the drive’s integrated STO (Safe Torque Off) input can be wired to a Pilz PNOZ or Sick safety relay, enabling SIL 2 compliant axis stopping without removing power from the DC bus.

Industrial Application Notes

The DKC1.03-012-3-MGP-01VRS is deployed across a wide range of industrial sectors where precise motion control and system-level reliability are non-negotiable requirements. In CNC machining and metalworking environments, the drive controls linear and rotary axes on milling centers, grinding machines, and turning centers, where contouring accuracy and thermal stability over extended production runs are critical. The drive’s high-bandwidth current control loop and low-latency SERCOS communication make it well-suited for high-speed interpolation tasks that demand sub-micron positioning repeatability.

In the power generation and electrical utility sector, EcoDrive DKC drives are used in turbine governor control systems, valve actuator drives, and generator excitation control panels, where the ability to operate reliably in high-EMI environments and maintain communication integrity over long cable runs is essential. The fiber-optic SERCOS interface of the DKC1.03-012-3-MGP-01VRS provides inherent immunity to electromagnetic interference, making it a preferred choice for switchgear and substation automation applications.

Petrochemical and process industries deploy the DKC1.03-012-3-MGP-01VRS in compressor control systems, reactor agitator drives, and pipeline pump stations, where continuous duty operation and predictive maintenance capability are prioritized. The drive’s diagnostic data — including motor temperature, DC bus voltage, and current waveform history — can be logged by the supervisory SCADA system via the SERCOS network, enabling condition-based maintenance scheduling that reduces unplanned shutdowns. Water treatment facilities use similar EcoDrive DKC configurations for dosing pump control, filter backwash sequencing, and aeration blower speed regulation, where energy efficiency and process consistency are the primary design objectives.

In packaging and material handling applications, the DKC1.03-012-3-MGP-01VRS drives servo axes on form-fill-seal machines, robotic palletizers, and conveyor indexing systems, where rapid acceleration profiles and precise registration control directly impact throughput and product quality. The drive’s electronic cam and gearing functions allow complex motion profiles to be executed without external cam controllers, simplifying the machine architecture and reducing the number of discrete components that require maintenance.

Product Compatibility FAQ

Q1: Is the DKC1.03-012-3-MGP-01VRS compatible with both SERCOS II and PROFIBUS-DP master controllers?
A: The DKC1.03-012-3-MGP-01VRS with MGP firmware is primarily configured for SERCOS II fiber-optic communication. PROFIBUS-DP connectivity can be achieved by installing the appropriate communication module on the CSH01.1C or CSB01.1N control section. Engineers should verify the firmware version and communication module part number against the Bosch Rexroth EcoDrive DKC compatibility matrix before integration. ZYPLC’s technical team can assist with firmware and module matching prior to shipment.

Q2: Can the DKC1.03-012-3-MGP-01VRS be installed as a direct replacement in an existing EcoDrive DKC cabinet without re-parameterization?
A: Yes, provided the replacement drive uses the same control section (CSH01.1C or equivalent) with the parameter set stored on the non-volatile memory card from the original unit. If the control section is also being replaced, parameters must be reloaded via DriveTop or IndraWorks software using the backed-up parameter file. ZYPLC recommends verifying the firmware version of the replacement unit matches the existing system before installation to avoid compatibility issues during commissioning.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
A: The warranty terms confirmed during quotation provided by ZYPLC covers functional defects in the DKC1.03-012-3-MGP-01VRS under normal operating conditions as specified in the Bosch Rexroth technical documentation. Units that fail within the warranty period are eligible for repair or replacement at ZYPLC’s discretion. To initiate a warranty claim, customers should contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the unit serial number, fault description, and proof of purchase. ZYPLC’s engineering team will provide a return authorization and coordinate the fastest possible resolution to minimize production impact.
