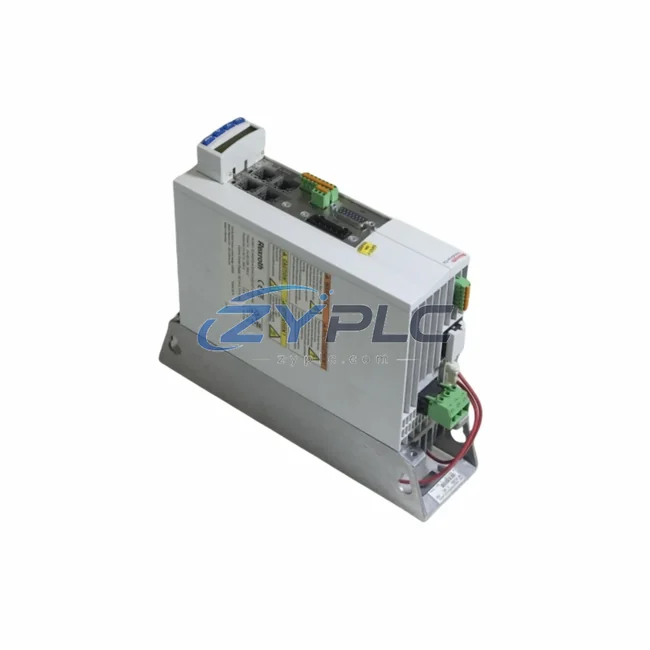

Bosch Rexroth DKC11.3-100-7-FW Servo Drive

Bosch Rexroth DKC11.3-100-7-FW Servo Drive for DKCxx.3 Automation

The Bosch Rexroth DKC11.3-100-7-FW is a high-performance AC servo drive controller from the DKCxx.3 series, engineered to deliver precise motor control, measurable operational stability, and reliable operation across demanding industrial automation environments. Whether deployed in machine tool spindle control, packaging line servo axes, or press and forming equipment, this drive unit plays a central role in reducing unnecessary power consumption, improving equipment utilization rates, and tightening production cycle times.

At ZYPLC, every DKC11.3-100-7-FW unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a warranty terms confirmed during quotation. Stock is available for shipment arranged after confirmation, supporting urgent maintenance replacements and planned system upgrades alike.

Product Specification Table

System Compatibility and Application

The DKC11.3-100-7-FW does not operate in isolation — its maintenance planning value is fully realized when integrated into a coordinated automation architecture. In a typical Rexroth IndraDrive or IndraMotion system, this servo drive works in close coordination with the Bosch Rexroth HCS02.1E power supply module, which manages DC bus voltage and enables regenerative energy recovery during motor deceleration phases. Rather than dissipating braking energy as heat through resistors, the shared DC bus architecture — common across DKCxx.3 series drives — feeds recovered energy back to adjacent axes or to the supply network, directly reducing net operating load per production cycle.

On the motion control side, the DKC11.3-100-7-FW receives position, velocity, and torque commands from a Bosch Rexroth IndraMotion MLC motion controller or a compatible Rexroth IndraControl L45 PLC via SERCOS III real-time fiber-optic communication. This deterministic communication protocol ensures that axis synchronization is maintained with sub-millisecond jitter, which is critical for multi-axis coordinated motion in press lines and packaging machines where cycle time waste directly translates to energy inefficiency.

For power quality monitoring and energy accounting at the plant level, the DKC11.3-100-7-FW installation is typically complemented by a Bosch Rexroth IndraDrive power monitoring module or a third-party power analyzer connected to the cabinet bus. Real-time current draw, power factor, and harmonic distortion data can be logged and trended, enabling maintenance teams to detect early signs of motor degradation — such as rising no-load current — before they escalate into unplanned downtime events.

The drive’s I/O interface supports integration with Rexroth Inline I/O modules for local digital and analog signal handling, while higher-level supervisory data flows through the plant’s SCADA or MES layer via OPC-UA or PROFIBUS-DP gateways. In facilities running Siemens S7-300 or S7-1500 PLCs alongside Rexroth drives, the DKC11.3-100-7-FW can be configured as a PROFIBUS slave, allowing seamless integration without replacing the existing control platform. Similarly, installations using Beckhoff TwinCAT as the soft PLC layer can communicate with the DKCxx.3 drive via EtherCAT-to-SERCOS gateway modules, preserving investment in existing HMI and SCADA infrastructure.

Operator interaction is typically handled through a Rexroth IndraControl VCP panel or a compatible HMI terminal, where drive status, operating load trends, fault history, and parameter sets are displayed and managed. This visibility layer is essential for production supervisors who need to correlate energy spikes with specific machine states — for example, identifying that a particular axis is drawing excessive current during a specific motion profile, which may indicate mechanical friction, misalignment, or a worn ball screw requiring predictive maintenance intervention.

Maintenance and Replacement Notes

In a high-throughput automotive stamping line, replacing an aging first-generation servo drive with the DKC11.3-100-7-FW typically yields measurable improvements across three dimensions: operating load per part, mean time between failures (MTBF), and overall equipment effectiveness (OEE).

From an energy standpoint, the DKCxx.3 series drive’s ability to operate with dynamic torque limiting means that the motor is never commanded to produce more torque than the load actually requires at any given moment in the motion profile. In applications with highly variable load profiles — such as a servo-driven eccentric press or a pick-and-place robot — this adaptive torque management can reduce RMS current draw by 10–25% compared to older drives operating with fixed torque limits. Over a three-shift production schedule, this reduction compounds into significant monthly operational stability that are directly visible on the facility’s power bill.

From a downtime reduction perspective, the DKC11.3-100-7-FW’s integrated diagnostic system continuously monitors internal temperature, DC bus voltage ripple, IGBT junction temperature, and encoder signal quality. When any parameter trends toward a warning threshold, the drive generates a predictive fault code that can be routed to the plant’s maintenance management system via the PROFIBUS or SERCOS communication interface. Maintenance teams can then schedule a planned intervention — replacing a cooling fan, re-tensioning a motor coupling, or updating firmware — during a scheduled production break rather than responding to an emergency shutdown that disrupts the entire line.

From a production rhythm perspective, the drive’s high-bandwidth current control loop — operating at switching frequencies up to 8 kHz — enables the servo axis to track complex motion profiles with minimal following error. In packaging machines where the servo axis controls a film feed or a sealing jaw, tighter following error directly translates to fewer rejected packages per shift, reducing material waste and improving the effective throughput of the line without increasing motor speed or energy input.

All units supplied by ZYPLC are tested under load conditions that replicate real production duty cycles, ensuring that the drive’s thermal management, current regulation, and communication interfaces perform to specification before the unit leaves our facility. Each unit ships with a test report and is covered by a warranty terms confirmed during quotation from the date of shipment.

Product Sourcing FAQ

Q1: How much energy can the DKC11.3-100-7-FW save compared to a conventional drive?
The DKCxx.3 series supports shared DC bus regenerative energy recovery, dynamic torque limiting, and standby power reduction modes. In applications with frequent acceleration-deceleration cycles — such as servo presses or robotic arms — net operational stability of Actual operating results depend on the installed system, load profile, and commissioning parameters. Actual savings depend on the duty cycle, load profile, and system configuration.

Q2: Is the DKC11.3-100-7-FW compatible with my existing Rexroth or third-party control system?
The DKC11.3-100-7-FW supports SERCOS II/III as its primary motion bus and can be configured for PROFIBUS-DP as a fieldbus slave. It is directly compatible with Bosch Rexroth IndraMotion MLC, IndraControl L-series PLCs, and Rexroth VCP HMI panels. Integration with Siemens S7 or Beckhoff TwinCAT systems is achievable via standard gateway modules. Contact ZYPLC for compatibility assessment for your specific control platform.

Q3: What is the recommended replacement or upgrade path if my current DKCxx.3 drive has failed?
The DKC11.3-100-7-FW is a direct form-fit-function replacement for other DKCxx.3 100A variants. Parameter sets from the failed drive can be restored via the Rexroth IndraWorks engineering software if a backup exists, or ZYPLC can assist with parameter reconstruction based on the machine documentation. For systems where the DKCxx.3 series is being phased out, we can advise on migration paths to the Rexroth IndraDrive Cs or Mi series.

Q4: What does the warranty terms confirmed during quotation cover and what is the testing process?
Every DKC11.3-100-7-FW unit supplied by ZYPLC undergoes full functional testing including power-on verification, communication interface check, current regulation test, and thermal cycling. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are processed with a target turnaround of 5–7 business days. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty support.
