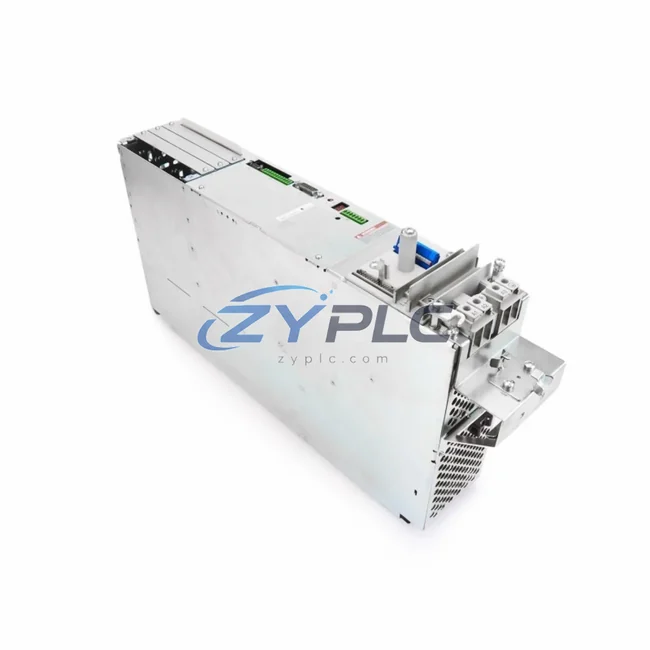

Bosch Rexroth HDS03.2-W075N-HS12-01-FW Servo Drive for HDS

Bosch Rexroth HDS03.2-W075N-HS12-01-FW Servo Drive for HDS

In modern layered automation systems, every component must fulfill a precise role within the broader control architecture. The Bosch Rexroth HDS03.2-W075N-HS12-01-FW is an AC servo drive engineered to operate as a fully integrated node within the Rexroth HDS Series drive platform — delivering deterministic motion control, high-bandwidth current regulation, and seamless coordination across the control, I/O, network, power, and execution layers of a complete automation system.

Unlike standalone drives that function in isolation, the HDS03.2-W075N-HS12-01-FW is designed from the ground up for system integration. It communicates natively with Rexroth SERCOS interface-based motion controllers, enabling synchronized multi-axis coordination with sub-millisecond cycle times. This makes it an ideal drive-layer component in systems where axis synchronization, electronic gearing, and cam profiling are critical to production quality and throughput consistency.

Product Specification Table

System Compatibility Notes

The HDS03.2-W075N-HS12-01-FW does not operate in isolation — it is one node in a carefully coordinated drive system. At the control layer, it receives motion commands from a Bosch Rexroth DIAX04 or IndraMotion MLD motion controller via the SERCOS II fiber optic ring, ensuring deterministic command delivery with no signal degradation across long cabinet runs. The SERCOS ring topology also allows multiple HDS drives to be daisy-chained, enabling synchronized multi-axis motion without additional fieldbus hardware.

At the power layer, the HDS03.2-W075N-HS12-01-FW is typically paired with a Rexroth HVR02 or HVE02 power supply unit, which provides the regulated DC bus voltage shared across all drives in the cabinet. This shared DC bus architecture enables regenerative energy exchange between braking and accelerating axes — reducing net operating load and minimizing heat dissipation within the enclosure. The HNF01 mains filter module is commonly installed upstream to suppress conducted EMI and protect the supply network.

On the feedback side, the drive interfaces with Rexroth MKD or MHD series synchronous servo motors, using EnDat or resolver feedback to close the position and velocity loops with high resolution. The motor cable and feedback cable routing must follow Rexroth shielding guidelines to maintain signal integrity, particularly in environments with high-frequency switching noise from adjacent inverters.

For I/O integration, the drive’s onboard digital I/O can be mapped to a Rexroth CML65 or external Inline I/O terminal block system, allowing the PLC or motion controller to monitor drive status, enable signals, and fault outputs without additional relay logic. In larger systems, a Profibus DP or EtherCAT gateway module bridges the SERCOS drive network to the plant-level SCADA or DCS, enabling centralized diagnostics and parameter management.

At the HMI layer, operators interact with the system through a Rexroth VCP panel or a third-party HMI connected via Ethernet, where drive status, axis position, and fault history are visualized in real time. This visibility reduces mean time to repair (MTTR) and supports predictive maintenance workflows by surfacing thermal load trends and encoder health data before failures occur.

Industrial Application Notes

The HDS03.2-W075N-HS12-01-FW is deployed across a wide range of demanding industrial environments where motion precision and system uptime are non-negotiable.

In packaging and converting lines, the drive controls register-critical axes such as print heads, cutting cylinders, and web tension rollers, where phase accuracy between axes directly determines product quality. The SERCOS-based synchronization ensures that all axes maintain their relative positions even during acceleration ramps and load disturbances.

In metal forming and press applications, the drive manages high-inertia servo axes with rapid torque response requirements. The shared DC bus allows energy recovered during deceleration to be immediately reused by adjacent axes, improving overall system efficiency and reducing peak demand on the supply transformer.

In petrochemical and process control environments, the drive’s robust thermal management and CE/UL compliance make it suitable for installation in climate-controlled control rooms adjacent to hazardous areas. Its deterministic SERCOS communication ensures that motion commands are executed within defined cycle windows, supporting process interlocks and safety system coordination.

In water treatment and utility infrastructure, the drive supports pump and valve positioning applications where long-term reliability and low maintenance overhead are prioritized. The drive’s self-diagnostic capabilities and fault logging reduce the need for on-site service visits, lowering total cost of ownership over multi-year deployment cycles.

All units supplied by ZYPLC are sourced from verified supply channels, undergo pre-shipment functional testing, and are covered by a warranty terms confirmed during quotation. Stock is maintained to support both immediate replacement needs and planned system expansions.

Product Compatibility FAQ

Q1: Is the HDS03.2-W075N-HS12-01-FW compatible with existing Rexroth HDS Series cabinets and DC bus systems?
Yes. The HDS03.2-W075N-HS12-01-FW is fully compatible with the Rexroth HDS Series cabinet infrastructure, including shared DC bus rails, HVR/HVE power supply units, and SERCOS II fiber optic rings. No additional interface hardware is required for drop-in replacement in existing HDS installations. Firmware version compatibility should be verified against the motion controller revision in use.

Q2: What commissioning tools and procedures are required for system integration?
Commissioning is performed using Rexroth’s IndraWorks engineering software, which provides drive parameterization, axis configuration, SERCOS ring setup, and diagnostic functions. The drive’s parameter set can be backed up and restored, enabling rapid replacement without full re-commissioning in the event of a hardware fault. ZYPLC can provide parameter file templates for common HDS Series configurations upon request.

Q3: What does the warranty terms confirmed during quotation cover, and what is the support process?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. All units are tested prior to shipment to verify output current, feedback interface operation, and communication functionality. In the event of a warranty claim, ZYPLC provides direct technical support via +86 19859288691 or plc.sales@zyplc.com, with replacement units dispatched from stock to minimize system downtime.
