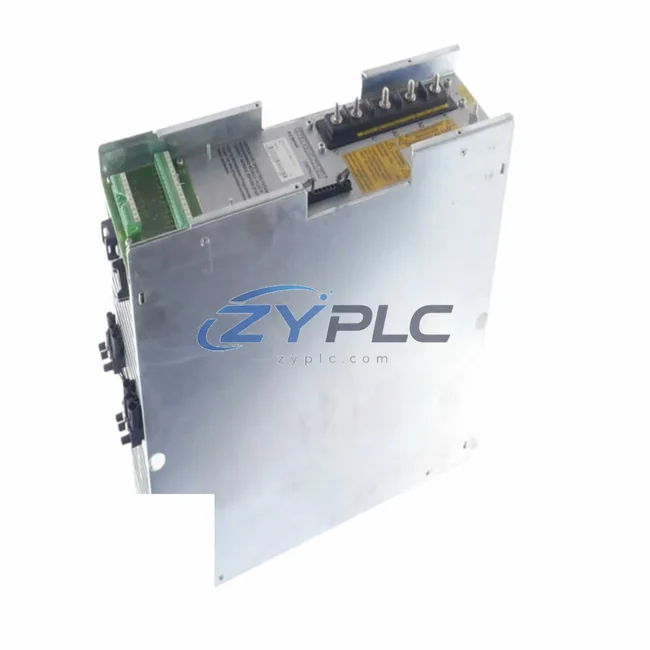

Bosch Rexroth TDM2.1-030-300-W1 AC Servo Drive

Bosch Rexroth TDM2.1-030-300-W1 AC Servo Drive for TDM Series Automation

The Bosch Rexroth TDM2.1-030-300-W1 is a high-performance AC servo drive from the TDM Series, engineered to deliver precise motor control, reduced energy consumption, and production line throughput in demanding industrial Automation environments. With a continuous output current of 30 A and a peak current capacity of 300 A, this drive is purpose-built for applications where dynamic response, energy efficiency, and long-term reliability are non-negotiable. Whether integrated into a new DIAX02 or DIAX03 servo system or deployed as a drop-in replacement in an existing Rexroth drive architecture, the TDM2.1-030-300-W1 delivers measurable improvements in equipment utilization and operational energy cost.

At ZYPLC, every TDM2.1-030-300-W1 unit is sourced from verified supply channels, subjected to full functional testing prior to shipment, and backed by a warranty terms confirmed during quotation. Stock is maintained for fast global dispatch, supporting both urgent replacement orders and planned system upgrades.

Product Specification Table

System Compatibility and Application

The TDM2.1-030-300-W1 does not operate in isolation — its energy efficiency contribution is best understood within the broader Rexroth drive and control ecosystem. In a typical servo axis configuration, the drive receives motion commands via the SERCOS fiber optic interface from a Rexroth motion controller such as the DIAX02 controller unit or a compatible Indramat CLC control module. This closed-loop digital communication eliminates analog signal degradation and allows the controller to precisely regulate torque, velocity, and position with minimal overshoot — directly reducing unnecessary motor heating and wasted electrical energy.

On the power supply side, the TDM2.1-030-300-W1 is typically paired with a Rexroth TVD power supply unit or a TVM regenerative power module, which feeds the DC bus shared across multiple drive axes. When a servo axis decelerates — during a tool retract, a press return stroke, or a conveyor stop — the TDM drive’s regenerative capability feeds braking energy back into the shared DC bus, where it can be consumed by other axes accelerating simultaneously. This inter-axis energy exchange, managed through the TVD or TVM supply module, significantly reduces the net energy drawn from the mains supply during high-cycle production.

For multi-axis systems, the TDM2.1-030-300-W1 works alongside other TDM Series drives — such as the TDM1.2-100-300-W1 for higher-current axes or the TDM1.3-020-300-W1 for lighter-duty positioning axes — all sharing the same DC bus infrastructure. This modular architecture allows plant engineers to right-size each axis independently, avoiding the unplanned downtime associated with oversized drives running at low load fractions.

At the field level, I/O signals from sensors, limit switches, and safety relays are routed through Rexroth DSS or DST I/O expansion modules, feeding real-time process data back to the motion controller. This data loop enables the control system to adapt drive output dynamically — slowing axes during low-demand periods, tightening position windows to reduce hunting, and triggering predictive maintenance alerts based on drive thermal load trends. Integration with an HMI panel running on the Rexroth IndraWorks engineering platform gives operators a live view of per-axis energy consumption, cycle time, and fault history, enabling data-driven decisions about production scheduling and maintenance intervals.

Maintenance and Replacement Notes

In a CNC machining center running three-shift operations, unplanned servo drive failures are among the most costly sources of downtime. A failed drive not only stops the spindle or feed axis — it cascades into scrapped workpieces, idle labor, and delayed delivery schedules. The TDM2.1-030-300-W1, when sourced as a tested replacement unit with a warranty terms confirmed during quotation, allows maintenance teams to restore full production capacity within hours rather than days, eliminating the extended lead times associated with OEM repair channels.

Beyond reactive replacement, the TDM2.1-030-300-W1 contributes to proactive maintenance planning. Its precise torque control reduces motor slip and reactive power draw, which directly lowers the facility’s power factor penalty charges on industrial electricity tariffs. In packaging and material handling lines where servo axes cycle thousands of times per shift, even a 3–5% reduction in per-cycle energy consumption compounds into significant monthly savings at scale.

The drive’s compatibility with the SERCOS communication protocol also enables integration with higher-level condition monitoring systems. By logging axis-level current draw and cycle data through the motion controller, plant engineers can identify axes operating outside their efficiency envelope — whether due to mechanical wear, misalignment, or suboptimal motion profiles — and schedule corrective action before a fault occurs. This predictive maintenance capability reduces both unplanned downtime and the unplanned downtime associated with degraded mechanical systems running under elevated load.

For facilities managing spare parts inventory, the TDM2.1-030-300-W1’s broad compatibility with DIAX02 and DIAX03 systems means a single stocked unit can serve as a backup for multiple machine types, reducing the total inventory investment required to maintain production continuity. ZYPLC maintains ready stock of this model to support both emergency dispatch and planned procurement cycles, with all units tested and documented before shipment.

Product Sourcing FAQ

Q1: How does the TDM2.1-030-300-W1 contribute to operational stability on a production line?
The TDM2.1-030-300-W1 reduces energy consumption through precise closed-loop torque and velocity control, which minimizes motor slip and reactive power draw. Its regenerative braking capability recovers deceleration energy and returns it to the shared DC bus for use by other axes, reducing net mains power consumption during high-cycle operations. Accurate motion profiling also reduces mechanical stress, lowering the energy cost of overcoming friction and inertia in worn systems.

Q2: Is the TDM2.1-030-300-W1 compatible with my existing Rexroth DIAX02 or DIAX03 system?
Yes. The TDM2.1-030-300-W1 is designed for direct integration into Rexroth DIAX02 and DIAX03 servo systems using the SERCOS fiber optic interface. It is compatible with standard Rexroth TVD and TVM power supply modules and can be configured using IndraWorks or the legacy Rexroth drive parameter tools. If you are unsure about compatibility with a specific machine configuration, contact ZYPLC with your existing drive part number and system documentation.

Q3: What does the pre-shipment testing process cover, and what is included in the warranty terms confirmed during quotation?
Every TDM2.1-030-300-W1 unit shipped by ZYPLC undergoes full functional testing, including power-on verification, output current validation, communication interface check, and fault code clearance. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that develop faults within the warranty period are eligible for replacement or repair at no additional cost. Warranty claims are processed through ZYPLC’s technical support team.

Q4: Can I use the TDM2.1-030-300-W1 as a long-term spare to reduce downtime risk?
Absolutely. Stocking a tested TDM2.1-030-300-W1 as a spare is a proven strategy for reducing mean time to repair (MTTR) on Rexroth servo systems. Given the drive’s compatibility across multiple DIAX-series machine platforms, a single spare unit can protect multiple axes or machines simultaneously. ZYPLC supports bulk spare procurement with consistent stock availability and documented test records for each unit.
