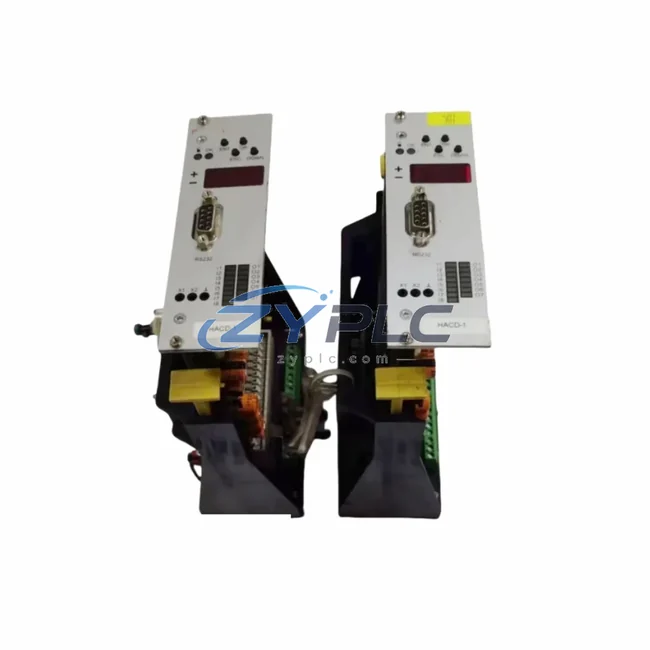

Bosch Rexroth VT-HACD-1-14/V0/1-0-0 Hydraulic Controller for HACD

Bosch Rexroth VT-HACD-1-14/V0/1-0-0 Hydraulic Controller for HACD: Compatibility and Replacement Notes

In modern industrial automation, the performance of a hydraulic axis control system is never determined by a single component in isolation. The Bosch Rexroth VT-HACD-1-14/V0/1-0-0 (R900745354) is a dedicated hydraulic axis control card engineered to occupy a precise and critical role within the HACD series control architecture. Its value is best understood not as a standalone device, but as a coordinating element that bridges the control layer, I/O layer, fieldbus network, power supply infrastructure, and the hydraulic execution layer into a unified, high-performance system. For engineers designing or maintaining closed-loop hydraulic motion systems in demanding industrial environments, this card delivers the signal processing accuracy, communication stability, and long-term reliability that complex axis control demands.

The VT-HACD-1-14/V0/1-0-0 is designed to receive position, velocity, and force setpoints from an upstream PLC or motion controller — such as a Bosch Rexroth IndraControl L40 or IndraControl L65 — and translate those commands into precise analog output signals that drive proportional or servo hydraulic valves. This closed-loop architecture ensures that the hydraulic actuator responds with the accuracy and repeatability required in press control, injection molding, metal forming, and heavy-duty positioning applications. The card’s analog input channels accept feedback from linear position transducers (LVDTs) or external encoders, closing the control loop at the axis level and reducing latency in the feedback path.

Within the broader system architecture, the VT-HACD-1-14/V0/1-0-0 operates in close coordination with the power supply layer. A stable 24 VDC supply — typically sourced from a Bosch Rexroth PSL or equivalent DIN-rail power supply — is essential for consistent card operation. Voltage fluctuations at the power layer directly affect the analog output accuracy of the axis controller, making power supply quality a system-level engineering concern rather than a peripheral one. Engineers integrating this card into a control cabinet should ensure that the power distribution design accounts for inrush current, grounding topology, and EMC shielding to protect the card’s sensitive analog circuitry.

At the I/O layer, the VT-HACD-1-14/V0/1-0-0 interfaces with digital I/O modules — such as Bosch Rexroth R-IB IL 24 DI 16 inline I/O terminals or equivalent distributed I/O nodes — to receive enable signals, limit switch inputs, and fault acknowledgment commands. This integration allows the axis controller to participate in the machine’s safety and interlock logic without requiring additional relay wiring, simplifying cabinet design and reducing potential failure points. The card’s enable input architecture supports both hardware and software enable paths, providing flexibility for safety-rated machine designs.

From a network and communication perspective, the VT-HACD-1-14/V0/1-0-0 is typically deployed in systems where the master controller communicates over PROFIBUS DP, CANopen, or analog setpoint interfaces. In PROFIBUS-based architectures, a Bosch Rexroth VT-COM-PROFIBUS gateway or equivalent communication module bridges the fieldbus network to the axis card’s parameter and setpoint interface, enabling centralized commissioning, real-time diagnostics, and remote parameter adjustment without physical access to the control cabinet. This communication architecture is particularly valuable in large-scale systems where multiple hydraulic axes must be coordinated simultaneously — such as in multi-cylinder press lines or synchronized lifting systems.

The card’s parameter set supports ramp generation, PID gain adjustment, feedforward compensation, and output limiting, all of which can be configured using Bosch Rexroth’s commissioning software. This software-driven parameterization approach reduces commissioning time compared to hardware potentiometer-based cards and enables parameter backup and restore — a significant advantage for long-term maintenance and spare parts management. When a VT-HACD-1-14/V0/1-0-0 is replaced as part of a planned maintenance cycle, parameter files can be reloaded directly, minimizing machine downtime.

In redundant system designs, the VT-HACD-1-14/V0/1-0-0 can be paired with a hot-standby axis controller configuration, where a secondary card monitors the primary and assumes control in the event of a fault. This redundancy architecture is common in critical process applications — such as steel rolling mill hydraulic AGC systems or offshore platform motion compensation — where unplanned downtime carries significant operational and financial consequences. The card’s fault output signal integrates cleanly with the machine’s safety PLC, enabling automated fault response and controlled shutdown sequences.

For system integrators and maintenance engineers, ZYPLC maintains availability subject to RFQ confirmation of the VT-HACD-1-14/V0/1-0-0 R900745354, with each unit covered by a warranty terms confirmed during quotation and subjected to functional testing prior to shipment. Our system integration support service provides application-specific guidance for engineers integrating this card into existing HACD series architectures, including parameter configuration assistance, compatibility verification with upstream controllers such as the Bosch Rexroth CML40.2 or IndraMotion MLC, and coordination with downstream valve drivers such as the VT-VRPA2-2-1X proportional amplifier card.

Product Specification Table

System Compatibility Notes

The VT-HACD-1-14/V0/1-0-0 achieves its full potential when deployed as part of a coordinated Bosch Rexroth control architecture. At the control layer, an IndraControl L40 or IndraControl L65 motion controller generates axis setpoints and supervises the overall machine sequence. These setpoints are transmitted to the VT-HACD-1-14/V0/1-0-0 via analog ±10 V signals or through a VT-COM-PROFIBUS communication gateway, depending on the system’s fieldbus topology.

At the valve drive layer, the axis controller’s analog output connects directly to a VT-VRPA2-2-1X proportional amplifier card, which conditions the command signal and drives the proportional directional control valve solenoid. This two-card architecture — axis controller plus valve amplifier — is a standard Bosch Rexroth design pattern that separates closed-loop control logic from valve-specific signal conditioning, simplifying troubleshooting and enabling independent replacement of either card without reconfiguring the entire axis.

Position feedback is typically provided by a Bosch Rexroth MSK or MHD series linear transducer, or by a third-party LVDT connected to the card’s analog feedback input. In high-precision applications, an external Rexroth IndraDrive HMV01 supply unit may be used to power the hydraulic pump drive, with the VT-HACD-1-14/V0/1-0-0 coordinating the hydraulic axis motion in synchronization with the electric drive axis — a common architecture in hybrid press and forming machine designs.

For distributed I/O integration, Bosch Rexroth R-IB IL 24 DI 16 inline digital input modules provide limit switch and sensor signals to the axis controller’s digital input channels. In larger systems, a Rexroth Inline bus coupler aggregates multiple I/O modules and connects them to the PROFIBUS or CANopen network, enabling the master PLC to monitor all axis-related I/O signals from a single network node. This architecture reduces wiring complexity and supports online diagnostics without interrupting machine operation.

For HMI integration, an IndraControl VCP or equivalent Bosch Rexroth operator panel provides the machine operator with real-time axis position display, setpoint entry, and fault acknowledgment. The HMI communicates with the master controller over Ethernet or PROFIBUS, and axis-specific parameters stored in the VT-HACD-1-14/V0/1-0-0 can be displayed and adjusted through the HMI interface during commissioning or maintenance — eliminating the need for a dedicated laptop connection in routine operation.

Industrial Application Notes

Metal Forming and Press Control: In hydraulic press lines, the VT-HACD-1-14/V0/1-0-0 controls the ram position with sub-millimeter accuracy, coordinating with the press’s safety PLC and tonnage monitoring system. The card’s ramp generation function ensures smooth acceleration and deceleration profiles, reducing mechanical shock on tooling and extending die life. Multi-axis press synchronization — such as in four-column hydraulic presses — is achieved by running multiple VT-HACD-1-14/V0/1-0-0 cards in parallel, each controlling one cylinder, with the master controller managing synchronization error correction.

Steel and Aluminum Rolling Mills: Hydraulic AGC (Automatic Gauge Control) systems in rolling mills rely on fast, accurate hydraulic axis control to maintain strip thickness within tight tolerances. The VT-HACD-1-14/V0/1-0-0’s closed-loop response speed and PID tuning flexibility make it suitable for AGC applications where the control loop must respond to gauge deviations within milliseconds. The card’s integration with upstream process computers via analog setpoint interfaces allows the AGC system to receive real-time thickness correction commands from the measurement system.

Injection Molding Machines: Hydraulic injection molding machines use the VT-HACD-1-14/V0/1-0-0 to control injection velocity, holding pressure, and clamp position. The card’s multi-mode control capability — switching between position, velocity, and force control within a single machine cycle — is essential for injection molding process optimization. Integration with the machine’s sequence controller ensures that mode transitions occur at the correct process points without axis instability.

Water Treatment and Process Control: In water treatment plants and chemical process facilities, hydraulic actuators control large valve positions and dam gate movements. The VT-HACD-1-14/V0/1-0-0 provides the precise position control required for flow regulation, with its fault output signal integrated into the plant’s DCS safety interlock system. The card’s wide operating temperature range supports installation in outdoor control cabinets in harsh environmental conditions.

Mining and Heavy Industry: Hydraulic roof support systems in underground mining operations use axis control cards to manage support cylinder extension and retraction sequences. The VT-HACD-1-14/V0/1-0-0’s robust design and warranty terms confirmed during quotation coverage make it a reliable choice for mining applications where component replacement logistics are challenging and unplanned downtime is costly.

Product Compatibility FAQ

Q1: Is the VT-HACD-1-14/V0/1-0-0 compatible with both PROFIBUS DP and CANopen network architectures?
The VT-HACD-1-14/V0/1-0-0 itself communicates via a serial parameterization interface and analog I/O. Fieldbus integration — whether PROFIBUS DP or CANopen — is achieved through a compatible Bosch Rexroth communication gateway such as the VT-COM-PROFIBUS or VT-COM-CAN module, which translates network setpoints and parameter access commands to the card’s native interface. This gateway-based architecture allows the same axis controller card to be deployed in different fieldbus environments without hardware modification, simplifying spare parts inventory management across multi-site installations.

Q2: What is the recommended procedure for replacing a VT-HACD-1-14/V0/1-0-0 in a running production system, and how does the warranty terms confirmed during quotation apply?
Replacement should begin with a parameter backup from the existing card using Bosch Rexroth’s commissioning software, followed by a controlled axis disable and power-down sequence. The replacement card — supplied by ZYPLC with warranty terms confirmed during quotation coverage — should be installed and powered up before loading the saved parameter file. After parameter restore, a commissioning check covering PID response, feedback signal integrity, and output calibration should be performed before returning the axis to production. ZYPLC’s system integration support service can provide remote guidance through this process, reducing the risk of commissioning errors during the replacement procedure.

Q3: Can the VT-HACD-1-14/V0/1-0-0 be used in a redundant axis control architecture, and what system-level design considerations apply?
Yes. In redundant configurations, a secondary VT-HACD-1-14/V0/1-0-0 is installed in parallel with the primary card, with both cards receiving the same feedback signals and setpoints. The switchover logic — typically implemented in the master safety PLC — monitors the primary card’s fault output and activates the secondary card upon fault detection. Key design considerations include ensuring that both cards are parameterized identically, that the analog output switching does not cause a step change in the valve command signal, and that the power supply to each card is sourced from independent supply branches to prevent a single power fault from disabling both cards simultaneously. ZYPLC maintains matched-pair stock of the VT-HACD-1-14/V0/1-0-0 for customers implementing redundant axis architectures.
