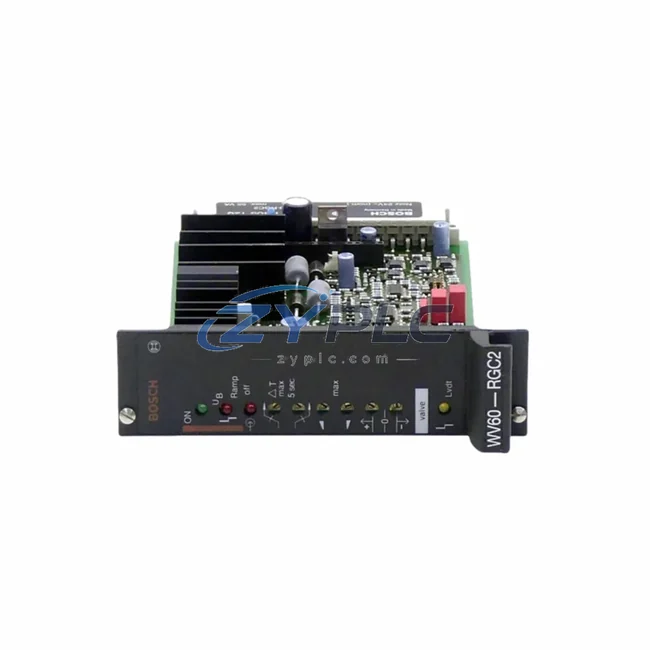

The Bosch Rexroth WV60-RGC2 is a precision proportional valve controller engineered for seamless integration within the WV60 series control architecture. Designed to operate at the intersection of the control layer and the hydraulic execution layer, this module delivers deterministic valve positioning, closed-loop pressure regulation, and real-time signal conditioning — all within a compact, DIN-rail-compatible form factor suited for industrial control cabinets.

In modern layered automation systems, the WV60-RGC2 occupies a critical role between the PLC command layer and the physical actuation layer. It receives analog or digital setpoint signals from upstream controllers — such as a Bosch Rexroth IndraControl L45 or a Rexroth PLC platform — and translates those commands into precise solenoid drive currents for proportional directional control valves. This architecture ensures that pressure, flow, and position targets are met with minimal deviation, even under variable load conditions.

The controller’s internal signal processing chain includes input filtering, ramp generation, and dither adjustment, which collectively reduce mechanical wear on valve spools and extend the service life of downstream hydraulic actuators. When paired with a Bosch Rexroth HNC100 axis controller or a VT-HACD series amplifier card, the WV60-RGC2 enables multi-axis hydraulic synchronization — a requirement in press systems, injection molding machines, and heavy-duty forming lines.

Product Specification Table

System Compatibility Notes

The WV60-RGC2 does not operate in isolation — its value is fully realized when embedded within a coherent Bosch Rexroth control architecture. At the controller level, a Bosch Rexroth IndraControl L65 or IndraLogic XLC PLC issues motion and pressure setpoints via analog output modules. These signals are routed through shielded cable assemblies to the WV60-RGC2 input terminals, where onboard filtering removes high-frequency noise before the ramp generator smooths the command profile.

On the power supply side, a Rexroth PSI6000 or equivalent 24 V DC regulated power supply ensures stable operating voltage for both the controller electronics and the solenoid output stage. Voltage ripple beyond ±5% can introduce positioning errors, making a clean power rail essential for high-precision applications.

For systems requiring fieldbus connectivity, a Bosch Rexroth Profibus-DP gateway module can bridge the WV60-RGC2 into a broader PROFIBUS network, allowing the PLC to monitor valve feedback signals and adjust setpoints dynamically. In more advanced architectures, the Rexroth IndraNet or SERCOS III communication backbone connects multiple axis controllers — including the HNC100 and VT-HACD-1-1X amplifier cards — into a synchronized motion network where the WV60-RGC2 serves as the final-stage valve driver.

At the I/O layer, Rexroth R-IB IL 24 DI 8 inline I/O modules handle discrete feedback signals from limit switches and pressure transducers, feeding status data back to the PLC for closed-loop supervision. The HMI layer — typically a Bosch Rexroth IndraControl VCP20 operator panel — provides the operator with real-time valve position readouts, alarm acknowledgment, and manual override capability, completing the full system feedback loop from execution to visualization.

Industrial Application Notes

In hydraulic press and metal forming environments, the WV60-RGC2 manages the proportional control of ram descent speed and clamping pressure. By modulating solenoid current in real time, it prevents pressure spikes that would otherwise cause tooling damage or workpiece deformation. The result is a tighter process window, reduced scrap rates, and longer die life.

In petrochemical and refinery process control systems, the controller is deployed to regulate flow control valves on high-pressure fluid lines. Its ramp function prevents water hammer effects during valve opening and closing sequences, protecting pipeline integrity and reducing maintenance intervals on valve seats and actuator seals.

For water treatment and municipal infrastructure applications, the WV60-RGC2 enables proportional dosing of chemical injection valves, where precise flow control directly impacts treatment efficacy and regulatory compliance. Its stable analog output ensures consistent dosing even as supply pressure fluctuates.

In mining and mineral processing plants, the controller drives proportional valves on conveyor tensioning systems and ore slurry flow circuits. The ability to fine-tune ramp rates and dither amplitude allows maintenance engineers to optimize valve response for varying slurry viscosities without hardware changes.

Across all these sectors, the WV60-RGC2 supports predictive maintenance strategies by providing stable, repeatable valve drive signals whose deviation from baseline can indicate solenoid coil degradation or hydraulic contamination — enabling condition-based maintenance scheduling before unplanned downtime occurs.
