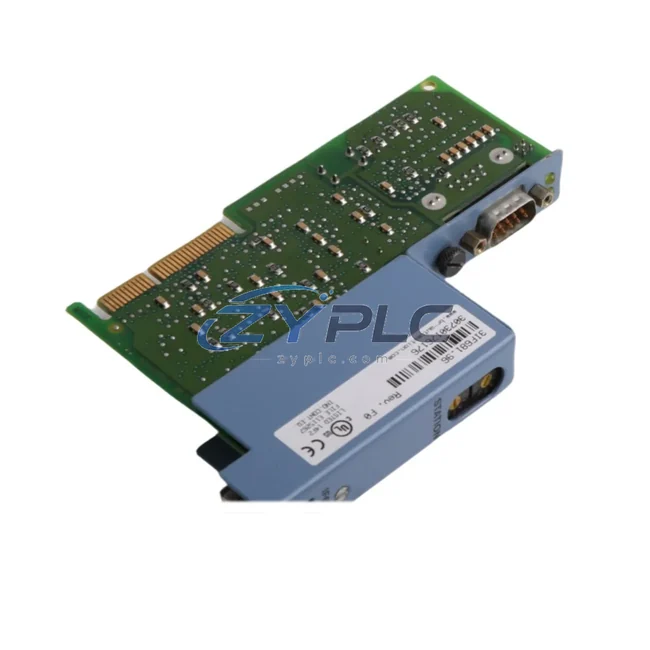

B&R IF681 Interface Module for X20

B&R IF681 Interface Module for X20: Control System Integration and Upstream-Downstream Coordination

In modern industrial automation, no component operates in isolation. The B&R IF681 interface module is engineered as a structural element within the X20 control platform, designed to bridge communication layers, extend signal reach, and maintain system coherence across the full automation hierarchy. From the control layer down through I/O expansion, network gateways, and field devices, the IF681 plays a defined role in ensuring that data flows reliably, latency remains predictable, and the overall architecture scales without compromise.

Understanding the IF681 begins with understanding where it sits in the X20 system stack. B&R’s X20 platform is a modular, backplane-based control architecture that integrates CPU modules, power supply modules, digital and analog I/O modules, communication interface modules, and terminal modules into a unified, DIN-rail-mounted assembly. The IF681 functions as an interface bridge within this ecosystem, enabling the X20 station to communicate with external fieldbus networks or extend its connectivity to remote I/O stations, drives, or HMI devices. This system integration capability is what makes the IF681 a system-critical component rather than a peripheral accessory.

Product Specification Table

System Compatibility Notes

The IF681 does not function as a standalone device — its value is realized through coordinated deployment within a complete X20 control cabinet. A typical architecture begins with a CPU module such as the X20CP1586 or X20CP3586, which serves as the central processing unit managing all logic execution, task scheduling, and communication coordination. The CPU communicates with I/O modules and interface modules via the X20 backplane bus, with the X20BM11 bus module providing the physical backplane interconnect between adjacent modules.

Power distribution within the X20 station is handled by modules such as the X20PS9400 power supply module, which delivers regulated 24 VDC to the backplane and connected I/O modules. Proper power segmentation is essential in larger X20 stations, and the IF681 must be positioned within a correctly powered backplane segment to ensure stable operation.

On the I/O side, the X20 platform supports a wide range of digital and analog modules. The X20DI9371 digital input module and X20DO9322 digital output module are commonly deployed alongside interface modules to handle discrete signal acquisition and actuation. For analog process signals, the X20AT6402 analog input module provides high-resolution measurement capability. These I/O modules share the same backplane as the IF681, and their data is aggregated by the CPU for processing and transmission to higher-level SCADA or DCS systems.

Communication gateways such as the X20BC0083 POWERLINK bus controller extend the X20 station’s reach to remote I/O nodes or drive systems via the POWERLINK real-time Ethernet protocol. When the IF681 is used in conjunction with the X20BC0083, the architecture supports distributed I/O topologies where field devices are located far from the main control cabinet. This is particularly valuable in large-scale manufacturing lines, power distribution substations, and process plant environments where cable runs would otherwise be impractical.

For human-machine interface integration, B&R’s X20CM8281 communication module supports connectivity to HMI panels and SCADA workstations, enabling operators to monitor system status, adjust setpoints, and respond to alarms in real time. Terminal modules such as the X20TB12 provide the field wiring connection points for sensors and actuators, completing the signal chain from the physical process layer up through the IF681 and into the control system.

Redundancy considerations are also relevant when deploying the IF681 in critical applications. B&R’s X20 platform supports CPU redundancy configurations where a standby CPU module mirrors the active controller, enabling bumpless switchover in the event of a primary CPU fault. Interface modules like the IF681 must be selected and positioned to support these redundancy topologies, ensuring that communication paths remain intact during failover events.

Industrial Application Notes

The B&R IF681 interface module finds application across a broad range of industrial sectors where layered automation architectures are standard practice. In manufacturing and assembly lines, the IF681 enables the X20 controller to interface with servo drives, vision systems, and conveyor control networks, supporting high-speed coordinated motion and quality inspection workflows. In power generation and distribution facilities, the module supports communication between the X20 PLC and protection relays, energy meters, and substation automation equipment, where data integrity and deterministic communication timing are non-negotiable.

In petrochemical and refinery environments, the IF681 supports integration with process instrumentation networks, enabling the X20 controller to acquire flow, pressure, temperature, and level signals from distributed field transmitters. The module’s compatibility with standard fieldbus protocols ensures that legacy instrumentation can be incorporated into modern X20-based control architectures without requiring full instrument replacement.

For water and wastewater treatment plants, the IF681 supports communication with pump drives, valve actuators, and flow measurement devices across geographically distributed pump stations. In mining and metallurgical applications, the module enables the X20 system to interface with heavy-duty motor control centers and process analyzers in harsh electrical environments. In packaging and material handling lines, the IF681 supports high-cycle-rate I/O communication between the X20 controller and pneumatic valve islands, barcode readers, and label applicators.

Product Compatibility FAQ

Q1: Is the B&R IF681 compatible with all X20 CPU modules and backplane configurations?
The IF681 is designed for integration within the B&R X20 modular platform and is compatible with X20 backplane bus architectures. Compatibility should be verified against the specific CPU module firmware version and X20 station configuration using B&R’s Automation Studio engineering software. For mixed-generation X20 stations, consult the B&R hardware compatibility matrix to confirm backplane bus protocol alignment.

Q2: How does the IF681 support long-term maintenance and spare parts management in an X20 architecture?
The modular design of the X20 platform means that the IF681 can be replaced independently without disturbing adjacent modules or requiring full station reconfiguration. ZYPLC supports RFQ sourcing for the IF681 and related X20 components to support rapid spare parts fulfillment, minimizing unplanned downtime. All units supplied by ZYPLC are covered by a, providing assurance for both initial commissioning and ongoing maintenance cycles.

Q3: What engineering tools are required to configure and commission the IF681 within an X20 control system?
Configuration of the IF681 within an X20 station is performed using B&R Automation Studio, which provides hardware configuration, I/O mapping, communication parameter setup, and diagnostic tools. The module appears in the Automation Studio hardware catalog and can be added to the station configuration with its communication parameters defined in the project. Commissioning involves verifying backplane communication, confirming fieldbus node addressing, and validating signal mapping between the IF681 and the CPU’s application program. ZYPLC’s technical team can provide pre-sales configuration guidance to support project engineering.
