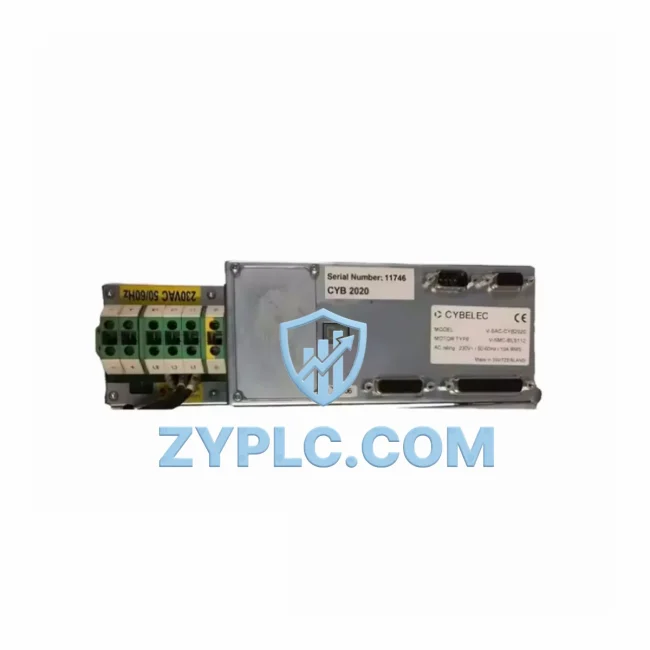

Cybelec V-SAC-CYB2020 Industrial Network Interface for DNC Systems

Cybelec V-SAC-CYB2020 V-SMC-BLS112: Industrial Data Link for DNC-Series Smart Factory Networks

The Cybelec V-SAC-CYB2020 V-SMC-BLS112 is a high-performance CNC driver and motion controller module engineered for seamless integration within DNC-series industrial network architectures. Designed to bridge the gap between field-level devices and upper-layer control systems, this unit delivers reliable protocol conversion, real-time data transmission, and robust connectivity across the full automation stack — from servo drives and spindle controllers to SCADA platforms and MES environments.

In modern smart factory deployments, the ability to move data accurately and continuously between machine tools, PLCs, remote I/O modules, HMIs, and supervisory systems is not optional — it is the foundation of operational transparency. The V-SAC-CYB2020 V-SMC-BLS112 is purpose-built to fulfill this role, supporting multi-axis motion coordination while simultaneously maintaining open communication channels with upstream network controllers and diagnostic systems.

Network Communication Table

Connected Automation Data Flow

The V-SAC-CYB2020 V-SMC-BLS112 operates at the intersection of machine-level execution and network-level intelligence. In a typical DNC-series deployment, the unit receives machining programs and parameter sets from a Cybelec DNC 880 or Cybelec DNC 60 host controller via RS-232 or RS-422 serial links. These programs are parsed and executed in real time, with axis position data and spindle feedback continuously relayed back to the host for logging and adaptive control.

At the field device layer, the V-SMC-BLS112 servo drive interface coordinates directly with brushless servo motors and encoder modules, ensuring sub-millisecond position loop closure. Simultaneously, digital I/O signals from proximity sensors, limit switches, and tool measurement probes are aggregated and forwarded to the Cybelec CYB2020 processing core, which handles interpolation, compensation, and real-time alarm generation.

For plants running mixed-vendor environments, the V-SAC-CYB2020 acts as a protocol gateway between legacy RS-485 field buses and modern Ethernet-based supervisory networks. Integration with Siemens S7-series PLCs or Mitsubishi MELSEC Q-series controllers is achievable through standard serial or OPC-UA bridging, enabling unified data visibility across heterogeneous machine fleets. Remote I/O expansion modules — such as those in the Cybelec I/O Extension Series — can be daisy-chained to extend the digital and analog signal capacity without additional network infrastructure.

At the HMI layer, operators interact with the system through Cybelec TouchCNC or compatible third-party panel PCs running SCADA clients. Real-time spindle load, axis velocity, program execution status, and alarm histories are displayed with update cycles under 100 ms, supporting rapid operator response and minimizing unplanned downtime. For multi-machine monitoring, the V-SAC-CYB2020 data stream is aggregated by an industrial edge gateway — such as those based on the Advantech WISE or Moxa UC platform — before being forwarded to plant-level MES or ERP systems via MQTT or OPC-UA.

Power supply stability for the entire control node is maintained by a DIN-rail industrial SMPS (e.g., Phoenix Contact QUINT series or equivalent 24 VDC regulated supply), ensuring the V-SAC-CYB2020 and its connected peripherals operate within specified voltage tolerances even during load transients caused by servo acceleration events.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy manufacturing environments is protocol fragmentation — machines from different eras speaking incompatible languages, creating data silos that prevent real-time visibility and coordinated control. The Cybelec V-SAC-CYB2020 V-SMC-BLS112 directly addresses this by serving as a bidirectional protocol translator between DNC host systems and field-level devices, eliminating the need for manual data entry or batch file transfers that introduce latency and error risk.

In plants where CNC machines have historically operated as isolated islands, deploying the V-SAC-CYB2020 as the network interface node enables continuous program management, remote parameter adjustment, and live status reporting — all without interrupting production cycles. Maintenance engineers can push updated tool compensation tables or machining programs from a central DNC server to multiple V-SAC-CYB2020 nodes simultaneously, reducing changeover time and ensuring version consistency across the shop floor.

Remote diagnostics capability is a key value driver. Through the serial or Ethernet interface, service engineers can access alarm logs, axis error histories, and drive status registers from off-site locations, enabling predictive maintenance scheduling before failures occur. This capability integrates naturally with SCADA alarm management systems, where threshold violations trigger automated notifications to maintenance teams via email or SMS.

For growing operations, the modular architecture of the DNC series means that additional V-SAC-CYB2020 nodes can be added to the network without redesigning the communication topology. Each new node registers with the DNC host controller and begins participating in the data exchange immediately, supporting phased factory expansion without production disruption. Combined with the 12-month warranty and pre-shipment functional testing performed on every unit, the V-SAC-CYB2020 V-SMC-BLS112 represents a low-risk, high-reliability choice for industrial connectivity upgrades.

Industrial Connectivity FAQ

Q1: What communication protocols does the Cybelec V-SAC-CYB2020 V-SMC-BLS112 support?
The unit natively supports DNC protocol over RS-232 and RS-422 serial interfaces, with RS-485 multi-drop capability for connecting multiple CNC nodes to a single host. Ethernet connectivity for integration with SCADA or MES platforms is available depending on the specific configuration. Contact our team to confirm protocol compatibility with your existing network infrastructure.

Q2: Can this module be integrated with third-party PLCs and SCADA systems?
Yes. The V-SAC-CYB2020 is designed for open industrial environments. It can exchange data with Siemens, Mitsubishi, Omron, and other major PLC platforms through serial bridging or OPC-UA gateway configurations. SCADA systems including Wonderware, iFIX, and WinCC can receive real-time data from the module via standard industrial communication middleware.

Q3: How does the unit perform in terms of network stability and communication latency?
The V-SAC-CYB2020 is engineered for deterministic communication in electrically noisy industrial environments. RS-422 differential signaling provides high noise immunity over cable runs up to 1,200 meters. Typical DNC program transfer latency is under 50 ms for standard part programs, and real-time status polling cycles operate at 10–100 ms intervals depending on host configuration.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every Cybelec V-SAC-CYB2020 V-SMC-BLS112 unit shipped by ZYPLC undergoes functional verification testing prior to dispatch, including communication interface checks, I/O signal validation, and power supply tolerance testing. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Expedited replacement support is available for critical production applications.
