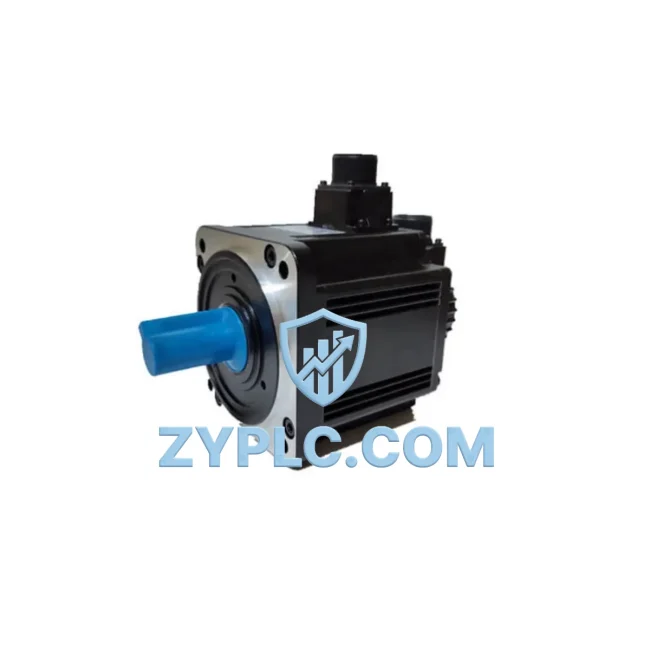

Delta ECMA-E21320SS EtherCAT Servo Motor ASDA-B3

Delta ECMA-E21320SS: Industrial Data Link for Smart Factory Motion Networks

The Delta ECMA-E21320SS is a 2kW EtherCAT AC servo motor engineered for high-precision motion control within the ASDA-B3 series ecosystem. Designed to serve as a critical node in the industrial data chain, this servo motor bridges field-level actuation with upper-layer control systems — enabling seamless, real-time communication across PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and edge gateways in modern smart factory environments.

In today’s connected manufacturing landscape, every axis of motion must be visible, controllable, and diagnostically transparent. The ECMA-E21320SS achieves this by leveraging the EtherCAT protocol — one of the fastest and most deterministic industrial Ethernet standards — to deliver sub-millisecond cycle times and synchronized multi-axis coordination. Whether integrated into a standalone machine cell or embedded within a plant-wide MES/SCADA architecture, this motor ensures that motion data flows without interruption from the servo drive to the supervisory layer.

Network Communication Table

Connected Automation Data Flow

The ECMA-E21320SS operates at the heart of a layered industrial network architecture. At the field level, the motor receives position, velocity, and torque commands from the Delta ASDA-B3 servo drive — a high-performance EtherCAT slave drive that translates network packets into precise electrical output within microseconds. The ASDA-B3 drive connects upstream to a Delta AX-308E EtherCAT motion controller or compatible third-party EtherCAT master, which orchestrates multi-axis synchronization across an entire production line.

Signal acquisition begins at the encoder level: the ECMA-E21320SS’s 23-bit absolute encoder continuously feeds back position data to the ASDA-B3 drive, which in turn transmits real-time status — including torque load, speed deviation, alarm codes, and thermal status — upstream through the EtherCAT ring. This data stream is captured by the motion controller and forwarded to a Delta DIADesigner-AX SCADA/HMI gateway or an OPC-UA server for plant-wide visibility.

For facilities running mixed-protocol environments, an EtherCAT-to-Modbus TCP gateway (such as the Delta IFD9507 or compatible protocol converter) bridges the servo network to legacy SCADA systems, DCS platforms, or Modbus-based remote I/O racks. This ensures that even older supervisory systems can receive live servo diagnostics without requiring a full network overhaul. Alongside the servo axis, Delta DVP-series remote I/O modules and Delta AS300 PLC controllers share the same EtherCAT backbone, enabling coordinated control of pneumatic actuators, conveyor drives, and sensor arrays from a single network master.

At the drive layer, the ECMA-E21320SS frequently operates in tandem with Delta VFD-MS300 variable frequency drives controlling auxiliary motors — such as cooling fans, feed rollers, and hydraulic pumps — whose speed references are synchronized with the servo axis via the motion controller’s cam profile or electronic gearing function. Delta DT series industrial temperature sensors and Delta IA-Series photoelectric sensors feed process variables into the same EtherCAT network, providing closed-loop feedback for adaptive motion profiles. The entire data chain — from sensor signal to servo response to SCADA dashboard — operates with deterministic latency, making the ECMA-E21320SS a reliable backbone component for high-speed packaging, semiconductor handling, and precision assembly applications.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is protocol fragmentation: servo drives speaking EtherCAT, legacy PLCs using Profibus or RS-485, and SCADA systems expecting Modbus TCP or OPC-UA — all operating in silos with no unified data view. The ECMA-E21320SS, when paired with the ASDA-B3 drive and appropriate protocol gateways, directly addresses this isolation problem.

By positioning the EtherCAT servo network as the real-time motion backbone and using protocol converters at the boundary layer, plant engineers can expose servo diagnostics — cycle counts, position errors, drive temperature, alarm history — to any supervisory system without modifying the core motion architecture. This approach eliminates data islands where servo faults go undetected until mechanical failure occurs, replacing reactive maintenance with predictive, data-driven intervention.

Remote monitoring and diagnostics become straightforward: with an edge gateway translating EtherCAT data to MQTT or OPC-UA, maintenance teams can access live servo status from mobile devices or cloud dashboards, reducing mean time to repair (MTTR) and enabling remote commissioning support. Production line transparency improves as every axis reports its operational state in real time, allowing MES systems to calculate OEE metrics, detect cycle time drift, and trigger preventive maintenance alerts automatically.

System scalability is equally addressed: the EtherCAT topology supports daisy-chain and ring configurations, allowing additional ECMA-series motors, I/O modules, and drives to be added to the network without reconfiguring the master or rewiring the cabinet. This plug-and-operate expandability makes the ECMA-E21320SS a future-proof investment for facilities planning phased automation upgrades.

Every unit shipped by ZYPLC undergoes a pre-shipment functional test covering encoder feedback verification, drive communication handshake, and alarm output check. All products carry a 12-month warranty and are supported by in-stock inventory for rapid global dispatch.

Industrial Connectivity FAQ

Q1: What is the communication latency of the ECMA-E21320SS in an EtherCAT network?
The ECMA-E21320SS, operating via the ASDA-B3 EtherCAT servo drive, achieves cycle times as low as 125μs in a standard EtherCAT ring. This deterministic, sub-millisecond latency is essential for high-speed multi-axis synchronization in CNC machining, robotic assembly, and electronic component placement applications.

Q2: Is the ECMA-E21320SS compatible with non-Delta EtherCAT masters such as TwinCAT or CODESYS?
Yes. The ASDA-B3 drive paired with the ECMA-E21320SS is certified as an EtherCAT slave device (CoE — CANopen over EtherCAT) and is compatible with any standard EtherCAT master, including Beckhoff TwinCAT, CODESYS-based controllers, and Omron Sysmac. The ESI (EtherCAT Slave Information) file is available from Delta Electronics for seamless master configuration.

Q3: How does the system maintain network stability in electrically noisy factory environments?
EtherCAT’s physical layer uses standard 100BASE-TX Ethernet cabling with shielded twisted-pair (STP) cables, providing inherent noise immunity. The ASDA-B3 drive includes built-in EMC filters and supports cable lengths up to 100m per segment. For environments with severe electromagnetic interference, fiber-optic EtherCAT media converters can be inserted into the topology without protocol changes.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the ECMA-E21320SS?
All ECMA-E21320SS units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and communication interface failures. Prior to dispatch, each unit undergoes a functional test including encoder signal verification, EtherCAT communication handshake with the ASDA-B3 drive, and mechanical rotation check. In-stock units are available for same-week international shipping with full export documentation.
