Emerson 1C31166G02 DCS Controller Ovation

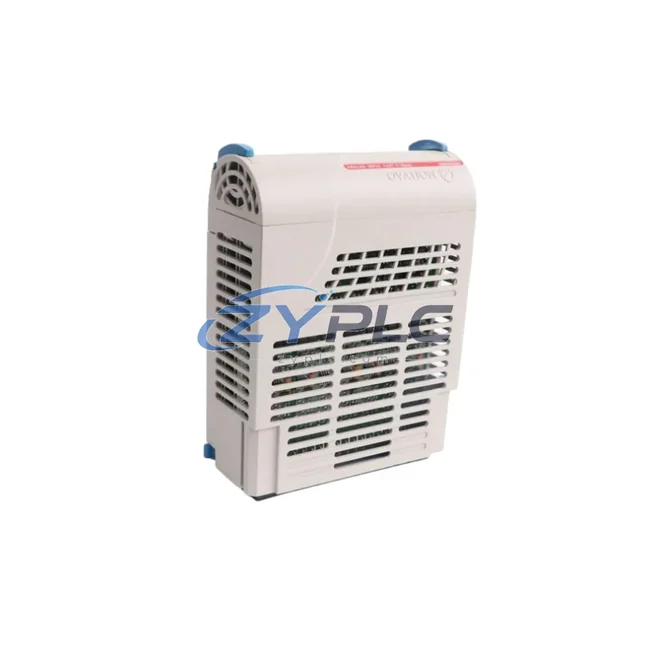

Emerson 1C31166G02 DCS Link Controller for Ovation Automation

The Emerson 1C31166G02 is a high-performance DCS Link Controller designed for the Ovation distributed control system platform. In modern industrial facilities where equipment uptime and replacement lead time directly affect production continuity, this controller plays a central role in tightening the feedback loop between field instrumentation, drive systems, and supervisory control layers. By maintaining deterministic, low-latency communication across the Ovation network, the 1C31166G02 ensures that energy consumption data flows accurately from sensors to the control room — enabling operators to act on real-time efficiency signals rather than lagging indicators.

Unlike generic communication modules, the 1C31166G02 is engineered specifically for Emerson’s Ovation architecture, which means it integrates natively with Ovation controller nodes, I/O subsystems, and historian services without requiring protocol translation overhead. This tight integration reduces CPU load on the primary controller, lowers bus contention, and contributes to a leaner, more industrial automation system across the entire plant network.

Product Specification Table

System Compatibility and Application

The 1C31166G02 sits at the communication backbone of an Ovation-based control system, and its efficiency impact is best understood in the context of the broader automation architecture it supports. In a typical power plant or process facility, the Ovation controller — such as the Emerson 1C31157G01 Ovation Controller Module — handles closed-loop regulatory control for critical process variables. The 1C31166G02 acts as the dedicated link controller that offloads network management tasks from the primary controller, freeing processing cycles for tighter PID execution and faster scan rates.

On the I/O side, the 1C31166G02 communicates with remote I/O nodes populated with modules such as the Emerson 1C31234G01 Analog Input Module and Emerson 1C31116G01 Digital Output Module. These I/O modules feed real-time process data — including motor current draw, valve positions, and flow rates — back through the link controller to the Ovation historian and operator workstations. When condition monitoring is a priority, pairing the 1C31166G02 with dedicated power measurement I/O, such as the Emerson 1C31197G01 Power Monitor Input Module, allows the DCS to capture kWh consumption at the equipment level and trigger demand-response actions automatically.

For drive-level energy control, the Ovation DCS communicates with variable frequency drives (VFDs) through fieldbus interfaces. The Emerson Control Techniques Unidrive M700 series supports Ethernet/IP and Modbus TCP integration with the Ovation platform, enabling the DCS to issue speed reference commands that match motor output to actual process demand — eliminating the unplanned downtime of fixed-speed operation. The 1C31166G02 ensures these drive commands are delivered with the timing precision required for coordinated multi-drive sequences on compressor trains, pump stations, and fan arrays.

At the supervisory level, the Ovation Operator Workstation (OWS) and the Emerson Ovation Historian Server rely on the link controller to aggregate data from multiple controller drops into a unified process view. This consolidated data stream is the foundation for energy KPI dashboards, shift reports, and ISO 50001 maintenance planning documentation. When integrated with the Emerson AMS Device Manager, the same communication infrastructure supports predictive maintenance workflows — correlating rising motor current signatures with bearing wear before a failure event causes an unplanned shutdown and the associated energy spike of emergency restart sequences.

For plants running hybrid architectures, the 1C31166G02 also supports integration with Emerson ROC800 Remote Operations Controllers deployed at wellhead or substation locations, extending the Ovation condition monitoring perimeter beyond the main control room to remote assets. This end-to-end visibility is essential for facilities pursuing site-wide energy intensity reduction targets.

Maintenance and Replacement Notes

In a combined-cycle power generation facility, the 1C31166G02 was deployed to replace a failed link controller that had been causing intermittent communication dropouts between the Ovation DCS and the turbine control I/O cabinets. The dropouts were forcing operators to run equipment in manual mode with conservative, energy-inefficient setpoints — a common consequence of unreliable DCS communication. After restoring the link controller, the plant returned to automatic optimization mode, recovering an estimated 2–3% improvement in heat rate efficiency across the gas turbine train.

In a water treatment facility, the same module type was used to extend the Ovation network to a new pump station building. By bringing the variable-speed booster pumps under DCS supervisory control via the 1C31166G02, the facility was able to implement a pressure-based flow optimization algorithm that reduced pump energy consumption by approximately 18% compared to the previous fixed-speed, timer-based operation. The link controller’s deterministic communication latency was critical to ensuring the pressure control loop remained stable under varying demand conditions.

In chemical batch processing, the 1C31166G02 supports recipe-driven production sequences where precise timing of agitator motors, heat exchanger valves, and reactor cooling systems directly affects both product quality and energy consumption per batch. By maintaining reliable DCS communication across all process areas, the link controller enables the Ovation system to execute energy-optimized batch profiles — reducing steam consumption during heat-up phases and minimizing cooling water usage during exothermic reaction stages.

From a maintenance perspective, the 1C31166G02 is a hot-swap-compatible module within the Ovation backplane, meaning it can be replaced during a planned maintenance window without requiring a full controller shutdown. This characteristic is particularly valuable in continuous-process industries where unplanned downtime carries both production loss and energy penalty costs associated with process restart. All units supplied by ZYPLC are fully tested prior to shipment, with a warranty terms confirmed during quotation covering both hardware defects and functional performance.

Product Sourcing FAQ

Q1: How does the 1C31166G02 contribute to plant energy efficiency?
The 1C31166G02 maintains reliable, low-latency communication between Ovation controller nodes and remote I/O or peer controllers. This reliability is the prerequisite for all closed-loop maintenance planning strategies — including load shedding, demand response, and VFD speed optimization — because these strategies depend on accurate, timely process data flowing through the DCS network without dropout or delay.

Q2: Is the 1C31166G02 compatible with all versions of the Emerson Ovation DCS?
The 1C31166G02 is designed for the Emerson Ovation platform and is compatible with Ovation 1.x, 2.x, and 3.x system generations. For specific firmware revision compatibility or backplane slot requirements, we recommend verifying against your system’s hardware configuration document or contacting our technical team before ordering.

Q3: What is the recommended replacement process for a failed link controller?
The 1C31166G02 is a module-level replacement. The standard procedure involves powering down the affected controller drop (or using hot-swap capability where supported), removing the failed module, inserting the replacement, and allowing the Ovation system to re-establish network communication — typically within 60–90 seconds. ZYPLC provides pre-tested units to minimize commissioning time and reduce the risk of introducing a second fault during the replacement process.

Q4: What does the warranty terms confirmed during quotation cover?
The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. Each unit undergoes a full functional test prior to shipment, including communication link verification and backplane interface testing. Warranty claims are supported by our technical team, and replacement units are dispatched from RFQ-confirmed sourcing to minimize your plant’s exposure to extended downtime.
