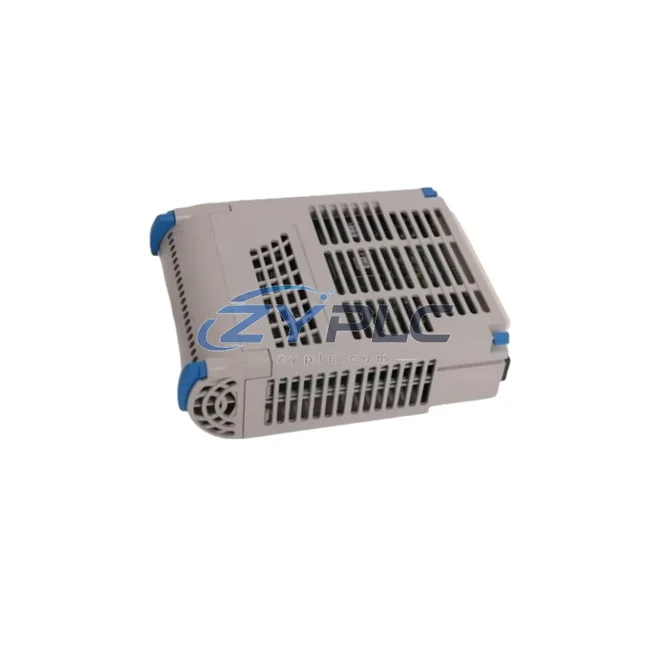

The Emerson 1C31179G01 is a precision analog input module engineered for deployment within the Ovation Distributed Control System (DCS) platform — one of the most widely adopted process automation architectures in power generation, petrochemical refining, and utility-scale industrial operations. Rather than functioning as a standalone component, the 1C31179G01 is designed to operate as an integral node within a layered control hierarchy, where signal fidelity, channel density, and bus-level synchronization directly determine system reliability and regulatory compliance.

In a fully configured Ovation DCS architecture, the 1C31179G01 occupies the I/O layer — the critical interface between field instrumentation and the controller layer. It receives analog signals from transmitters, sensors, and transducers distributed across the process plant, conditions those signals, and delivers digitized process values to the Ovation controller over the I/O bus. This signal chain is foundational: without accurate, low-latency analog acquisition, the controller cannot execute regulatory control loops, generate alarm states, or feed historian data to the supervisory layer.

The module is designed for installation within Ovation I/O cabinets using standard Emerson I/O marshalling and termination assemblies. It interfaces directly with the Ovation controller modules — such as the OCR400 or OCR1100 series controllers — via the Ovation I/O bus, maintaining deterministic scan rates that are essential for closed-loop PID control in power plant boiler management, turbine control, and feedwater regulation systems. The 1C31179G01 supports the standard Ovation module addressing scheme, enabling seamless integration into existing I/O assignments without requiring controller reconfiguration.

Product Specification Table

System Compatibility Notes

The 1C31179G01 does not operate in isolation — its value is realized through coordinated interaction with the broader Ovation system architecture. At the controller layer, Ovation OCR400 and OCR1100 controller modules poll the analog input data acquired by the 1C31179G01 and execute the control algorithms that govern process stability. The controller’s ability to maintain tight loop performance depends directly on the scan consistency and signal accuracy delivered by the I/O module.

Power integrity for the I/O subsystem is maintained by Ovation power supply modules installed within the same I/O cabinet. These power modules provide regulated 24 VDC to the I/O bus, and in redundant configurations, dual power supplies with automatic failover ensure that a single power fault does not interrupt analog acquisition. This is particularly critical in continuous process environments such as combined-cycle power plants, where loss of analog input data can trigger unplanned turbine trips.

At the network layer, the Ovation DCS relies on a dedicated Ovation Network — typically a redundant 100 Mbps Ethernet-based control network — to carry controller-to-workstation communications, historian data, and alarm management traffic. The 1C31179G01 contributes process data to this network indirectly through the controller, ensuring that operator workstations running Ovation Operator Station software receive real-time process values with minimal latency.

For field termination, the 1C31179G01 is paired with Ovation termination assemblies and marshalling panels that consolidate field wiring before it reaches the I/O module. In larger installations, remote I/O cabinets equipped with Ovation remote I/O interface modules extend the I/O bus to field locations, reducing cable runs and improving signal integrity. The 1C31179G01 can be deployed in both local and remote I/O configurations, providing architectural flexibility for greenfield and brownfield projects alike.

At the human-machine interface layer, Ovation Operator Stations and Ovation Engineering Workstations provide the visualization and configuration environment through which engineers assign the 1C31179G01’s channels to process tags, configure engineering unit scaling, and set alarm limits. The Ovation configuration database maintains a complete record of I/O assignments, ensuring that module replacement during maintenance does not require manual reconfiguration — a significant advantage for long-term operational efficiency.

In redundant control architectures, the 1C31179G01 may be deployed alongside redundant I/O modules or within redundant I/O subsystems where dual-module configurations provide hot-standby capability. This redundancy design is common in safety-critical applications such as nuclear auxiliary systems, combined-cycle plant controls, and refinery process units where unplanned downtime carries significant financial and safety consequences.

Industrial Application Notes

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the 1C31179G01 is deployed extensively in boiler control, turbine supervisory systems, and balance-of-plant automation. Analog inputs from pressure transmitters, temperature elements, flow meters, and level sensors are acquired by the module and fed into the Ovation controller’s regulatory control loops, enabling precise management of steam temperature, drum level, and fuel flow.

In petrochemical and refinery applications, the module supports continuous process control across distillation columns, heat exchangers, and reactor systems. The ability to acquire multiple analog signals with consistent scan rates makes the 1C31179G01 well-suited for cascade control strategies and ratio control schemes common in refinery operations.

Water and wastewater treatment facilities operating on Ovation DCS platforms use the 1C31179G01 to monitor flow rates, chemical dosing levels, and tank levels across distributed pump stations and treatment trains. The module’s compatibility with standard 4–20 mA transmitters — the dominant signal standard in water utility automation — ensures straightforward integration with existing field instrumentation.

In mining and minerals processing, where harsh environments and long cable runs are common, the 1C31179G01’s signal conditioning capabilities help maintain measurement accuracy across extended field wiring distances. Conveyor systems, crusher controls, and flotation cell automation all benefit from reliable analog input acquisition within the Ovation control architecture.

Metallurgical and steel plant applications leverage the module in furnace temperature control, rolling mill automation, and continuous casting process management — environments where precise analog measurement directly impacts product quality and energy efficiency.

Product Compatibility FAQ

Q1: Is the 1C31179G01 compatible with both legacy Ovation and current Ovation 3.x DCS platforms?
The 1C31179G01 is designed to the Ovation I/O module standard and is compatible with Ovation DCS installations across multiple platform generations. It uses the standard Ovation I/O bus interface and module addressing scheme, which has been maintained across Ovation platform revisions to protect customer investment in existing I/O infrastructure. For specific firmware or hardware revision compatibility with your Ovation controller version, we recommend confirming the module revision against your system’s I/O compatibility matrix prior to installation.

Q2: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions. For maintenance engineers managing Ovation DCS spare parts inventories, this warranty provides assurance that replacement modules sourced through ZYPLC meet functional standards and are backed by a defined support period. This is particularly valuable for facilities operating under long maintenance intervals where spare module reliability directly impacts plant availability. Warranty claims are handled directly through ZYPLC’s technical support team.

Q3: How does system integration apply to the 1C31179G01 in an existing Ovation DCS architecture?
system integration refers to the module’s ability to be introduced into an existing Ovation DCS architecture without requiring system-wide reconfiguration. Because the 1C31179G01 adheres to the Ovation I/O module standard, it can replace a failed or end-of-life module in an existing I/O slot with minimal engineering effort — the Ovation configuration database retains the channel assignments, tag mappings, and alarm configurations associated with that I/O slot. This plug-in compatibility reduces commissioning time, minimizes process downtime during module replacement, and supports the long-term maintainability of Ovation DCS installations across their full operational lifecycle.
