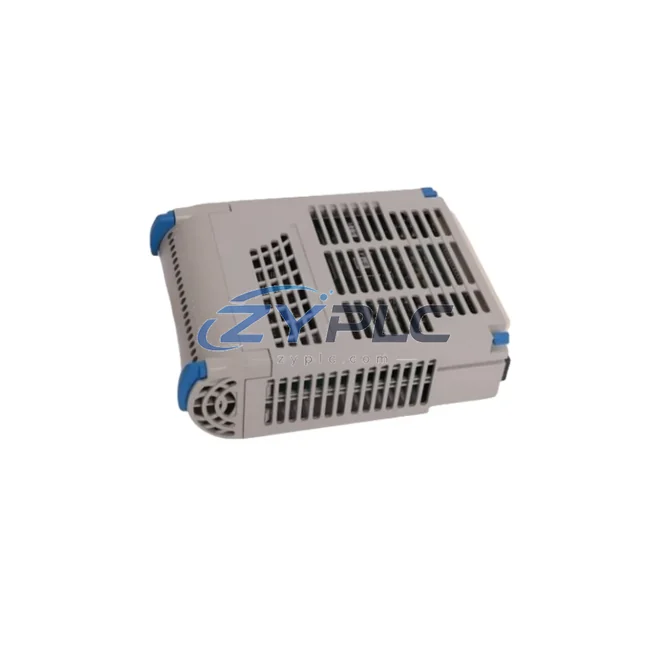

Emerson 1C31181G01 Remote I/O Master for Ovation

Emerson 1C31181G01 Remote I/O Master for Ovation: Compatibility and Replacement Notes

The Emerson 1C31181G01 is a Remote I/O Master Unit engineered for deployment within the Ovation distributed control system (DCS) platform — one of the most widely adopted process automation architectures in power generation, fossil fuel, nuclear, and combined-cycle plant environments. Rather than functioning as a standalone component, the 1C31181G01 occupies a critical coordination role within the Ovation system hierarchy, serving as the primary communication bridge between the Ovation controller and distributed field I/O assemblies located across the plant floor. Its integration into a layered automation architecture directly determines the reliability, scalability, and maintainability of the entire control loop.

In a fully realized Ovation control architecture, the 1C31181G01 Remote I/O Master operates at the I/O layer, receiving process variable data from field-mounted transmitters, switches, and actuators via remote I/O drops, and relaying that data upstream to the Ovation controller — typically an Ovation OCR400 or OCR1100 controller module — for real-time processing and regulatory control execution. The controller then issues output commands back through the 1C31181G01 to analog output modules, digital output modules, and relay output assemblies that drive final control elements such as control valves, variable frequency drives, and motor starters. This bidirectional signal flow, managed through the 1C31181G01, is the backbone of closed-loop process control in Ovation-based plants.

At the network layer, the 1C31181G01 communicates over the Ovation network — a deterministic, high-speed Ethernet-based control network — ensuring that I/O scan cycles remain consistent and that process data latency is minimized even in large-scale plant configurations with hundreds of I/O points distributed across multiple remote drops. The network architecture supporting the 1C31181G01 typically includes Ovation network switches, fiber optic media converters for long-distance drops, and redundant network paths to eliminate single points of failure. When deployed in redundant configurations, a secondary 1C31181G01 unit can be installed in parallel, providing bumpless transfer of I/O master responsibilities in the event of a primary module failure — a critical requirement in continuous process industries where unplanned shutdowns carry significant operational and financial consequences.

The power layer supporting the 1C31181G01 typically consists of Ovation-compatible 24VDC power supply modules mounted within the same I/O cabinet or remote drop enclosure. Proper power distribution, including the use of power conditioners and UPS systems, ensures that the 1C31181G01 and its associated I/O modules maintain stable operation during grid disturbances. The module’s low power consumption profile makes it well-suited for installation in compact remote drop enclosures where thermal management is a design constraint.

From a system expansion perspective, the 1C31181G01 supports the connection of multiple I/O modules within the Ovation remote drop, including analog input modules such as the 1C31113G01 and 1C31116G01, digital input modules, thermocouple input modules, and RTD input modules. This modular I/O architecture allows engineers to configure each remote drop precisely to the signal types present at that physical location in the plant, reducing wiring runs and improving signal integrity. As plant requirements evolve — whether through capacity expansion, fuel switching, or emissions compliance upgrades — additional I/O modules can be added to existing remote drops managed by the 1C31181G01 without requiring changes to the controller or network infrastructure.

At the human-machine interface layer, operator workstations running the Ovation operator station software receive real-time process data that has been collected and transmitted by the 1C31181G01 and its associated I/O modules. The quality and consistency of this data directly affects the accuracy of process displays, alarm management, and historical data archiving. Engineering workstations used for control strategy development and loop tuning also depend on the 1C31181G01’s reliable I/O scanning to validate control logic during commissioning and ongoing optimization activities.

For maintenance teams, the 1C31181G01 offers significant advantages in terms of diagnostic transparency. The module provides status indicators and communicates fault information to the Ovation controller, enabling maintenance personnel to identify I/O communication issues, module failures, or wiring faults without requiring physical inspection of every remote drop. This capability reduces mean time to repair (MTTR) and supports predictive maintenance strategies that minimize unplanned outages. Spare module management is simplified by the 1C31181G01’s compatibility across multiple generations of the Ovation platform, allowing a single spare to cover multiple remote drop locations throughout the plant.

Every Emerson 1C31181G01 supplied by ZYPLC is covered by a warranty terms confirmed during quotation, ensuring that your control system architecture remains protected against component defects throughout the warranty period. Each unit undergoes functional testing prior to shipment to verify communication integrity, module identification, and I/O scanning performance. Our inventory of Ovation platform components — including controller modules, I/O modules, power supplies, and communication cards — is maintained to support both planned maintenance outages and emergency replacement scenarios, with rapid dispatch capability to minimize plant downtime.

Product Specification Table

System Compatibility Notes

The 1C31181G01 achieves its full value when considered within the context of the complete Ovation control system architecture. At the controller level, the Ovation OCR400 and OCR1100 controller modules serve as the processing core, executing control strategies and issuing commands that flow through the 1C31181G01 to field devices. Analog input signals from process transmitters are conditioned and digitized by Ovation 1C31113G01 and 1C31116G01 analog input modules, which feed real-time process variable data to the 1C31181G01 for upstream transmission. Digital field signals — from limit switches, proximity sensors, and relay contacts — are captured by Ovation digital input modules and similarly routed through the Remote I/O Master.

On the output side, Ovation analog output modules receive setpoint signals from the controller via the 1C31181G01 and generate 4–20mA signals to position control valves and modulate variable frequency drives. Ovation digital output modules and relay output modules handle discrete switching functions for motor starters, solenoid valves, and alarm annunciators. The Ovation I/O cabinet backplane provides the physical and electrical interconnection between the 1C31181G01 and its associated I/O modules, ensuring signal integrity and mechanical stability within the remote drop enclosure. For plants requiring temperature measurement, Ovation thermocouple input modules and RTD input modules integrate directly into the same remote drop architecture managed by the 1C31181G01, providing a unified I/O scanning framework across all signal types.

At the network infrastructure level, Ovation network switches and fiber optic communication links connect remote drops managed by the 1C31181G01 back to the plant-wide Ovation control network, maintaining the deterministic communication timing that process control applications demand.

Industrial Application Notes

The Emerson 1C31181G01 is deployed across a broad range of industrial automation environments where the Ovation DCS platform is the control system of choice. In power generation — including coal-fired, gas turbine, combined-cycle, and nuclear plants — the 1C31181G01 manages remote I/O drops distributed across turbine halls, boiler areas, and auxiliary systems, enabling centralized control from a single Ovation operator station network. The module’s deterministic communication performance is essential in these environments, where control loop response times directly affect unit efficiency and grid stability.

In fossil fuel and petrochemical processing facilities, the 1C31181G01 supports remote I/O architectures that span large physical distances between the control room and field equipment, reducing the cost and complexity of home-run wiring while maintaining the signal integrity required for regulatory control of pressure, temperature, flow, and level loops. Water and wastewater treatment plants utilize the 1C31181G01 in distributed pump station and treatment process control applications, where the module’s low maintenance requirements and long service life reduce operational costs over multi-decade plant lifecycles.

In mining and minerals processing operations, the 1C31181G01 enables remote I/O architectures that accommodate the physically dispersed nature of crushing, grinding, flotation, and tailings management systems. Pulp and paper and chemical manufacturing facilities similarly benefit from the module’s ability to integrate diverse I/O signal types within a single remote drop, simplifying the control system architecture for complex, multi-variable process environments. Across all these applications, the 1C31181G01’s compatibility with the Ovation platform’s redundancy, diagnostics, and network management capabilities makes it a preferred choice for engineers designing systems that must meet stringent availability and reliability targets.

Product Compatibility FAQ

Q1: Is the Emerson 1C31181G01 compatible with all versions of the Ovation DCS platform, and can it be used with both OCR400 and OCR1100 controllers?
The 1C31181G01 is designed for use within the Ovation DCS platform and is compatible with Ovation controller generations including the OCR400 and OCR1100 series. Compatibility with specific firmware versions and Ovation software releases should be verified against the plant’s current Ovation system configuration. ZYPLC recommends confirming the target Ovation software version with your system integrator or Emerson service representative prior to installation to ensure seamless system integration within your existing control architecture.

Q2: Can the 1C31181G01 be installed in a redundant configuration, and what is required to implement Remote I/O Master redundancy in an Ovation system?
Yes, the Ovation architecture supports redundant Remote I/O Master configurations using dual 1C31181G01 modules installed within the same remote drop. In a redundant configuration, the secondary module monitors the primary and assumes I/O master responsibilities automatically upon detection of a primary module fault, providing bumpless transfer without interrupting the control loop. Implementing redundancy requires appropriate Ovation network configuration, compatible backplane hardware, and correct Ovation software settings. ZYPLC supports RFQ sourcing for 1C31181G01 units to support both primary and redundant spare requirements, and our warranty terms confirmed during quotation covers both primary and redundant module installations.

Q3: What is the recommended approach for replacing a failed 1C31181G01 in an operating plant, and how does the warranty terms confirmed during quotation support long-term maintenance planning?
Replacement of a failed 1C31181G01 in an operating Ovation system should follow the plant’s established hot-swap or planned outage procedures, depending on whether redundancy is in place. In redundant configurations, the failed primary module can typically be replaced while the secondary maintains I/O master functions, minimizing process disruption. In non-redundant configurations, replacement should be coordinated with a planned control system outage window. ZYPLC’s warranty terms confirmed during quotation ensures that replacement units are covered against manufacturing defects, and our rapid dispatch capability supports emergency replacement scenarios where minimizing downtime is the priority. Each unit is functionally tested prior to shipment to verify readiness for immediate installation.
