Emerson 1C31227G01 Analog Input for Ovation

Emerson 1C31227G01 Analog Input Module: Control System and system integration for Ovation DCS

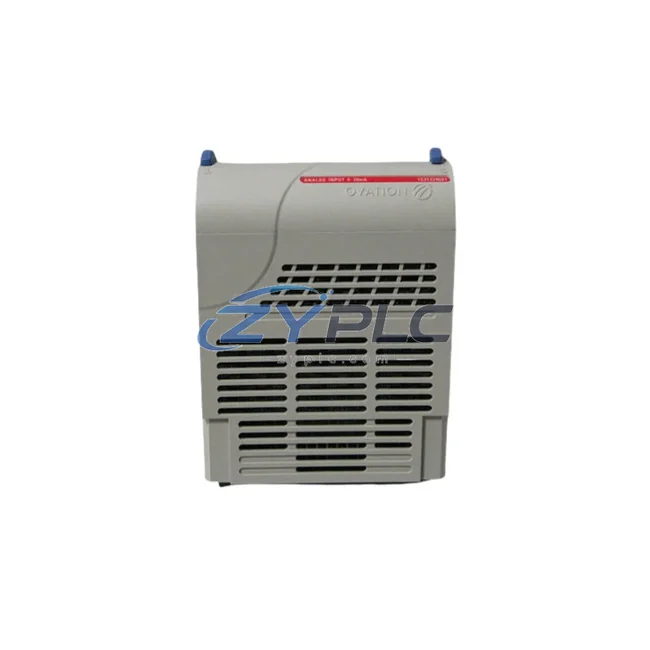

The Emerson 1C31227G01 is an 8-channel analog input module engineered for seamless deployment within the Ovation Distributed Control System (DCS) architecture. Rather than functioning as a standalone component, the 1C31227G01 is designed from the ground up to operate as an integral node within a layered automation hierarchy — bridging the physical process environment with the supervisory control layer through reliable, high-resolution signal acquisition. In modern industrial facilities, where control system consistency, scalability, and long-term maintainability are paramount, the 1C31227G01 delivers the signal integrity and system integration that system architects demand.

Across manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous process industries, the Ovation DCS platform is trusted to manage complex, multi-loop control strategies. The 1C31227G01 occupies the I/O layer of this architecture, receiving 4–20 mA and voltage signals from field transmitters, sensors, and transducers, then converting them into digital values that the Ovation controller processes in real time. Its role is not peripheral — it is foundational to the accuracy and responsiveness of the entire control loop.

Product Specification Table

System Compatibility Notes

The 1C31227G01 does not operate in isolation. Its value is realized only when it is properly integrated within the full Ovation DCS control architecture. At the controller layer, the Ovation OCR400 or OCR1100 controller modules serve as the processing core, executing control algorithms and communicating with I/O modules via the Ovation I/O bus. The 1C31227G01 slots into an Ovation I/O nest — such as the 1C31166G01 or 1C31166G02 I/O nest assemblies — which provide the backplane connectivity, power distribution, and physical housing for multiple I/O modules within a single cabinet footprint.

On the power layer, Ovation power supply modules such as the 1C31238G01 or 5X00106G01 provide regulated DC power to the I/O nest, ensuring that analog signal acquisition remains stable even under fluctuating plant electrical conditions. Voltage transients or power interruptions at the supply level can introduce noise into analog measurements; therefore, the power architecture must be engineered with appropriate redundancy and filtering before the 1C31227G01 can deliver its rated accuracy.

For digital I/O coordination within the same cabinet, the 1C31116G01 digital input module and 1C31122G01 digital output module are commonly deployed alongside the 1C31227G01, enabling a mixed I/O strategy that handles both analog process variables (temperature, pressure, flow, level) and discrete control signals (valve position feedback, motor run status, interlock signals) within a unified Ovation I/O nest.

At the network and communication layer, the Ovation DCS relies on a dedicated Ovation Network — typically a redundant 100 Mbps or 1 Gbps Ethernet-based control network — to connect controllers, I/O drops, operator workstations, and engineering stations. Communication gateway modules, such as the 5X00070G01 Ovation network interface card, facilitate data exchange between the I/O layer and the supervisory control layer, ensuring that analog values acquired by the 1C31227G01 are transmitted to the controller with deterministic timing and minimal latency.

At the human-machine interface layer, Ovation operator workstations running the Ovation Operator Station software display real-time analog values, trends, and alarm states derived from the 1C31227G01’s channel data. The seamless data path — from field transmitter through the 1C31227G01, across the Ovation I/O bus, through the OCR controller, and onto the operator display — is what makes system integration a practical reality rather than a marketing concept.

For redundancy-critical applications, the Ovation architecture supports controller redundancy and I/O redundancy configurations. In these designs, a redundant 1C31227G01 module may be installed in a mirrored I/O nest, with automatic switchover logic managed by the Ovation controller to ensure continuous analog signal acquisition even in the event of a module failure. This redundancy capability is particularly important in power plant boiler control, turbine protection, and refinery process control applications where loss of analog input data could trigger costly unplanned shutdowns.

Industrial Application Notes

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the 1C31227G01 is deployed to monitor boiler drum pressure, feedwater flow, flue gas temperature, and turbine bearing temperatures. The Ovation DCS integrates these analog inputs into closed-loop control strategies for combustion optimization, steam temperature control, and turbine load management. The module’s 16-bit resolution ensures that small process deviations are detected and corrected before they escalate into process upsets or equipment damage.

Petrochemical and Refinery Processing: Refinery control systems demand high channel density and reliable signal isolation to manage the hundreds of analog process variables involved in distillation, reaction, and separation processes. The 1C31227G01 provides the per-channel isolation necessary to prevent ground loops between field instruments operating at different potential levels, a common challenge in large petrochemical facilities with extensive cable runs.

Water and Wastewater Treatment: Municipal water treatment plants and industrial wastewater systems use the Ovation DCS with 1C31227G01 modules to monitor influent flow rates, chemical dosing pump outputs, pH levels, dissolved oxygen concentrations, and effluent turbidity. The module’s compatibility with standard 4–20 mA transmitters makes it straightforward to integrate with a wide range of analytical instruments from multiple manufacturers.

Mining and Metallurgy: In mineral processing plants and smelting operations, the 1C31227G01 supports analog monitoring of conveyor belt load cells, flotation cell level transmitters, furnace temperature sensors, and hydraulic pressure transducers. The module’s robust operating temperature range and industrial-grade construction make it suitable for the demanding electrical environments found in mining control rooms.

Packaging and Discrete Manufacturing: Even in high-speed packaging lines and discrete manufacturing environments where PLCs are the primary control platform, Ovation DCS systems are sometimes deployed for facility-wide condition monitoring and utility management. In these applications, the 1C31227G01 acquires analog data from power meters, compressed air flow sensors, and HVAC system transmitters, feeding this data into the plant’s maintenance planning and reporting systems.

Product Compatibility FAQ

Q1: Is the 1C31227G01 compatible with all Ovation DCS controller generations, and can it be mixed with other I/O module types in the same nest?
The 1C31227G01 is designed for the Ovation I/O architecture and is compatible with Ovation controller generations including the OCR400 and OCR1100 series. It can be mixed with other Ovation I/O module types — including digital input, digital output, and analog output modules — within the same I/O nest, provided the nest’s slot assignments and controller I/O configuration are correctly defined in the Ovation engineering database. Always verify module compatibility against the specific Ovation system release and I/O nest model in use at your site.

Q2: What installation and commissioning steps are required when replacing a 1C31227G01 in a live Ovation DCS system?
The 1C31227G01 supports hot-swap replacement in Ovation systems configured for online I/O replacement, subject to the specific Ovation software version and hardware configuration at your site. Prior to replacement, the corresponding I/O channels should be placed in manual mode at the operator station to prevent control upsets during the swap. After installation, the replacement module should be verified against the Ovation engineering database configuration, and all channel calibrations should be confirmed before returning the channels to automatic control. Our team provides pre-shipment testing documentation to support commissioning and site acceptance testing.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning for Ovation DCS systems?
Every 1C31227G01 supplied by ZYPLC is covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes functional testing to verify channel accuracy, isolation integrity, and backplane communication performance. The warranty terms confirmed during quotation provides maintenance planners with a defined coverage period that aligns with annual plant maintenance cycles, supporting spare parts inventory strategies and reducing the financial risk associated with unplanned module failures. For long-term Ovation DCS maintenance programs, we recommend maintaining at least one spare 1C31227G01 per active I/O nest to minimize mean time to repair (MTTR) in the event of a module fault.
