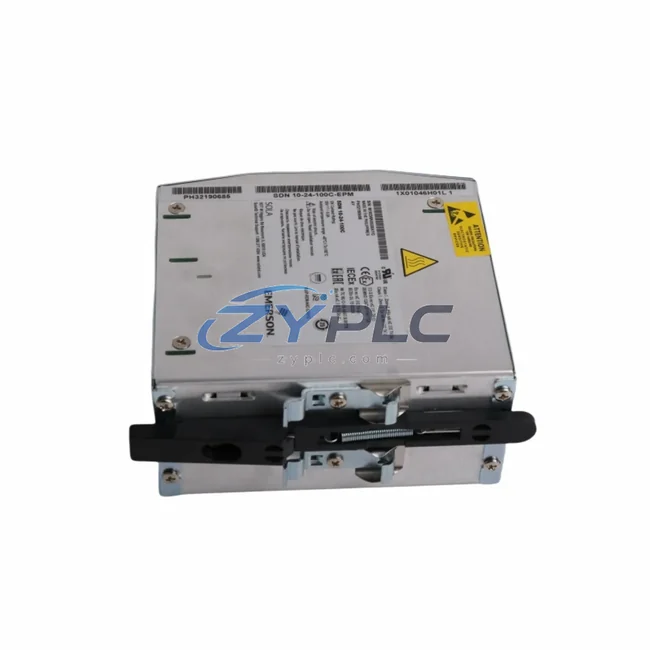

Emerson 1X01046H01L Power Supply for Ovation

Emerson 1X01046H01L Power Supply for Ovation: Compatibility and Replacement Notes

The Emerson 1X01046H01L is a dedicated power supply module engineered for deployment within the Emerson Ovation Distributed Control System (DCS) platform — one of the most widely adopted process automation architectures in power generation, water treatment, and continuous manufacturing environments. Rather than functioning as a standalone component, the 1X01046H01L occupies a foundational role in the Ovation system hierarchy: it provides stable, conditioned DC power to the controller backplane, I/O modules, and communication interfaces that collectively define the system’s operational integrity. Understanding this module requires viewing it not in isolation, but as a critical node within a layered automation architecture where power stability directly determines control reliability, signal fidelity, and long-term maintainability.

In a fully configured Ovation control cabinet, the 1X01046H01L interfaces with the Ovation controller module — typically an OCR400 or OCR1100 series processor — mounted on the same backplane. The controller depends on the power supply to maintain consistent voltage rails during both steady-state operation and transient load events caused by I/O scanning cycles, communication bursts, or module hot-swap events. Any voltage deviation at the backplane level propagates immediately to the controller’s CPU and memory subsystems, making the 1X01046H01L’s regulation performance a direct determinant of controller uptime. In redundant controller configurations, dual power supply modules are deployed in parallel, with automatic load sharing and failover ensuring that a single power supply fault does not interrupt the control loop.

At the I/O layer, the 1X01046H01L supports the power budget required by Ovation I/O modules such as the 5X00070G01 analog input module, 5X00106G01 digital output module, and 5X00119G01 digital input module. These modules draw regulated power from the backplane bus, and the power supply must accommodate the aggregate current demand of a fully populated I/O chassis. In large-scale Ovation installations — such as those found in combined-cycle power plants or municipal water treatment facilities — multiple I/O racks are distributed across the control room and field junction boxes, each requiring its own power supply module. The 1X01046H01L is designed to meet these distributed power demands while maintaining the isolation and noise rejection characteristics required in environments with high electromagnetic interference from variable frequency drives, large motor starters, and high-voltage switchgear.

At the network and communication layer, the Ovation system relies on the Ovation Network — a deterministic Ethernet-based control network — to synchronize data between controllers, I/O modules, operator workstations, and historian servers. The 1X01046H01L powers the communication interface cards and network switches integrated into the controller chassis, ensuring that network latency and packet loss remain within the tight bounds required for closed-loop control. In systems where the Ovation network interfaces with third-party protocols such as MODBUS RTU, PROFIBUS DP, or IEC 61850 via dedicated communication gateway modules, the power supply’s stability is equally critical to maintaining protocol translation integrity.

From a human-machine interface perspective, Ovation operator workstations and engineering workstations connect to the control network and depend on the controller — and by extension the power supply — for real-time process data. In facilities where operators monitor critical parameters such as turbine speed, boiler drum level, or reactor temperature, any power-related interruption at the controller level results in stale data displays and potential alarm floods. The 1X01046H01L’s design prioritizes hold-up time during brief AC input interruptions, allowing the controller to maintain its last known state and communicate a graceful shutdown signal to the operator interface rather than experiencing an abrupt loss of control.

At the execution layer, the Ovation controller — powered by the 1X01046H01L — issues control outputs to final control elements including control valves, variable frequency drives, motor control centers, and relay output modules. The timing precision of these outputs is directly tied to the controller’s clock stability, which in turn depends on the power supply’s voltage regulation. In applications such as turbine governor control or boiler combustion management, millisecond-level timing accuracy is required, and the 1X01046H01L’s low-ripple output ensures that the controller’s internal oscillator remains within specification throughout the operating temperature range.

Product Specification Table

System Compatibility Notes

The 1X01046H01L is most effectively deployed as part of a coordinated Ovation system architecture. In a typical power plant DCS cabinet, the module shares the backplane with the Emerson OCR400 Ovation Controller, which handles the primary control algorithms for boiler, turbine, and balance-of-plant systems. Redundant controller configurations pair two OCR400 units with two 1X01046H01L power supplies, with the Emerson 1X00774H01 Redundancy Module managing automatic switchover in the event of a controller or power supply fault.

On the I/O side, the power supply supports racks populated with Emerson 5X00070G01 Analog Input Modules for 4–20 mA process signals, 5X00106G01 Digital Output Modules for valve and relay actuation, and 5X00119G01 Digital Input Modules for field contact monitoring. In larger installations, Emerson Remote I/O Nodes extend the I/O architecture to field junction boxes, each requiring their own locally mounted power supply modules of the same family.

Communication integrity is maintained through Emerson Ovation Network Switches and, where third-party integration is required, through Emerson MODBUS TCP/RTU Gateway Modules or PROFIBUS DP Communication Modules. These gateways draw power from the same backplane bus, making the 1X01046H01L’s current capacity a key factor in system design. At the operator interface level, Emerson Ovation Operator Workstations (OWS) and Engineering Workstations (EWS) connect to the Ovation Network and depend on the controller’s continuous operation — sustained by the power supply — for real-time process visualization and alarm management.

For terminal and wiring infrastructure, Emerson Marshalling Cabinets and associated terminal block assemblies organize field wiring before it reaches the I/O modules, ensuring that the power supply’s noise rejection capabilities are complemented by proper signal segregation at the marshalling layer. This coordinated approach — from power supply through controller, I/O, communication, and HMI layers — defines the Ovation system’s reputation for high availability in mission-critical process environments.

Industrial Application Notes

The Emerson 1X01046H01L finds its primary application in power generation facilities, where Ovation DCS systems manage boiler combustion control, turbine governor systems, feedwater control, and emissions monitoring. In combined-cycle gas turbine plants, the power supply module must sustain controller operation through grid disturbances and plant startup/shutdown transients — conditions that place maximum stress on the power supply’s regulation and hold-up capabilities.

In water and wastewater treatment applications, Ovation systems control pump stations, chemical dosing systems, filtration processes, and SCADA integration points. The 1X01046H01L’s wide input voltage range accommodates the variable power quality often encountered in municipal utility environments, where voltage sags and harmonic distortion from large pump motors are common.

In petrochemical and refinery environments, the module supports Ovation controllers managing distillation column control, heat exchanger bypass, and compressor surge protection. The galvanic isolation between input and output protects the controller backplane from ground loops introduced by long field cable runs in electrically noisy process areas.

For mining and metallurgical applications, the 1X01046H01L supports Ovation systems controlling ore processing conveyors, flotation cell control, and smelter process management. The module’s extended operating temperature range accommodates the elevated ambient temperatures found in smelter control rooms and underground mining installations.

In packaging and continuous manufacturing lines, where Ovation is deployed for high-speed process control and quality management, the power supply’s low-ripple output ensures that analog I/O modules maintain their full measurement resolution — critical for weight-based filling systems, vision inspection triggers, and servo drive coordination.

Product Compatibility FAQ

Q1: Is the 1X01046H01L compatible with both older and newer Ovation controller generations, and can it be used in a mixed-generation cabinet?
The 1X01046H01L is designed for the Ovation DCS backplane architecture and is compatible with Ovation controller generations including the OCR400 and OCR1100 series. In mixed-generation cabinets where older and newer I/O modules coexist on the same backplane, the power supply’s regulated output maintains consistent voltage rails across all slots. However, it is recommended to verify the aggregate current draw of all installed modules against the power supply’s rated output current before commissioning a mixed-generation rack, as newer high-density I/O modules may have higher per-slot power consumption than legacy modules.

Q2: How should the 1X01046H01L be configured in a redundant power supply architecture, and what happens during a failover event?
In redundant configurations, two 1X01046H01L modules are installed in adjacent power supply slots on the Ovation backplane and operate in active load-sharing mode, each carrying approximately 50% of the total backplane load under normal conditions. The Emerson 1X00774H01 Redundancy Module monitors both power supplies and, upon detecting a fault condition — such as output voltage deviation, overcurrent, or overtemperature — automatically transfers the full load to the healthy unit within milliseconds, without interrupting controller operation or triggering a control loop upset. The faulty module can then be replaced hot without requiring a system shutdown, provided the replacement unit is of the same part number and firmware revision.

Q3: What does the warranty terms confirmed during quotation cover for the 1X01046H01L, and what support is available for long-term maintenance planning?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions for a period of twelve months from the date of shipment. If the module fails to perform to its published specifications within the warranty period, ZYPLC will provide a replacement unit or repair service at no additional cost. For long-term maintenance planning, ZYPLC maintains inventory of the 1X01046H01L and related Ovation DCS components to support planned maintenance outages, emergency replacements, and lifecycle extension programs for aging Ovation installations. Customers are encouraged to contact ZYPLC’s technical team at plc.sales@zyplc.com or +86 19859288691 to discuss multi-unit stocking agreements and system-level spare parts planning.
