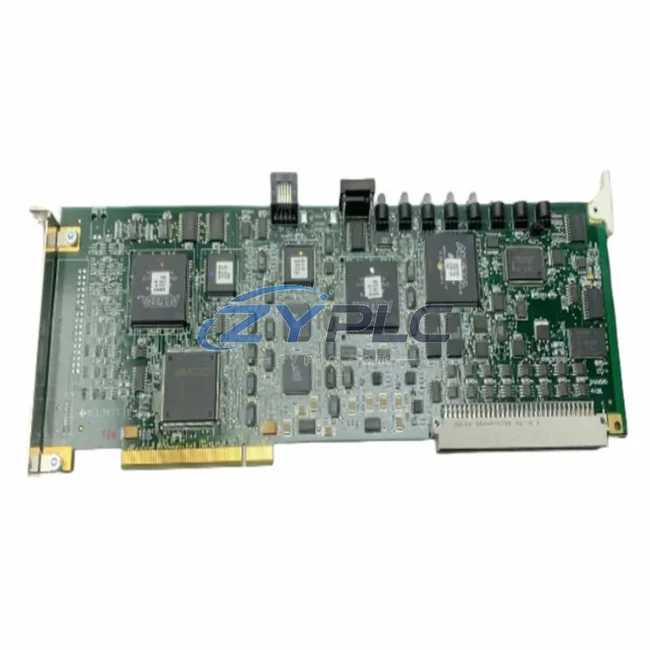

Emerson 3A99158G01 PLC I/O Module for Ovation

Emerson 3A99158G01 PLC I/O Module for Ovation Automation

The Emerson 3A99158G01 is a high-performance PLC I/O module engineered for the Ovation Distributed Control System (DCS) platform. Designed to meet the demanding requirements of power generation, chemical processing, and heavy industrial environments, this module plays a central role in reducing unplanned downtime risk across the control architecture. By delivering precise, real-time signal acquisition and output execution, the 3A99158G01 eliminates the latency and signal drift that often lead to overcorrection in motor drives and actuator systems — directly translating into measurable operational stability on the production floor.

In modern industrial facilities, unplanned downtime rarely originates from a single source. It accumulates through inefficient I/O polling cycles, poorly calibrated feedback loops, and control systems that cannot respond fast enough to dynamic load changes. The Emerson 3A99158G01 addresses these issues at the hardware level. Its high-density I/O architecture supports tight integration with Emerson Ovation controllers, enabling deterministic scan times that keep variable frequency drives (VFDs) and servo systems operating within their optimal efficiency bands. When paired with Emerson’s Ovation OCR400 controller, the module enables closed-loop maintenance planning strategies that continuously adjust motor speed references based on real process demand — rather than running equipment at fixed setpoints that waste power during low-load periods.

From an condition monitoring perspective, the 3A99158G01 serves as the data acquisition backbone for power metering subsystems. Analog input channels on this module can be mapped directly to current transformers and power transducers, feeding live consumption data into the Ovation historian. This allows energy engineers to correlate production throughput with operating-hour consumption at the equipment level — a prerequisite for any meaningful maintenance planning initiative. When integrated with Emerson’s Ovation Energy Management application, the module’s data streams support demand response strategies that shed non-critical loads during peak tariff windows, reducing energy costs without impacting production output.

On the drive and motion side, the 3A99158G01’s digital output channels provide the command signals that govern start/stop sequences, speed references, and torque limits for connected Emerson drives and third-party VFDs. Properly sequenced motor starts — enabled by the module’s fast output response — eliminate the inrush current spikes that stress power distribution infrastructure and inflate demand charges. For conveyor systems, pump stations, and compressor trains, this translates into smoother production line pacing and reduced peak power draw. The module also supports integration with Emerson’s AMS Device Manager for predictive maintenance workflows: by monitoring valve positioner feedback and motor current signatures through the I/O channels, maintenance teams can identify developing faults before they cause unplanned downtime — preserving both energy efficiency and equipment availability.

The 3A99158G01 is fully compatible with the Ovation redundancy architecture. In high-availability configurations, it operates alongside redundant Ovation I/O buses and controller pairs, ensuring that a single module failure does not interrupt the maintenance planning control loop. This is particularly critical in continuous process industries where an uncontrolled shutdown can result in significant unplanned downtime during restart sequences and product loss. The module’s hot-swap capability further supports maintenance efficiency, allowing field technicians to replace units without de-energizing the control cabinet — minimizing the operational disruption associated with routine hardware servicing.

For facilities managing legacy DCS migrations, the 3A99158G01 provides a cost-effective path to modernizing I/O infrastructure without replacing the entire control system. Its compatibility with existing Ovation wiring termination assemblies reduces installation labor and commissioning time, accelerating the return on investment for energy efficiency upgrade projects. When combined with Emerson’s Ovation Workstation software and the Ovation Network Interface Module (NIM), the module enables seamless data exchange with plant-level SCADA systems and MES platforms — closing the loop between field-level energy data and enterprise energy reporting.

Every Emerson 3A99158G01 supplied by ZYPLC undergoes full functional testing prior to shipment, including I/O channel verification, communication integrity checks, and power consumption validation. Units are shipped with original or equivalent protective packaging to prevent transit damage. RFQ-confirmed availability supports short lead times for maintenance and project requirements. All units are covered by a warranty terms confirmed during quotation, providing assurance of product quality and long-term operational reliability.

Product Specification Table

System Compatibility and Application

The 3A99158G01 operates at the intersection of field instrumentation and control execution within the Ovation DCS architecture. At the controller level, the Emerson Ovation OCR400 processes the I/O data streams from this module and executes the maintenance planning control strategies defined in the Ovation configuration database. The Ovation Network Interface Module (NIM) bridges the I/O bus to the plant Ethernet network, enabling real-time data visibility in the Ovation Workstation and historian applications.

For motor-driven loads, the 3A99158G01’s analog output channels deliver 4–20 mA speed reference signals to variable frequency drives — including Emerson’s own Control Techniques Commander and Unidrive series — allowing the DCS to implement energy-optimized speed profiles based on process demand signals. On the power monitoring side, the module’s analog inputs interface with Schneider Electric PowerLogic PM series power meters and similar transducers, capturing real-time kW, kVAR, and power factor data for integration into the Ovation energy dashboard.

Digital I/O channels on the 3A99158G01 manage the sequencing of motor control centers (MCCs), coordinating soft-starter enable signals and contactor commands to eliminate unnecessary motor run time during low-demand periods. The module also supports integration with Emerson’s DeltaV SIS safety instrumented system for facilities that operate both DCS and SIS platforms, enabling coordinated energy shutdown sequences during planned maintenance windows. For distributed I/O expansion, the 3A99158G01 works alongside Emerson’s RROX and RRIO remote I/O modules, extending the condition monitoring and control architecture to field equipment located far from the main control room.

Maintenance and Replacement Notes

In a typical power generation facility running the Ovation DCS, the 3A99158G01 module manages the I/O signals for boiler feedwater pump controls, cooling tower fan drives, and auxiliary motor systems. By enabling precise closed-loop control of these loads — adjusting pump speeds in response to header pressure feedback rather than running at fixed speed — facilities have documented energy reductions of Actual operating results depend on the installed system, load profile, and commissioning parameters. The module’s fast scan cycle ensures that speed corrections are applied before process deviations grow large enough to require overcorrection, which itself wastes energy and accelerates mechanical wear.

In chemical processing plants, the 3A99158G01 supports energy-optimized batch sequencing by providing the I/O infrastructure for reactor temperature control loops and agitator drive management. Tight integration between the module’s analog inputs and the Ovation PID controllers allows heating and cooling energy to be applied precisely when needed, reducing the thermal unplanned downtime associated with overshooting setpoints. Predictive maintenance data collected through the module’s I/O channels — motor current, valve position feedback, and vibration transmitter signals — feeds into Emerson’s AMS Device Manager, enabling condition-based maintenance scheduling that prevents the energy-intensive restart sequences associated with unexpected equipment failures.

For water and wastewater treatment facilities, the 3A99158G01 enables demand-based pump control strategies that align pumping operating load with actual flow requirements, reducing energy costs during off-peak production periods. The module’s reliability in harsh electrical environments — including facilities with significant variable frequency drive harmonic content on the power distribution system — ensures consistent I/O performance without signal degradation that could compromise energy control accuracy.

Product Sourcing FAQ

Q: How does the Emerson 3A99158G01 contribute to measurable operational stability?
A: The module enables precise closed-loop control of motor-driven loads by providing accurate, low-latency I/O signals to the Ovation DCS controller. This allows variable frequency drives and actuators to operate at demand-matched speeds rather than fixed setpoints, directly reducing operating load on variable-torque loads such as pumps, fans, and compressors.

Q: Is the 3A99158G01 compatible with current Ovation DCS configurations?
A: Yes. The 3A99158G01 is designed for the Emerson Ovation platform and is compatible with Ovation OCR400 controllers, Ovation I/O buses, and existing Ovation wiring termination assemblies. It supports both simplex and redundant I/O configurations, making it suitable for both standard and high-availability Ovation installations.

Q: Can this module replace a failed unit in an existing Ovation system without full system reconfiguration?
A: In most cases, yes. The 3A99158G01 is a direct replacement for failed or end-of-life units within compatible Ovation I/O chassis. ZYPLC recommends verifying the firmware revision and I/O channel configuration against the existing system documentation before installation. Our technical team can assist with compatibility verification prior to shipment.

Q: What testing and warranty coverage does ZYPLC provide for this module?
A: Every 3A99158G01 unit is functionally tested prior to shipment, including I/O channel verification and communication integrity validation. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Units that fail within the warranty period are repaired or replaced at no additional cost, subject to standard warranty terms.
