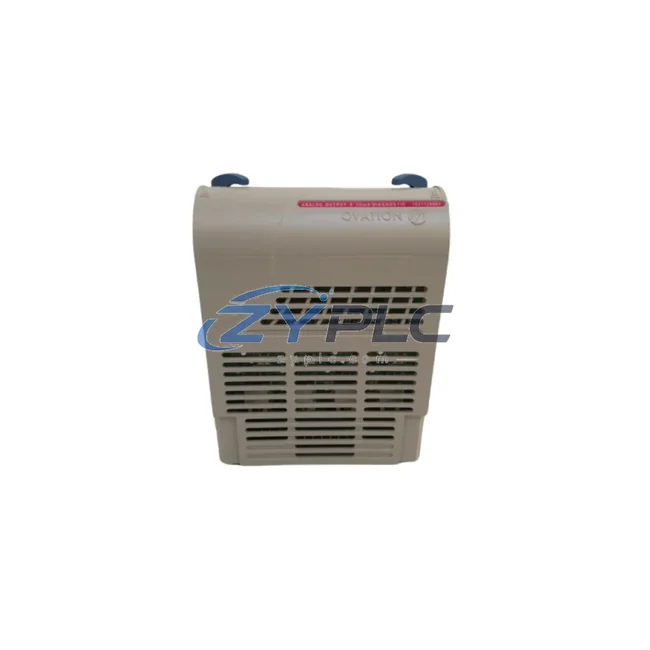

Emerson 5X00063G01 Digital Output for Ovation

Emerson 5X00063G01 Digital Output for Ovation: Control System Coordination and Downstream Signal Integrity

In a fully integrated distributed control system, every module must perform not only as a standalone component but as a synchronized participant within a layered automation hierarchy. The Emerson 5X00063G01 Digital Output Module is engineered precisely for this role within the Ovation DCS platform — a system architecture widely deployed across power generation, water treatment, petrochemical processing, and industrial utilities. Rather than functioning as an isolated output device, the 5X00063G01 operates as a critical signal-delivery node that bridges the control layer with field-level actuators, drives, and switching equipment, ensuring that command signals generated at the controller level are faithfully and reliably executed at the process level.

The Ovation DCS architecture is built around a modular, rack-based philosophy in which the controller, I/O modules, communication infrastructure, and power distribution components are tightly coordinated. The 5X00063G01 fits directly into this framework, occupying a defined slot within the Ovation I/O chassis and communicating with the Ovation Controller — such as the OCR400 or OCR1100 — through the system backplane. This backplane-based communication eliminates the need for point-to-point field wiring between the controller and the output module, reducing installation complexity and improving signal determinism across the control loop.

From a system architecture perspective, the 5X00063G01 sits at the I/O layer, receiving discrete output commands from the process controller and converting them into field-level switching signals. These signals are used to energize solenoid valves, motor starters, relay coils, indicator lamps, and other binary-actuated field devices. The module’s output channels are designed to interface with standard 24 VDC or 120/240 VAC field circuits depending on the specific variant, making it compatible with a broad range of field instrumentation and switchgear commonly found in industrial control cabinets.

Within the broader Ovation system, the 5X00063G01 works in close coordination with complementary I/O modules such as the 5X00062G01 Digital Input Module, which handles discrete field signal acquisition, and analog modules like the 5X00070G01 Analog Input Module and 5X00071G01 Analog Output Module, which manage continuous process variable monitoring and control. Together, these modules form a complete I/O subsystem that feeds data to and from the Ovation Controller, enabling closed-loop process control across the entire plant.

Power distribution to the I/O chassis is managed through dedicated Ovation Power Supply modules, which provide regulated, redundant DC power to all installed I/O cards. The 5X00063G01 draws its operating power directly from the chassis backplane, ensuring stable operation even under varying field load conditions. In high-availability applications, redundant power supply configurations — using dual power supply modules feeding the same chassis — protect against single-point power failures and maintain continuous output signal delivery to critical field devices.

Network communication within the Ovation architecture is handled by the Ovation Network, a deterministic Ethernet-based control network that connects controllers, I/O nodes, operator workstations, and engineering stations. The 5X00063G01, as a backplane-connected I/O module, participates in this network indirectly through its host controller, which aggregates I/O data and transmits it across the Ovation Network to the Ovation Operator Station (OWS) and Ovation Engineer Station (OES). This architecture ensures that output commands issued from the HMI layer are processed by the controller and delivered to the 5X00063G01 within the system’s defined scan cycle, maintaining process responsiveness and control loop integrity.

For applications requiring redundancy at the I/O level, the Ovation platform supports controller redundancy configurations in which a standby controller mirrors the active controller’s output states. In the event of a controller failover, the standby controller assumes control and continues to drive the 5X00063G01’s output channels without interruption, protecting against process upsets caused by controller-level faults. This redundancy architecture is particularly important in power plant applications where unplanned output signal loss can trigger turbine trips, boiler shutdowns, or safety system activations.

From a maintenance and lifecycle perspective, the 5X00063G01 supports hot-swap replacement within the Ovation chassis, allowing field engineers to remove and replace the module without powering down the entire I/O rack. This capability significantly reduces maintenance downtime and supports the long-term operational continuity requirements of 24/7 industrial facilities. Combined with Emerson’s warranty terms confirmed during quotation coverage, the 5X00063G01 provides a reliable, low-risk procurement option for both new system builds and legacy system expansions.

Inventory availability of the 5X00063G01 is maintained to support both planned capital projects and emergency replacement scenarios. For facilities operating aging Ovation DCS installations, maintaining a strategic spare inventory of critical I/O modules — including the 5X00063G01, alongside the 5X00062G01 digital input module and relevant power supply and communication modules — is a recognized best practice for minimizing unplanned downtime risk. Our stock is tested, verified, and shipped with full documentation to support seamless integration into existing Ovation system configurations.

Product Specification Table

System Compatibility Notes

The 5X00063G01 achieves its full value when deployed as part of a coordinated Ovation system architecture. At the controller layer, the Ovation OCR400 or OCR1100 Controller processes logic and issues discrete output commands to the 5X00063G01 via the chassis backplane. Alongside the 5X00063G01, the 5X00062G01 Digital Input Module collects field status signals — limit switch positions, valve feedback, motor run confirmations — and returns them to the controller for logic evaluation. Analog process variables are handled by the 5X00070G01 Analog Input Module and 5X00071G01 Analog Output Module, which manage 4–20 mA signals for flow, pressure, temperature, and level instrumentation.

At the network layer, the Ovation Network Switch connects controllers, I/O nodes, and workstations across a deterministic Ethernet backbone, ensuring that output commands from the Ovation Operator Workstation (OWS) reach the 5X00063G01 within defined response times. The Ovation Engineer Station (OES) provides configuration, calibration, and diagnostic access to all I/O modules including the 5X00063G01, supporting both commissioning and ongoing maintenance activities. For facilities integrating Ovation with third-party systems, the Ovation OPC Server or Modbus Gateway modules enable data exchange with SCADA platforms, historian systems, and safety instrumented systems (SIS) without disrupting the primary control architecture.

At the power layer, redundant Ovation Power Supply Modules ensure that the I/O chassis — and by extension the 5X00063G01 — receives continuous, regulated power even during single power supply failures. Terminal block assemblies and marshalling panels at the field wiring layer provide organized, labeled connection points for the 5X00063G01’s output field wiring, supporting clean installation practices and simplified troubleshooting during maintenance cycles.

Industrial Application Notes

The Emerson 5X00063G01 is deployed across a wide range of industrial automation environments where reliable discrete output control is essential to process safety and operational continuity.

In power generation applications — including coal-fired, gas turbine, combined cycle, and nuclear auxiliary systems — the 5X00063G01 controls solenoid valves, motor-operated valves, pump starters, and auxiliary equipment switching. Its integration within the Ovation DCS ensures that turbine control sequences, boiler management logic, and balance-of-plant automation are executed with the determinism and reliability required by power plant operational standards.

In water and wastewater treatment facilities, the 5X00063G01 manages pump station controls, chemical dosing valve actuation, and filtration system sequencing. The module’s compatibility with the Ovation platform’s alarm management and historian integration capabilities supports regulatory compliance reporting and operational data archiving requirements common in municipal water utilities.

In petrochemical and refinery environments, the 5X00063G01 participates in process unit control schemes where discrete output signals govern valve positioning, compressor sequencing, and emergency shutdown (ESD) pre-trip logic. Its hot-swap capability and warranty terms confirmed during quotation support the maintenance strategies of facilities operating under continuous production schedules with minimal planned shutdown windows.

In mining and metals processing applications, the 5X00063G01 controls conveyor drive starters, crusher sequencing, and ore processing equipment switching within Ovation-based plant automation systems. Its robust industrial design supports operation in environments with elevated vibration, dust, and temperature variation.

Product Compatibility FAQ

Q1: Is the Emerson 5X00063G01 compatible with all versions of the Ovation DCS platform, and can it be integrated into an existing Ovation system without a full system upgrade?
The 5X00063G01 is designed for the Ovation I/O chassis architecture and is compatible with Ovation system versions that support the standard Ovation I/O backplane interface. In most cases, the module can be installed into an existing Ovation I/O chassis without requiring a controller firmware upgrade, provided the chassis and controller version support the module’s I/O type. It is recommended to verify chassis slot compatibility and controller I/O database configuration with your Ovation system documentation or Emerson service representative prior to installation. Our team can assist with compatibility verification based on your existing system configuration.

Q2: Does the 5X00063G01 support redundant output configurations, and how does it behave during an Ovation controller failover event?
The 5X00063G01 itself is a non-redundant I/O module; however, it operates within the Ovation redundant controller architecture, where a standby controller continuously mirrors the active controller’s output states. During a controller failover, the standby controller assumes control and resumes driving the 5X00063G01’s output channels with minimal interruption — typically within the system’s defined failover response time. For applications requiring I/O-level redundancy, Emerson’s Ovation platform supports redundant I/O configurations using paired I/O modules and redundant field wiring schemes. Consult your Ovation system architecture documentation for specific redundancy configuration options applicable to your installation.

Q3: What does the warranty terms confirmed during quotation cover for the 5X00063G01, and what is the process for warranty claims or module replacement?
The warranty terms confirmed during quotation covers manufacturing defects, component failures, and functional performance issues identified under normal operating conditions consistent with the module’s specified environmental and electrical ratings. Prior to shipment, each 5X00063G01 unit undergoes functional testing to verify output channel operation, backplane communication integrity, and electrical parameter compliance. In the event of a warranty claim, our support team initiates a replacement or repair process with priority handling to minimize impact on your operational continuity. Warranty claims are supported by our technical team at plc.sales@zyplc.com or by phone at +86 19859288691, with documentation provided to support your maintenance records and asset management systems.
