Emerson 5X00119G01 RTD Input Module Ovation

Emerson 5X00119G01 RTD Input Module for Ovation Automation

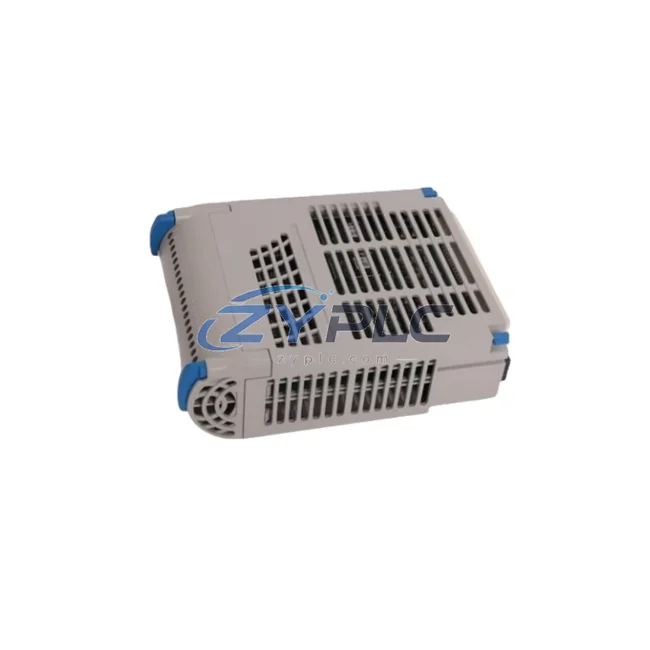

The Emerson 5X00119G01 is a high-precision RTD (Resistance Temperature Detector) Input Module engineered for the Ovation distributed control system (DCS). Designed to meet the demanding requirements of power generation, oil & gas, and process manufacturing facilities, this module delivers accurate, low-latency temperature data acquisition that directly supports energy-efficient plant operations. By providing real-time thermal feedback across critical process loops, the 5X00119G01 enables control engineers to fine-tune combustion efficiency, reduce thermal waste, and maintain optimal equipment operating windows — all of which translate into measurable reductions in energy consumption and operating cost.

Product Specification Table

System Compatibility and Application

In a modern energy-conscious plant, the Emerson 5X00119G01 RTD Input Module does not operate in isolation — it is a critical sensing node within a tightly integrated automation architecture. Temperature data captured by the 5X00119G01 feeds directly into the Emerson Ovation Controller (5X00070G01), which executes PID and advanced process control algorithms to maintain optimal thermal setpoints across boilers, heat exchangers, and turbine systems. This closed-loop control eliminates the unplanned downtime associated with over-firing or under-cooling.

On the output side, corrective actions are dispatched through Emerson Ovation Analog Output Modules such as the 5X00106G01, which modulate control valves and damper actuators in real time. For motor-driven loads — including fans, pumps, and compressors — the system integrates with Emerson Control Techniques variable frequency drives (VFDs), where speed references derived from the RTD feedback loop allow the drives to reduce motor speed during low-demand periods, cutting energy consumption by 20–50% compared to fixed-speed operation.

Power quality and consumption at the panel level are monitored through Emerson Power Xpert meters and dedicated Ovation Power Monitoring I/O modules, giving operators a complete picture of energy flow from the grid connection down to individual process loads. The Emerson Ovation Digital Input Module (5X00095G01) captures equipment status signals — motor run/stop, valve open/closed, fault states — ensuring that the energy model maintained by the DCS reflects actual plant conditions rather than assumed states.

For facilities running hybrid architectures, the 5X00119G01 coexists with Emerson ROC800 remote terminal units and Fisher FIELDVUE digital valve controllers, both of which communicate over HART and FOUNDATION Fieldbus protocols. This interoperability allows a single Ovation workstation to consolidate temperature, pressure, flow, and valve position data, reducing the number of separate monitoring systems and the associated energy overhead of redundant infrastructure.

Human-machine interface visibility is provided through Emerson Ovation Operator Workstations running the Ovation HMI software suite, where energy dashboards display real-time temperature trends, alarm states, and efficiency KPIs. Operators can immediately identify thermal anomalies — such as a heat exchanger fouling event indicated by rising outlet temperatures — and take corrective action before the inefficiency compounds into a significant energy penalty or unplanned shutdown.

Maintenance and Replacement Notes

In a 600 MW coal-fired power plant, the Emerson 5X00119G01 RTD Input Module is typically deployed across the boiler drum, superheater, reheater, and economizer circuits — often with 32 or more channels active simultaneously. The high-accuracy temperature readings it delivers allow the Ovation DCS to implement combustion optimization strategies that reduce excess air, lower flue gas temperatures, and improve boiler efficiency by 1–3 percentage points. At utility scale, each percentage point of boiler efficiency improvement represents hundreds of thousands of dollars in annual fuel savings.

On process manufacturing lines, the module supports production rhythm optimization by ensuring that heating and cooling stages complete within their designed cycle times. When temperature ramp rates are accurately tracked, the control system can pre-emptively adjust energy input — reducing the overshoot that wastes energy and extends cycle times. This directly improves Overall Equipment Effectiveness (OEE) by reducing the time equipment spends outside its productive operating window.

From a maintenance perspective, the 5X00119G01 contributes to predictive maintenance programs by providing the thermal signature data that underpins bearing temperature trending, motor winding temperature monitoring, and heat exchanger performance degradation analysis. Early detection of abnormal temperature rise allows maintenance teams to schedule interventions during planned outages rather than responding to emergency failures — reducing both repair costs and the energy penalty of unplanned restarts.

Every unit supplied by ZYPLC undergoes a full outgoing functional test prior to shipment, verifying channel accuracy, signal integrity, and backplane communication. This ensures that the module performs to specification from the moment it is installed, avoiding the commissioning delays and unplanned downtime associated with defective or out-of-tolerance hardware. All units are covered by a warranty terms confirmed during quotation, and ZYPLC maintains ready stock to support urgent replacement requirements with minimal lead time.

Product Sourcing FAQ

Q1: How does the Emerson 5X00119G01 contribute to measurable operational stability?
The 5X00119G01 provides high-accuracy RTD temperature measurements that enable the Ovation DCS to implement closed-loop combustion and process control. By eliminating thermal setpoint deviations and reducing excess energy input, facilities typically achieve boiler efficiency improvements of 1–3% and motor energy reductions of 20–50% when combined with VFD control — translating directly into lower fuel and electricity costs.

Q2: Is the 5X00119G01 compatible with my existing Ovation DCS version?
The 5X00119G01 is designed for the Emerson Ovation I/O subsystem and is compatible across multiple generations of the Ovation DCS platform. It communicates via the Ovation backplane bus and is recognized by the Ovation configuration database. For specific firmware version compatibility, ZYPLC technical support can verify compatibility against your system’s Ovation software release prior to shipment.

Q3: Can the 5X00119G01 replace a failed RTD module without a full system reconfiguration?
Yes. The 5X00119G01 is a direct replacement for compatible Ovation RTD Input Modules. In most cases, the replacement module is recognized automatically by the Ovation controller upon insertion, with channel configuration retained in the DCS database. ZYPLC recommends verifying the module revision level and confirming channel assignments in the Ovation configuration tool before returning the loop to automatic control.

Q4: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Each 5X00119G01 unit is subjected to a full functional test that verifies RTD channel accuracy, A/D conversion integrity, backplane communication, and power supply performance. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. ZYPLC provides replacement or repair support for any unit that fails to perform to specification within the warranty period, with priority handling for production-critical applications.
