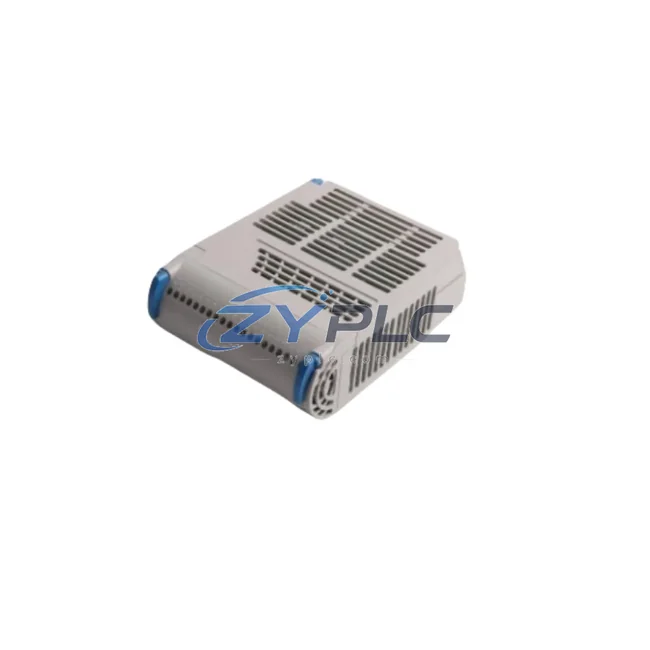

Emerson 5X00481G03 DCS Controller Module for Ovation Systems

Emerson 5X00481G03 Industrial Network Interface for Ovation Systems: Powering Smart Factory Data Links

The Emerson 5X00481G03 is a high-performance DCS controller module engineered for the Ovation distributed control system platform. Designed to serve as a critical industrial network interface, this module bridges field-level devices — including sensors, actuators, and remote I/O — with upper-level SCADA, HMI, and enterprise data systems. In modern smart factory environments where real-time data integrity and protocol interoperability are non-negotiable, the 5X00481G03 delivers the communication backbone that keeps production lines transparent, responsive, and continuously optimized.

At its core, the 5X00481G03 functions as a gateway between the physical process layer and the digital control layer. It supports both Ethernet-based and serial communication protocols, enabling seamless data exchange across heterogeneous network architectures. Whether integrating legacy serial field instruments or connecting to high-speed Ethernet backbones, this module ensures that signal data flows without interruption from the process floor to the control room — and beyond to cloud-based analytics platforms.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated Ovation DCS architecture, the Emerson 5X00481G03 sits at the heart of the data acquisition and control loop. Signal chains begin at the field level, where process sensors — pressure transmitters, flow meters, temperature RTDs, and level switches — feed raw analog and digital signals into remote I/O modules such as the Emerson Ovation Remote I/O Processor. These signals are conditioned and digitized before being passed upstream through the Ovation control network.

The 5X00481G03 controller module receives this structured process data and executes the configured control logic in real time. Its Ethernet interface connects directly to the Ovation Operator Workstation (OWS) and Ovation Engineer Workstation (EWS), enabling operators to monitor live process variables, adjust setpoints, and respond to alarms without latency. Simultaneously, the module communicates with Emerson Ovation I/O Interface Modules — including analog input cards and digital output cards — to close the control loop back to field actuators and control valves.

For facilities running mixed-vendor environments, the 5X00481G03 supports Modbus RTU and Modbus TCP, allowing it to exchange data with third-party PLCs, variable frequency drives (VFDs), and smart motor control centers. This makes it straightforward to integrate drives such as the Emerson Control Techniques Unidrive M series or third-party Siemens SINAMICS drives into the Ovation supervisory layer without requiring additional protocol converters. The module’s OPC server capability further extends its reach to Wonderware InTouch SCADA and GE iFIX HMI platforms, enabling plant-wide data visibility from a single unified dashboard.

Edge computing nodes — such as industrial edge gateways running OSIsoft PI or similar historian platforms — can subscribe to real-time data streams published by the 5X00481G03, enabling long-term trend analysis, predictive maintenance modeling, and energy consumption reporting. This positions the module not just as a controller, but as a data publisher within the broader Industrial IoT (IIoT) ecosystem.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — where field devices, PLCs, DCS controllers, and SCADA systems operate in silos, unable to share process data efficiently. The Emerson 5X00481G03 directly addresses this challenge through its multi-protocol communication architecture.

By supporting both Ethernet TCP/IP and serial RS-485 Modbus on the same module, the 5X00481G03 eliminates the need for standalone protocol converters or media converters between network segments. Facilities that previously required separate gateway hardware to bridge their legacy serial field bus to a modern Ethernet SCADA backbone can now consolidate that function within the Ovation controller itself — reducing panel space, wiring complexity, and potential points of failure.

Remote monitoring and diagnostics are equally critical in large-scale industrial sites where physical access to control panels is limited. The 5X00481G03 supports remote configuration and fault diagnostics through the Ovation engineering workstation, allowing maintenance engineers to identify communication faults, module health status, and network latency issues without dispatching field technicians. This capability is particularly valuable in power generation plants, offshore platforms, and water treatment facilities where downtime costs are extremely high.

Production line transparency — the ability to see real-time OEE (Overall Equipment Effectiveness), batch completion status, and alarm histories — is achieved by routing all process data through the 5X00481G03 to the SCADA historian. Plant managers gain access to live KPI dashboards, enabling data-driven decisions on maintenance scheduling, production optimization, and energy management. System expansion is equally seamless: additional Ovation I/O modules and remote I/O nodes can be added to the network without reconfiguring the core controller, supporting phased capacity growth aligned with production demands.

Industrial Connectivity FAQ

Q1: What communication protocols does the Emerson 5X00481G03 support, and is it compatible with third-party SCADA systems?
The 5X00481G03 supports Ethernet TCP/IP, Modbus RTU, Modbus TCP, and OPC communication protocols. It is fully compatible with major SCADA platforms including Wonderware, GE iFIX, and Ignition, as well as OPC-compliant HMI systems, making it suitable for both Emerson-native and multi-vendor control architectures.

Q2: How does the 5X00481G03 ensure network stability in high-noise industrial environments?
The module is designed to Emerson’s industrial-grade EMC standards, with shielded backplane connections and noise-filtered Ethernet ports. Its deterministic communication cycle ensures that control data is transmitted within defined latency windows, even in environments with significant electromagnetic interference from VFDs, welding equipment, or high-voltage switchgear.

Q3: Can the 5X00481G03 be integrated into an existing Ovation DCS system without a full system upgrade?
Yes. The 5X00481G03 is designed for hot-swap compatibility within the Ovation controller chassis. It can be installed into an existing Ovation system with minimal disruption, and the Ovation EWS automatically detects and configures the new module. This makes it ideal for capacity expansion or module replacement without requiring a full system shutdown.

Q4: What quality assurance and warranty coverage is provided with the 5X00481G03?
Every 5X00481G03 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including communication loop-back tests, protocol handshake verification, and power-on self-test (POST) validation. All units are covered by a warranty terms confirmed during quotation from the date of shipment, with technical support available for installation, configuration, and troubleshooting assistance.
