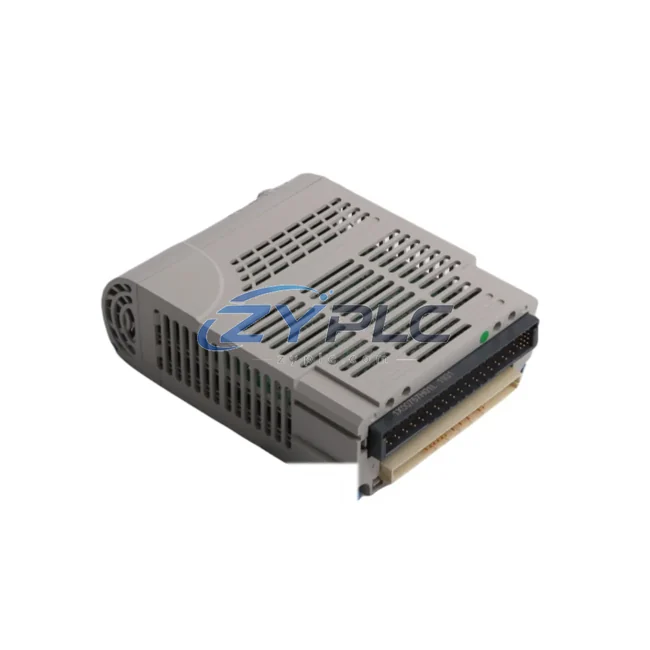

Emerson 5X00501G01 Digital Input Module for Ovation Systems

Emerson 5X00501G01 Industrial Network Interface for Ovation Systems: Precision Data Links for Smart Factory Connectivity

The Emerson 5X00501G01 is a high-reliability Digital Input Module engineered for the Emerson Ovation Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in power generation, water treatment, and continuous manufacturing environments. As a core I/O component within the Ovation network architecture, the 5X00501G01 serves as a critical data acquisition node, capturing discrete field signals from sensors, limit switches, relay contacts, and protective relay outputs, then transmitting structured digital data upstream through the Ovation controller backplane to SCADA supervisory layers and HMI operator stations.

In modern smart factory and process plant deployments, the integrity of the digital input chain directly determines the quality of real-time monitoring, alarm management, and automated control response. The 5X00501G01 is designed to meet these demands with deterministic signal acquisition, high channel density, and seamless integration into the Ovation I/O bus — ensuring that every field event is captured, timestamped, and delivered to the control layer without latency or data loss.

Compatibility & Integration Notes

Connected Automation Data Flow

Within a fully integrated Ovation DCS architecture, the 5X00501G01 Digital Input Module sits at the foundation of the field-to-control data chain. Field devices — including proximity sensors, pressure switch contacts, motor run/stop feedback relays, and protective relay trip signals — wire directly to the module’s terminal block. The 5X00501G01 conditions and digitizes these discrete signals, passing structured I/O data across the Ovation I/O backplane to the resident Emerson Ovation OCR1100 Controller, which executes control logic and updates the process database in real time.

From the controller, process data flows via the Ovation Plant Network — a redundant Ethernet-based control network — to Ovation Operator Stations (OWS) running the Ovation HMI, where operators monitor digital input states, acknowledge alarms, and issue control commands. Simultaneously, the Ovation OPC Server exposes live I/O data to third-party SCADA platforms, historian systems such as the Emerson Ovation Historian, and enterprise MES layers via OPC DA and OPC UA protocols.

For plants requiring protocol bridging to legacy or third-party systems, the 5X00501G01’s data can be routed through an Emerson ROC800 Remote Operations Controller or a dedicated Modbus TCP/RTU gateway, enabling integration with older PLCs, variable frequency drives (VFDs), and third-party SCADA systems that do not natively support the Ovation protocol. In distributed plant topologies, Ovation Remote I/O Nodes extend the digital input network across long cable runs, with the 5X00501G01 serving as a standard I/O module within remote cabinets connected back to the main controller via fiber-optic Ovation network links.

Edge computing nodes — such as the Emerson Edge Gateway — can subscribe to Ovation OPC UA data streams, enabling local analytics, anomaly detection, and cloud forwarding without disrupting the real-time control loop. This architecture ensures that the 5X00501G01’s field-level digital inputs contribute not only to real-time process control but also to long-term data analytics, predictive maintenance, and digital twin applications across the smart factory ecosystem.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation — where legacy DCS platforms, standalone PLCs, third-party drives, and newer IIoT edge devices each speak different communication languages, creating data silos that prevent plant-wide visibility and coordinated control. The Emerson 5X00501G01, as part of the Ovation DCS I/O infrastructure, directly addresses this challenge by providing a standardized, high-integrity digital input interface that feeds into the Ovation controller’s unified process database.

Through the Ovation OPC UA server layer, digital input states captured by the 5X00501G01 become accessible to any OPC-compliant SCADA, historian, or MES platform — eliminating the need for custom protocol drivers or point-to-point wiring workarounds. For sites where legacy Modbus RTU devices coexist with the Ovation DCS, protocol conversion gateways bridge the communication gap, ensuring that all field data — regardless of origin — is consolidated into a single, queryable process namespace.

Remote monitoring and diagnostics are equally critical in large-scale process plants where field cabinets may be located hundreds of meters from the control room. The Ovation DCS architecture supports remote I/O diagnostics through the Ovation Operator Station, allowing maintenance engineers to verify digital input channel health, check signal integrity, and identify wiring faults without physical cabinet access. This capability dramatically reduces mean time to repair (MTTR) and supports predictive maintenance workflows.

For production line transparency, the 5X00501G01’s high channel density and deterministic scan rates ensure that every discrete event — motor starts, valve positions, interlock activations, and protective relay trips — is captured and logged with millisecond-level precision. This data granularity supports root cause analysis, compliance reporting, and continuous improvement initiatives across the plant. As production demands grow, the modular Ovation I/O architecture allows additional 5X00501G01 modules to be added to existing I/O cabinets without system downtime, providing a scalable path for capacity expansion.

Industrial Connectivity FAQ

Q1: What communication protocols does the Emerson 5X00501G01 support for SCADA integration?
The 5X00501G01 communicates natively over the Ovation I/O backplane bus to the Ovation controller, which exposes process data via OPC DA and OPC UA to third-party SCADA and historian platforms. For legacy Modbus RTU/TCP environments, protocol gateway modules can bridge Ovation data to Modbus-compatible systems with minimal latency impact on the control loop.

Q2: How does the 5X00501G01 ensure network stability in high-noise industrial environments?
The module is designed for installation within Ovation I/O cabinets that provide EMI shielding, isolated power supplies, and redundant backplane communication paths. The Ovation controller’s redundant network architecture further ensures that a single network fault does not interrupt I/O data delivery to the SCADA or HMI layer.

Q3: Can the 5X00501G01 be integrated into an existing Ovation DCS without system shutdown?
In most Ovation configurations, I/O modules can be added to spare slots in existing I/O cabinets with hot-insertion support, subject to controller configuration updates. System expansion planning should be validated against the specific Ovation controller firmware version and cabinet power budget. ZYPLC’s technical team can assist with compatibility verification prior to shipment.

Q4: What pre-shipment testing and warranty coverage is provided?
Every Emerson 5X00501G01 unit supplied by ZYPLC undergoes functional verification testing prior to dispatch, confirming channel integrity and backplane communication readiness. All units are covered by a warranty terms confirmed during quotation against manufacturing defects and operational failures. Expedited global shipping is available via DHL and FedEx, with tracking provided upon dispatch.
