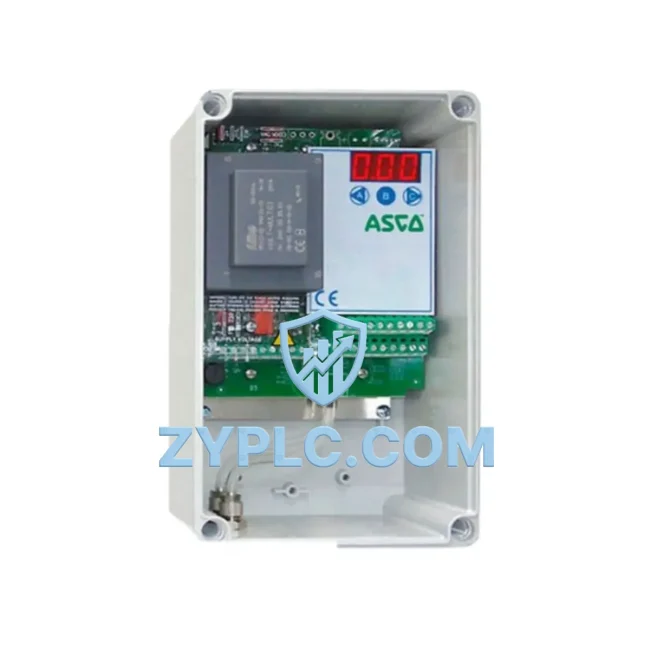

Emerson ASCO E909PA16MU1 Electronic Valve Controller for E900

Emerson ASCO E909PA16MU1 Electronic Valve Controller: Coordination and Upstream-Downstream Integration

The Emerson ASCO E909PA16MU1 is a system-compatible electronic valve controller engineered for seamless integration within layered industrial automation architectures. Rather than functioning as a standalone switching device, the E909PA16MU1 is designed to operate as a coordinated node within a complete control system — bridging the command layer, signal distribution layer, and final control element layer in a unified, deterministic manner. Its role within the ASCO E900 Series platform makes it a preferred choice for engineers designing high-availability process control systems where valve response consistency, signal fidelity, and long-term maintainability are non-negotiable requirements.

In modern distributed control environments, the electronic valve controller occupies a critical position between the PLC or DCS controller and the pneumatic or hydraulic actuator. The E909PA16MU1 receives discrete or analog command signals from upstream controllers — such as Emerson DeltaV DCS modules or third-party Siemens S7-300/S7-400 PLCs — and translates those commands into precise valve actuation outputs. This signal chain integrity is fundamental to process stability, particularly in applications where valve response latency or signal dropout can trigger safety interlocks or production shutdowns.

Product Specification Table

System Compatibility Notes

The E909PA16MU1 achieves its highest value when deployed as part of a coordinated multi-layer control architecture. At the controller layer, upstream CPU modules — such as the Emerson DeltaV M-Series controller or Allen-Bradley ControlLogix L7x processors — issue valve command signals through discrete output modules. These signals are routed through marshalling panels or terminal modules, such as ASCO Series 900 terminal blocks or equivalent Weidmüller or Phoenix Contact DIN rail terminal assemblies, before reaching the E909PA16MU1 at the field device layer.

At the power layer, the E909PA16MU1 operates in conjunction with 24VDC power supply units — such as the Emerson Astec or Phoenix Contact QUINT series — which provide stable, filtered DC power to the valve controller and associated solenoid coils. Proper power distribution design, including the use of redundant power supply modules and UPS backup systems, ensures that valve state is maintained during transient power events, preventing unintended valve actuation in critical process lines.

Within the I/O layer, the E909PA16MU1 interfaces with digital output (DO) modules from the control platform. In Emerson DeltaV architectures, this typically involves CHARM I/O modules or traditional 8-channel DO cards that provide isolated switching outputs to the valve controller. In Siemens TIA Portal environments, ET 200SP distributed I/O modules with digital output slices serve the equivalent function, enabling the E909PA16MU1 to be integrated into PROFINET-based distributed control topologies without modification to the valve controller hardware itself.

For applications requiring valve position feedback, the E909PA16MU1 can be paired with ASCO Series 900 position feedback accessories or third-party limit switch assemblies, with feedback signals routed back to digital input (DI) modules at the I/O layer. This closed-loop valve monitoring capability supports advanced diagnostics, partial stroke testing (PST) for safety instrumented systems (SIS), and real-time valve health monitoring through the HMI layer — typically implemented using Wonderware InTouch, Emerson DeltaV Operate, or Siemens WinCC SCADA platforms.

In redundant architecture designs, the E909PA16MU1 can be deployed in dual-coil solenoid valve configurations, where two independent valve controllers receive commands from redundant PLC or DCS output channels. This architecture, commonly used in SIL 2 and SIL 3 safety loops, ensures that a single point of failure in the control output path does not result in loss of valve control. The ASCO E900 Series platform supports this redundancy model natively, making the E909PA16MU1 a compatible component in IEC 61511-compliant safety system designs.

Industrial Application Notes

The Emerson ASCO E909PA16MU1 is deployed across a broad range of industrial sectors where precise, reliable valve control is essential to process integrity and operational safety.

In oil and gas processing and petrochemical plants, the E909PA16MU1 controls isolation and shutdown valves in high-pressure process lines, operating in conjunction with emergency shutdown (ESD) systems and fire and gas (F&G) detection panels. Its compatibility with SIL-rated architectures makes it suitable for use in safety instrumented functions (SIFs) where valve response time and proof-test interval compliance are regulatory requirements.

In power generation facilities — including thermal, combined-cycle, and renewable energy plants — the E909PA16MU1 manages steam control valves, cooling water isolation valves, and fuel gas shutoff valves. Integration with DCS platforms such as Emerson Ovation or ABB Symphony Plus allows plant operators to monitor valve status and execute remote valve commands from the central control room, reducing the need for field operator intervention during normal and emergency operations.

In water and wastewater treatment systems, the E909PA16MU1 controls process valves in filtration, chemical dosing, and sludge handling systems. Its robust construction and compatibility with standard 24VDC control architectures make it suitable for both indoor pump station panels and outdoor field junction boxes in municipal and industrial water treatment facilities.

In pharmaceutical and food processing environments, the E909PA16MU1 supports hygienic process valve control in CIP (clean-in-place) and SIP (sterilize-in-place) systems, where valve sequencing accuracy and audit trail capability are critical for regulatory compliance. Integration with batch control systems based on ISA-88 standards allows the E909PA16MU1 to participate in recipe-driven valve sequencing operations managed by the DCS or PLC batch engine.

In mining, metallurgy, and mineral processing applications, the E909PA16MU1 controls slurry isolation valves, compressed air distribution valves, and hydraulic actuator control circuits in harsh, dust-laden environments. Its industrial-grade construction ensures reliable operation under the mechanical vibration, temperature cycling, and electrical noise conditions typical of heavy industrial processing facilities.

Product Compatibility FAQ

Q1: Is the ASCO E909PA16MU1 compatible with both Emerson DeltaV and third-party PLC platforms such as Siemens S7 or Allen-Bradley ControlLogix?
Yes. The E909PA16MU1 operates on standard 24VDC discrete control signals, making it compatible with any PLC or DCS platform capable of providing digital output signals at the appropriate voltage and current rating. No proprietary communication protocol is required at the valve controller level, allowing the E909PA16MU1 to be integrated into Emerson DeltaV, Siemens TIA Portal, Rockwell Studio 5000, ABB 800xA, and Yokogawa CENTUM VP architectures without hardware modification. system integration with the ASCO E900 Series platform provides additional diagnostic and configuration capabilities when used within Emerson ecosystem environments.

Q2: Can the E909PA16MU1 be used in SIL 2 safety instrumented systems, and what architectural requirements apply?
The E909PA16MU1 is suitable for use in SIL 2 safety loops when deployed in accordance with IEC 61511 architectural requirements. For SIL 2 applications, a redundant 1oo2 (one-out-of-two) or 2oo3 (two-out-of-three) valve controller configuration is typically required, with independent power supplies and separate control output channels from the safety PLC or SIS controller. Proof-test intervals and diagnostic coverage requirements must be evaluated against the specific SIL 2 PFD (probability of failure on demand) target for the safety instrumented function. Our engineering team can provide application-specific guidance on SIL-compliant deployment configurations.

Q3: What does the 12-Month Warranty cover, and what support is available for long-term maintenance and spare parts supply?
The 12-Month Warranty covers manufacturing defects, component failures under normal operating conditions, and functional non-conformance to published specifications. Warranty claims are processed through ZYPLC’s technical support team, with replacement units dispatched within agreed lead times. For long-term maintenance planning, ZYPLC maintains stock of the E909PA16MU1 and related ASCO E900 Series components, enabling customers to establish consignment stock agreements or scheduled replenishment programs. Our technical team provides installation guidance, commissioning support, and cross-reference assistance for obsolete or discontinued ASCO valve controller models to ensure continuity of supply for long-lifecycle industrial installations.
