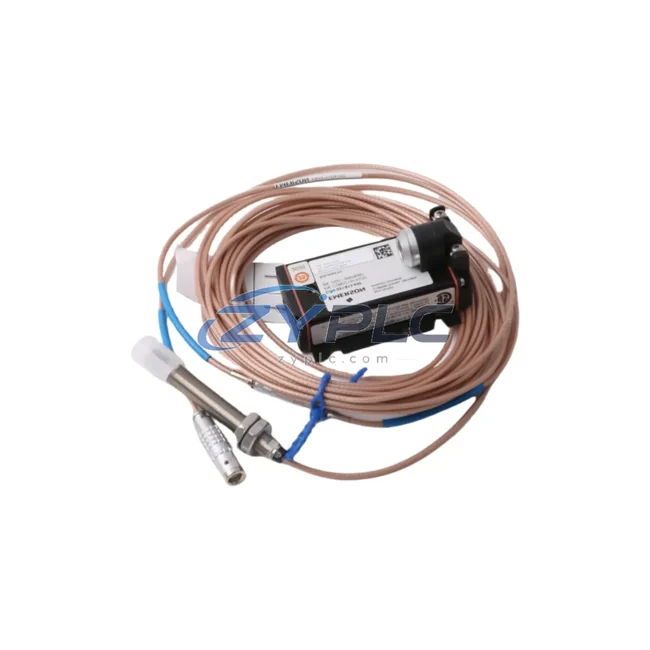

Emerson CON021/913-030 Eddy Current Sensor for CSI

Emerson CON021/913-030 Eddy Current Sensor for CSI: Control System Coordination and Upstream-Downstream Synergy

In modern industrial automation, no sensor operates in isolation. The Emerson CON021/913-030 eddy current sensor is engineered not merely as a standalone proximity measurement device, but as a precision component within a fully coordinated control system architecture. Designed for seamless integration into Emerson’s CSI Series machinery health monitoring platforms, this sensor delivers non-contact displacement and vibration measurement with the signal fidelity, environmental resilience, and system compatibility demanded by continuous process industries including power generation, petrochemical refining, water treatment, metallurgy, and rotating machinery applications.

The CON021/913-030 operates on the eddy current principle, generating a high-frequency electromagnetic field that responds to conductive target proximity with exceptional linearity and repeatability. Its output signal integrates directly with Emerson CSI 6500 machinery protection systems and AMS 2600 online monitoring platforms, enabling real-time vibration trending, alarm management, and predictive maintenance workflows without signal conditioning gaps or protocol mismatches. This system integration is the foundation of its value in layered automation environments.

Product Specification Table

System Compatibility Notes

The CON021/913-030 achieves its full performance potential when deployed within a coherent system architecture rather than as an isolated measurement point. In a typical rotating machinery protection system, this sensor works in concert with a matched extension cable from the CON021 series to maintain signal integrity over distances up to 9 meters without impedance mismatch. The signal is then received by the Emerson 1900/65A dual-channel machinery protection monitor, which processes the raw displacement signal into velocity and acceleration parameters for alarm and trip logic.

At the control layer, the 1900/65A communicates upstream to the Emerson DeltaV DCS or a third-party PLC via 4–20 mA analog outputs or Modbus RTU, enabling the distributed control system to incorporate vibration health data into process interlocks and shutdown sequences. Simultaneously, the AMS 2600 online monitoring platform aggregates multi-channel vibration data from multiple CON021/913-030 sensors installed across a compressor train or turbine set, providing the operations team with a unified machinery health dashboard.

For redundant protection architectures, the CON021/913-030 is frequently paired with a secondary proximity probe channel using the CON021/916-028 extension cable variant, ensuring that a single cable failure does not result in loss of protection coverage. The Epro A6220 signal conditioner provides an alternative signal processing path in hybrid system configurations where legacy Epro infrastructure coexists with Emerson CSI platforms.

At the I/O layer, terminal modules such as the Emerson A6210 interface card facilitate clean signal routing from field-mounted sensors to the protection rack, minimizing ground loop interference and ensuring consistent signal reference across multi-sensor installations. Power supply stability is maintained through dedicated 24 VDC instrument power rails, often sourced from redundant power modules within the protection panel to eliminate single-point power failures.

Human-machine interface integration is achieved through the CSI 2140 portable data collector, which allows maintenance engineers to perform route-based vibration surveys and compare live readings against baseline signatures stored in the AMS Suite predictive maintenance database. This closed-loop workflow — from sensor signal through monitor processing, DCS integration, and HMI visualization — exemplifies the system-level value of the CON021/913-030 within a fully coordinated control architecture.

Industrial Application Notes

The CON021/913-030 is deployed across a broad spectrum of process industries where rotating machinery reliability is critical to production continuity. In power generation facilities, it monitors shaft displacement on steam turbines and boiler feed pumps, providing early warning of rotor instability before catastrophic failure occurs. The sensor’s high-frequency response and low noise floor make it suitable for detecting sub-synchronous vibration phenomena associated with fluid-induced instability in high-speed centrifugal compressors used in petrochemical and LNG processing plants.

In water treatment and municipal utility applications, the CON021/913-030 is installed on vertical turbine pumps and blower assemblies, where its non-contact measurement principle eliminates wear-related drift that would affect contact-type sensors in wet or chemically aggressive environments. Mining and mineral processing operations rely on this sensor for continuous monitoring of large grinding mill trunnion bearings and crusher drive shafts, where early detection of bearing defects translates directly into reduced unplanned downtime and lower maintenance costs.

Metallurgical and steel mill applications benefit from the sensor’s high-temperature tolerance and robust construction, enabling reliable operation in proximity to induction furnaces and rolling mill drives where electromagnetic interference and thermal gradients challenge conventional instrumentation. Packaging and food processing lines utilize the CON021/913-030 for precision shaft alignment verification and imbalance detection on high-speed filling and sealing machinery, where vibration-induced product quality defects carry significant commercial consequences.

Product Compatibility FAQ

Q1: Is the CON021/913-030 compatible with non-Emerson protection systems, and what signal conditioning is required?
A1: Yes. The CON021/913-030 produces a standard –24 VDC biased analog output that is compatible with most third-party machinery protection monitors accepting eddy current probe inputs, including Bently Nevada 3500 series monitors and Epro MMS 6000 systems. No additional signal conditioning is required provided the monitor’s input impedance matches the probe driver output specification. For HART-enabled monitors, a HART multiplexer may be required to extract digital diagnostic data alongside the analog process signal.

Q2: How does the CON021/913-030 support long-term maintenance efficiency in a multi-sensor architecture?
A2: The sensor’s matched cable system design ensures that replacement units maintain calibrated sensitivity without field recalibration, provided the replacement probe, extension cable, and driver are sourced as a matched set. Integration with the AMS 2600 platform enables automated sensor health diagnostics, flagging open-circuit or short-circuit conditions before they result in false trips or missed alarms. The warranty terms confirmed during quotation covers manufacturing defects and signal calibration integrity, providing procurement teams with a defined support horizon for spare parts planning.

Q3: What installation and commissioning considerations apply when integrating the CON021/913-030 into an existing CSI architecture?
A3: During installation, the probe gap must be set within the linear range of the driver (typically 0.5–1.5 mm for a 5 mm probe) using a calibrated gap-setting tool and a digital voltmeter referenced to the driver output. The extension cable must be routed away from high-voltage power cables to minimize electromagnetic interference. During commissioning, the static gap voltage should be verified against the driver’s calibration certificate, and a slow-roll vibration check should be performed to confirm signal polarity and phase reference alignment with the protection monitor’s configuration. All settings should be documented in the plant’s instrument management system for future reference during scheduled maintenance intervals.
